Servo Motor Driving Wire Guide Automatic Copper Wire Transformer Coil Winding Machine

Product Overview

Description

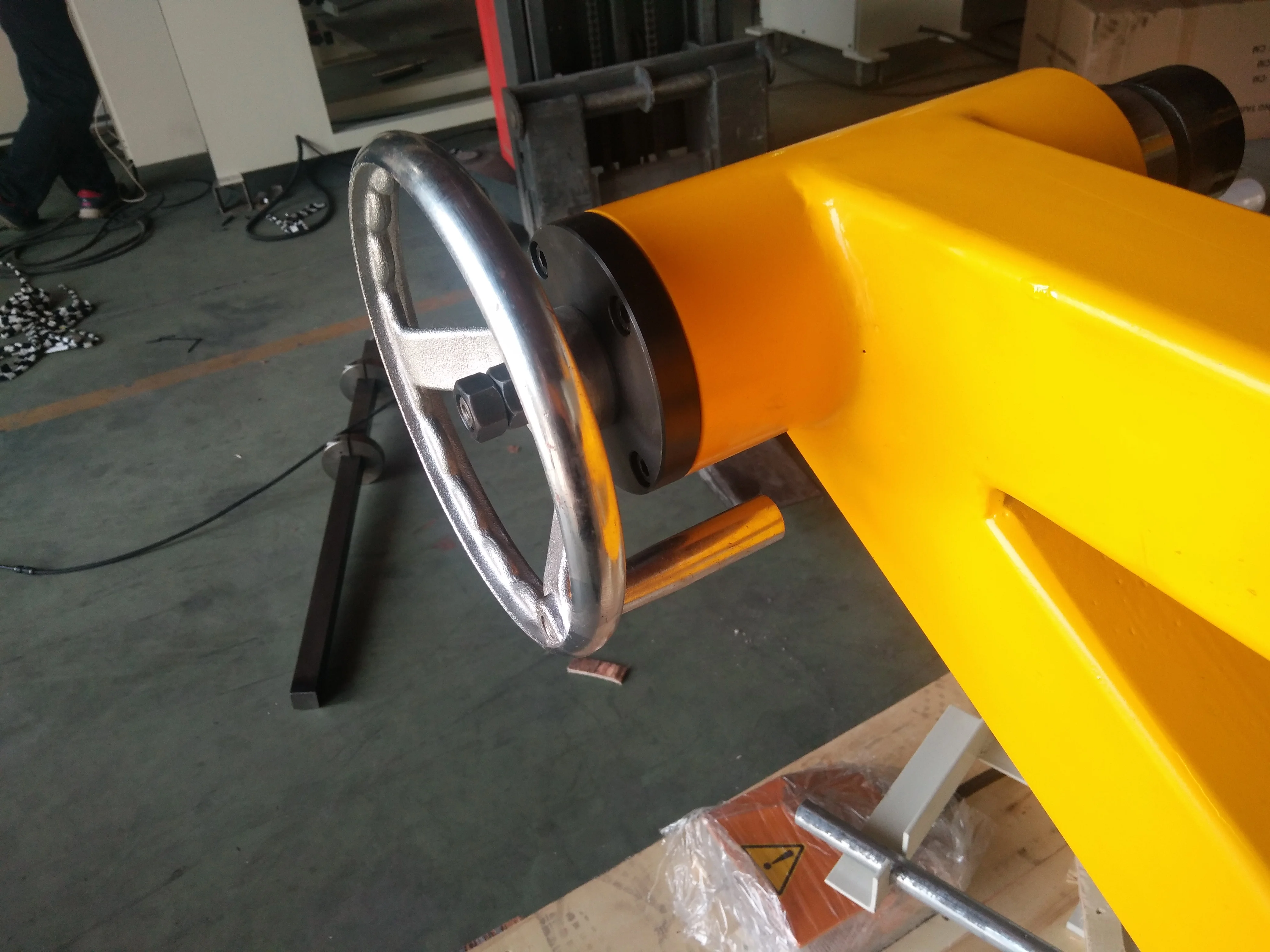

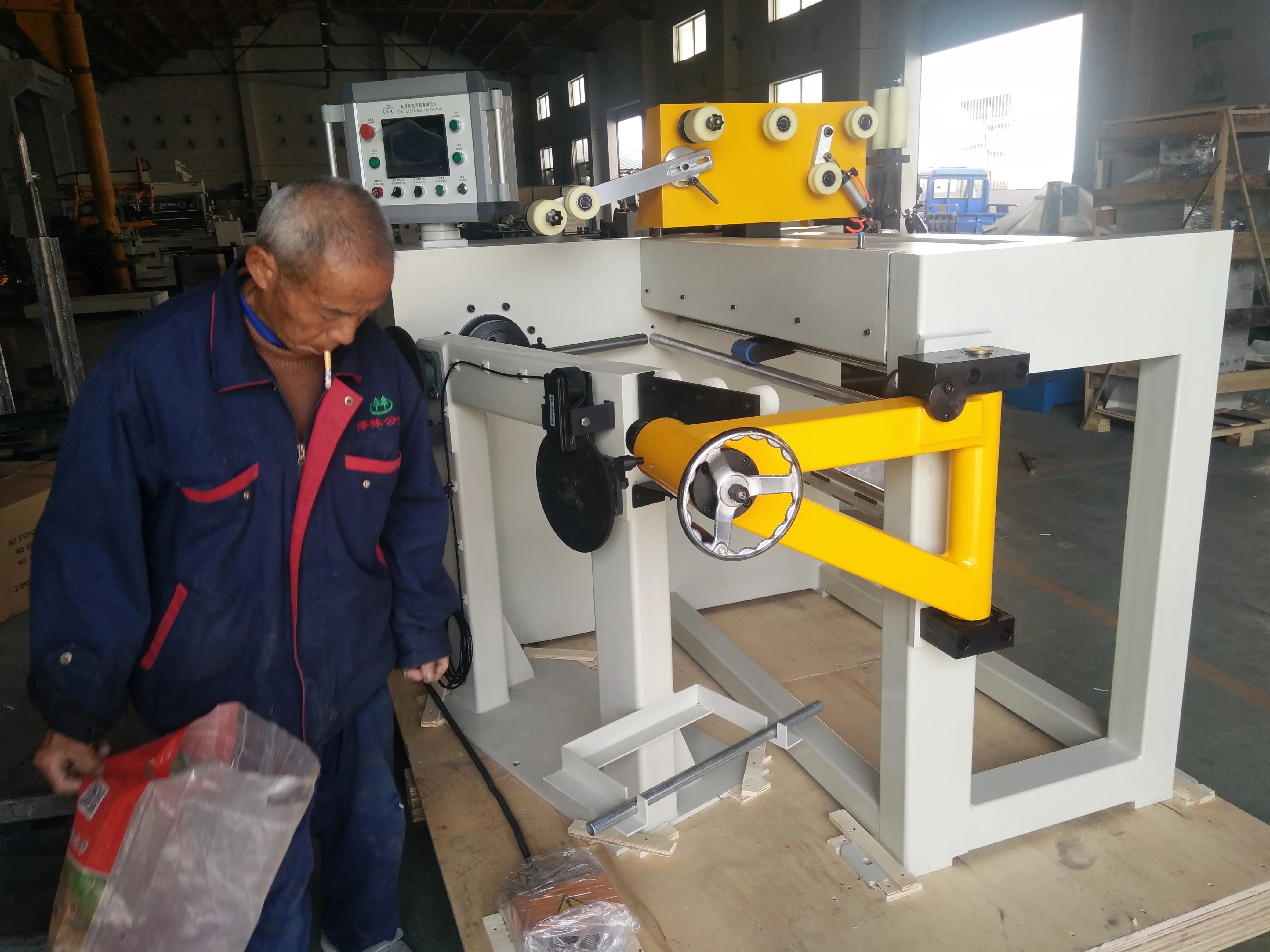

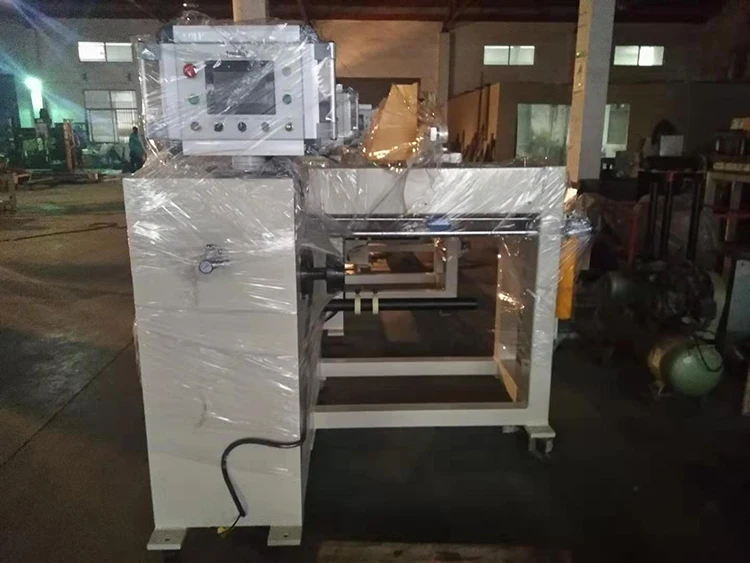

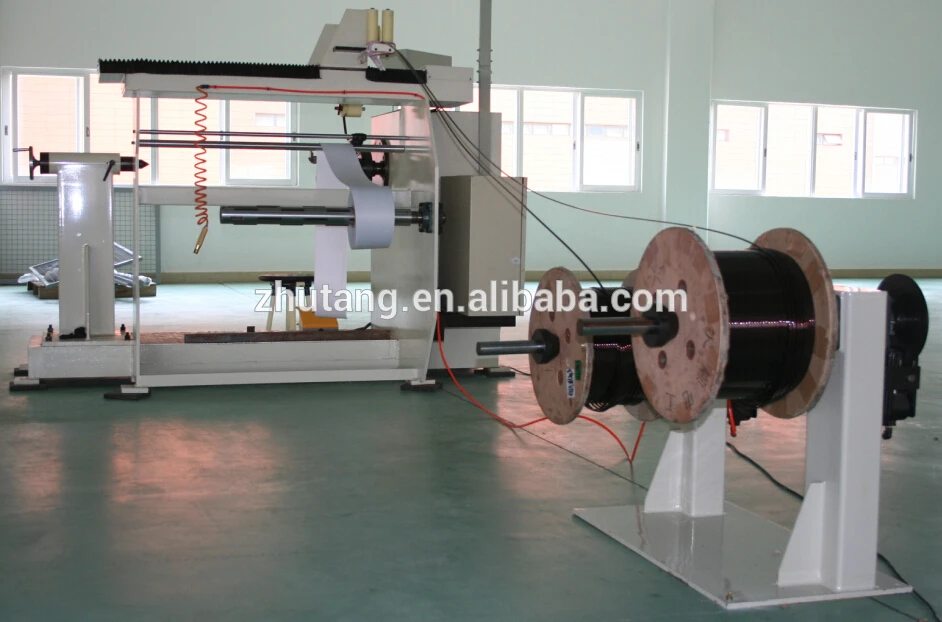

Servo Motor Driving Wire Guide Automatic Copper Wire Transformer Coil Winding Machine



Introduction

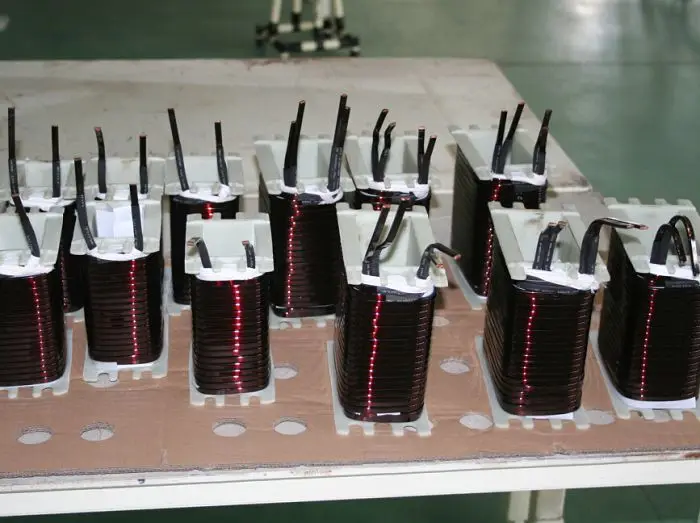

Servo Motor Driving Wire Guide Automatic Copper Wire Transformer Coil Winding Machine  ZPX800, adopting automatic winding displacement and tension technologies, is especially suitable for winding square and round coil. These coils can be used in small and medium-sized distribution transformer, instrument transformer, reactor and similar products.



Main Components



1. Main frame

2. Winding unit

3. Automatic winding displacement unit

4. Insulation decoiler

5. Electronic control system

6. Pneumatic system



Technical Parameters



Typical standard specifications of ZPX800 are shown below, however these can be easily modified as requested.

Center Height:	900mm
Shaft Length:	1150mm
Winding Speed:	0-160 Rpm
Speed Regulation:	Variable frequency and stepless speed regulation
Axial Height:	800mm
Coil OD.:	≤800mm
Max. Load:	700kg
Winding Power:	4Kw
Wire Size:	Flat wire: Max. 5*12mm; Dia. of round wire: 0.3-5.0mm
Automatic Wire Arrangement Function:	Diameter of wire adjustable, Min. step: 0.01mm
Counting Mode:	5-digit counting, up to 12-segment preset, total turns preset, reversible counting, and power off memory, etc.
Max. Turns Preset Number:	9999.9
Counting Turn Range:	0 - 9999.9
