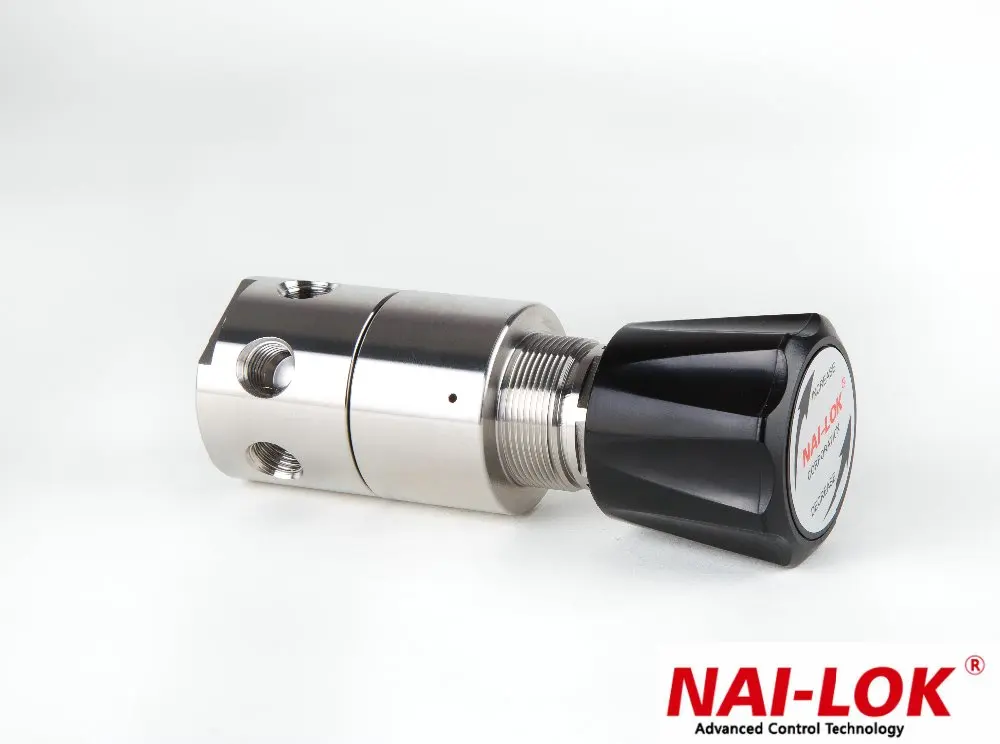

Product Description

● Compact design

● Avilable in 316 Stainless steel or Brass

● Piston sensed design is safe and reliable

● Adjustable stop limits maximum outlet pressure

● Available with a variety of porting and material options

● Self-venting model available

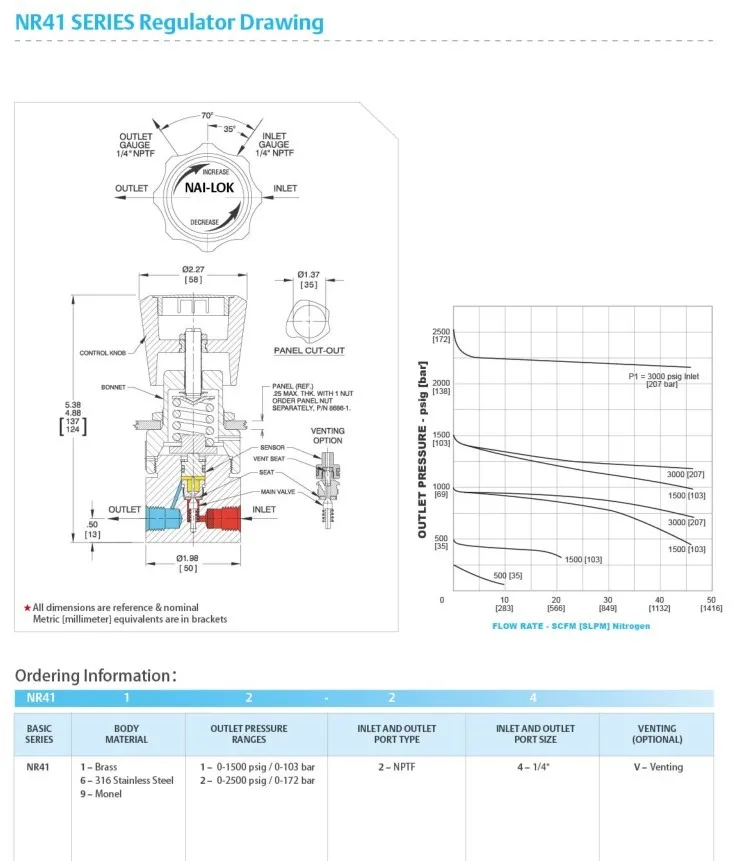

Product Name	NR41 Regulators-Pressure Reducing valve
Maximun Inlet Pressure	5000psig
Outlet Pressure Ranges	0-1000psi,0-1500psi,0-2500psi
Design Proof Pressure	150% of rated inlet
Leakage	Bubble-tight
Operating Temperature	-40℉ to 140℉/-40℃ to 60℃
Flow Capactiy	Non-venting:Cv=0.06 Venting:Cv=0.15

Products Show

Our Company

Our Factory

Our Workshop

Our advanced stock management system.

Our team will serve you at 24*7 days.

Our Service

Strict test standards

Strictly according to International standards.

1. leakage test

2. pressure test

We have a good research and development team with rich experience.

Packing & Delivery

Packing Details : Wooden Case, Carton Box

Delivery Details : 1-2 days after payment for small order

1. Special logistics packaging

2. Sea or Air

3. Global Express

FAQ

A: We are factory.

A: Generally it is 2-5 days if the goods are in stock. or it is 5-14 days if the goods are not in stock, it is according to quantity.

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Media Contact materials

316L Stainless Steel,Brass

Main Valve:Buna-N,E.P.,Chemraz,Viton.
Vent:CTFE,Vespel

Diaphragm

Ethylene proplene(E.P.)or Nylon Reinforced,Gylon(PTFE)

O-Ring

Buna-N,E.P.,Chemraz,Viton

Remaining Parts

300 Stainless Steel,Nitronic 60

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
