Product Overview
Description
Product Description

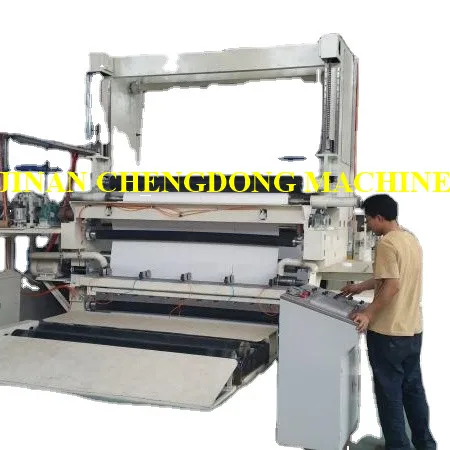

PAPER ROLL SLITTING AND REWINDING MACHINE MODEL ZWJ-2500
Usage and Features:
This machine is specially used for processing of auto filter paper, wallpaper, bobbin paper, cardboard paper and white cardboard roll. It could slit narrow paper reel from 50mm, rewind diameter 1500mm, jumbo roll width 1600~2640mm.
This machine is specially used for processing of auto filter paper, wallpaper, bobbin paper, cardboard paper and white cardboard roll. It could slit narrow paper reel from 50mm, rewind diameter 1500mm, jumbo roll width 1600~2640mm.
This machine could slit narrow width roll and rewind to big diameter with good tightness, and no overlap problem, and very popular in paper mill and processing industry.
Parameter/Model | ZWJ-1880 | ZWJ-2200 | ZWJ-2400 | ZWJ-2640 |
Jumbo roll width | Max.1900mm | Max.2200mm | Max.2400mm | Max.2640mm |
Jumbo roll diameter | Max.1800mm | Max.1800mm | Max.1800mm | Max.1800mm |
Brake type | Pneumatic or Motor | Pneumatic or motor | Pneumatic or motor | Pneumatic or motor |
Tension Control | Automatic | Automatic | Automatic | Automatic |
Slitting Width | 70~1900mm | 70~2200mm | 70~2400mm | 70~2600mm |
Rewinding diameter | Max.1500mm | Max.1500mm | Max.1500mm | Max.1500mm |
Cutting Blade | Pneumatic blade | Pneumatic Blade | Pneumatic blade | Pneumatic blade |
Working speed | 400~600m/min | 400~600m/min | 400~600m/min | 400~600m/min |
Detailed Images
Introduction of product advantages or application effect or application mode

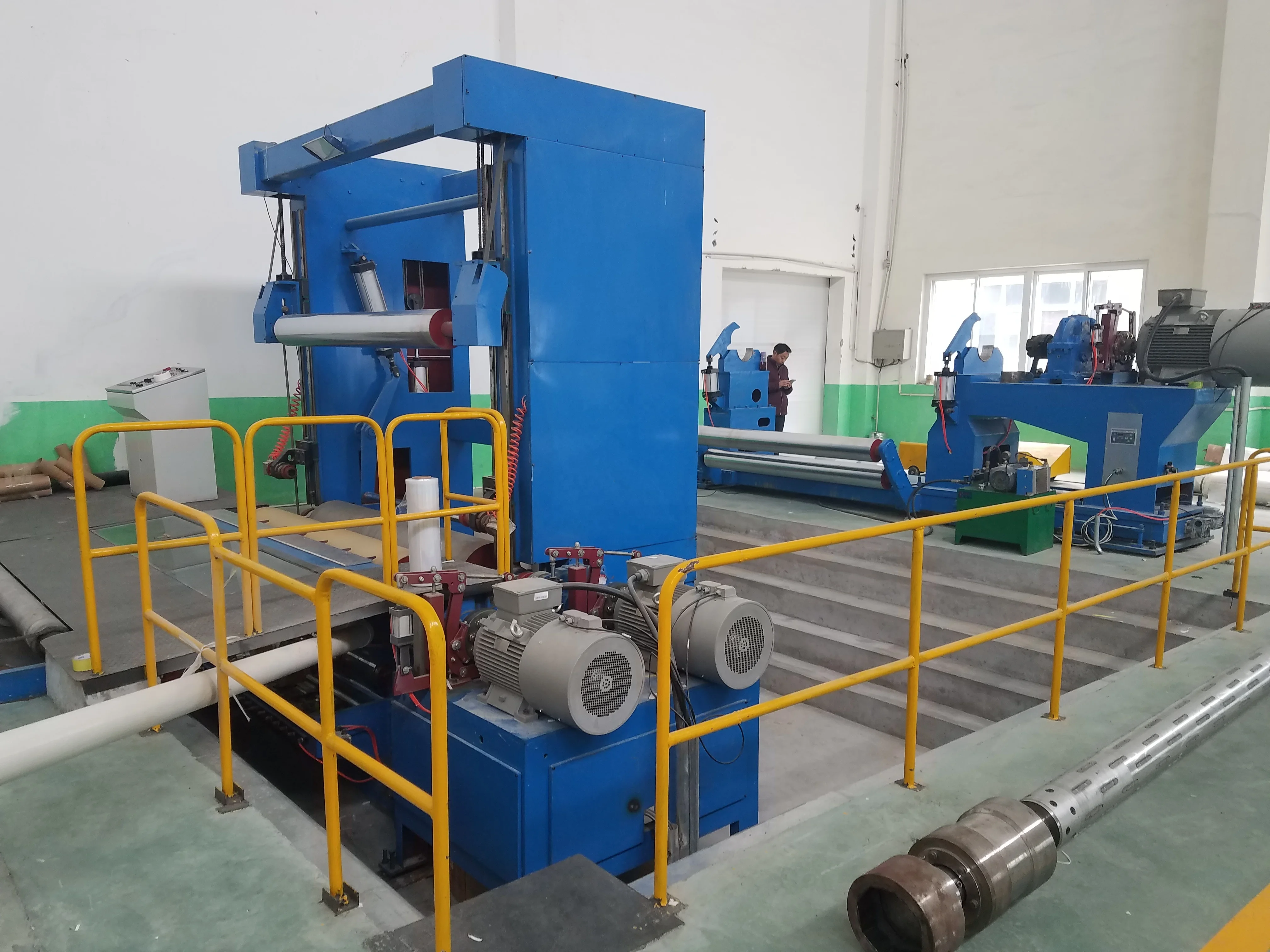

Unwind Stand
The unwind section can use the tension control with drive device or pneumatic control, which is decided by working speed. The under reel can be adjusted by hydraulic control or manual operation, which is decided by web width and diameter.
Can equipped with Motor or pneumatic as brake system
With coupling as customer steel shaft for paper machine
Tension Detect and Control
Equipped With Tension Detect roller and Load cell which RE brand, it will detect the paper tension and feedback into tension controller, the signal will send into machine Frequency inverter control system
Cuttiing unit
Choose good brand pneumatic blade OD150mm
Choose multi-edged bottom ring OD200mm
With Semi-automatic blade positioning function
Transmission unit for backing roller
Choose two backing roller diameter 420mm,there have torque difference between two backing roller, and the speed is controlled by two motor separately.
One backing roller surface plated Molybdenum, another backing roller surface coating Polyurethane
Product packaging
Certificate
Company Introduction
JINAN CHENGDONG MACHINERY MANUFACTURE CO.,LTD. was founded in 1993 and have more than 20 years for manufacturing experience of paper-processing equipment in China. There are a group of senior engineers and technicians and R&D department to ensure the producing capacity and high quality. The company successively develops a group of leading products in homeland based on the ideology of constant development and creation. The main products including Paper roll slitting and rewinding machine, Spiral paper tube/core winding machine, Fibre/Paper drum production line, Composite can production line, Paper tube/core cutting machine, High-speed rotary paper roll to sheet cutting machine, paper board laminating machine, paper corner protector machine, Paper tube polishing machine and other different paper processing machines.
Our Advantages
Customer Photos
CONTACT US
Kindly please contact us if have any machine requirement:
Contact Person: Colin Tian
Wechat/Whatsapp: +86 13869196248
www.dcpapermachine.com
