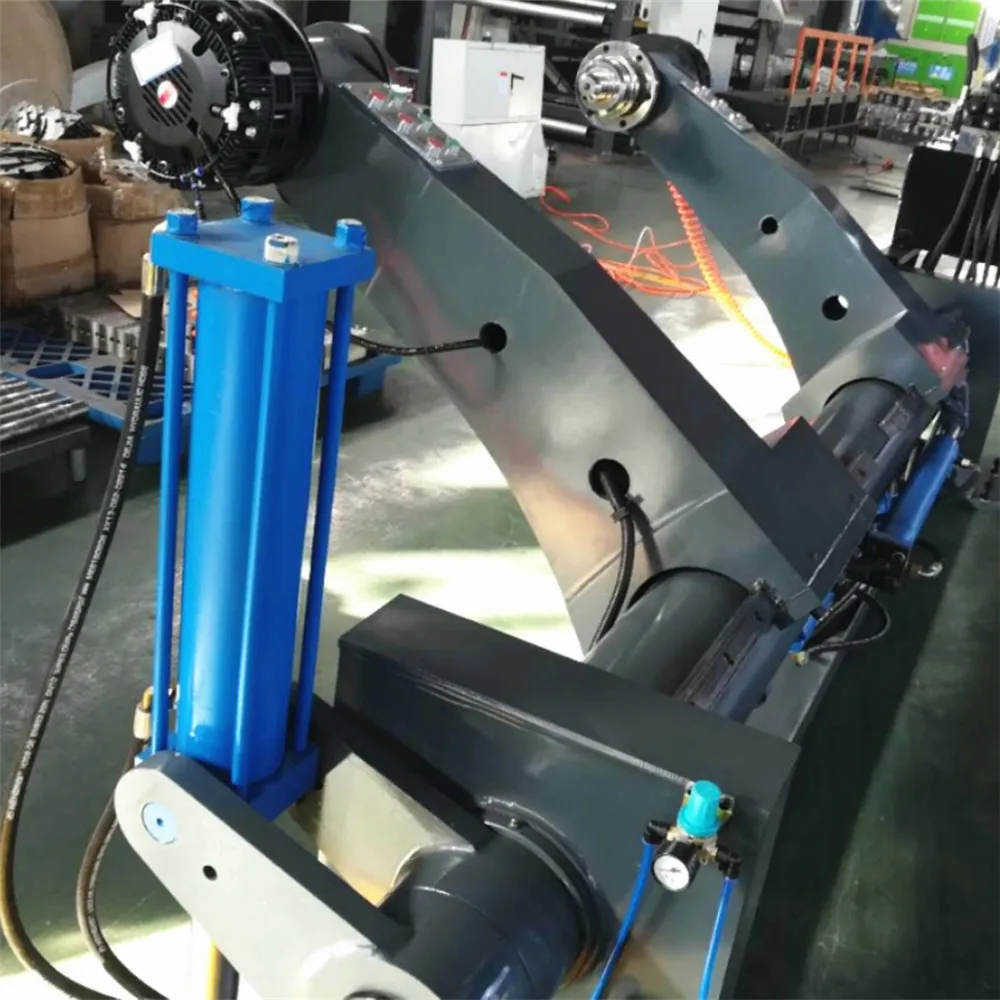

Shaftless rolling paper reel stand:

Rolling paper reel stand for three types: Full hydraulic type; Semi hydraulic type and Mechanical type. But from the holding paper rolls quantity, we have two types: double rolls mill stand and single rolls mill stand. For Full hydraulic type recommend using in fast speed production line such corrugated line; for lower speed , it can use mechanical type.

Max Clamping Width	1600--2500mm	Max Clamping Diameter	1500mm
Min Clamping Width	1000mm	Min Clamping Diameter	350mm
Single Max Weight	1500-4000ksg	Working Pressure	16---18Mpa
Air switch	French Schneider	Pneumatic components	Japan SMC or taiwan airTAC

Multi Point Brake

• Single or Two-point brake for low-speed production line
• Multi-point brake for high-speed production line•

Chuck

• Tooth chuck is more durable

• Expansion chuck don't wear paper core

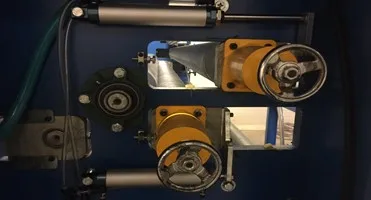

Clamping Controller

• Champing controlled by air cylinder or motor

Main Features:

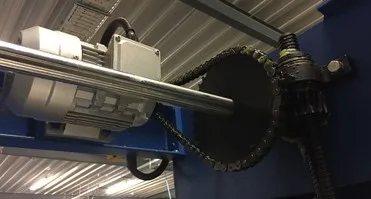

1)Adopt hydraulic or motor drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others，the lifting of the paper adopts hydraulic or motor drive.
2)Brake adjustable adopts multipoint braking system.
3)The range of clamping paper：Max: 1600mm and Min :1000mm
4)Clamping diameters：Max: ￠1500mm and Min: ￠350mm

5)Main shaft diameter of paper holder：￠242mm

6)gas source work pressure（Mpa）:0.4---0.8Mpa

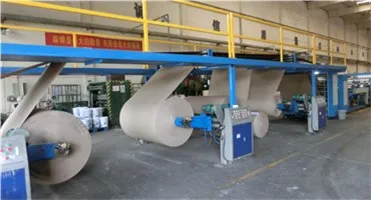

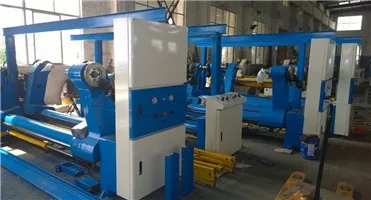

Application Pictures
