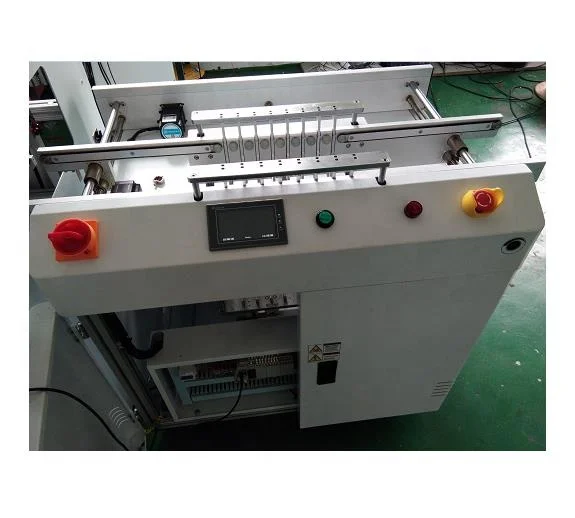

PCB Reject conveyor
- Category: Electronics Production Machinery >>>
- Supplier: Shenzhen Soltek Electronic Equipment Co. Ltd.
Share on (60742985996):
Product Overview
Description
Features:
a>Reject, inspect and pass through modes provided
b>Modular design
c>Stability enhanced by robust design
d>Laser carved stainless steel side guide for superior quality and durability
e>Ergonomic design arm rest
f>Smooth and parallel width adjustment
j>Different lengths available upon request
h>Variable speed control
i>SMEMA compatible
Technique Parameter:
Description | This unit allows good and bad board separation in a production line .It can be used when visual inspection of PCBs required .PCBs will continue to run .thus without interrupting the PCBs flow. |
Conveyor Speed | 0.5 - 20 m / min or specify |
Power Source | 100-230VAC(specify),1ph |
Power Consumption | 100VA max |
Air Pressure | 4-6 bar |
Air Consumption | 10 Ltr/min max |
Conveyor Height | 910±20mm (or specify) |
Conveyor Direction | L→R / R→L(Option) |
Specification Parameter (Unit:mm)
Model | SOLTEK-R1 | SOLTEK-R2 |
Effective PCB Size (L×W)~(L×W) | (50x50)~(450x350) | (50x50)~(530x460) |
Dimension (L×W×H) | 1000×690×930 | 1000×800×930 |
Weight | Approx.90kg | Approx.110kg |
