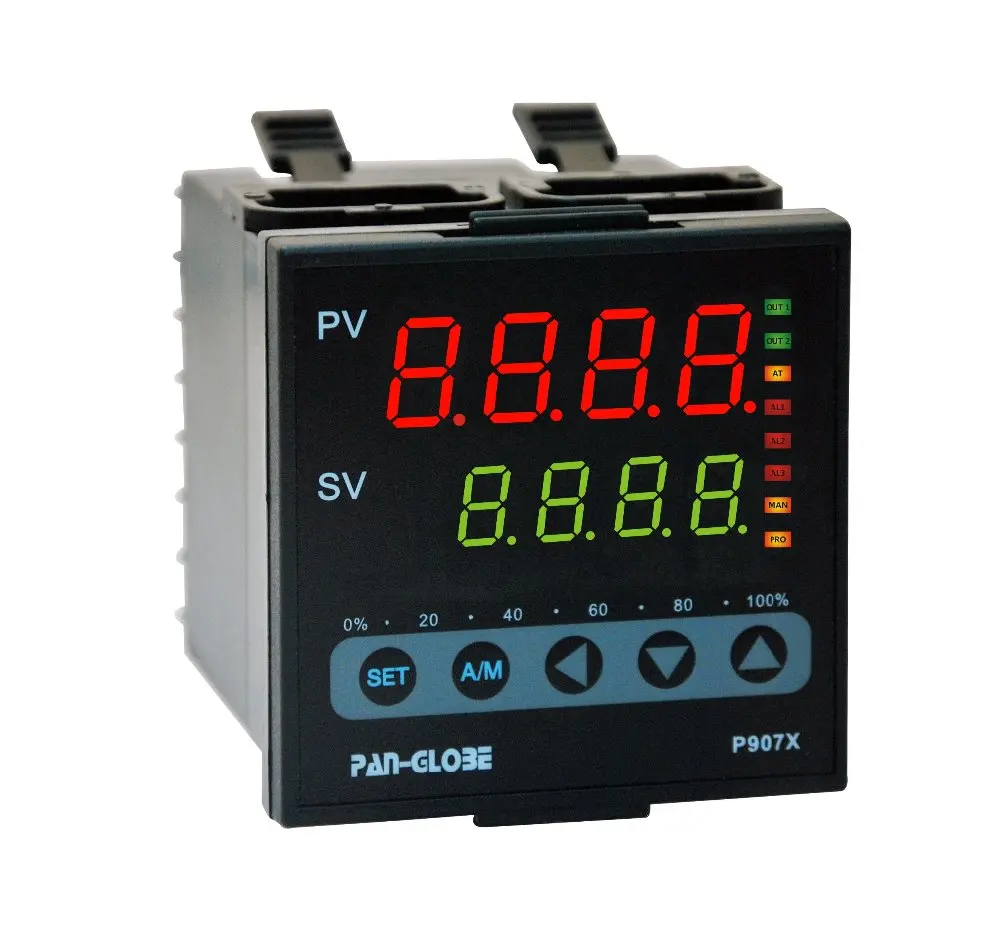

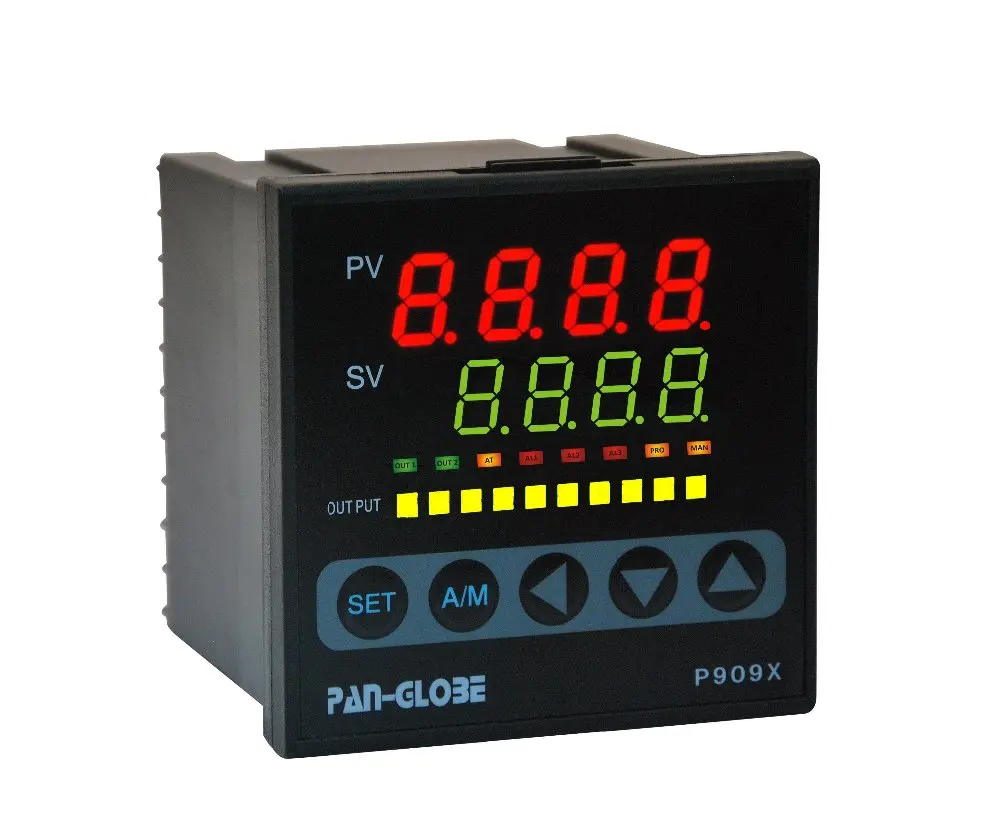

Microprocessor programmable temperature controller
Features:
·There are altogether 8 sections of programs in 2 groups of P900A Series intelligence program adjusters, capable of planning 16 sections of curves at most
·Widely used for the occasions of various kinds of temperature rise, constant temperature and temperature drops
·Timing errors are less than the set value by ±0.1%, and the time set range of each section is (0-99 hours and 9 minutes or 0-99 minutes and 59 seconds)
·Built-in slope temperature drop functions, capable of effectively controlling the balance of each section of temperature rise and drop.
Specifications:
Product model
P907A
P908A
P909A
Size
72X72mm
96x48mm
96x96mm
Program sections
There are altogether 8 sections in 2 groups for setup, capable of combining into 16 sections for use
Input
Thermocouples, Thermal Resistance and Linear signals
Output varieties
relays, pulse signals, current voltage, electric operators and controllable silicon trigger signals, etc
Control mode
PID, P, PI, PD, ON/OFF(P=0), FUZZY
Alarm functions
at most 3 groups of alarms, capable of setting programs for a certain section to complete the alarm mode or other modes
Operationambience temperature
0~50°C
Operation ambience humidity
0~90%RH
Identification of models
Refer to P series of high accuracy microcomputer temperature controller with Program AP identification models
