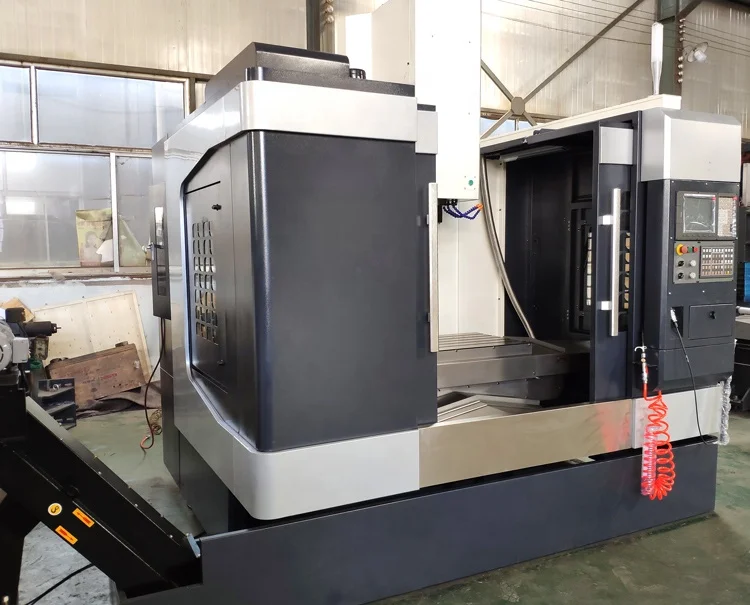

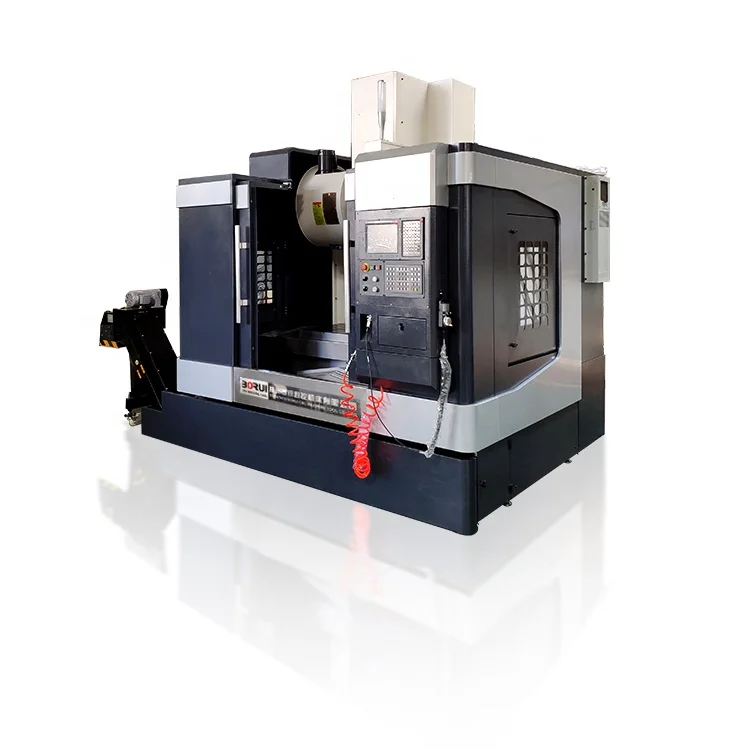

VMC855 Китай Тайвань шпиндель CNC вертикальный обрабатывающий центр с системой Siemens для продажи
- Category: Machine Centre >>>
- Supplier: Tengzhou Borui CNC Machine Tool Co. Ltd.
Share on (60753152108):
Product Overview
Description
VMC855 cnc milling machine vertical machining center
Product Description
Application:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.

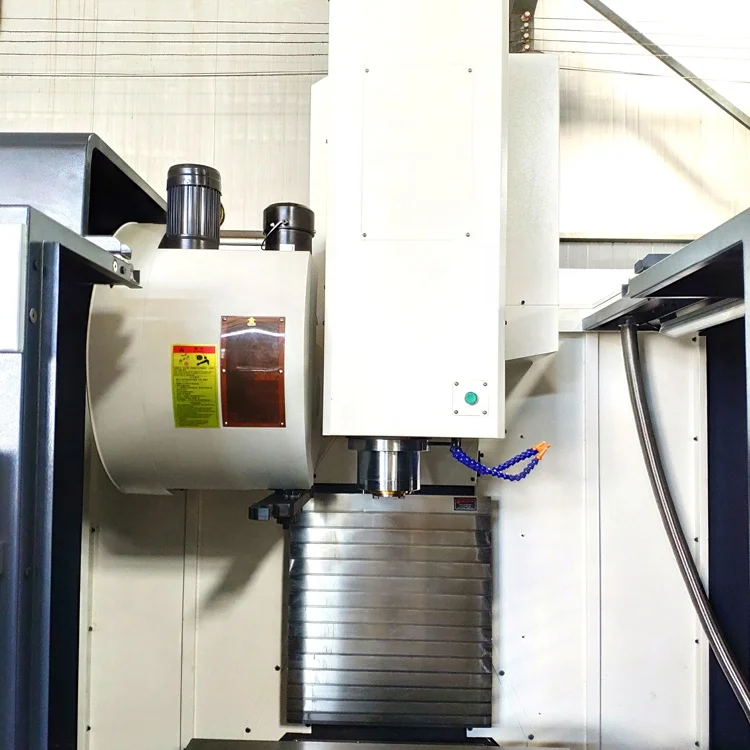

Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
Product main technical parameters:
specifications | unit | VMC855 |
Table size | mm | 1000x550 |
X axis travel | mm | 850 |
Y axis travel | mm | 550 |
Z axis travel | mm | 550 |
Distance between spindle center and column surface | mm | 632 |
Distance between spindle nose and table surface | mm | 110-660 |
T slot | 3-18*100 | |
Spindle taper | mm | BT40 |
Max. spindle speed | r/min | 8000(10000 optional) |
Main motor power | kw | 7.5 |
X/Y/Z axis servo motor torque | N.M | 15/15/18 |
X/Y/Z motor connection | direct | |
X/Y/Z guide rail form | 3 axis linear guide rail | |
Max.table load | kg | 600 |
Automatic tools changer | 16 Armless type(optional:24 arm type) | |
Max.tool weight | kg | 8 |
Max. tool length | mm | 250/350 |
Max. tool diameter | mm | 100(Adjacent)/150(Apart) |
X/Y/Z axis rapid traverse | M/min | 24/24/20 |
Cutting feed speed | M/min | 10 |
Position accuracy | mm | ±0.005 |
Repeat positioning accuracy | mm | ±0.003 |
Machine dimension | mm | 2900x2400x2750 |
Machine weight | kg | 6500 |
Details Display
