Specialized manufacturer gold grinding machine ball mill, gold ball mill, wet ball mill
Specialized manufacturer gold grinding machine ball mill, gold ball mill, wet ball mill
Specialized manufacturer gold grinding machine ball mill, gold ball mill, wet ball mill
Specialized manufacturer gold grinding machine ball mill, gold ball mill, wet ball mill
Specialized manufacturer gold grinding machine ball mill, gold ball mill, wet ball mill
Specialized manufacturer gold grinding machine ball mill, gold ball mill, wet ball mill
Specialized manufacturer gold grinding machine ball mill, gold ball mill, wet ball mill

Specialized manufacturer gold grinding machine ball mill, gold ball mill, wet ball mill

Share on (60756187292):


Price:

Quantity:


Product Overview

Description


Product Description

Specialized manufacturer gold grinding machine ball mill, wet ball mill



Ball mill is key equipment for grinding after  crushing process,  is widely used in industries such as mining,cement, silicate, new building material, refractory material, fertilizer, ferrous metal,

nonferrous metal and glass ceramics.

It also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

ball mill 2

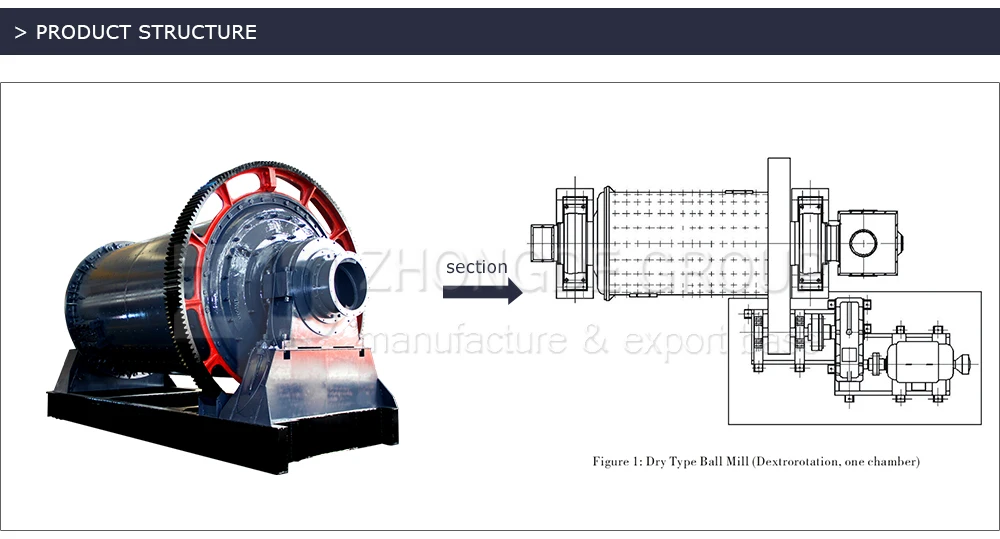

Structure of Ball mill:
The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).

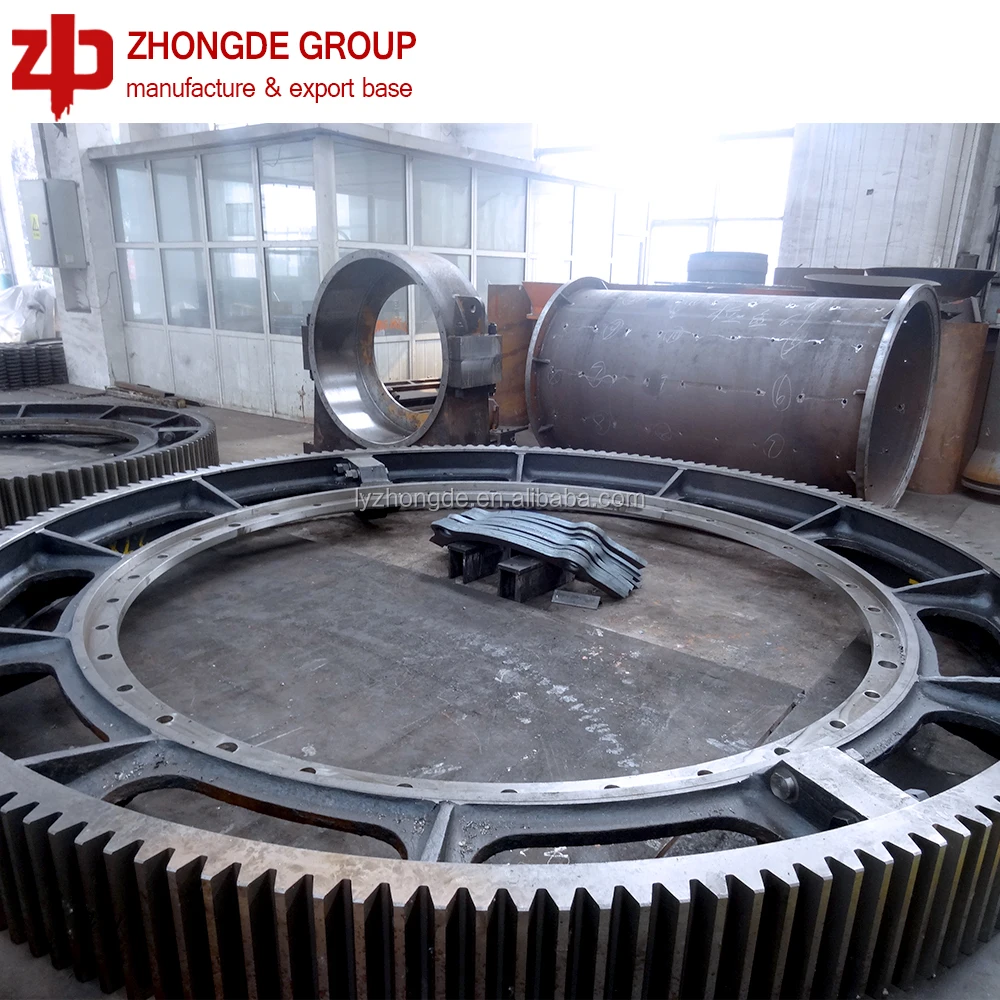

The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-

resistance.

ball mill

Technical parameters



ModelCylinderEffective volume(m3)Max.ball loading(t)Speed(r/min)Capacity(t/h)Discharging size(mm)

Main motor(KW)

Diameter

(mm)

Length

(mm)

MQY-1530150030004.58306.3~2.80.3~0.07490
MQY-1545150045006.712309~3.80.3~0.074132
MQY-1830183030006.71226.612.5~4.50.3~0.074130
MQY-18451830450010.51926.815.5~60.3~0.074180
MQY-2130210030009.21623.818~5.80.3~0.074210
MQY-213621003600112023.822~6.80.3~0.074210
MQY-21452100450013.82523.925~80.3~0.074280
MQY-2230220030001018.521.323~6.90.3~0.074210
MQY-22452200450015.22821.326.8~8.50.3~0.074280
MQY-243024003000122221.326~70.3~0.074245
MQY-243624003600142621.333.5~8.80.3~0.074280
MQY-24452400450017.83021.642~110.3~0.074320
MQY-246024006000244421.756~14.50.3~0.074480
MQY-273627003600183320.754~11.70.3~0.074400
MQY-27402700400020.63820.760~130.3~0.074400
MQY-27452700450023.24320.767.5~14.50.3~0.074480
MQY-27502700500025.84820.675~160.3~0.074500
MQY-276027006000315720.690~19.50.3~0.074630
MQY-30403000400025.7471978~16.50.3~0.074500
MQY-30643000640040.27419125~260.3~0.074800
MQY-324532004500325918.295~21.60.3~0.074630
MQY-325432005400387318.2114~25.90.3~0.074800
MQY-32703200700050.69318.2148~30.20.3~0.0741250
MQY-364536004500407518136~24.30.3~0.0741000
MQY-365036005000468618151~28.10.3~0.0741250
MQY-3660360060005410218181~32.40.3~0.0741250
MQY-3685360085007913118256~45.80.3~0.0741800
MQY-4060400060007012616.9226~40.50.3~0.0741500
MQY-4067400067007813616.9252~450.3~0.0741600
MQY-4361427061008014415.7258~460.3~0.0741850
MQY-4564450064009517215.6306~540.3~0.0742000
MQY-50645030640012021614.4386~680.3~0.0742600
MQY-50835030830015226614.4500~880.3~0.0743300
MQY-55855500850018733813.8615~1080.3~0.0744500

-

Application

A ball mill grinds ores and other materials to a typical product size of 35 mesh or finer.

The feed to a ball mill is prepared by:

  • Single or multistage crushing and grinding
  • Crushing, screening, and/or rod milling
  • Primary crushing and autogenous/semiautogenous grinding

Normal feed sizes:

  • 80% passing 1/4 "(6mm or finer) for hard ores
  • 80% passing 1 "(25mm or finer) for soft ores
  • (Larger feed sizes can be tolerated depending)

The length to diameter ratio of cylindrical mills is range from 1 to 1 to 3 to 1. When the L/D ratio is 2 to 1 or greater, we refer to the mill as a Tube Mill.

-

Packaging & Shipping

We have developed and good relationship with shipping agents.

Ocean freight partners are: APL, COSCO, OOCL, CSCL, MSC, etc. Train/trucks transportation  are also available. Perfect shipping, best service with lowest price are always provided for customers.

ball mill

Company Information

Luoyang Zhongde Heavy Industries Co., Ltd



Our company Zhongde Group specializes in manufacturing of stone crushers, ball mills and other ore beneficiation equipment, Rotary Kiln, Rotary Dryer, etc. Among these machines, we are

most excellent in ball mill design, production. We have customers using our ball mills all over the world including European countries, the USA, South African countries, South Asia, etc.

We got all good reputation and reorders  from the customers. We are indeed the best choice in China if you want to find a ball mill supplier !

1

Zhongde offers ISO and CE certification's quality.

• China Top 10 Famous Stone Crusher Brand

• China Well-Known Trademark of Ball Mill



and many other honors by local authorites such as

• Henan Quality & Integrity Company

• Henan Famous Quality Brand

Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.



Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.



After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
