Factory Price Chromic Acid Filter With PVDF Pump For Chrome Plating
- Category: Other Industrial Filtration Equipment >>>
- Supplier: Shenzhen Xinhongfa Environmental Protection Equipment Co. Ltd.
Share on (60759341177):
Product Overview
Description

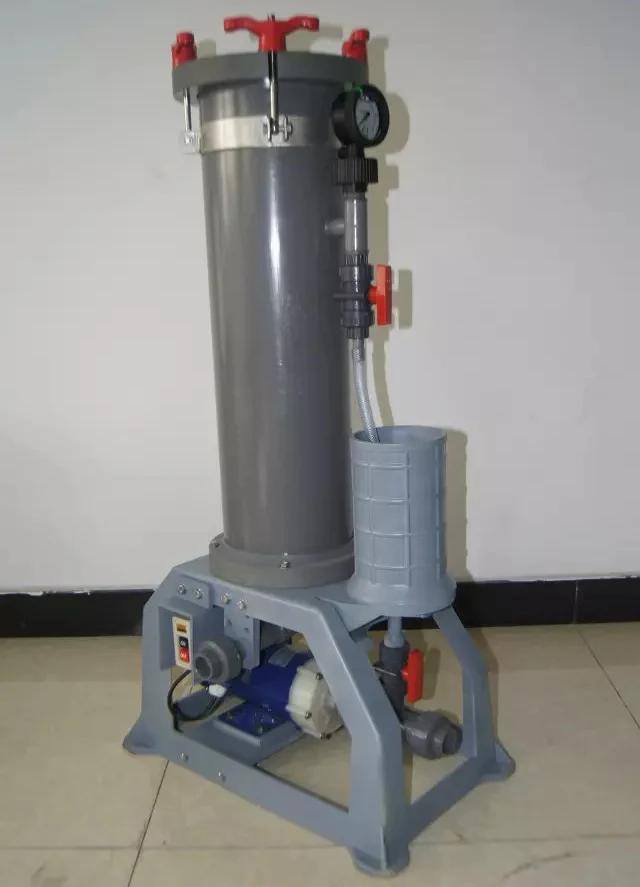

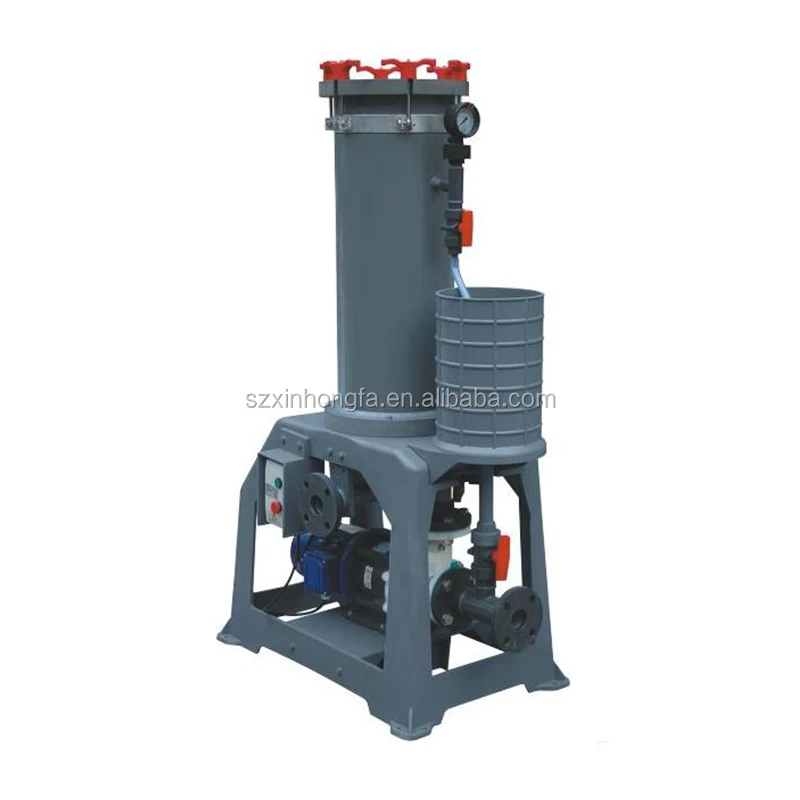

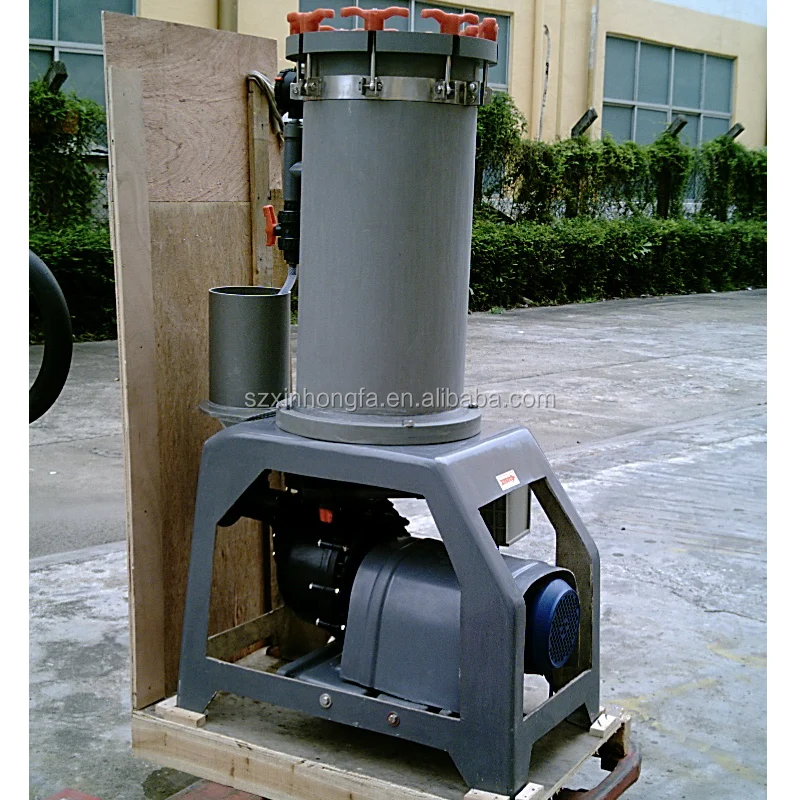

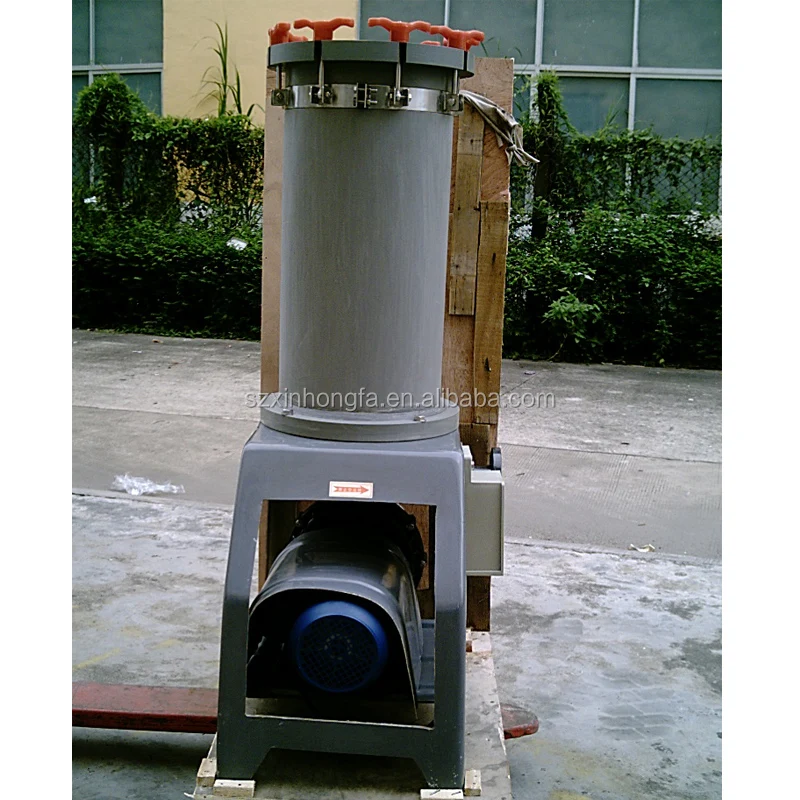

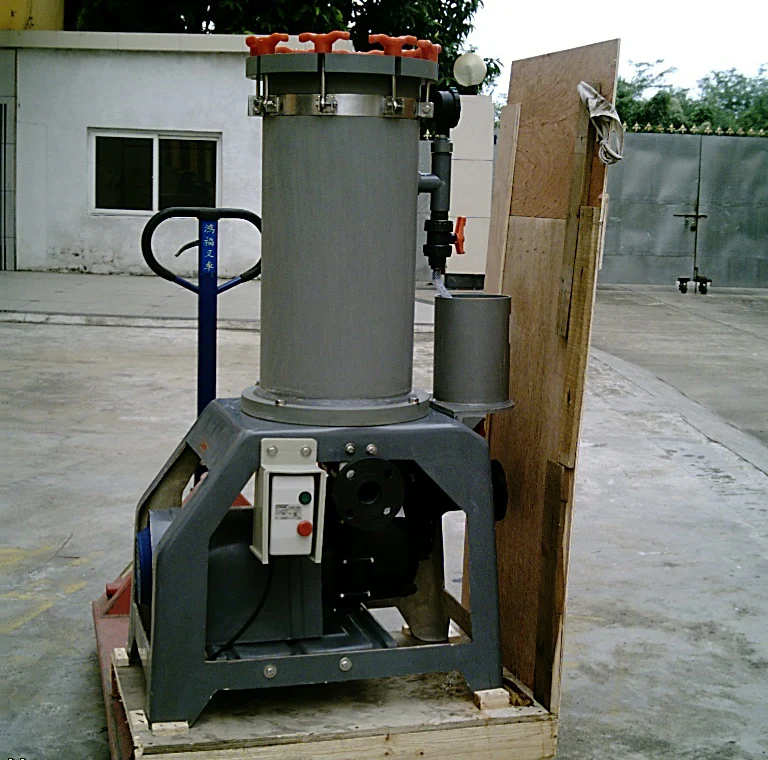

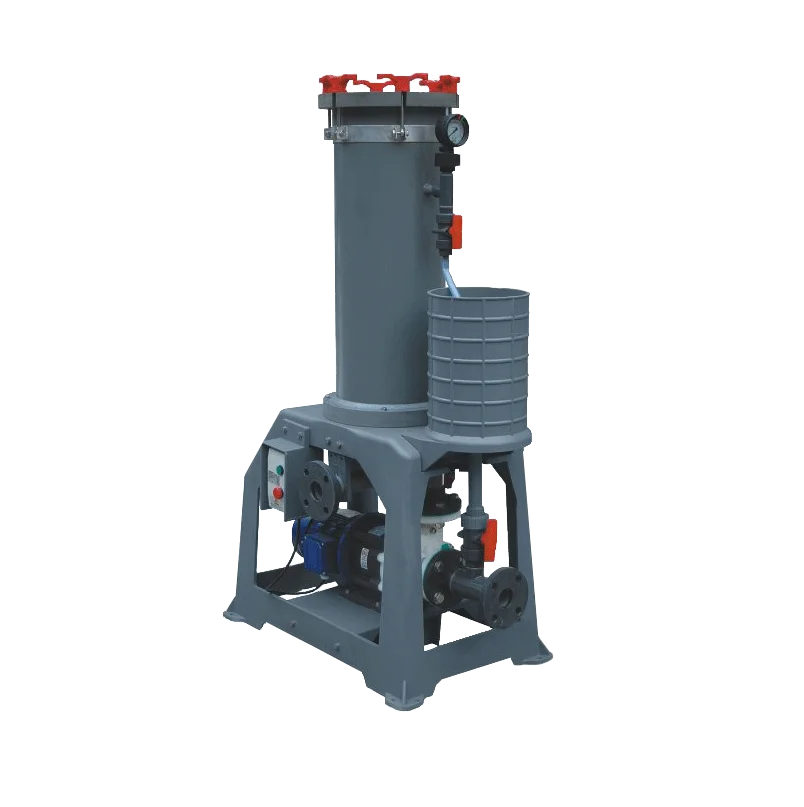

Chemical Chromic Acid Circulation Filter Chromic Acid Filter
Features:
- The filter is applicable for circulating filtration of chromic acid plating solution.
- The maximum working temperature shall not exceed 60℃.
- The filter’s vat part adopts PVC and the pump parts adopts PVDF.
- The filter medium part adopts the locking nut design with good airtightness. Its filtration area is wide and there are no metal components for those contacting the liquid medicine.
Technical parameters
| Model | In-outlet(mm) | Poles | Power(HP) | Head(m) | Flow(L/min) |
| RTL-1004 | 25X25 | 2 | 1/3 | 3 | 40 |
| RTL-2004 | 25X25 | 2 | 1/2 | 8 | 80 |
| RTL-2006-1HP | 40X40 | 2 | 1 | 8 | 160 |
| RTL-2008-2HP | 40X40 | 2 | 2 | 10 | 180 |
| RTL-2012-2HP | 40X40 | 2 | 2 | 11 | 220 |
| RTL-2018-3HP | 50X50 | 2 | 3 | 11 | 330 |
Structural Feature :
Application fields and cases
FAQ
A: Yes, We are factory and we also have our own patent products about the environmental equipment.
Q2: What's your payment way?
A: Usually available payment method are L/C, T/T ,Western Union or PayPal.
