Automatic bathroom paper band saw cutter hand towel maxi roll toilet paper cutting machine

Share on:


Price:RUB 918,122.40 - RUB 1,530,204.00
Price in USD:Details

Quantity:


Product Overview

Description

Product Description



maxi roll toilet cutter.JPG



The equipment is operated by using PLC program control,big screen true color human computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action,has good fault information prompt system, make the whole production line achieving the best working state.
1. The transducer independent driver is used in the main motor.
2. The cutting knife automatically stops and gives an alarm.
3. When the paper can not be cut down,the equipment will
4. The high precision servo system is used in the feed motor servo system,to ensure the quality of the finished product.
5. The equipment automatically calculate the quantity of the finished product being cut;according to the raw material and the length of the finished product;
6. When data input is incorrect,the equipment breaks off and prompts to adjust on the interface.
7. The cut paper head and paper end can be automatically sorted;
8. Cut with knife is used in the equipment,which reduce the use cost of the user;
9. The automatic sharpening knife system is used in the equipment,can adjust the sharpening knife system according the requirement of paper being cut,which increase the cutting life.
10. The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency

Feature:
Machine weight:2 Tons
Cutting speed:25-30cuts/min
Cutting channel:single channel
Cutting blade:band saw blade
Cutting blade size:5180*70*0.9
Log length: 2800mm
Tolerance: ±1mm
Thickness of paper core: 1-4mm
Cutting length: 250mm
Cutting diameter:150-250mm
Weight of finished roll: 1000g
Power supply:3 phase 4line 380V 50HZ
Machine size: 6000*3000*2000MM
Video Link: https://youtu.be/klbyAPRR7jU         https://youtu.be/f3EbpYFrO60

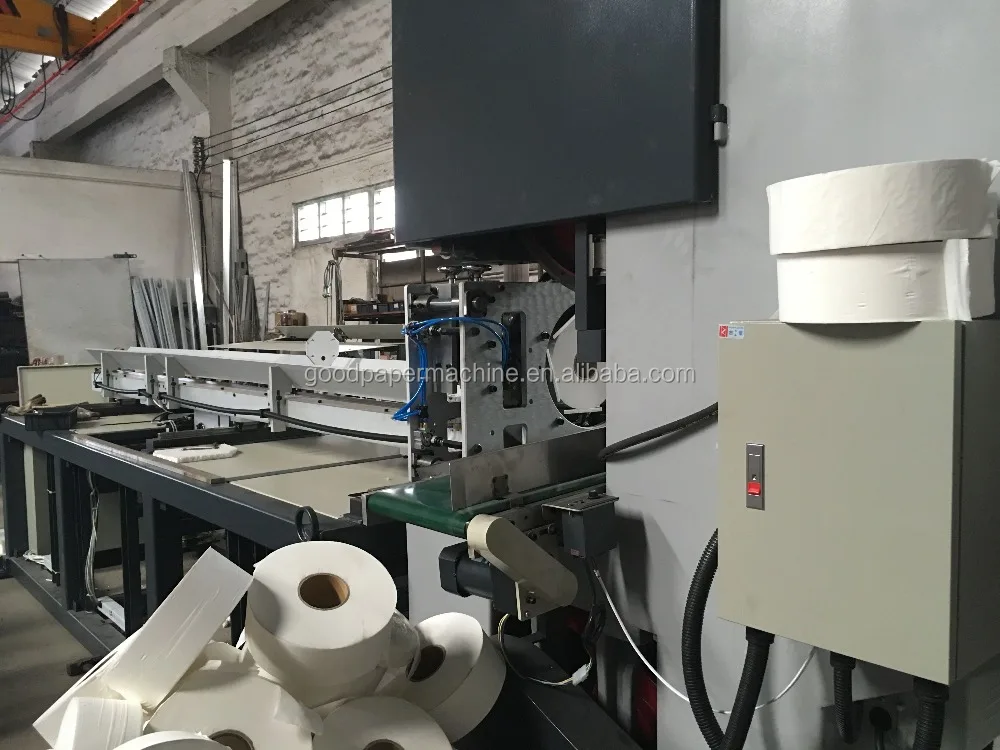

maxi roll band saw machine.jpg
