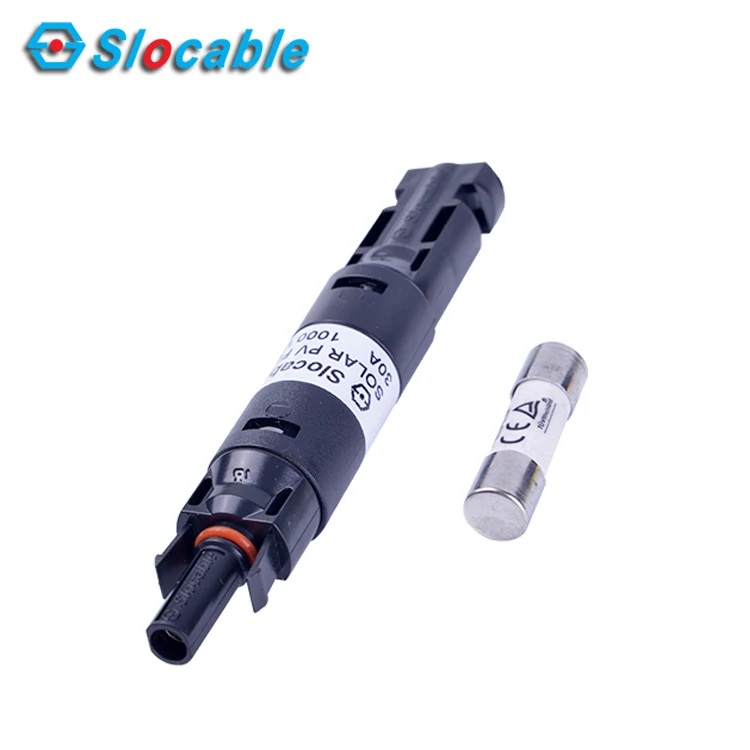

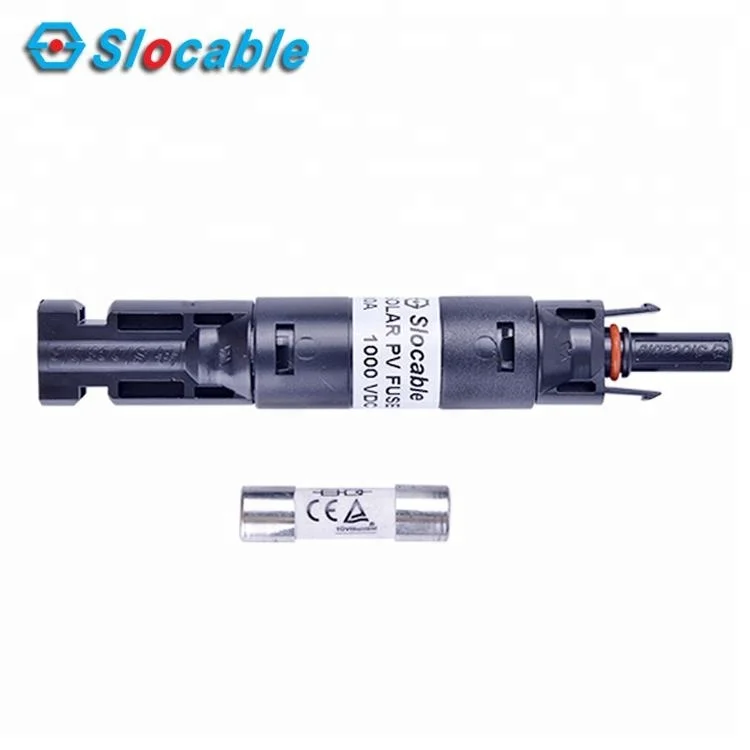

SLOCABLE Waterproof high quality solar DC PV fuse holder 1A~30A PV solar fuse connector
Product Description
Description:
·Simple on-site processing ·Accomodates different specifications of the fuse ·High current carrying capacity ·Circuit protection ·Protection class IP67 guarantees the highest connection safety ·Patent product
·CE approved
Attention:The Amp of PV Fuse Holder can be replaced by
1A ,2A, 4A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, 30A.
Technical Data
Technical Data:
Insulation Material:
PPO
Contact material:
Copper,Tinned
Rated current:
1A~30A
Insertion force:
Max. 50N
Rated Voltage:
1000/1500V DC
Withdrawal force:
Min. 50N
Test voltage:
8kV(50Hz,1min)
Temperature range:
-40℃~+90℃
Contact resistance:
<5mΩ
Flame class:
UL94-V0
Waterproof protection:
IP68
Connecting system:
Crimping connection
Overvoltage degree:
CATIII/2
Cable cross section:
2.5/4/6/10mm2, 14/12/10/8AWG
Detailed Images
Pictures:
Quality Comparison
Company Information
Cooperation Projects :
FAQ
Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
Solar Cables, PV Solar Connectors , PV Fuse Holder,Circuit breakers and other solar relative products.We're the Manufacturer with more than 12 years experience.
Q2: How can I get the Quotation of the products ?
Send your Message to us by E-mail / TradeManager,We'll reply you within 2 hour in the Working Time.
Q3: How does your company do regarding Quality Control?
1)All raw material we selected the high quality one. 2)Professional & Skilful workers care every details in handling the producing. 3)Quality Control Department specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service? OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.
Q5: How Could I get the Sample?
We are honored to offer you samples,Samples is free provided,but need pay the courier freight.
If you have a courier account, you can send your courier to collect samples.
Q6: How long is the delivery time? 1) For Sample: 1-3 Days ; 2) For small Orders: 3-10 Days; 3) For mass Orders: 10-18 Days.
