Chinese Gold Plus Supplier Aluminium Copper Wire Full Automatic Transformer Coil Winding Machine
Introduction

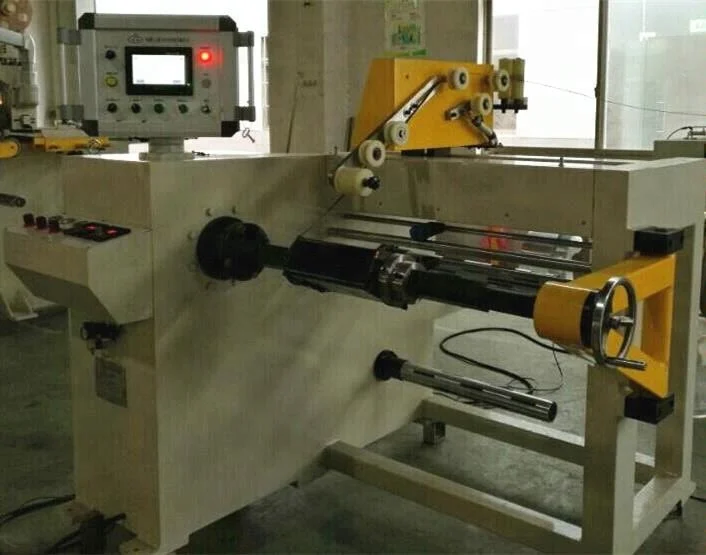

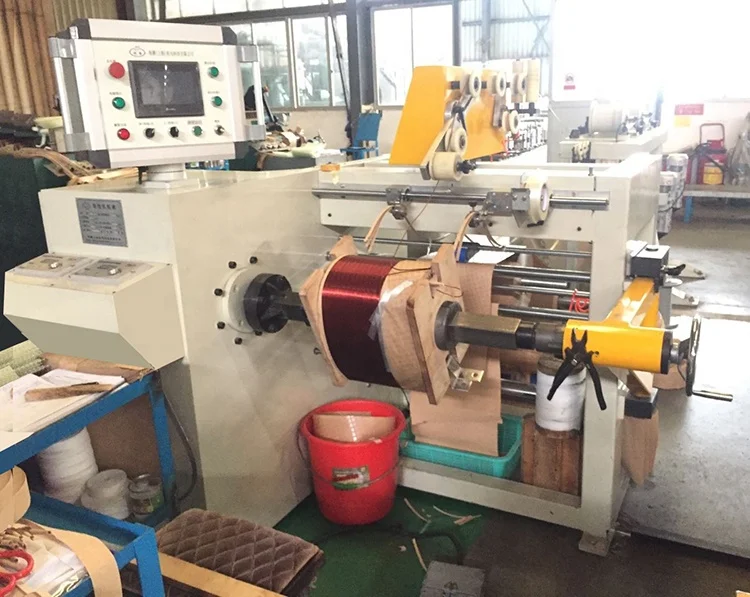

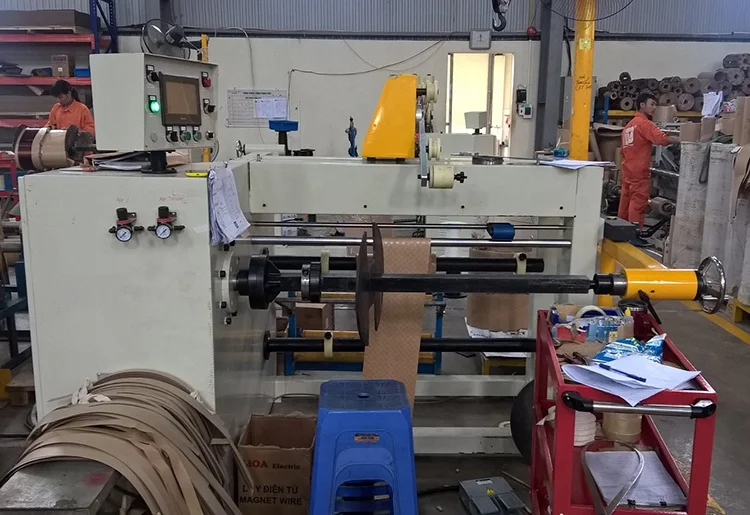

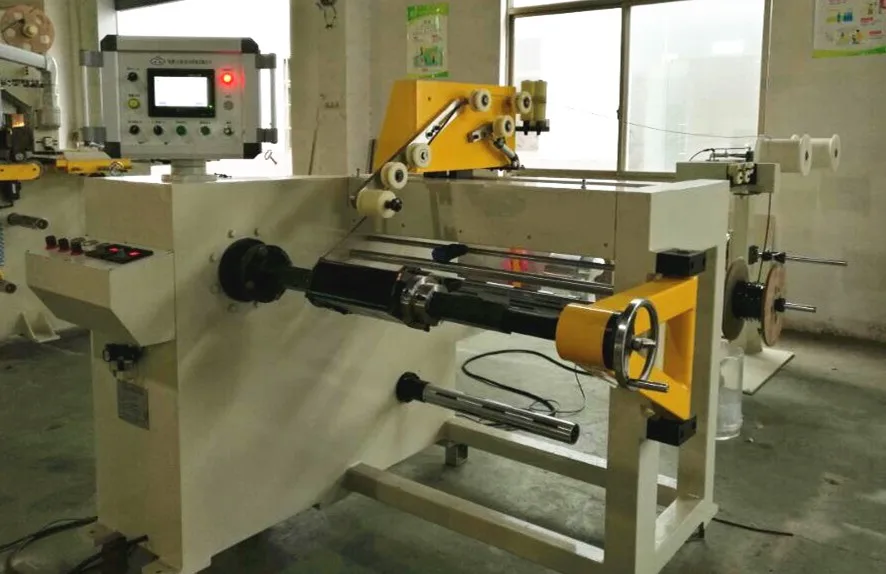

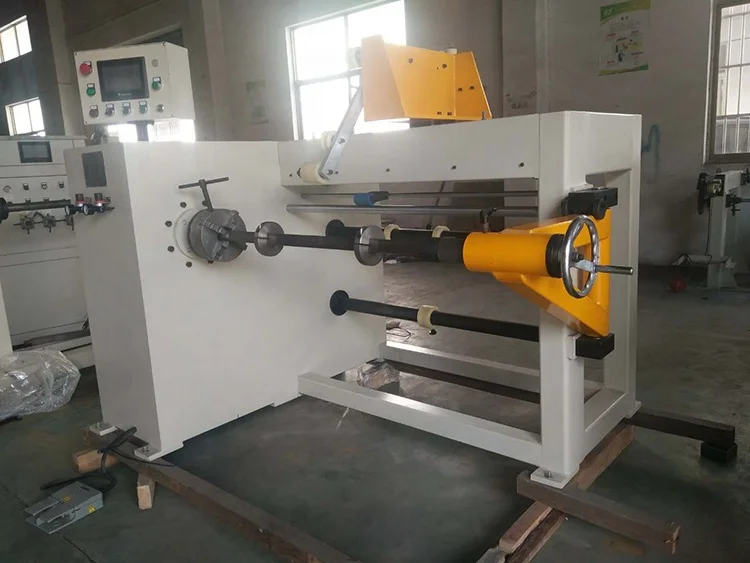

Chinese Gold Plus Supplier Aluminium Copper Wire Full Automatic Transformer Coil Winding Machine ZPX800, adopting automatic winding displacement and tension technologies, is especially suitable for winding square and round coil. These coils can be used in small and medium-sized distribution transformer, reactor and other similar products. This kind of Full Automatic Tansformer Coil Machine Winding is provided with main winding motor, automatic winding displacement unit, layer insulation feeder unit, tension adjustable decoiler, pneumatic system, PLC control, and servo motors, etc. Full Automatic Tansformer Coil Machine Winding ZPX800 features high automation, full functions, and strong driving force, etc. It is an ideal equipment to wind different kinds of coils.
Main Components
1. Main frame
2. Winding unit

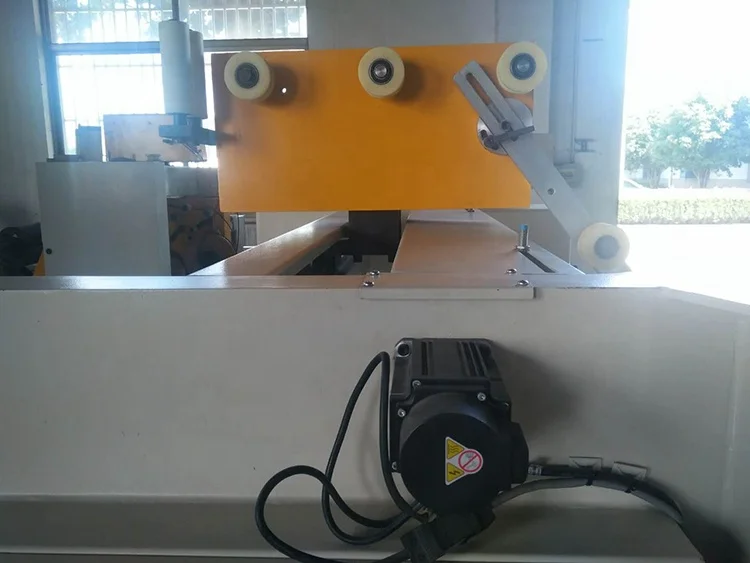

3. Automatic winding displacement unit
4. Insulation decoiler
5. Electronic control system
6. Pneumatic system
Technical Parameters
Typical standard specifications of ZPX800 are shown below, however these can be easily modified as requested.
Center Height: | 900mm |
Spindle Length: | 1100mm |
Speed Regulation: | Variable frequency and stepless speed regulation |
Coil OD.: | ≤800mm |
Max. Load: | 700kg |
Wire Size: | Flat wire: Max. 5*12mm; Dia. of round wire: 0.3-5.0mm |
Automatic Wire Arrangement Function: | Diameter of wire adjustable, Min. step: 0.01mm |
Counting Mode: | 5-digit counting, up to 12-segment preset, total turns preset, reversible counting, and power off memory, etc. |
Max. Turns Preset Number: | 9999.9 |
Counting Turn Range: | 0 - 9999.9 |
Warranty
Good after sale services are provided for the machine. The warranty period of the machine is 12 months. During the warranty period, if there is anything wrong with the machine, we will guide you how to eliminate the problem and provide you with components if needed, and all is for free. Beyond the warranty period, we also provide technology support for the machine, if some components are needed, we will provide and charge according to the cost of the components.
