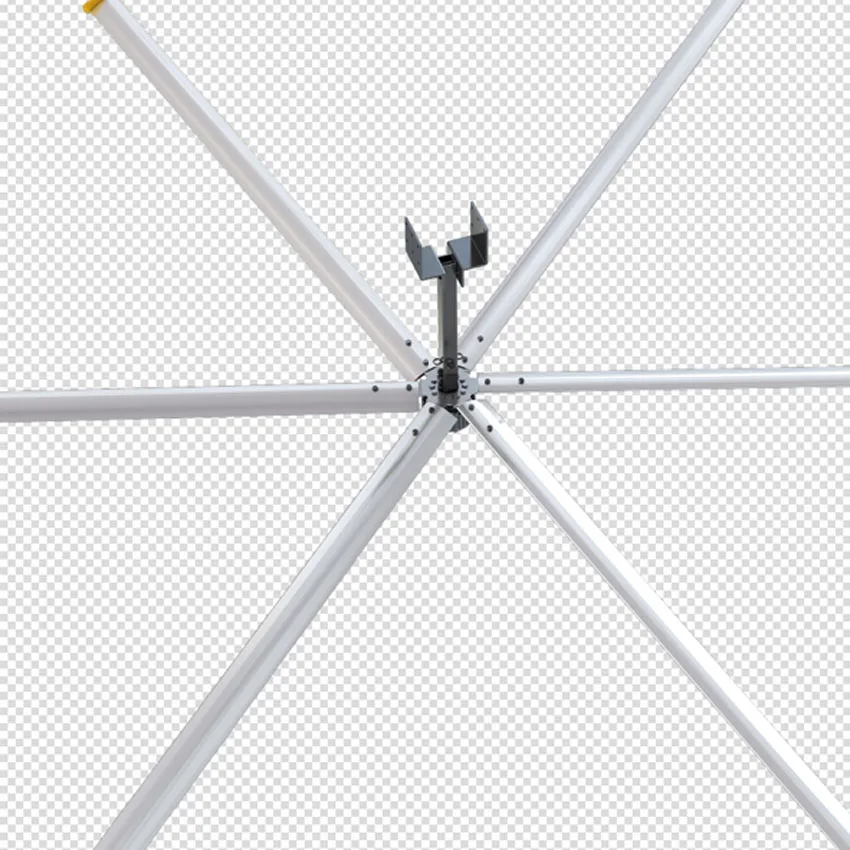

China manufacturer HVLS Type Industrial big ceiling fan
Product parameters:
Model Numbe
Voltage(V)
Power(W)
Speed (RPM)
Blade Diameter (meter)
Air
Volume(m³/min)
Noise
Blade
Quantity(pcs)
Weight (Kg)
PMSM330-735
220/380
1560
50
7.35
13185
40
6
113
PMSM330-675
220/380
1152
55
6.75
12862
40
6
110
PMSM330-625
220/380
1000
60
6.25
12261
40
6
106.5
PMSM330-550
220/380
800
65
5.5
11963
40
6
103.1
PMSM330-520
220/380
750
70
5.2
11175
40
6
99.65
PMSM255-470
220
700
75
4.7
7075
40
6
96.3
PMSM255-420
220
530
80
4.2
5213
40
6
79.5
PMSM255-360
220
410
95
3.6
3326
40
6
88
PMSM255-220
220
330
115
2.2
1669
40
6
79

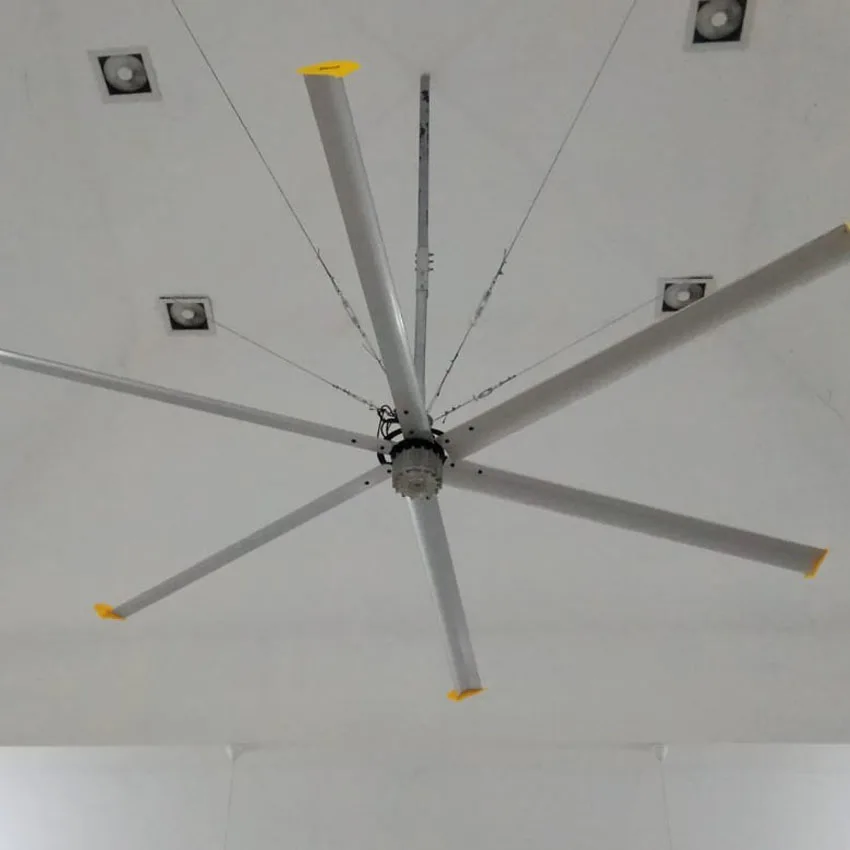

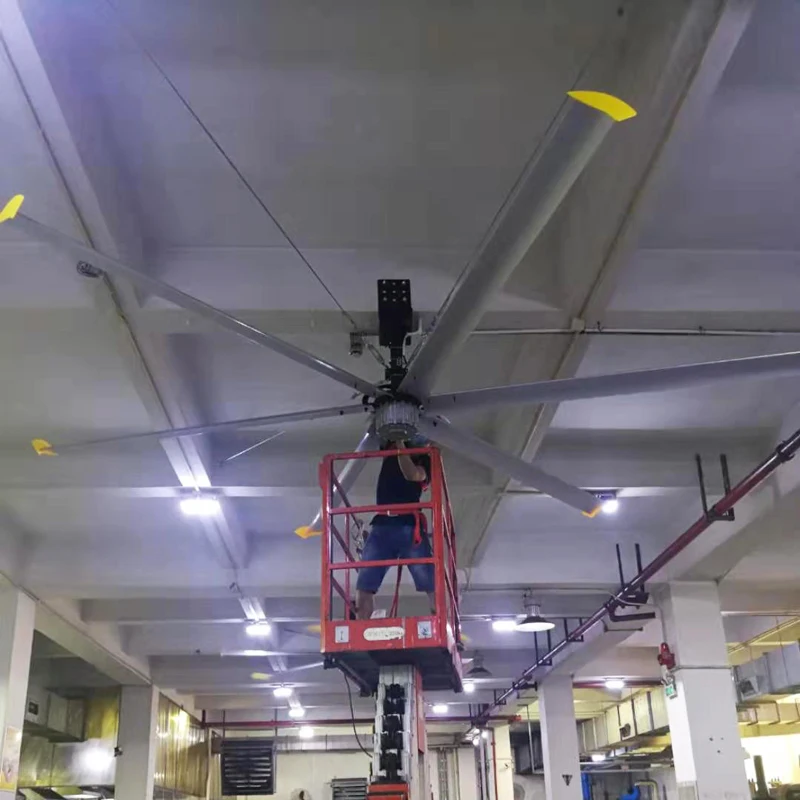

Jenvos permanent magnet synchronous fan is a super large energy saving ceiling fan with a maximum diameter of 7.32 meters. It is made of high strength materials such as forging steel and aviation aluminum, which is strong and safe. Only 1.5 kws can be used to drive a large amount of air, creating a large area of natural breeze system, which can serve as a dual function of ventilation and cooling. It covers an area of 1200m.
Application:
Animal husbandry: large farms, livestock farms, breeding industry.
Sports industry: gymnasium, gymnasium, sports training hall, training room.
Recreation: large playground, animal botanical garden, children's playground.
Business places: exhibition center, 4S shop, large professional products market, large shopping malls and supermarkets.
Other types: front office, villa, canteen, museum, large outdoor commercial activity lease.
Product parts

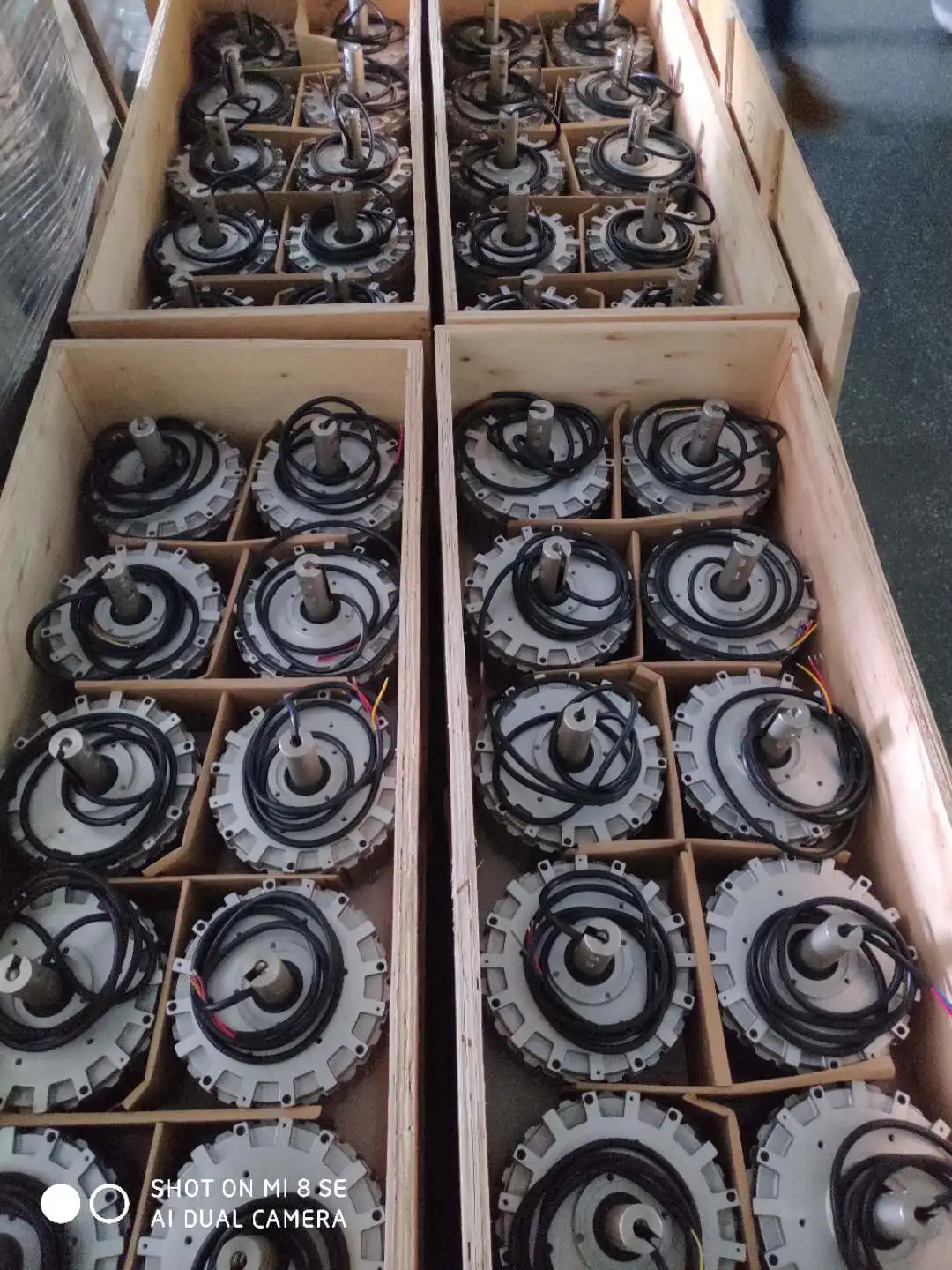

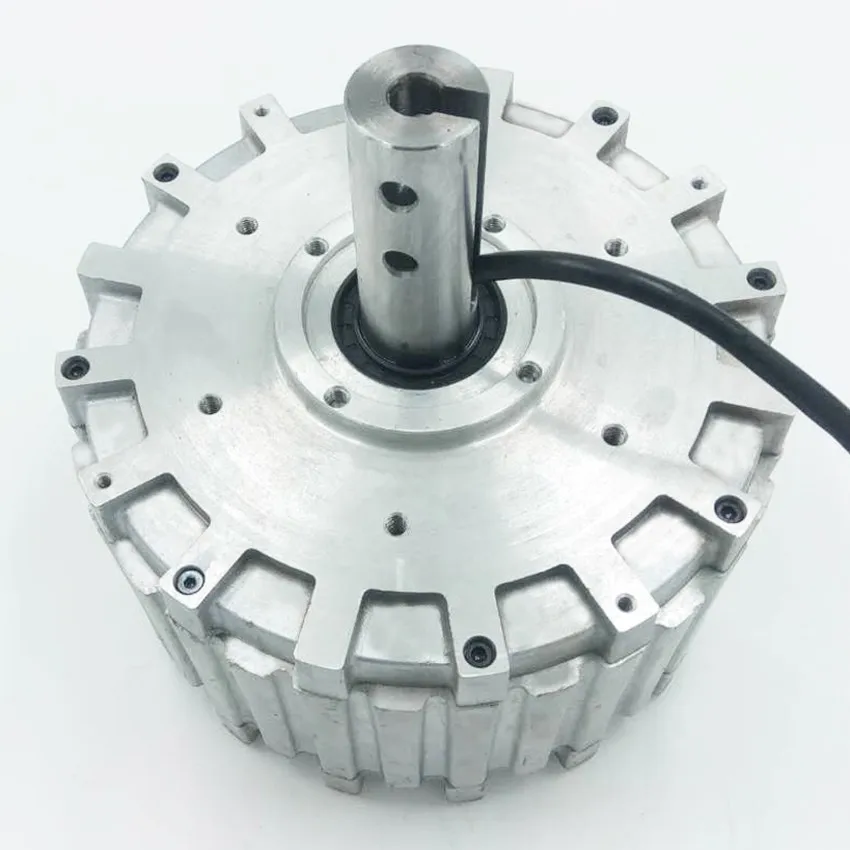

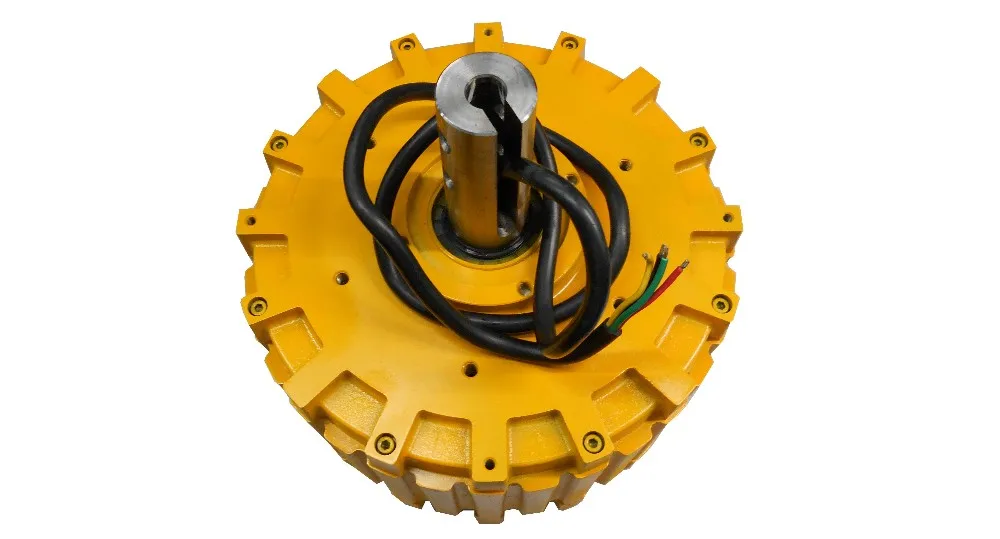

The Industrial fan We use the most advanced permanent magnet synchronous motor.
Without the Hall, carbon brush, big torque, ac drive motor FOC algorithm, it's the worldwide first technology and newly independent research and development. This type of motor adopts unique design making the torque ripple is almost zero, so that the motor in quite state during operation. It can replace the traditional motor and deceleration machine which can realize the high integration and improve the reliability and transmission efficiency. Driven by low speed high torque motor at the same time, with it's own configuration of IMU, it can realize the ESC + coordination control strategy for regenerative braking strategy actively. Driven by motor directly, it can satisfy the peak torque within any recycling or auxiliary braking torque. The drive adopts double closed loop control to realize ultra precise speed error control that the speed error of positive and negative 1 rotation can be achieved. On a condition that the running surface is only 55 ~ 60 ℃ in extremely low motor temperature rising at full capacity, so the overall heat dissipation performance is excellent.
Features and advantages:
1.Brushless motor has no spark. 2.The service life is over 50,000 hours 3. High efficiency, large power, small volume, light weight. 4.Good starting and speed adjustment. 5.Energy saving: 35%- 50%. 6.The explosion-proof type 7. Low noise, Just 60 decibels
Drive control systems:
The drive is used with the motor
1>The control system can display voltage, current speed and other information
2>. The control plan is flexible and changeable 3>.Complete sets of matching models. 4>.Versatility and compatibility are excellent 5>.Convenient maintenance
6>The display screen can be changed to the customer's company name
Packing & Delivery
Packing list:
1>6 pcs Blades
2>One BLDC Motor
3>One Controller system with display
4>Fan transfer tray
5>Connecting rod
6>Fan blade holder
7> Other fan accessories
Our Company
Shenzhen Jenvos electrical equipment Co.,ltd. Is a set of precision machinery parts manufacturing, motor, drive control systems, industrial fan R&D, manufacturing, sales of high-tech enterprises. Plant area of 3000 square meters; now has employees, management, more than 200 tech-nical staff.
Companies based on brushless DC,AC and DC servo processing, inverter motor, controller of production, research and development, sales, and precision parts.
Now the motor has formed 44#,60#, 80#,92#,110#,130#,140#,180#,200#, and other frame sizes;
The controller has formed a high voltage DC 24v to AC 380V from a series of Voltage range.
Power from 50w to more than 100KW power;
Motor speed range from a few hundred to tens of thousands each turn and so on;
For domestic and foreign customers with more variety,personalized, modular,motor perfect solution.
The company has passed ISO9001: 2008 quality system certification, ISO14001 environmental management system certification.
All the fan parts are produced by us, so our industrial fan high quality and inexpensive.
Certifications
Our Service
1.Are you a foreign trade company or a manufacturer ?
A:Yes , we are a manufacturer . Our factory located in Shenzhen City, Guangdong Provin,
All of our staffs work in Factory, welcome to visit our factory.
2. Could you print customer company LOGO ?
A: Yes , we accept OEM orders,have Laser Marking Machine in factory.
3. What is the price per BLDC Motor ?
A: We will offer the best to you ,according your order quantity
4. How do you control your product quality ?
A: We provide customers with 1 years warranty, if the product of the problem will only give us the trouble and costs, all products before shipment must be tested strictly by QC
