Stencil printer QH3040 chip mounter TVM802A reflow oven QR5040D led production line
- Category: Electronics Production Machinery >>>
- Supplier: Yueqing Qihe Electrical Technology Co. Ltd.
Share on (60763630326):
Product Overview
Description
Stencil printer QH3040 chip mounter TVM802A reflow oven T962C led production line

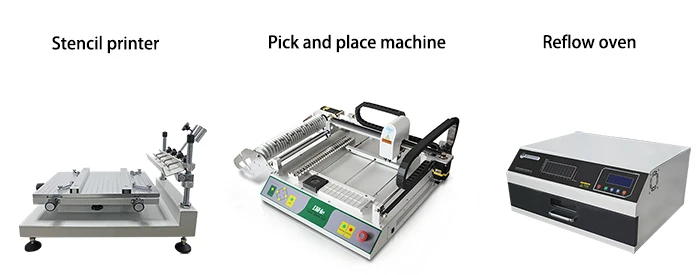

QIHE SMT PRODUCTION LINE

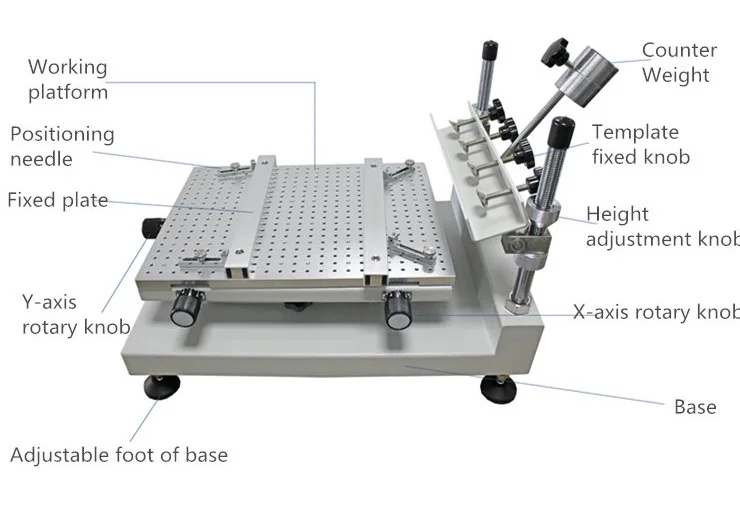

1. High precision printing machine:QH3040
Size of workbench | 300*400mm |
Max printing size | 250*400mm |
Max screen frame dimension | 270*470mm |
Printing speed | Manual control, The printing table with other specifications can be custom made by contacting our company. |
Thickness of printed matter | 0-80mm |
Vertical and horizontal adjustment volume of workbench | 10mm |
Height of printing platform | 220mm |
Repeat ability precision | ±0.01mm |
Location mode | Shape or benchmark hole |
Outline size | 540*370*350mm |
Weight | 36 kg |

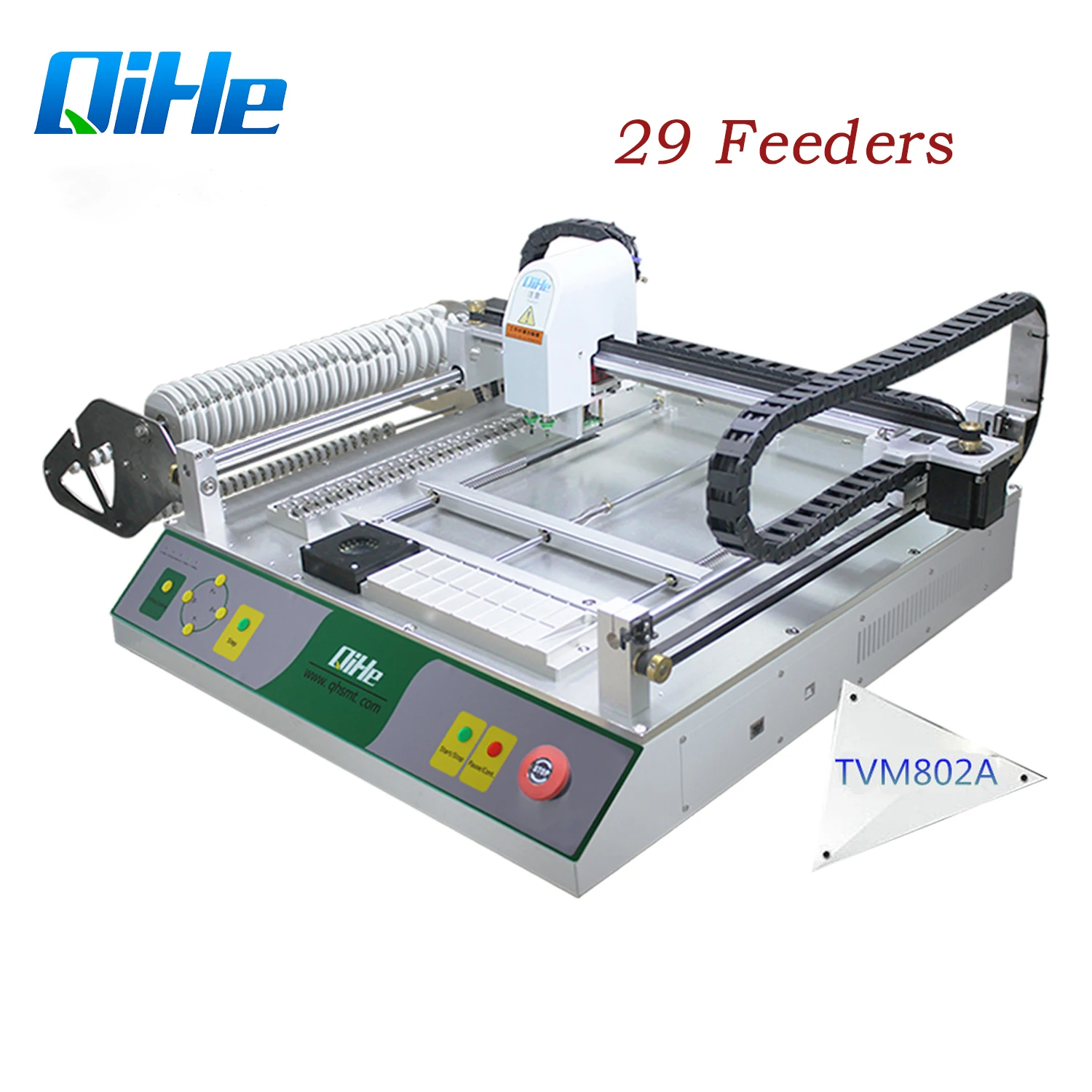

2. Pick and Place Machine
Name | TVM802A |
Max applicable PCB | 10*10mm----330*340mm |
Max XY Moving area | 395*450mm |
Placement head quantity | 2 |
Positioning accuracy | 0.025mm |
Max mounting capability | 5500 PCS/H |
Motor control scheme | Stepper motor(Flexible S deceleration) |
Applicable Components | 0402--5050,SOP,TQFP,QFN ect |
Components supply | Tape reel,Tray |
Tape width & feeders number | total=26 8mm=22,12mm=3,16mm=1 |
Visual systems | 2 HD CCD Cameras |
UP Visual system | Automatic identify the center of components |
Down Visual system | Automatic identify mark |
Vacuum pump quantity | |
Vacuum pump | 2 -92KPA (Mute type pump) and 1 positive pump |
Power | 125W |
Power Supply | AC220V or AC110V |
Gross weight | 60kg |
Net Weight | 35kg |
Volume | 0.38CBM |
Protl99/AltiumDesigner/Eagle/Pads/ Allegre |

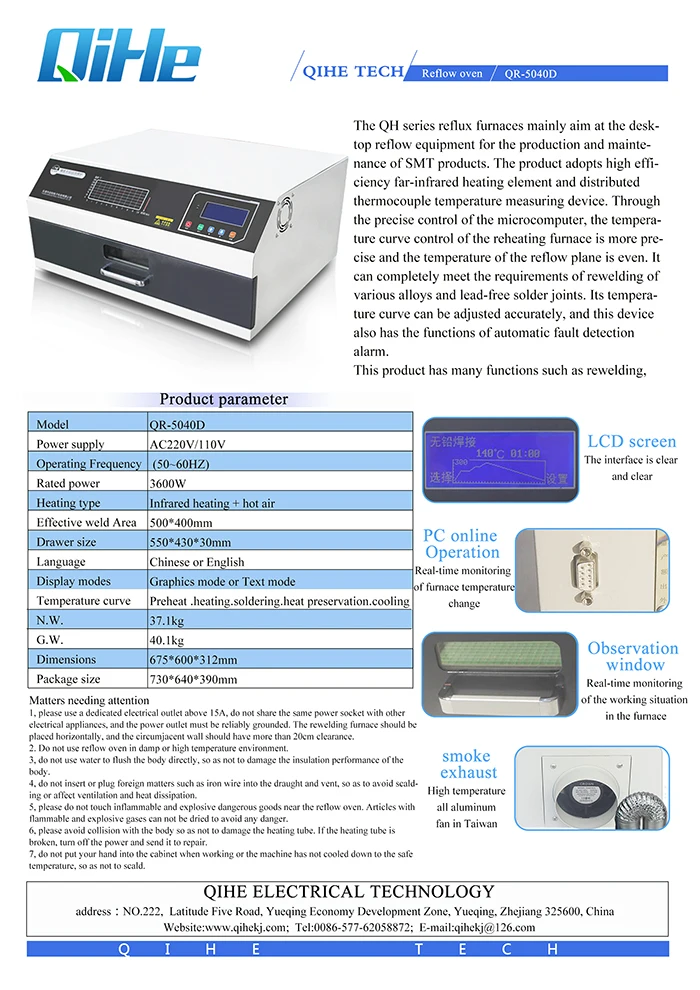

3. Reflow Oven: QR5040D
Company Information
Company Show
Exhibition Show
Certificate
FAQ
1. Q: How many nozzles do you supply? |
A: The TVM802 has two nozzle-heads, we supply 4 nozzles. The TVM925 has 4 nozzle-heads, we supply 6 nozzles. The QM41 has 4 nozzle-heads, we supply 8 nozzles. |
2. Q: Which language is the software? Do you provide software updates? |
A: English or Chinese. Free to upgrade software for lifetime. |
3. Q: This is the first time I use this kind of machine, is it easy to operate? |
A: Yes. There are English manual and guide video that show you how to use machine. If there is any doubt in the process of operating the machine, please feel free contact us. We also provide overseas on-site service. |
4. Q: Can we customize the machine? |
| A: Of course. All of our machines can be customized. |
5. How about the warranty? |
A: We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period. |
Company | Yueqing Qihe Electrical Technology Co.,Ltd. |
Address | No.222 Latitude Five Road, Economic Development Zone,Yueqing, Zhejiang,China |
Tel | +86 0577 62058872 |
Fax | +86 0577 89736269 |
Zip code | 325600 |
Skype | 17198668029 |
Email: |
|
Website | www.qhsmt.com |
