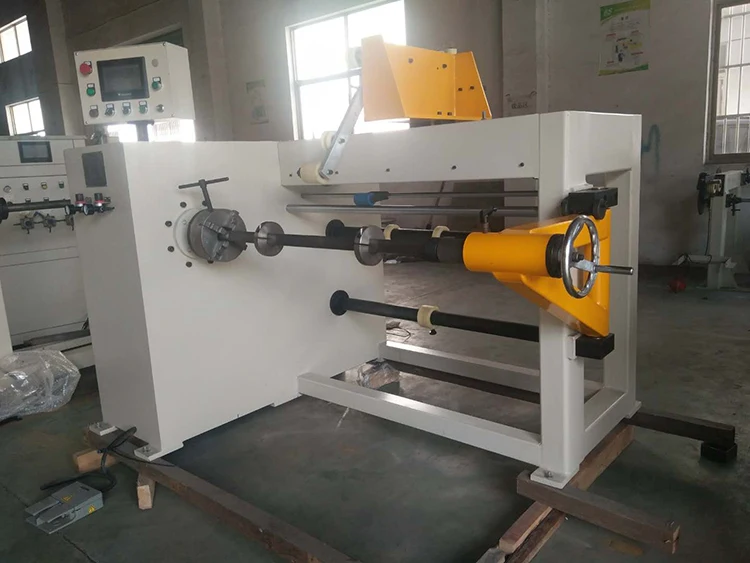

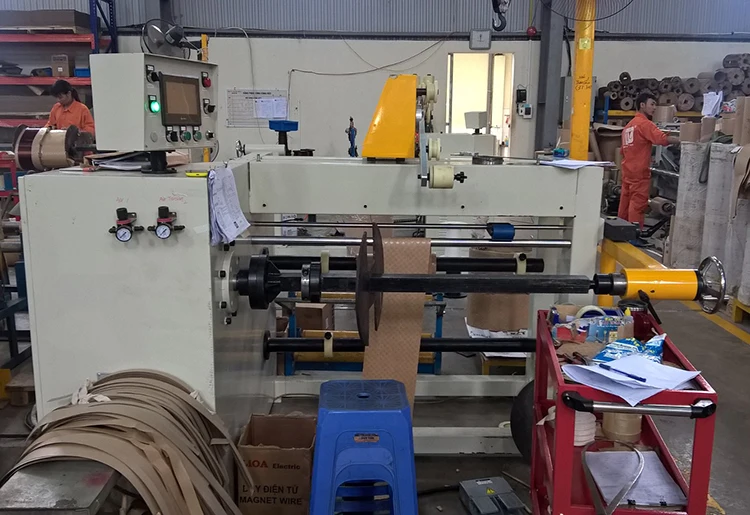

Manufacturer Selling Automatic Copper Wire Transformer Coil Winding Machine
Introduction
Manufacturer Selling Automatic Copper Wire Transformer Coil Winding Machine ZPX800, adopting automatic winding displacement and tension technologies, is especially suitable for winding square and round coil. These coils can be used in small and medium-sized distribution transformer, reactor and other similar products.
Main Components
1. Main frame
2. Winding unit

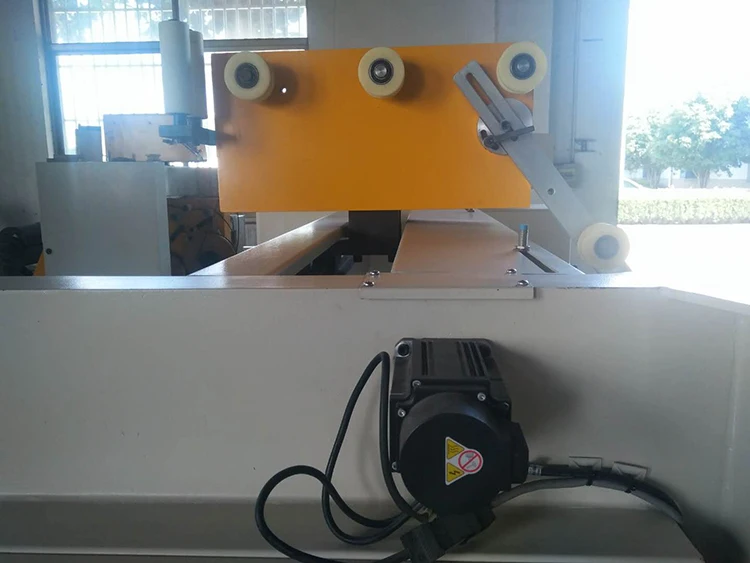

3. Automatic winding displacement unit
4. Insulation decoiler

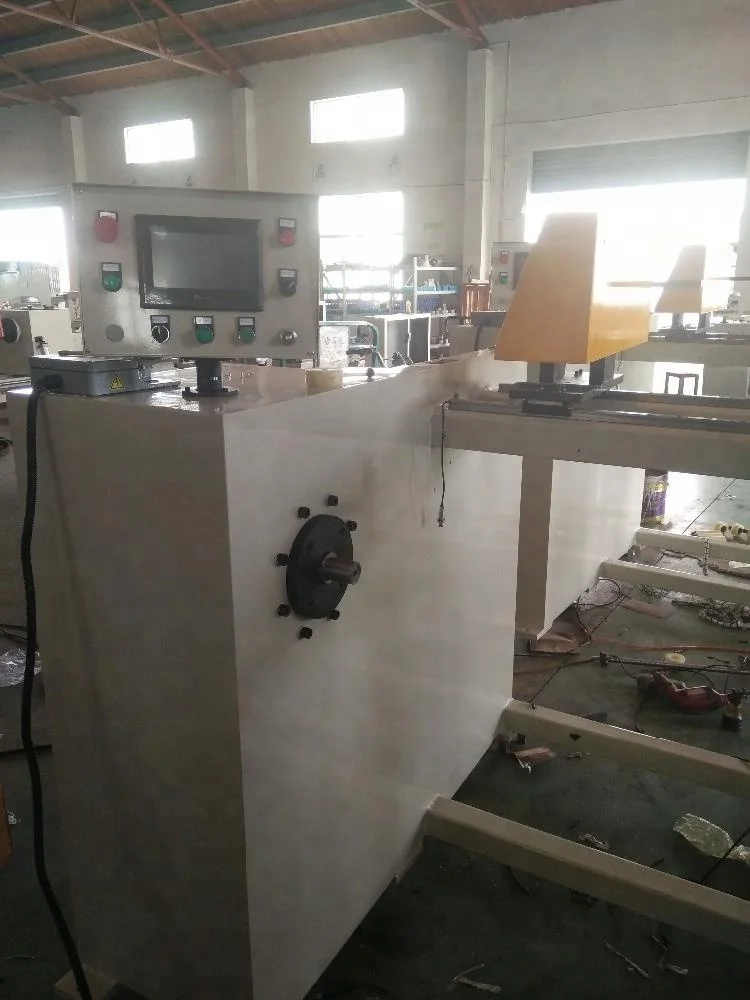

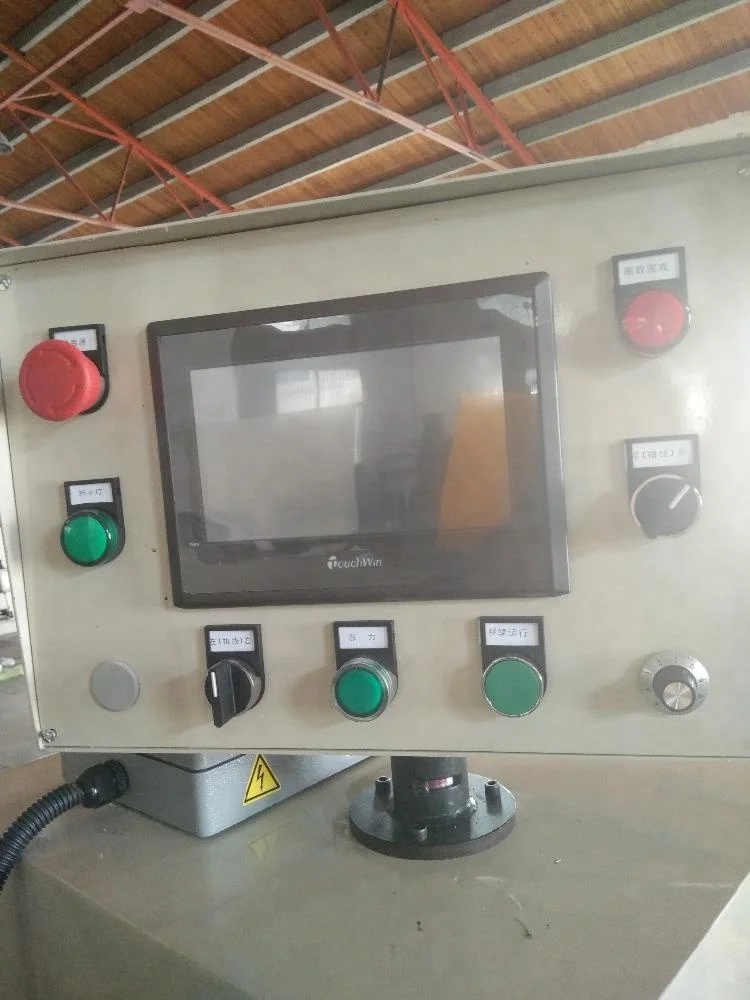

5. Electronic control system
6. Pneumatic system
Technical Parameters
Typical standard specifications of ZPX800 are shown below, however these can be easily modified according to your requirements.
Center Height: | 850mm |
Spindle Length: | 950mm |
Max. Working Torque: | 2000N.M |
Winding Speed: | 0-160 Rpm |
Speed Regulation: | Variable frequency and stepless speed regulation |
Axial Height: | ≤850mm |
Coil OD.: | ≤800mm |
Max. Load: | 700kg |
Winding Power: | 4Kw |
Wire Size: | Flat wire: Max. 5*12mm; Dia. of round wire: 0.3-5.0mm |
Automatic Wire Arrangement Function: | Diameter of wire adjustable, Min. step: 0.01mm |
Counting Mode: | 5-digit counting, up to 12-segment preset, total turns preset, reversible counting, and power off memory, etc. |
Max. Turns Preset Number: | 9999.9 |
Main Power: | 380v/50hz |
Counting Turn Range: | 0 - 9999.9 |
Send Inquiry
Similar Products
Company Information
Main Products
Main Products
|  |  |
 |  |  |
Packaging & Shipping
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Are you responsible for installing and training operators overseas?
A: We will do it if you need.
3) Q: How do you provide after sales service?
A: We provide technical support online as well as overseas services provided by our skilled technicians.
A: We provide technical support online as well as overseas services provided by our skilled technicians.
4) Q: How does your factory control product quality?
A: Every machine has to be tested before loading.
5) Q:How can I trust you that machines pasted testing before shipping?
A: 1) We can record the testing video for your reference if you need, or;
2) You can come to our factory for acceptance.
6) Q: Do you sell only standard machines?
A: Besides standard machines, we can also manufacture these machines as requested.
