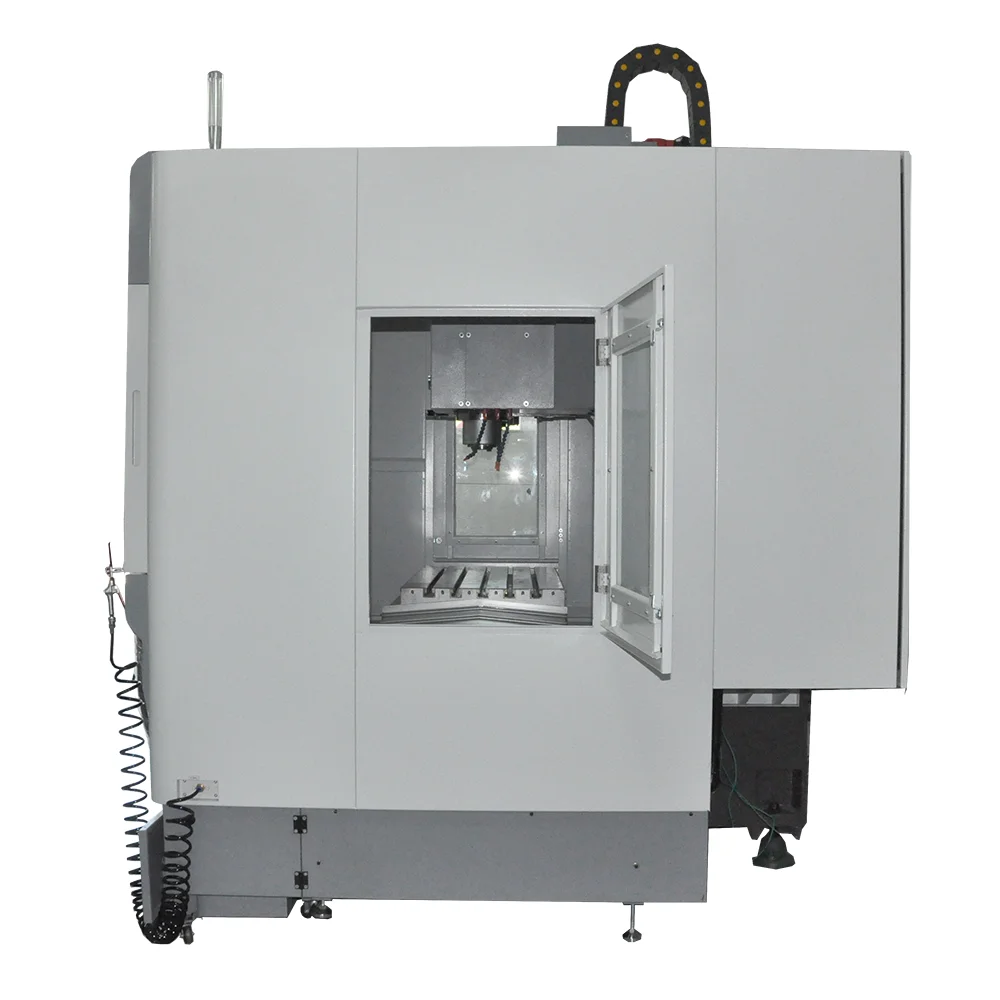

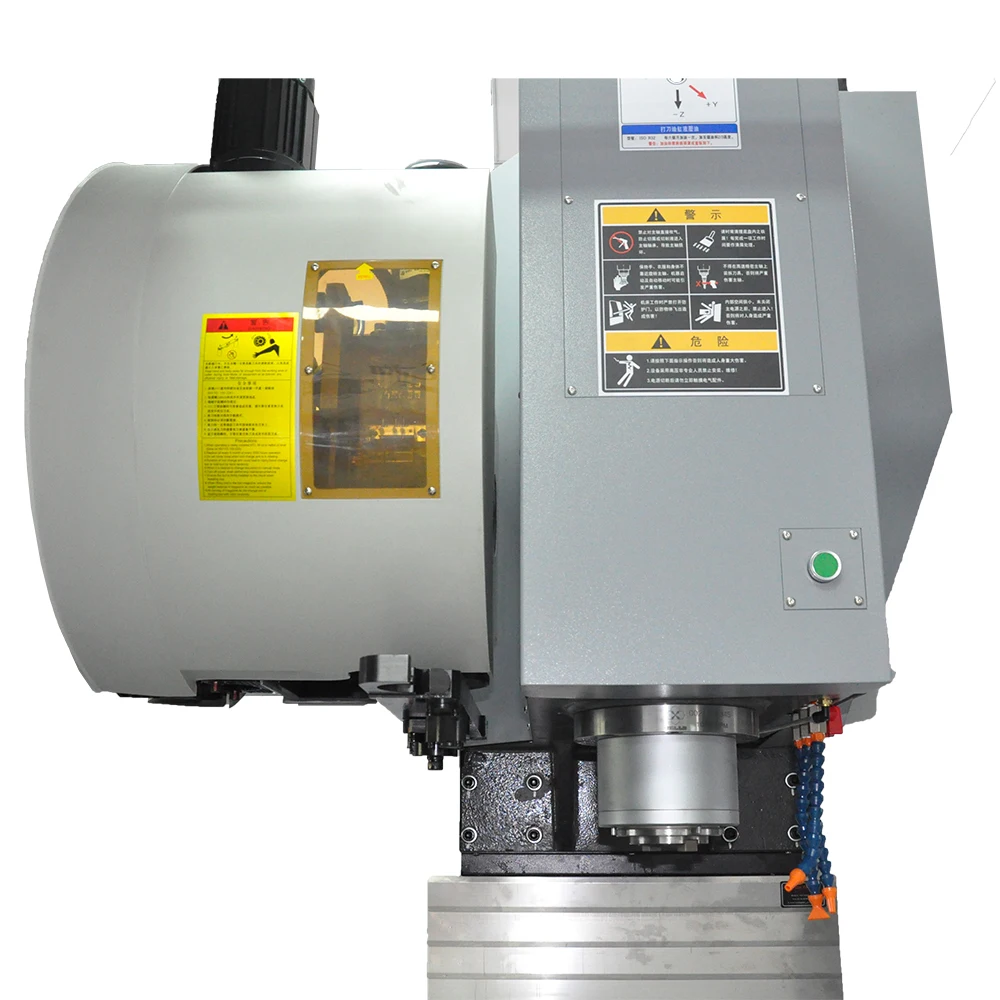

High performance metal cutting machine tool vmc vertical machining center cnc milling machine
- Category: Machine Centre >>>
- Supplier: Jinan Find Machinery Co. Ltd.
Share on (60765713458):
Product Overview
Description
Products Description
Features of VMC855 vertical machining center, CNC milling machine:
1.Machine frame with linear guides in an extra-wide configuration, Robust construction for efficient machining.
2.Linear guide system for rapid feeds up to 10 m/min.
3.High-precision preloaded ball screws on all 3 axes.The 4th axis is optional.

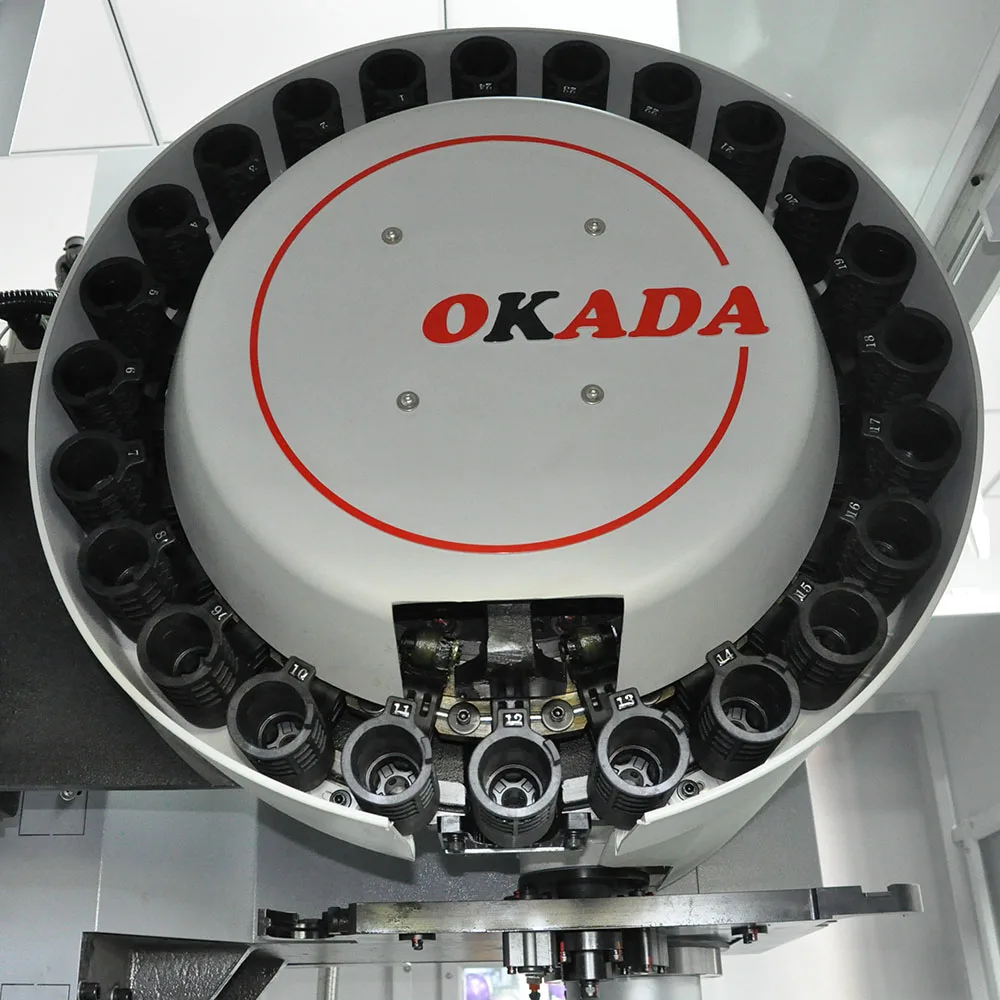

4.Funnel type 20-station tool changer for quick and precise tool changes (as Optional).
5.Chip conveyor and purge system for optimum chip removal.
6.Easy accessibility of work table for easy setup and tooling
7.Enclosed work space ensures safe and contamination-free work.

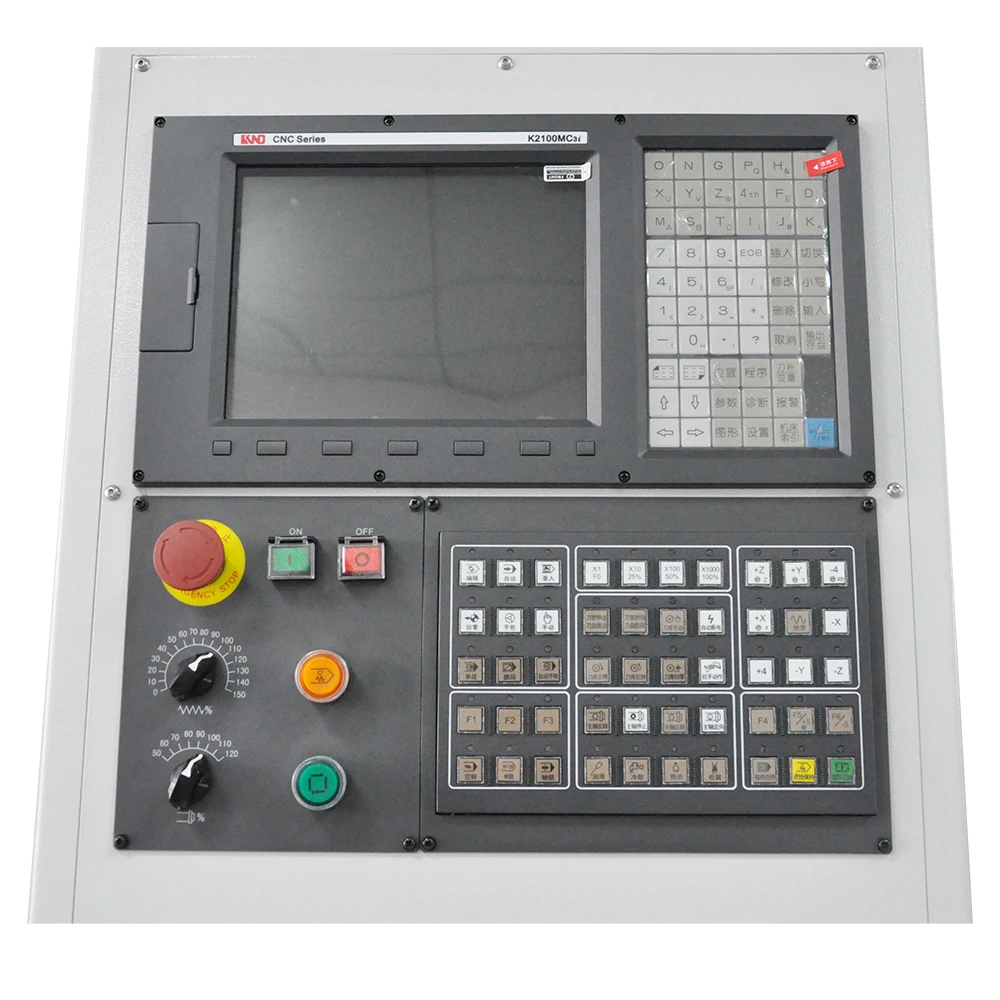

8.Operating system: Mitsubishi, Fanuc and Siemens
9. mainly applicable to processing board, plate, shell mold and small complex parts.
10.able to mill steel,copper,aluminum,wood and plastic etc.
11.can continuously complete drilling,milling,tapping,reaming,expanding and other processess at one clamping.
1.Machine frame with linear guides in an extra-wide configuration, Robust construction for efficient machining.
2.Linear guide system for rapid feeds up to 10 m/min.
3.High-precision preloaded ball screws on all 3 axes.The 4th axis is optional.
4.Funnel type 20-station tool changer for quick and precise tool changes (as Optional).
5.Chip conveyor and purge system for optimum chip removal.
6.Easy accessibility of work table for easy setup and tooling
7.Enclosed work space ensures safe and contamination-free work.
8.Operating system: Mitsubishi, Fanuc and Siemens
9. mainly applicable to processing board, plate, shell mold and small complex parts.
10.able to mill steel,copper,aluminum,wood and plastic etc.
11.can continuously complete drilling,milling,tapping,reaming,expanding and other processess at one clamping.
cnc vertical machining center | VMC855 | |||
Table | Area | Unit | 1000×550 mm | |
T-slot | mm | 5-18-100 | ||
Max. load | kg | 500 | ||
Travel | Moving range X, Y, Z | mm | 800×550×550 | |
Spindle nose to table surface | mm | 150~700 | ||
Spindle center to column guideway | mm | 610 | ||
Feed | Rapid feed speed X, Y, Z | m/min | 48/48/48 | |
Feed speed X, Y, Z | mm/min | 10~10000 | ||
Spindle | Taper | BT40 | ||
Speed | r/min | (AC servo) 10~10000 | ||
Power | kW | AC servo 11/15 | ||
Tool magazine with capacity | qty | 24 | ||
Accuracy | Positioning accuracy | mm | ±0.005/300 JIS | |
Re-positioning accuracy | mm | ±0.003/300 JIS | ||
Overall dimension | mm | 3200*2300*2700 | ||
Machine weight | kg | 5500 | ||
