China Manufacturer Automatic Copper Wire Transformer Coil Winding Machine
- Category: Coil Winding Machine >>>
- Supplier: Zhu Tang (Suzhou) Technology Co. Ltd.
Share on (60767459911):
Product Overview
Description
Product Description

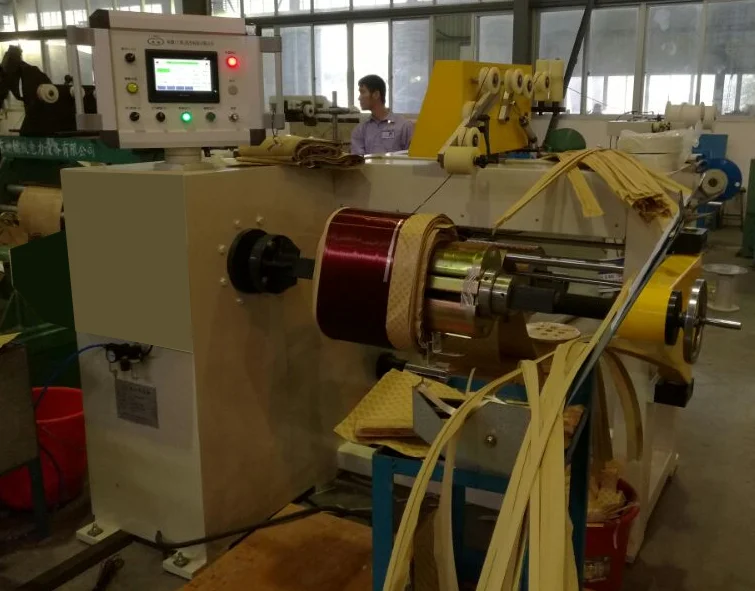

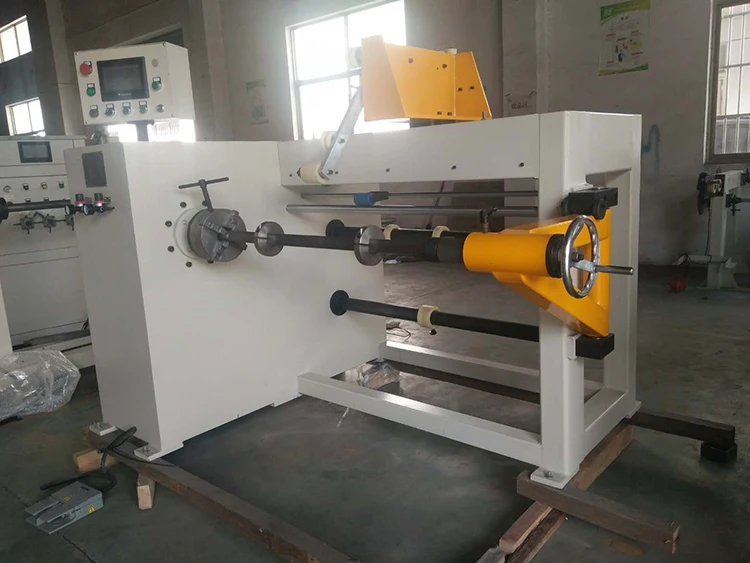

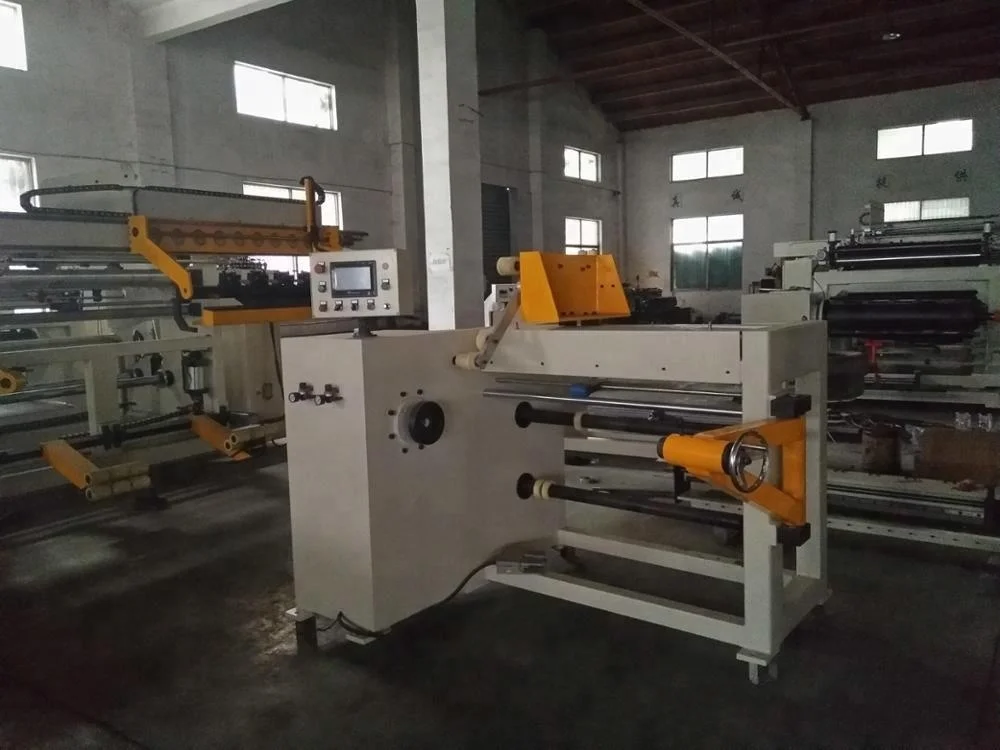

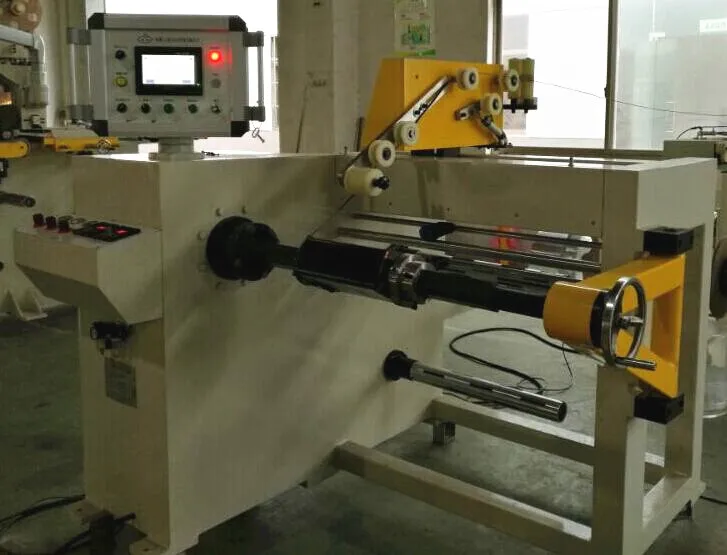

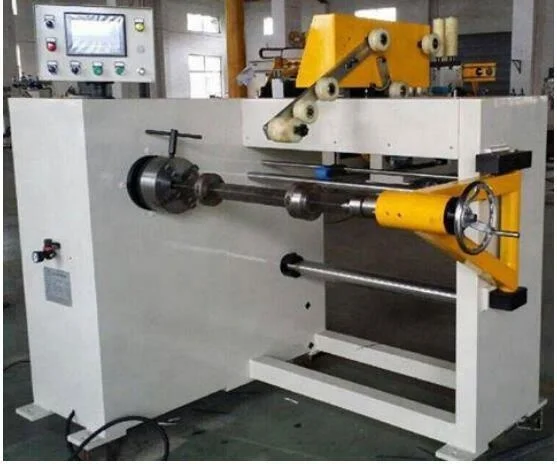

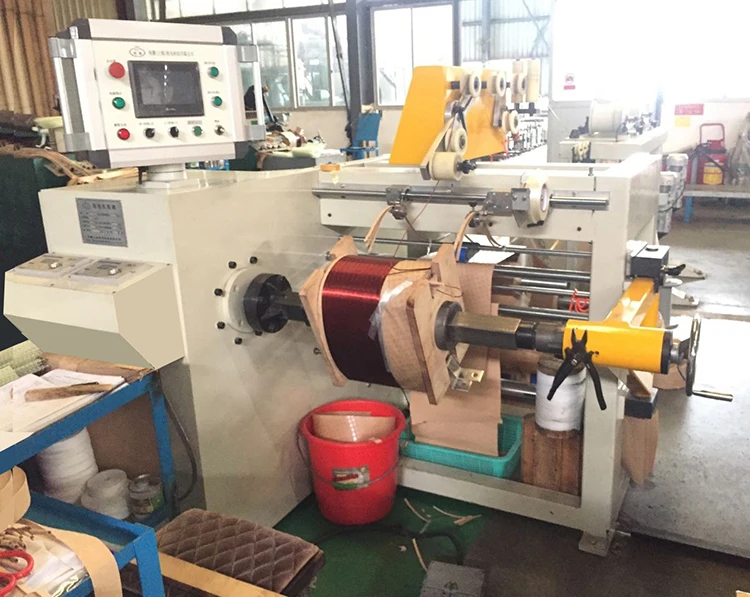

China Manufacturer Automatic Copper Wire Transformer Coil Winding Machine
Introduction
China Manufacturer Automatic Copper Wire Transformer Coil Winding Machine ZPX800 , adopting automatic winding displacement and tension technologies, is especially suitable for winding square and round coil. These coils can be used in transformer, reactor and other similar products.
Main Components
1. Main frame
2. Winding unit
3. Automatic winding displacement unit
4. Insulation decoiler
5. Electronic control system
6. Pneumatic system
Technical Parameters
Typical standard specifications of ZPX800 are shown below, however these can be easily modified as requested.
Center Height: | 850mm |
Speed Regulation: | Variable frequency and stepless speed regulation |
Wire Size: | Flat wire: Max. 5*12mm; Dia. of round wire: 0.3-5.0mm |
Max. Working Torque: | 2000N.M |
Coil OD.: | ≤800mm |
Max. Load: | 700kg |
Automatic Wire Arrangement Function: | Diameter of wire adjustable, Min. step: 0.01mm |
Counting Mode: | 5-digit counting, up to 12-segment preset, total turns preset, reversible counting, and power off memory, etc. |
Max. Turns Preset Number: | 9999.9 |
Counting Turn Range: | 0 - 9999.9 |
Send Inquiry
Company Information
ABOUT US
Zhu Tang (Suzhou) Technology Co., Ltd., formerly known as Zhu Tang (Shanghai) Technology Co., Ltd., is specializing in developing, designing, manufacturing and selling transformer and reactor manufacturing machines, such as foil winding machines, coil winding machines, iron core stacking & tilting platform, etc. Our custormers are from all over the world, including Russia, Germany, Canada, South Korea, Vietnam, and India etc. The company was established in 2009 and is located in Taicang City, Suzhou City, Jiangsu Province, China.
Main Products
|  |  |
 |  |  |
Packaging & Shipping
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Are you responsible for installing and training operators overseas?
A: We will do it if you need.
3) Q: How do you provide after sales service?
A: We provide technical support online as well as overseas services provided by our skilled technicians.
A: We provide technical support online as well as overseas services provided by our skilled technicians.
4) Q: How does your factory control product quality?
A: Every machine has to be tested before loading.
5) Q:How can I trust you that machines pasted testing before shipping?
A: 1) We can record the testing video for your reference if you need, or;
2) You can come to our factory for acceptance.
6) Q: Do you sell only standard machines?
A: Besides standard machines, we can also manufacture these machines as requested.
