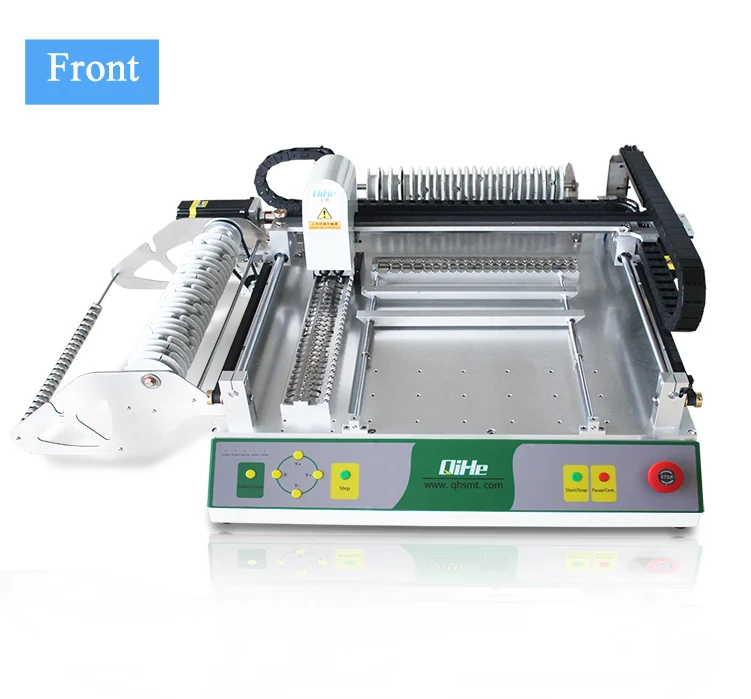

Qihe led bulb assembly machine, SMT chip mounter TVM802B led manufacturing machine
- Category: Electronics Production Machinery >>>
- Supplier: Yueqing Qihe Electrical Technology Co. Ltd.
Share on (60767668466):
Product Overview
Description
P & P machine 802B
| Model | TVM802B |
| Applicable PCB size | 260*330mm |
| Max XY-axis moving range | 395*450mm |
| Max Z-axis moving range | 12.5mm |
| Placement head quantity | 2 |
| Mounting speed | Vision off: 6500cph |
| Vision on: 5000cph | |
| Applicable component | 0402-5050, SOP, TQFP, QNF etc. |
| Vision system | 2 HDCCD cameras |

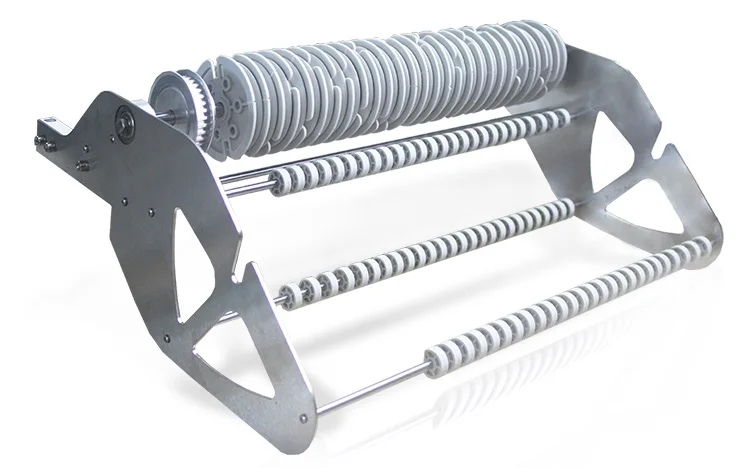

| Feeder count | 46pcs |
| Feeder tape width | 38pcs of 8mm, 6pcs of 12mm, 2pcs of 16mm |
| Pump | 1 Silent vacuum pump and 1 blowing pum |
| Leakage material detection | Vision, Press, Vision & Press |
| Power supply | 220V/110V |
| Machine size | 940*940*330mm |
| Net weight | 39Kg |
| Warranty | 12 Months |
 | TVM802B
|
|
|
 |
|
|  |
 |
|
What is the difference between TVM802A and TVM802B?
| Model | TVM802A | TVM802B |
| Applicable PCB | 340*340mm | 260*330mm |
| Mounting speed | 5500CPH | 5500CPH |
| Vision system | 2 cameras | 2 cameras |
| Feeder count | 29 | 46 |
| Feeder Width | 8mm-25pcs | 8mm-38pcs |
| 12mm-3pcs | 12mm-6pcs | |
| 16mm-1pc | 16mm-2pcs | |
| Motor control scheme | High voltage driver, stepper motor | Closed-loop driver, closed-loop motor |
| Gross weight | 60kg | 66kg |
| Machine dimension | 940*640*330mm | 940*940*330mm |
More details click Picture >>> |  |
|

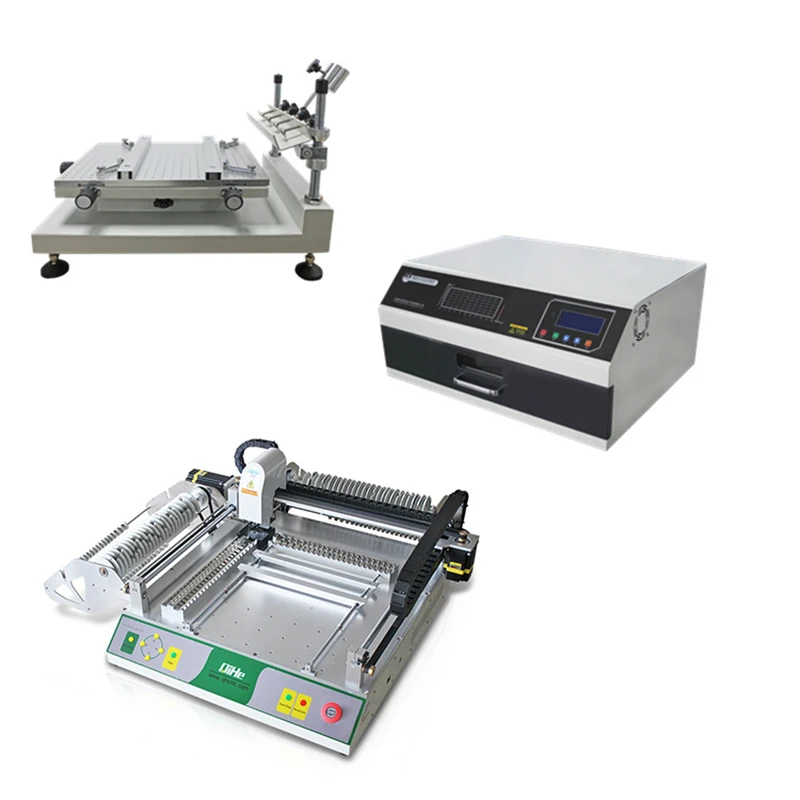

Production Line Recommend
Information show
Company Show
Exhibition Show
Certificate
FAQ

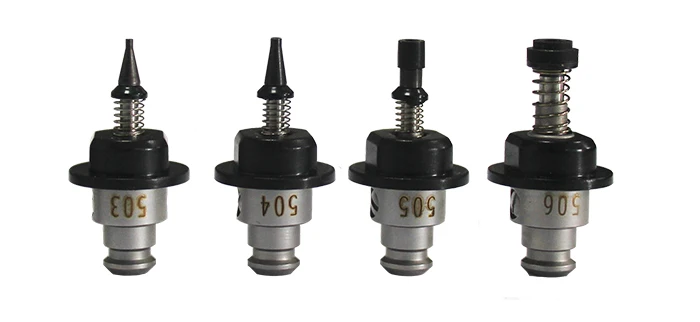

1. Q: How many nozzles do you supply? Do you sell nozzles and spares? |
A: The TVM802 has two nozzle-heads, we supply 4 nozzles. The TVM925 has 4 nozzle-heads, we supply 6 nozzles. Yes, we do sell nozzles and spares. If you need any spars, just let us know. |
2. Q: Do you provide software updates? |
A: Customers who buy our machines, we can offer free upgrades software for you. |
3. Q: What air supply is required? |
A: Oil free compressor and air dryer be used. |
4. Q: What is the performance? |
A: For QM41 it's 9,500cph without vision mode; 7,000cph with vision mode. For TVM925 it's 9,000cph without vision mode; 7,000cph with vision mode. For TVM802, it's 6,000cph without vision mode ; 4,000cph with vision mode. |
5. How about the warranty? |
A: We support one year warranty. We will regularly update the software for customers. If there is any doubt in the process of operating the machine, please feel free contact us. |
