Product Overview

Description

Product Description

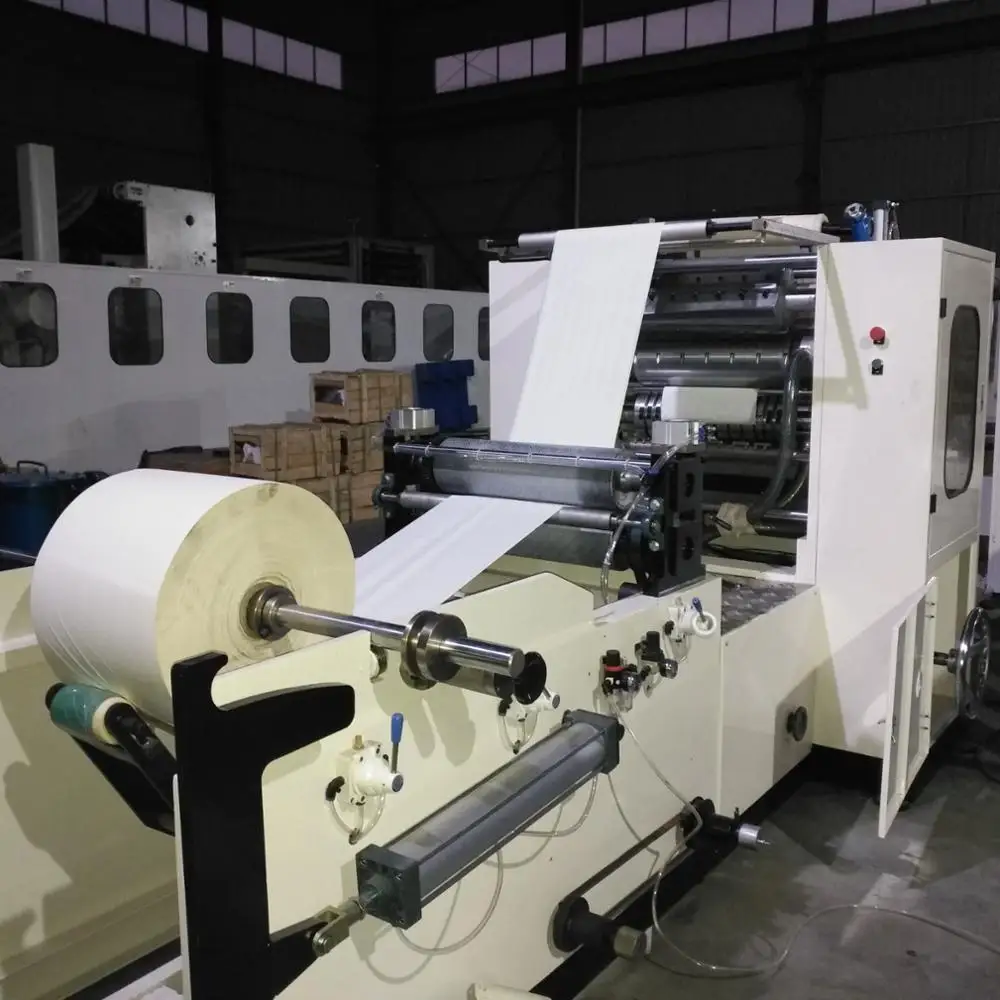

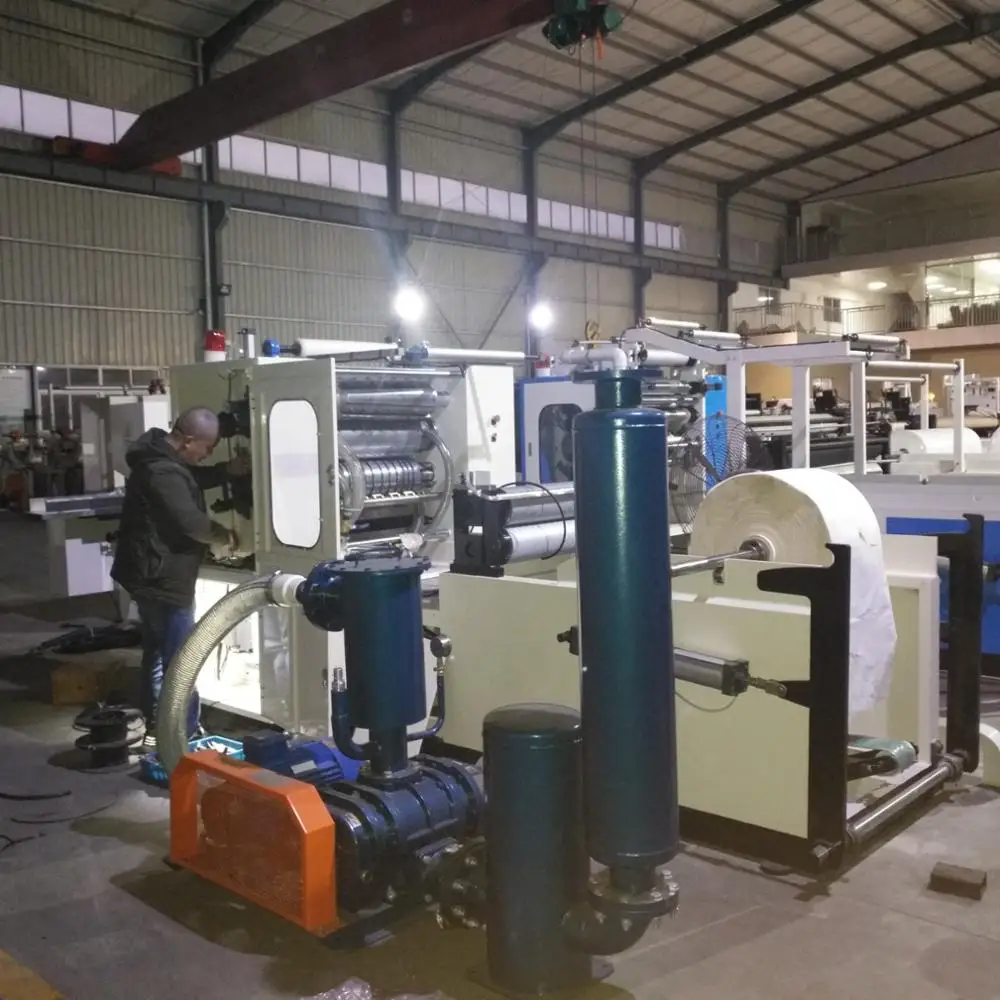

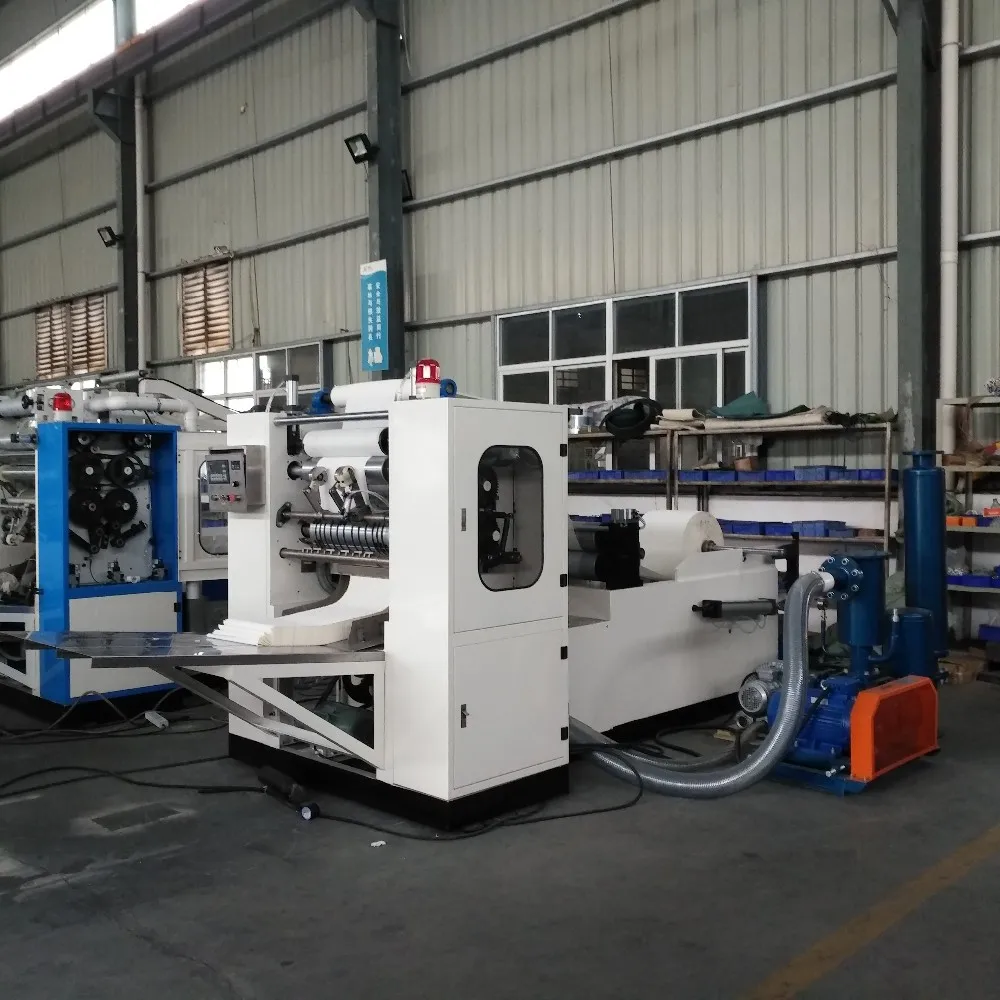

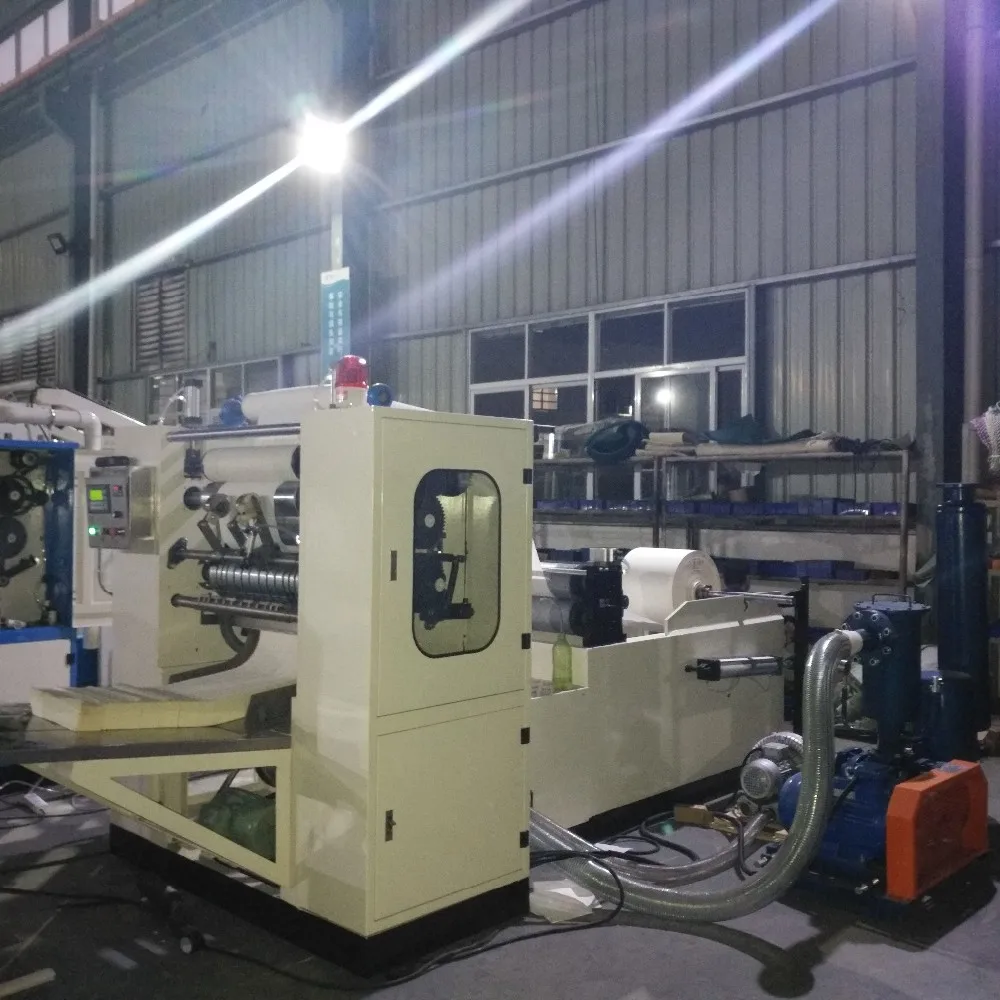

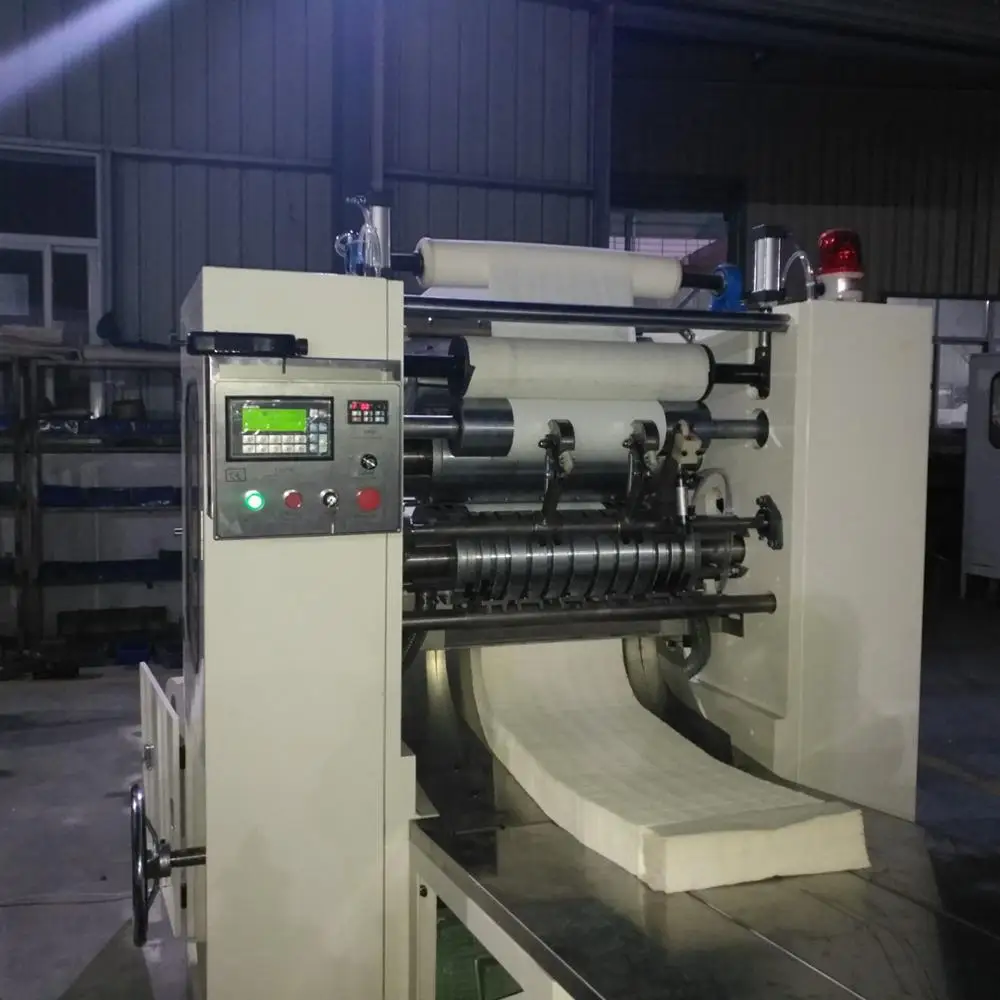

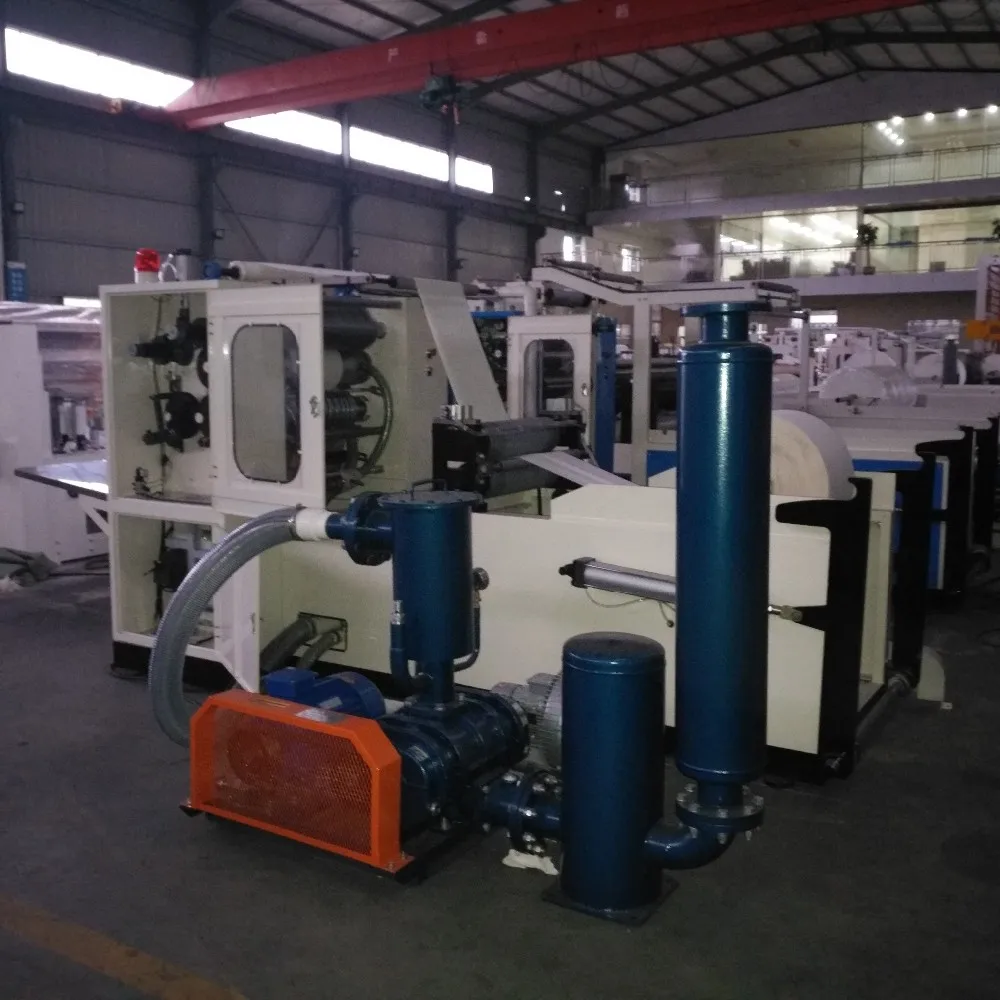

N Fold Hand Towel Machine


outline.

N folding hand towel machine process paper material after embossing,cut off,interfold become N fold,The products are widely used in hotels, office and kitchen and so on,convenient health.This machine can folding,slitting,counting,with high speed,output orderliness.

Function and characteristics

1.Production speed :（60~100）m/min

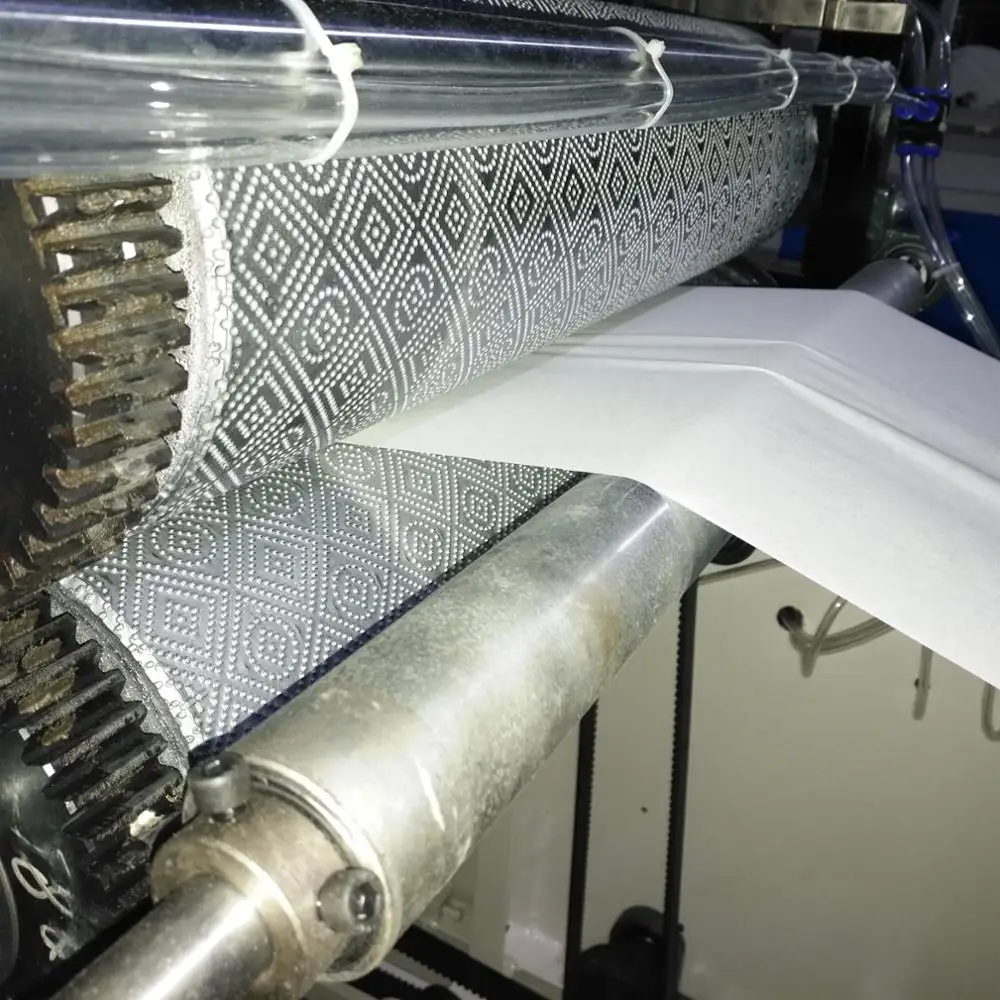

2. Steel to steel embossing unit.

3. Pneumatic broken paper automatic separation, convenient wear paper.

4..Using synchronous belt transmission, transmission ratio is accurate, low noise.

5..Base paper adapt range, 33-45g/m2 (single ply)

6.To be order two layers glue lamination .(Optional)

The main technological parameters
Finished
230（L）X230±2mm       Other sizes are available
Raw material size
460mm / 690mm / 920mm / 1150mm
Raw material core diameter
76.2mm  Other sizes are available
Speed
0-100m/min (Depending on the machine model )
Power
Frequency conversion speed regulator
Programmable controller
PLC computer controller
Folding type
Vacuum suction “ N” fold
Transmission unit
Timing belt
Counter
Ink marked
Embossing unit
Streel to steel

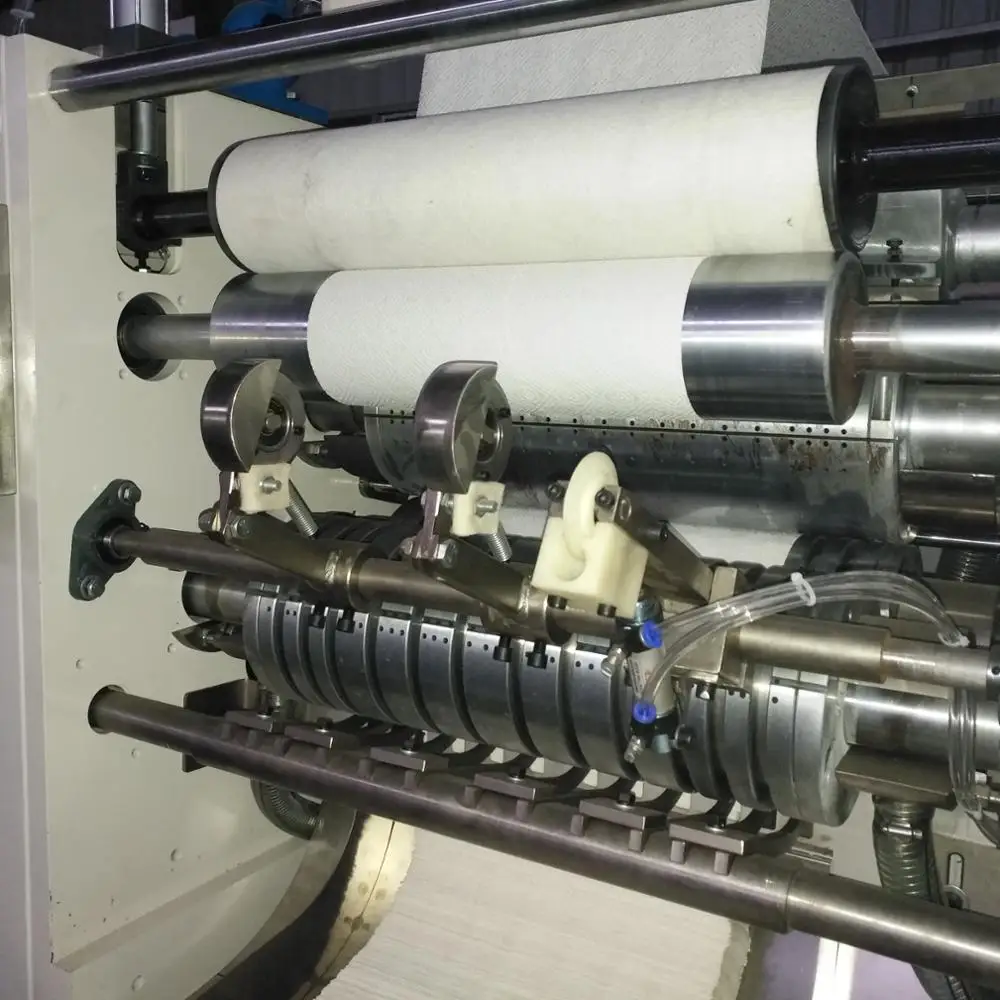

Slitting unit
Pneumatic dot slitting
Pneumatic system
3HP Air compressor,mini air pressure 5 kg/cm2 (provided by customer)
Total power
14kw / 18kw / 19kw / 24kw
Dimension
Depends on Machine Model
Weight
depend on the size and configure
