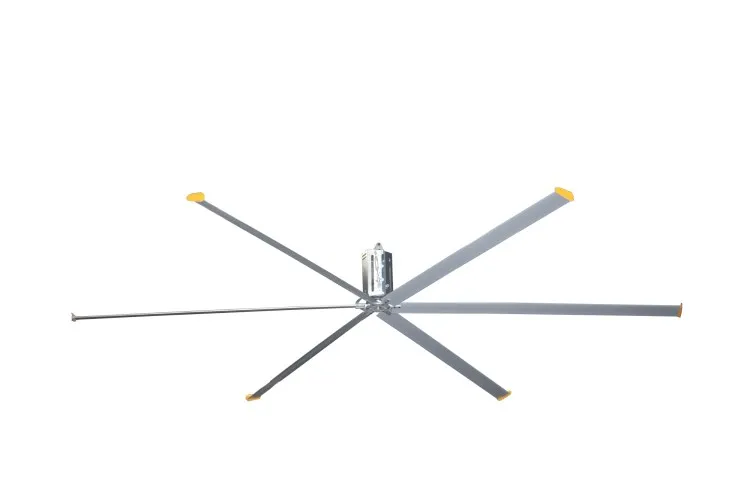

Qixiang 24ft PMSM Gearless Motor HVLS Ceiling Fan
US $1800-$2380
The Most Popular HVLS Big Industrial Ceiling Fans improve air circulation
- Category: Other Ventilation Fans >>>
- Supplier: Wuxi Xufeng Door Industry Manufacturing Co. Ltd.
Share on (60771775697):
Product Overview
Description
The Most Popular HVLS Big Industrial Ceiling Fans
Product Description
| Models | XF-F7 | XF-F6 | XF-F5 | XF-F4 | XF-F3 |
| Fan diameter(m)ft | 7.3(24ft) | 6.1(20ft) | 5.5 (18ft) | 4.9 (16ft) | 3.7 (12ft) |
| Fan weight(kg) | 112 | 105 | 100 | 95 | 85 |
| Max speed(rpm) | 53 | 53 | 64 | 64 | 75 |
| Noise(dBA) | 45 | 45 | 45 | 45 | 45 |
| Full load current(A)380V | 3.23 | 2.52 | 2.32 | 1.97 | 1.89 |
| Power(kW) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Max wind load(m3/min) | 13200 | 11200 | 9200 | 7600 | 5800 |

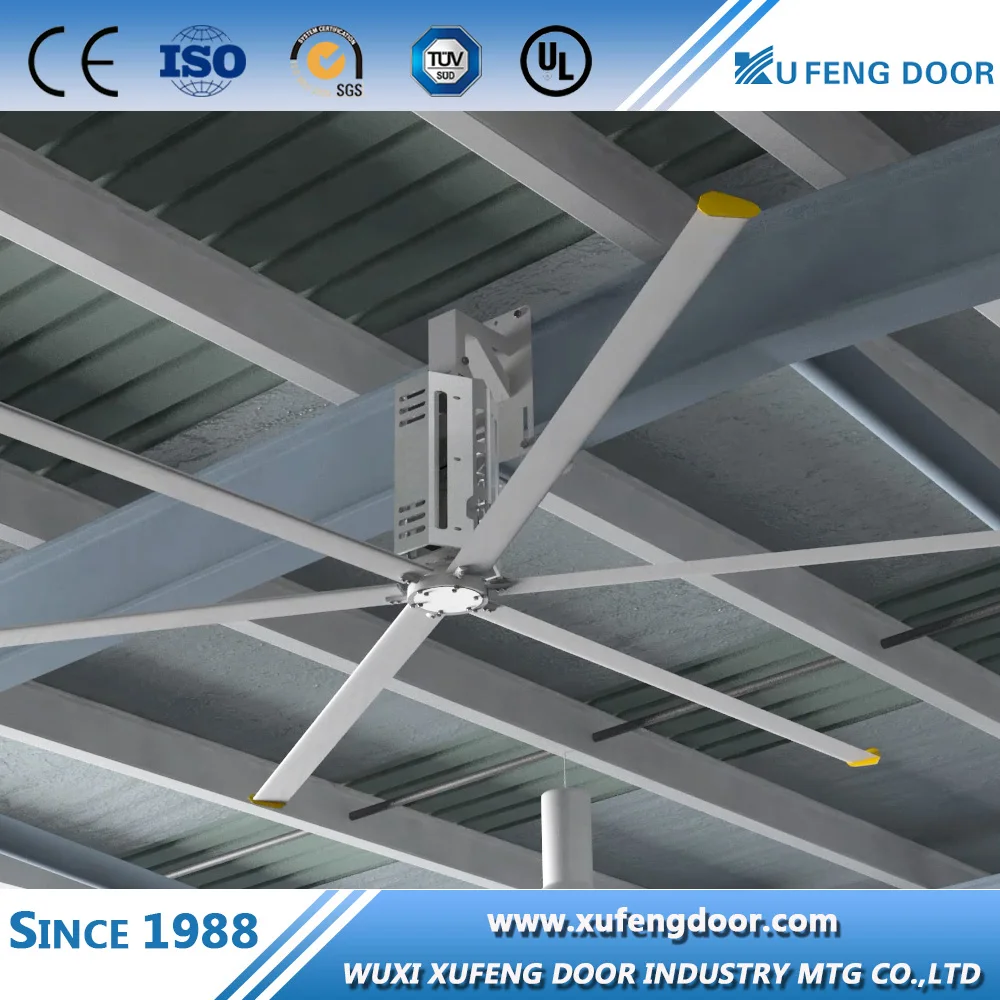

Product Display

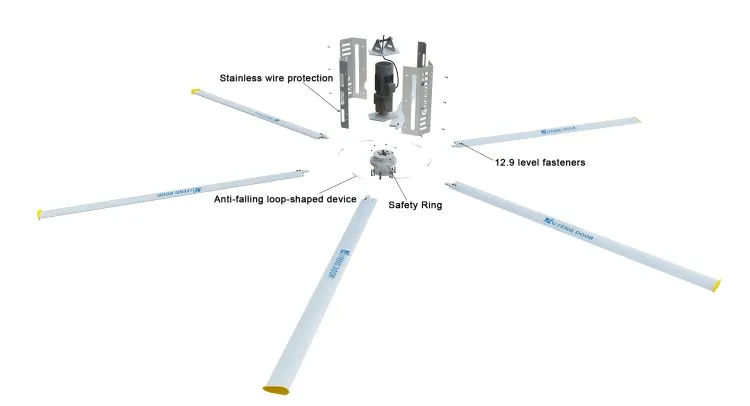

Safety Protection
1.Safety Ring: to avoid any components fall if fan is broken

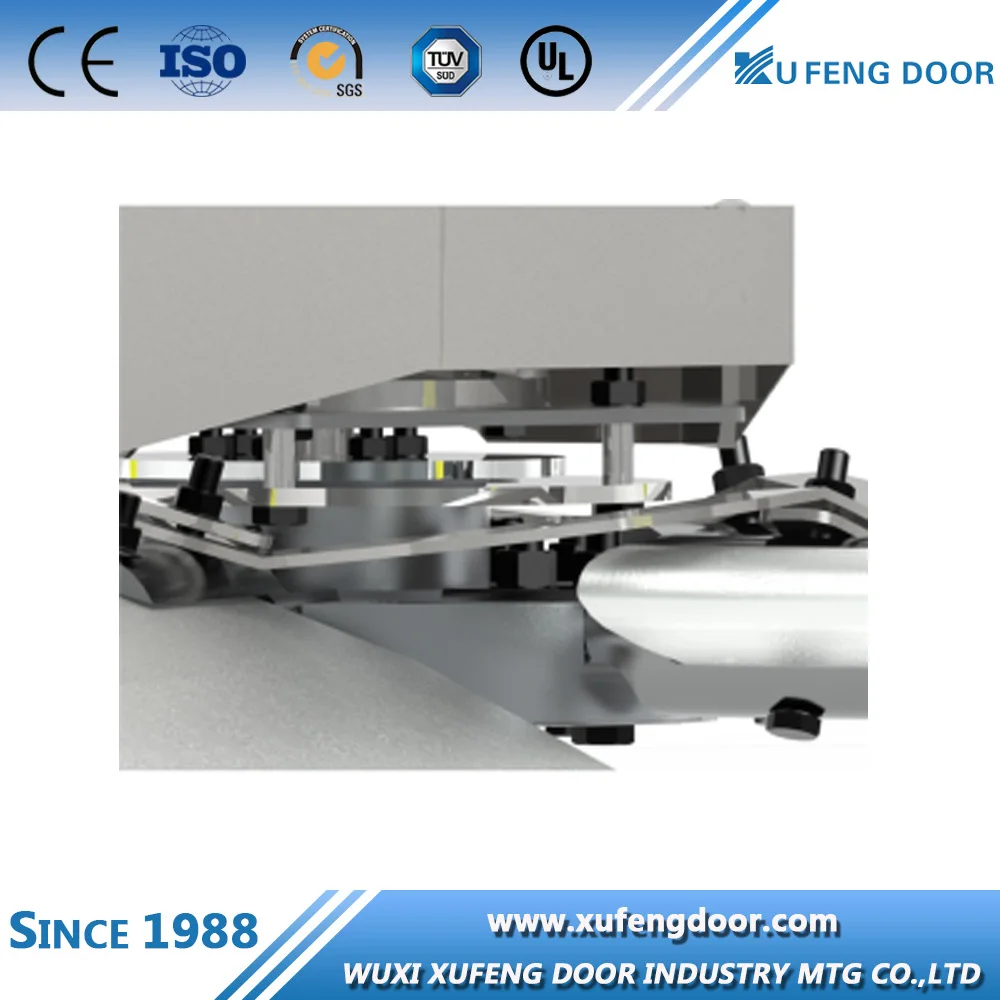

2.Anti-falling loop-shaped device: to connect all the fan blades with the fan hub tightly.
3.12.9 level fasteners: all using high-strength industrial bolts
4.Stainless wire protection: the strength intensity of EACH stainless wire is up to 1000KGS.

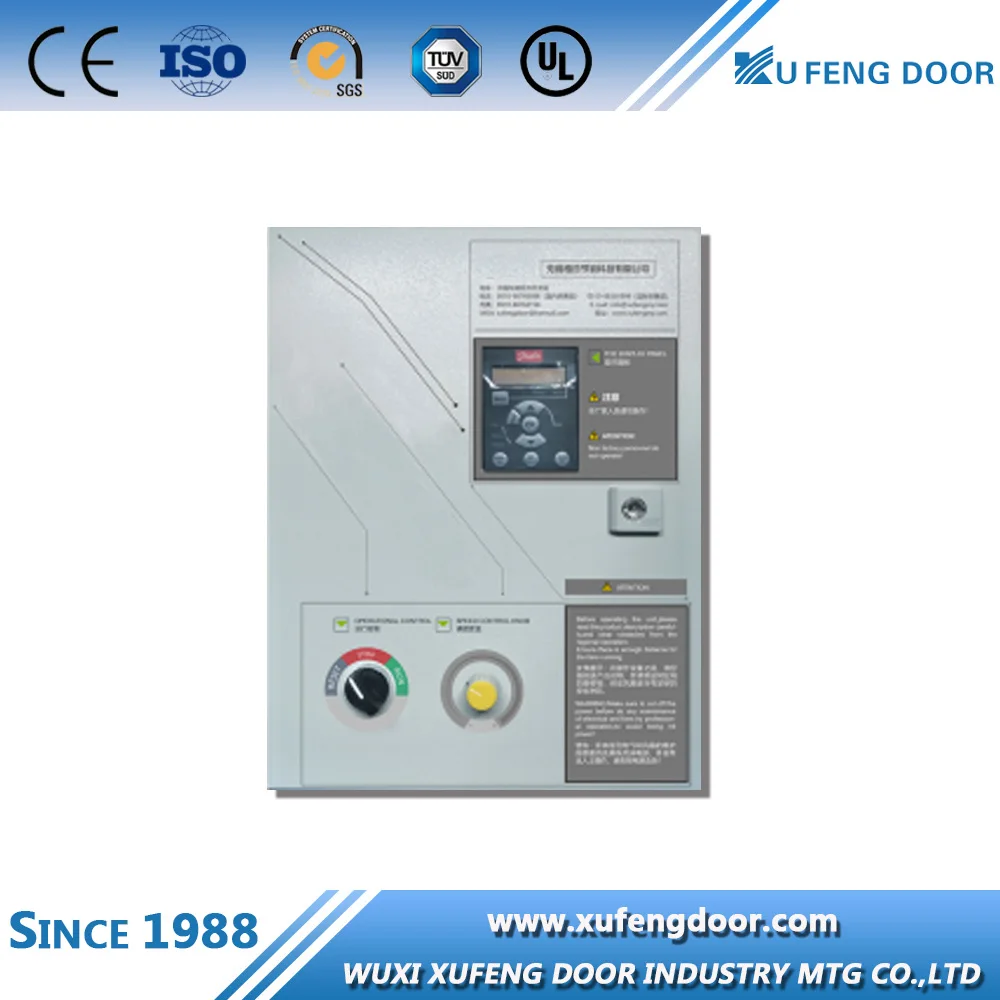

5.The fan will alarm & stopped working automatically in emergency situation, which is controlled by Danfoss Control Unit.

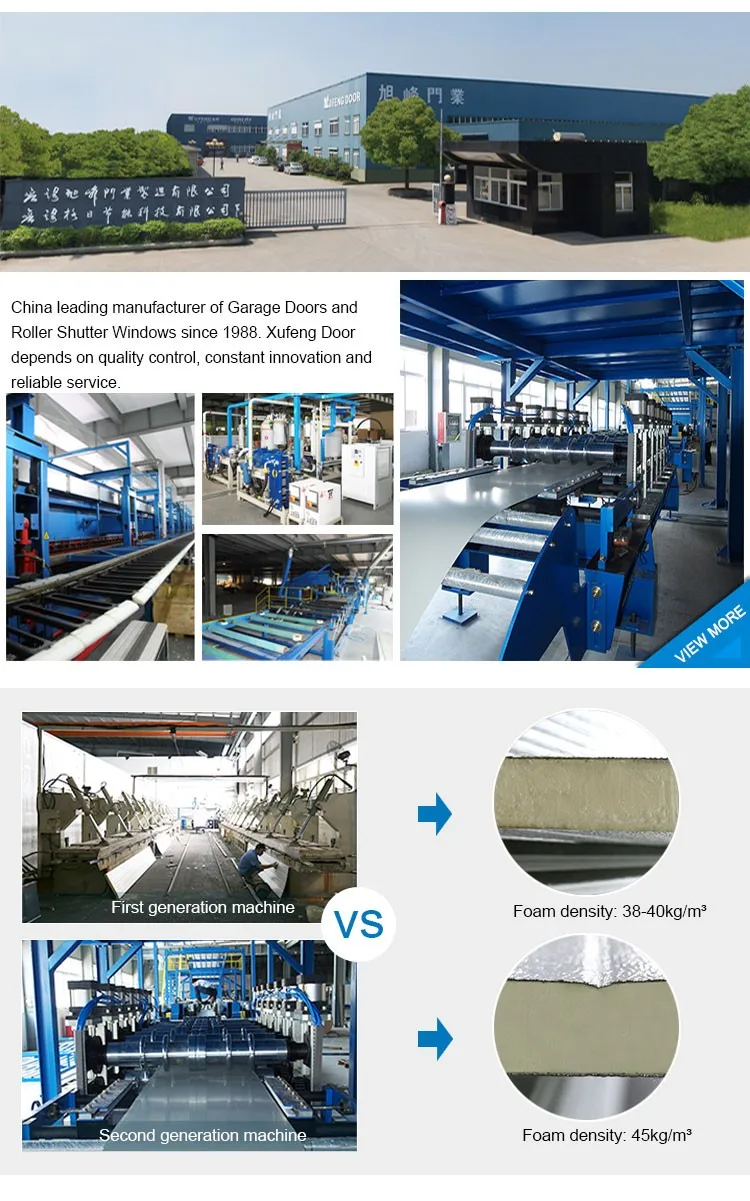

Company Information
Our Services
Because the focus, so we are more professional.
Exhibition
Related Product
Why choose XUFENG industrial electric fans?
Saving electricity cost
--1 KW/H power consumption for ONE fan.
--Application space: 500-1000m2, with outstanding advantage for saving electricity cost by comparing with traditional fans or Air conditioners.
High Air-convection efficiency

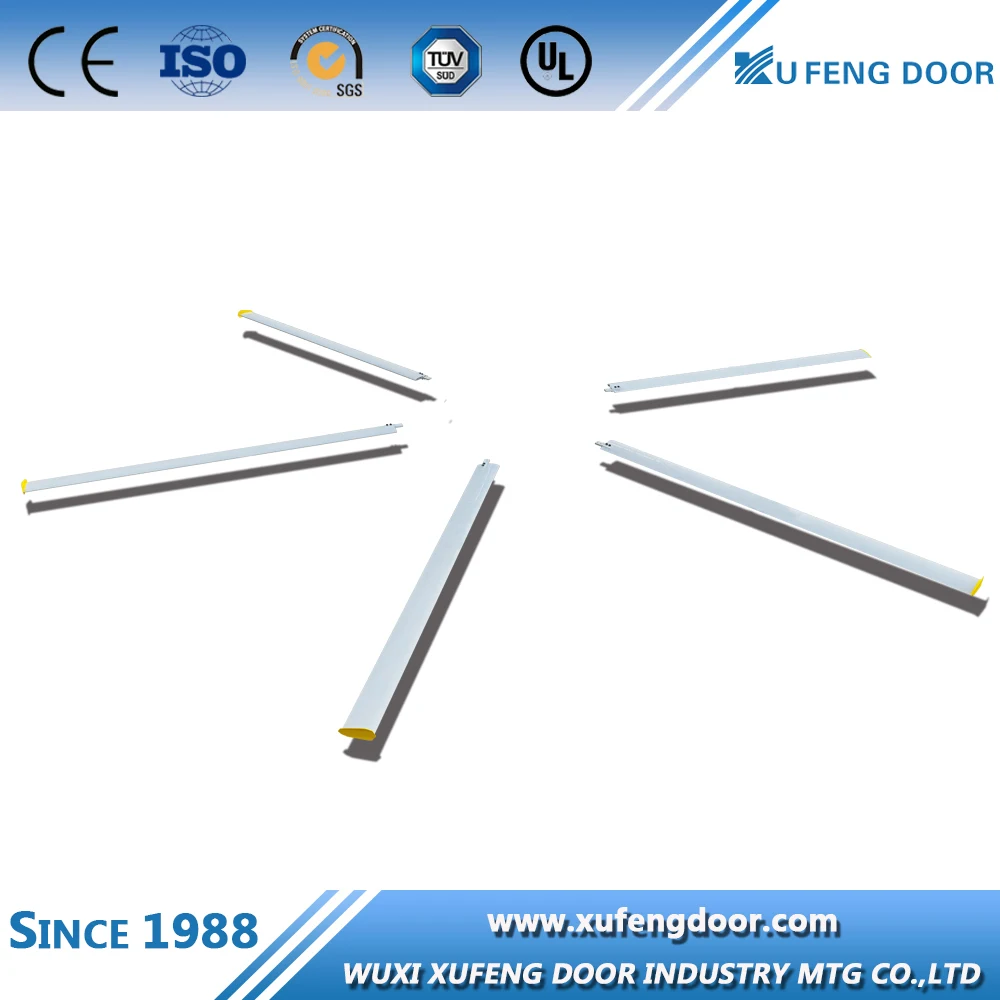

--High quality Aluminum streamline fan blade by adopting advanced manufacturing technique in accordance with aerodynamics.
--1.5 KW power can agitate 13,200 m3 breeze draughts to lower the air temperature.
Comprehensive solution
--Optional fan diameter from 3.7m to 7.3m (Air-convection space: 500-1000m2)
-- Multi-applications: factories, Steel-structure buildings, Machining workshop, Warehouses, 4S Shop, Parking, and Tennis court etc.
Our servies:
1. Every details we can concern: place order, manufacture, delivery, you just accept them.
2. 3-year warranty for each fan to guarantee
3. Can customize as your reqiurements
4. Free maintenance for the fan
5. 24-hour per day service(on line)
FAQ:
Q: Are you the factory?
A: Of course, we are a factory focusing on large ceiling fans based in Shanghai, China, be your direct fan supplier.
Q Where does your fan use in?
A: Ths fan is widely used in factory, logistics & warehouse, supermarket, halls etc.
Q: Is it used in electrcity?
A: Yes, it's power supply is electricity, but only 1.5KW or less, very energy-saving.
Q: What the price per fan?
A: We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 3-5 working days.
Q: How long is the warranty?
A: We offer 3-year warranty to guarantee the quality. Most importantly, its service life is 12-15 years.
