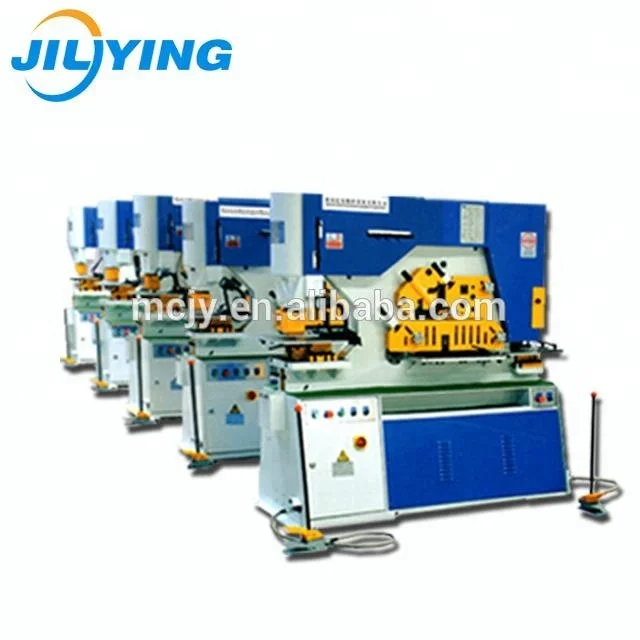

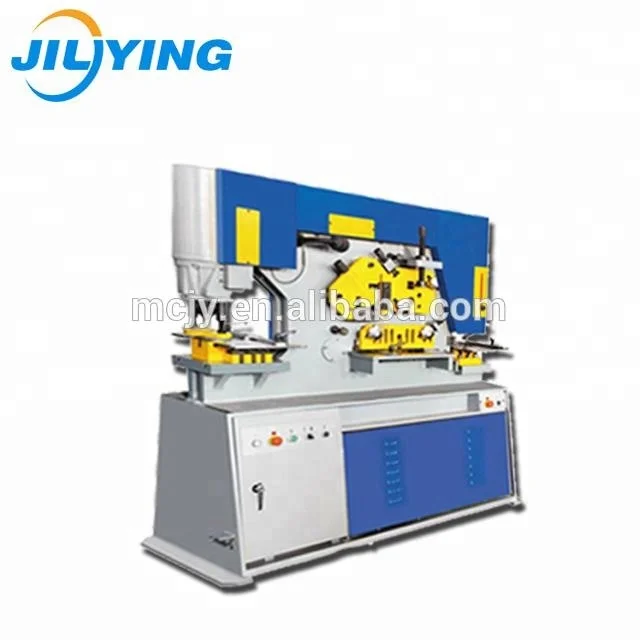

Q35Y hydraulic ironworker square bar cutting steel right angle bending machine

Product Overview

Description

Q35Y hydraulic ironworker squar bar cutting steel right angle bending machine

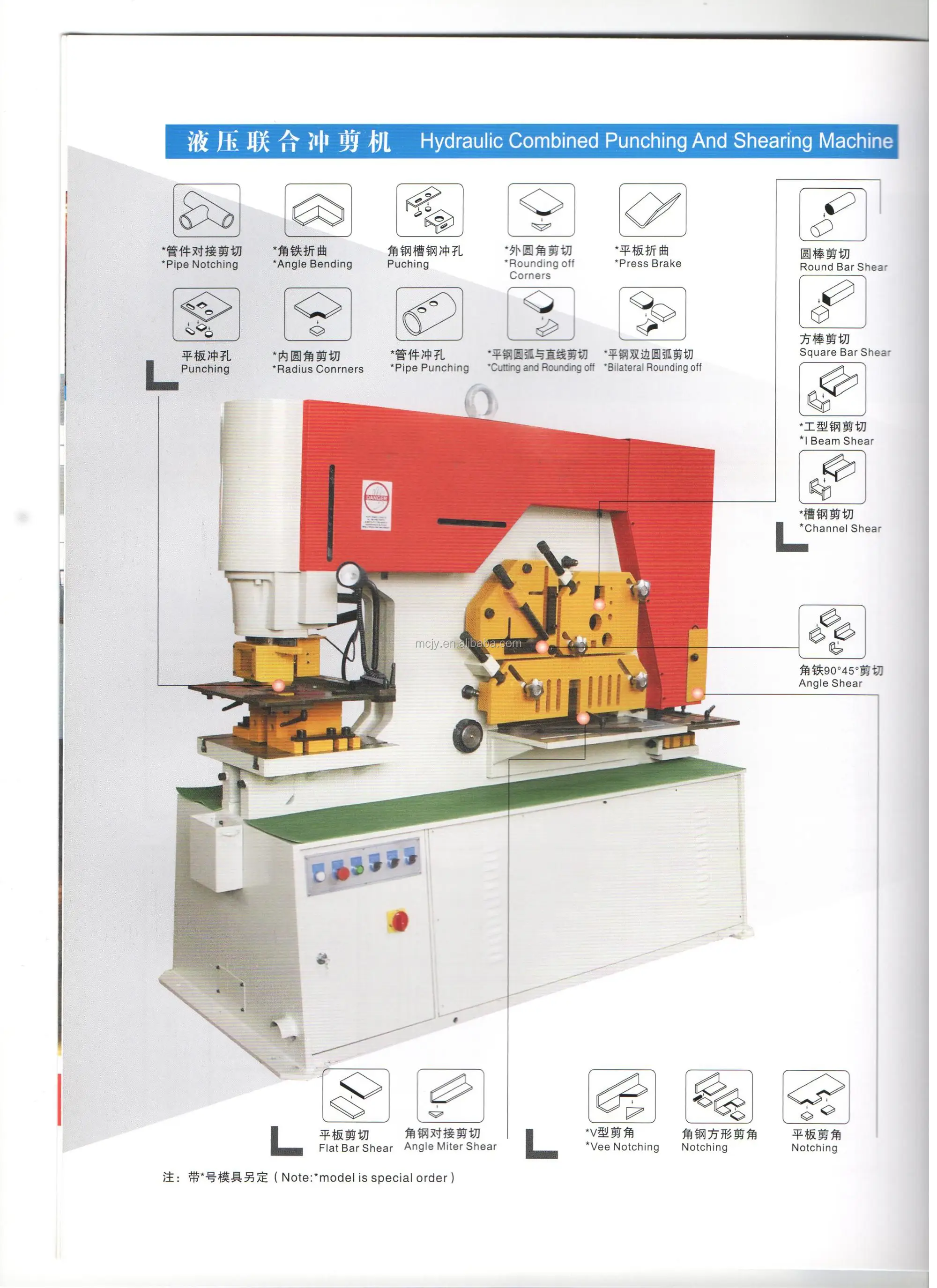

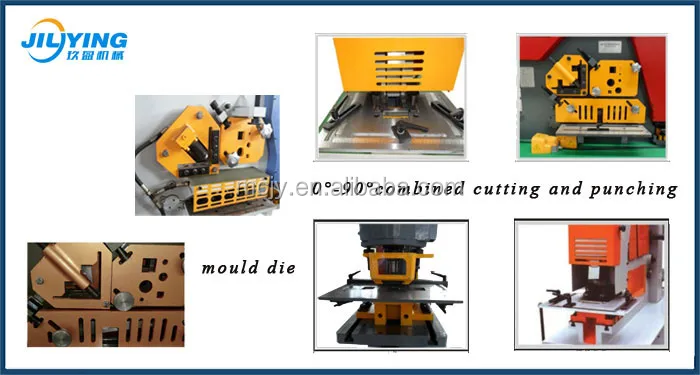

Q35Y hydraulic iron worker combined punching and shearing machine Features

1.Double-cylinder hydraulic punch and shearing machine

2.Large punching table with multi-purpose bolster

3.Rear notching station, Low power inching and adjustable stroke at punching station

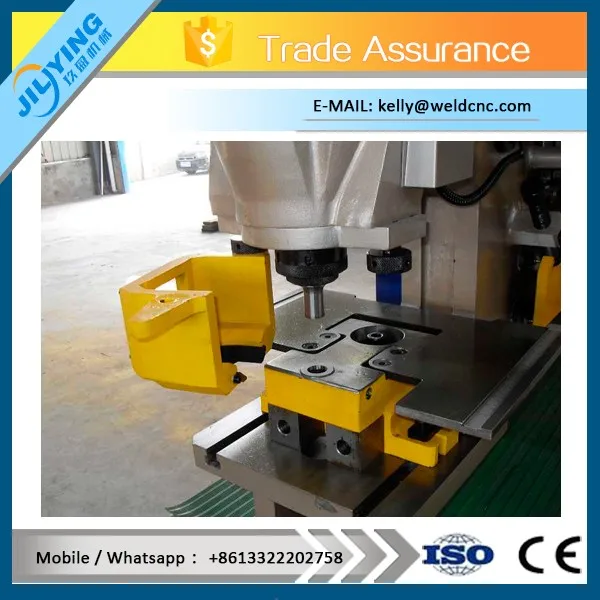

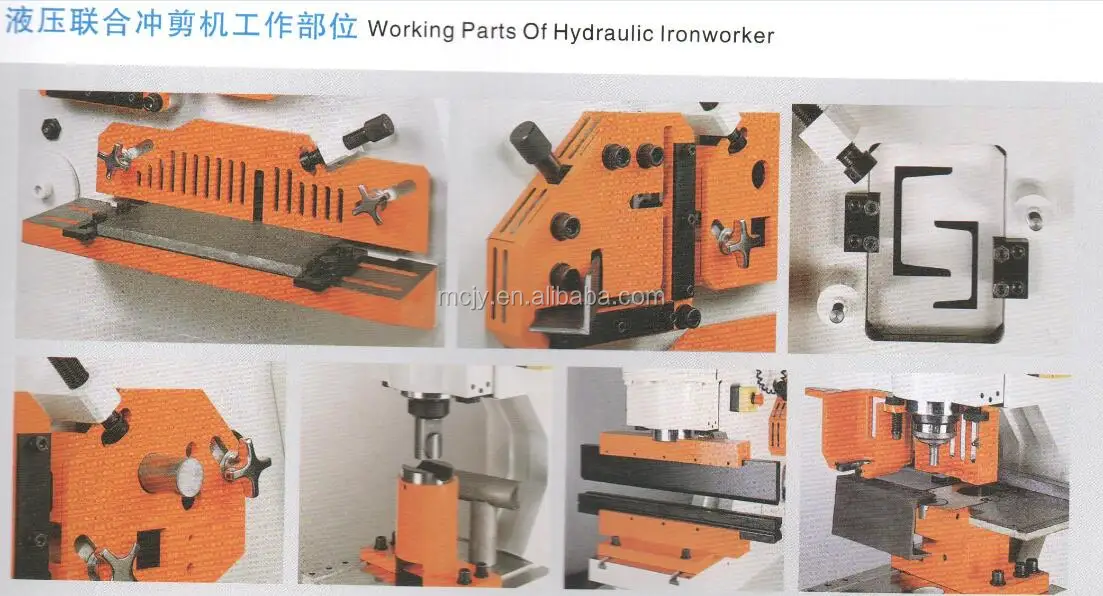

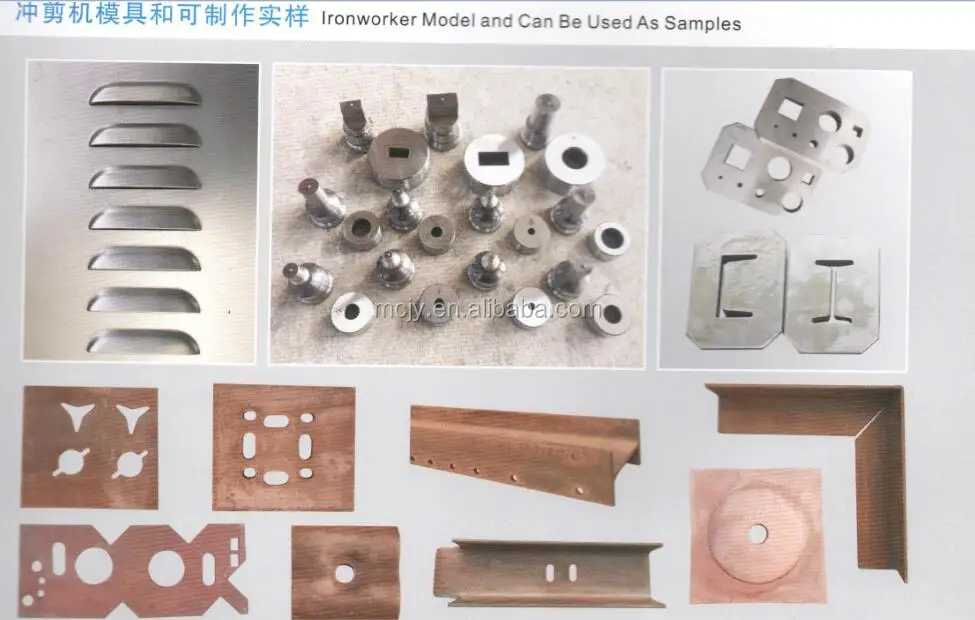

4.Punching  Full range of universal punches and dies are available.

5.Shearing  Round and square bar shear has multiple holes for a variety of sizes.

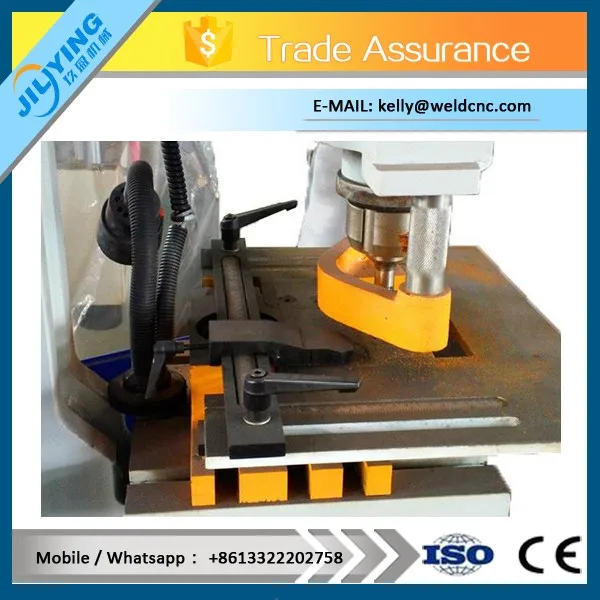

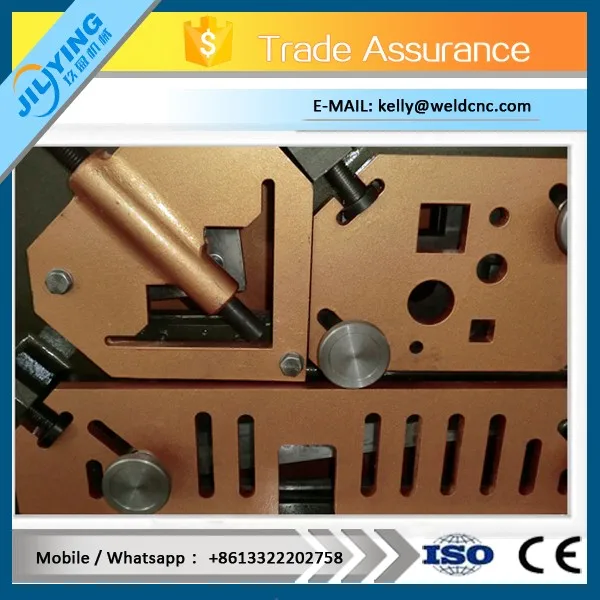

6.Notching Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.

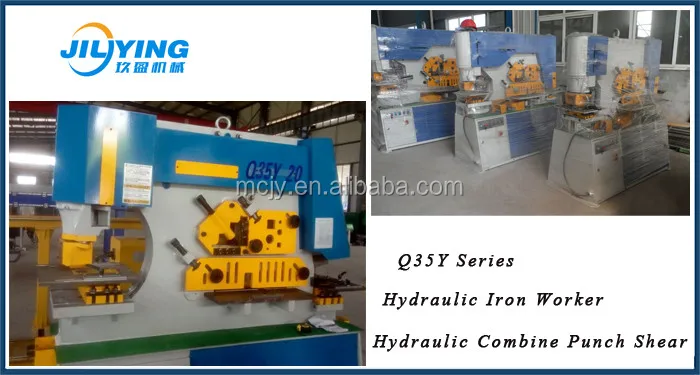

Q35Y Series Hydraulic hydraulic iron worker combined punching and shearing machine data

Type	Punching pressure	Cutting thickness	Max punching diameter	Power
Q35Y-12	350KN	12mm	25mm	4.0kw
Q35Y-16	550KN	16mm	25mm	4.0kw
Q35Y-20	750KN	20mm	30mm	5.5kw
Q35Y-25	1100KN	25mm	35mm	7.5kw
Q35Y-30	1400KN	30mm	38mm	11kw
Q35Y-40	2000KN	40mm	40mm	18.5kw
Q35Y-50	2500KN	50mm	50mm	22kw

For the hydraulic iron worker combined punching and shearing machine,besides the above model,we accept customized accordingly.

pls advise the plate punching dia and thickness,we will design the hydraulic iron worker combined punching and shearing machine for you.



Except for the Iron worker

we also provide the Guillotine shearing machine, Press Brake & Bending Machine,

Punching press ,punching Machine,Press Embossing Machine.

If you are interested in them,please contact us as below info.



we use the famouse brand for hydraulic iron worker combined punching and shearing machine configurations,smoothly cutting effect,good quality and high performance.

No.	Item	Quantity	Brand
1	Motor	1Set	Siemens China
2	Valve	1Set	Yuken Japan
3	Pump	1Set	Atos Italy
4	Main electric parts	1Set	Siemens China
5	Hydraulic system	1Set	Rexroth Germany
6	Oil Seals	1Set	NOK Japan
7	Wiring Terminal Block	1Set	Weidmuller Germany
8	Timer Relay	1Set	Omron Japan





For hydraulic iron worker combined punching and shearing machine,our service for 12months.

1.Installation
Free installation and commissioning,travel expense is on foreign customer.(Including round ticket and accommodation cost)



2.Personnel training
Free training for about one week.



3. After-sale service
One year warranty.During warranty period,free maintenance service can be provided.(except man-made faults or damages arising from irresistible natural factors)

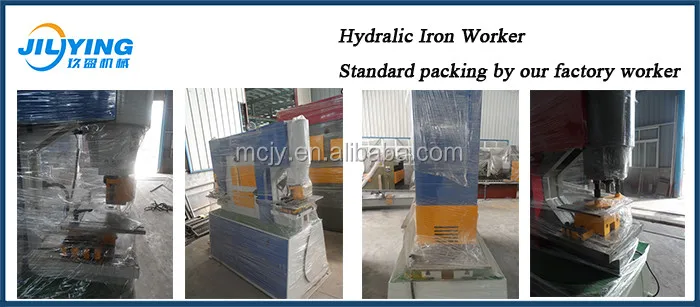

Standard international package for hydraulic iron worker combined punching and shearing machine



 Except for the Iron worker

we also provide the Guillotine shearing machine, Press Brake & Bending Machine,

Punching press ,punching Machine,Press Embossing Machine.

If you are interested in them,please contact us as below info.

After checking the above info,If you are interested in our products.please dont hesitate to contact us!   When you send the hydraulic iron worker combined punching and shearing machine inquiry to me,please advise the plate punching diameter and thickness,or choose the model according our website info. so that we will send the quotation specification of shearing machine to you directly.   Contact person : Miss Belinda Company Name : DALIAN JIUYING HEAVY MACHINE CO.,LTD. EMAIL                : belinda @ weldcnc.com Skype                 : sun.summer_ Website            : www. weldingcut.com
