Africa type Single phase Digital Meter KHLSM
US $6.83-$7.10
mini digital single phase pole active power factor energy KWH kilo watt hour power meter 5(32)A 220V 50HZ with modbus/RS485
- Category: Energy Meters >>>
- Supplier: Acrel Electric Co. Ltd.
Share on (60774613705):
Product Overview
Description
Product Description

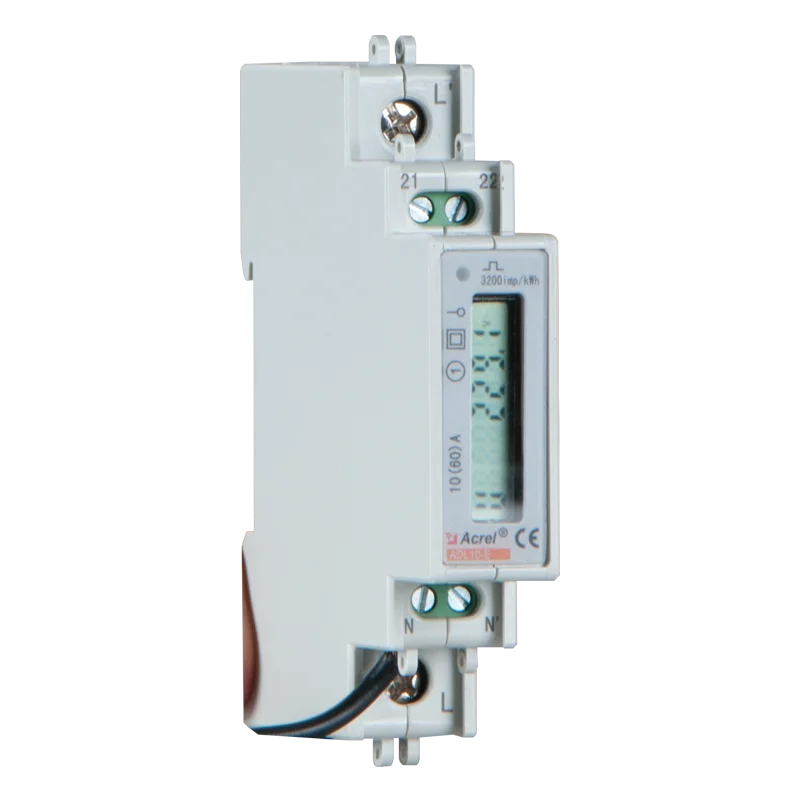

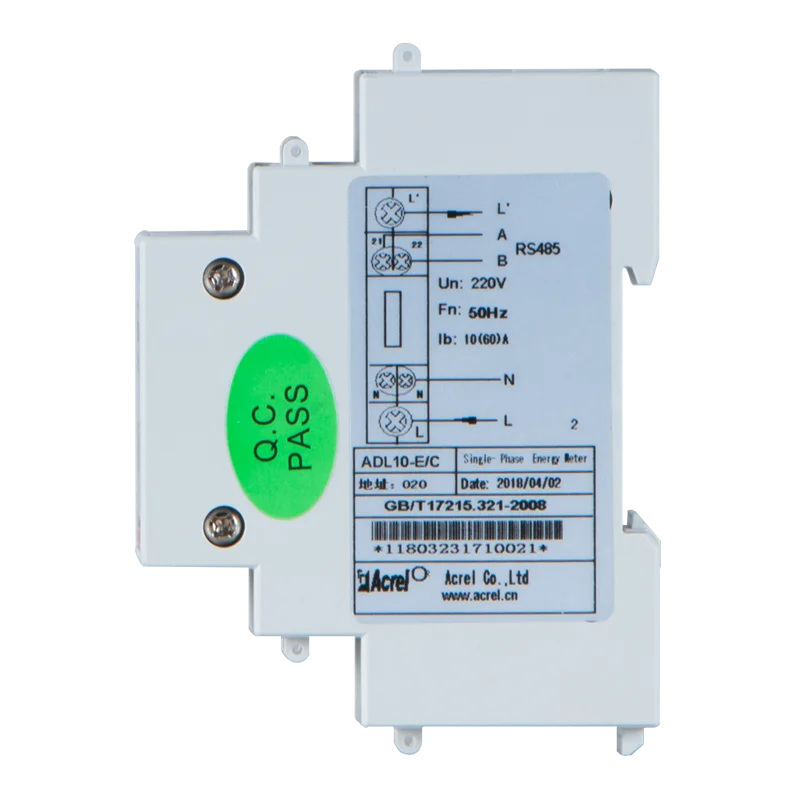

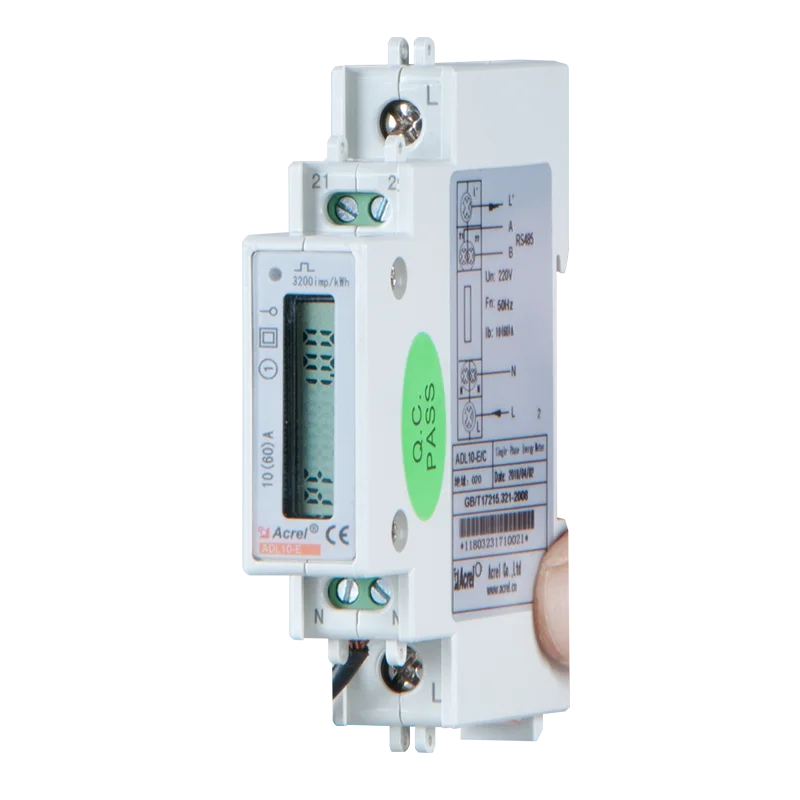

mini digital single phase pole active power factor energy KWH kilo watt hour power meter 5(32)A 220V 50HZ with modbus/RS485
Acrel Co.,Ltd. has experience of over decades in various kind of energy meters.Among them,ADL din rail electric energy meter is with mini size,high accuracy,and it is easy to install. The ADL series have also got CE.ADL energy meters can measure electric energy with electrical
pulse output function,and also can set parameters of clock,rate period and so on.Data can be exchanged between energy meter and super ordinary machine via RS 485 interface.
It is suitable to measure electrical parameters in government and buildings. It can also be used in energy management systems.
Technical data
| Model | ADL10-E | ||
| Phase | single phase | ||
| Input voltage | |||
| Rated voltage | AC220V | ||
| Consumption | ≤5VA | ||
| Reference frequency | 50HZ | ||
| Input current | |||
| input current | 10(60)A 5(32)A | ||
| starting current | 0.0041b | ||
| Consumption | ≤1VA | ||
| Acurracy class | |||
| measurement accuracy | active electrical energy class 1.0 | ||
| Pulse output | |||
| Output type | photocoupling,open-collector,outside power DC+5v~24v | ||
| Pulse length | 80ms±20ms | ||
| puls constant(correspondence with input current) | 3200 | ||
| Dimension | |||
| L*W*H(mm) | 18*91*64 | ||
| Wiring size | |||
| Flexible wire(mm²) | 6 | ||
| Mounting | |||
| Din rail 35mm | |||
| Acurracy class | |||
| active electrical energy accuracy | 1 | ||
| reactive energy accuracy | 2 | ||
| Communication (optional) | |||
| RS485-MOBUS(C) | |||
| Temperature range | |||
| Working temperature | -20℃~+60℃' | ||
| Storage temperature | -30℃~+70℃' | ||
| Humidity | ≤95%(without condensation) | ||
| Altitude | <2000m | ||

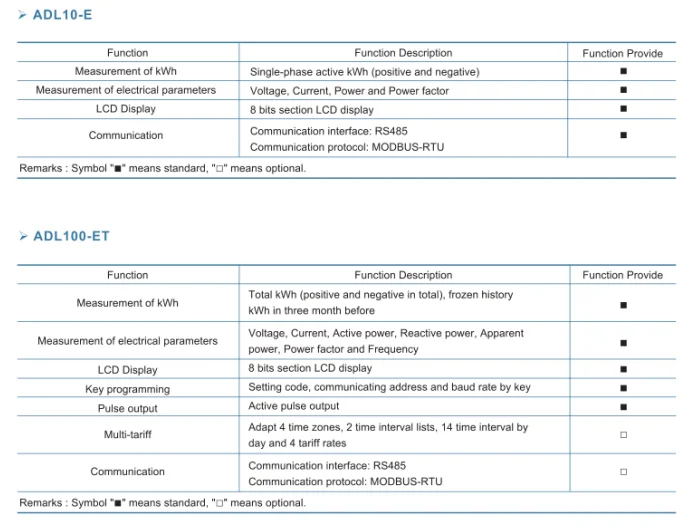

Functions

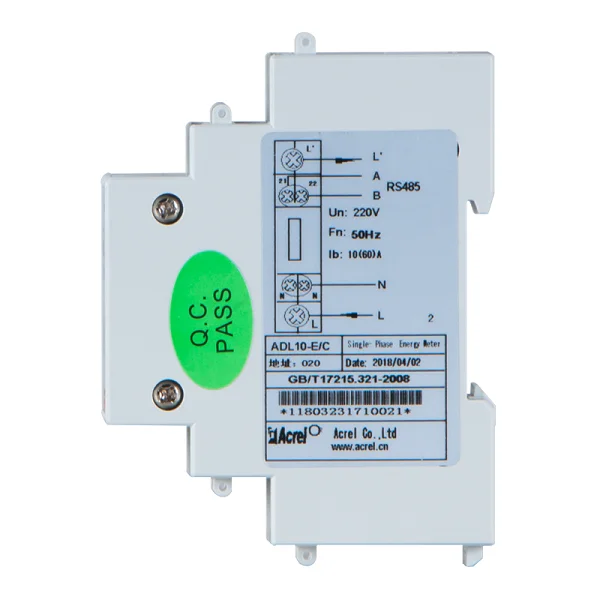

Detailed Images

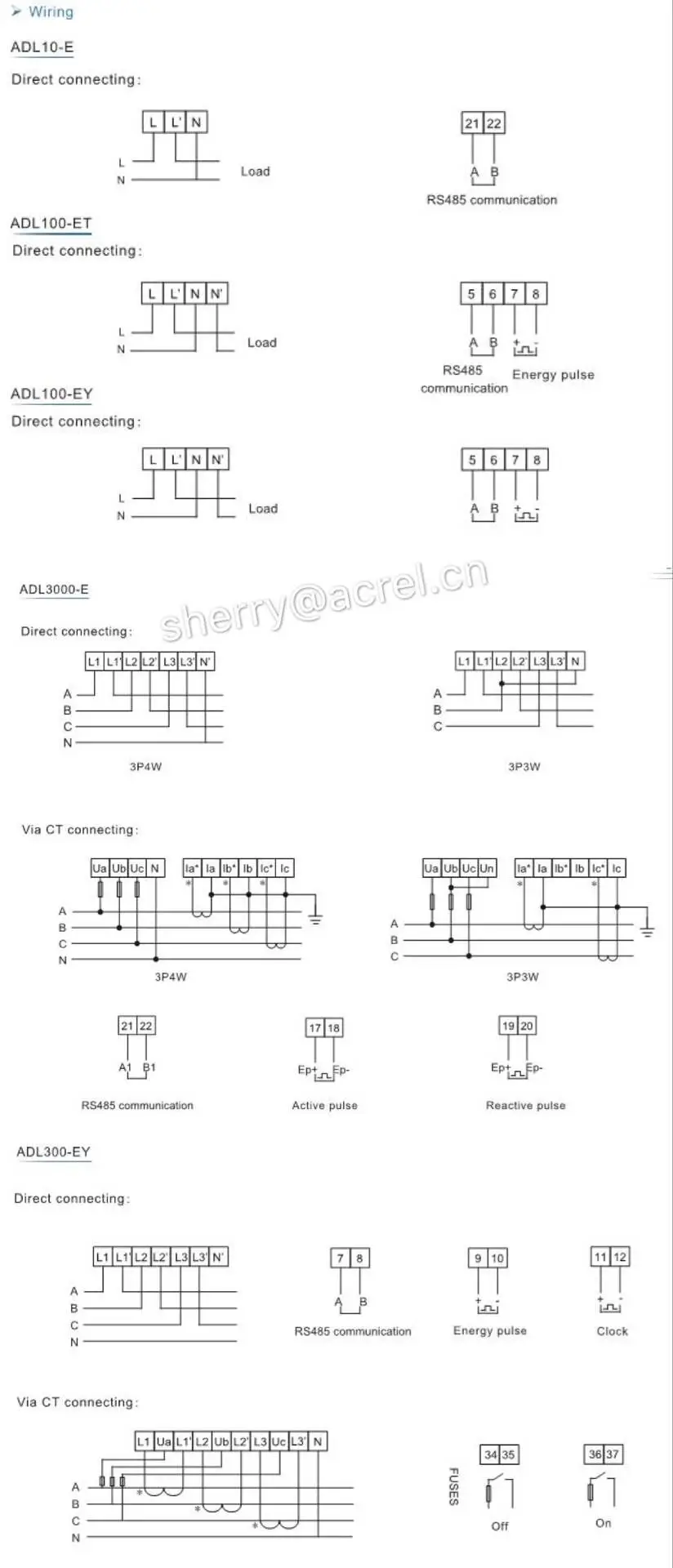

Wiring

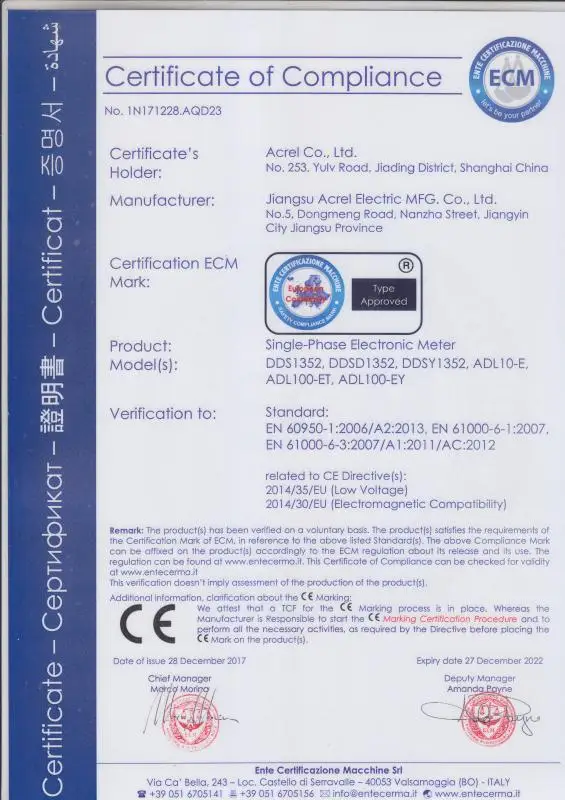

Certifications
