Pedestal Deck Knuckle Boom Marine Crane
- Category: Cranes >>>
- Supplier: Shanghai HAOYO Machinery Co. Ltd.
Share on (60774782568):
Product Overview
Description

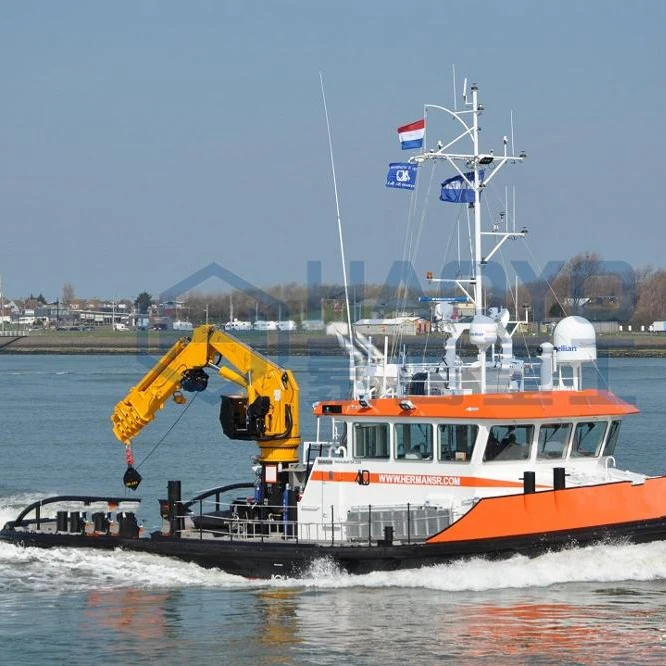

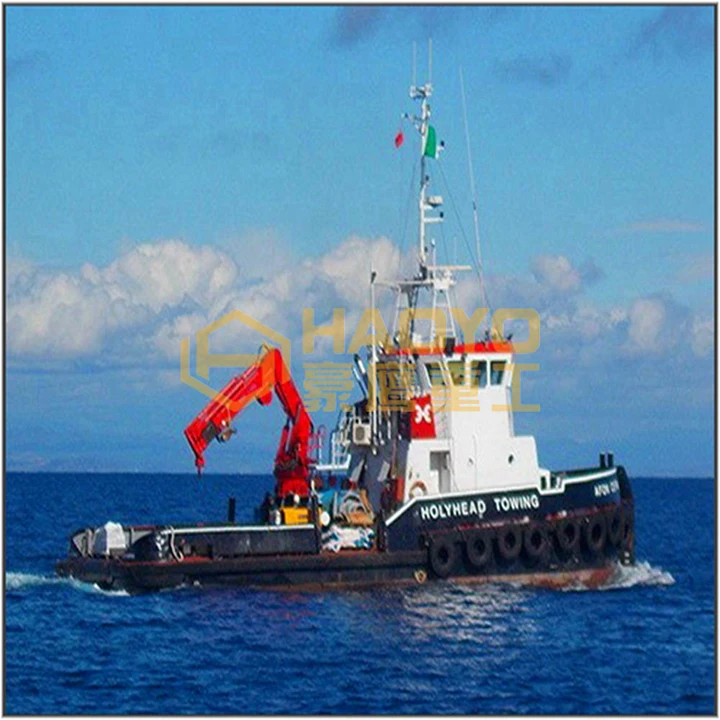

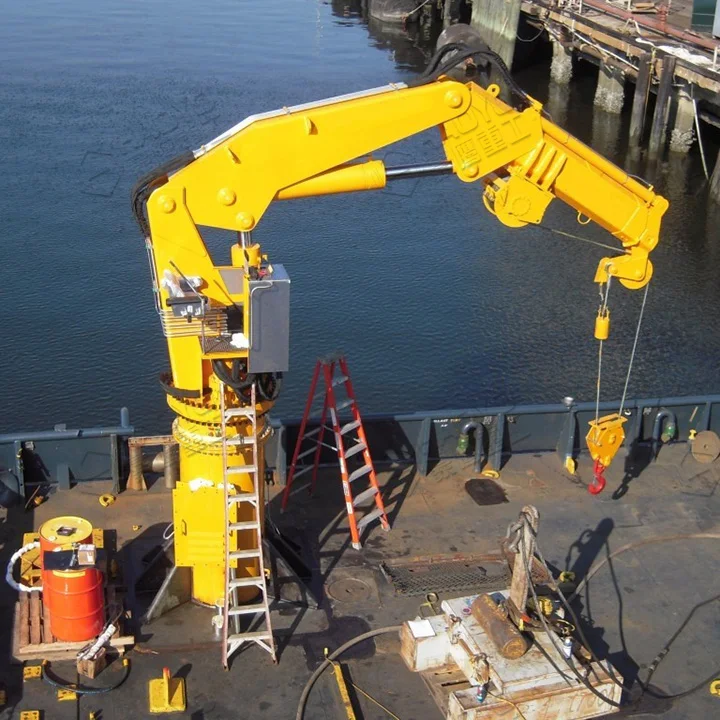

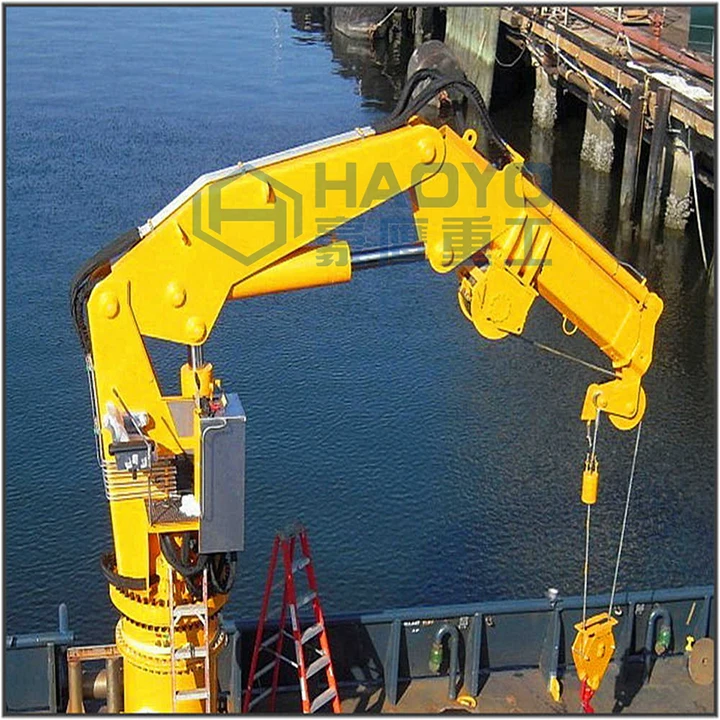

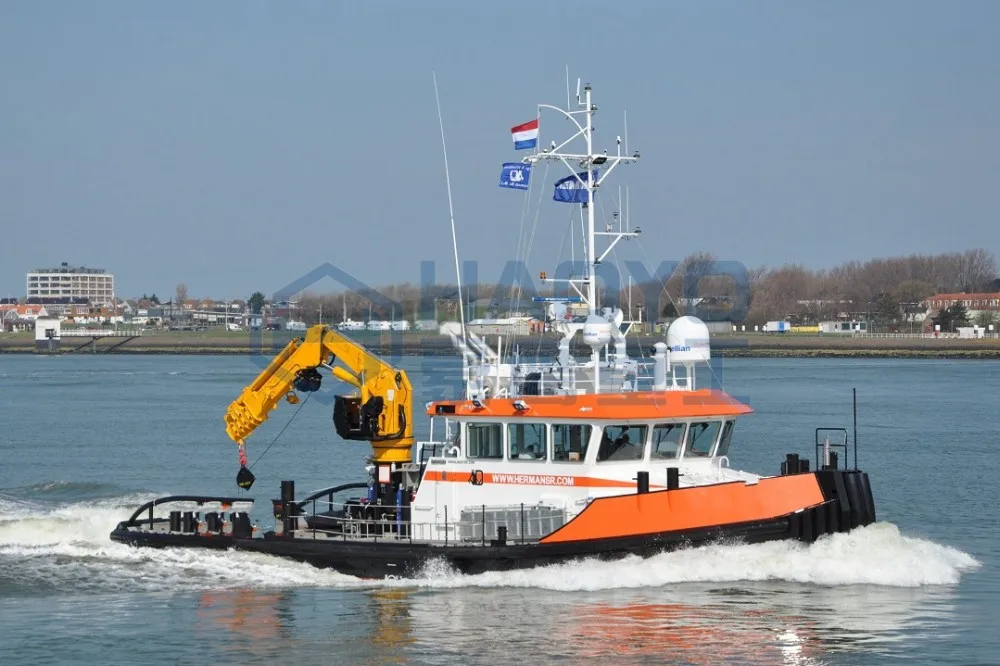

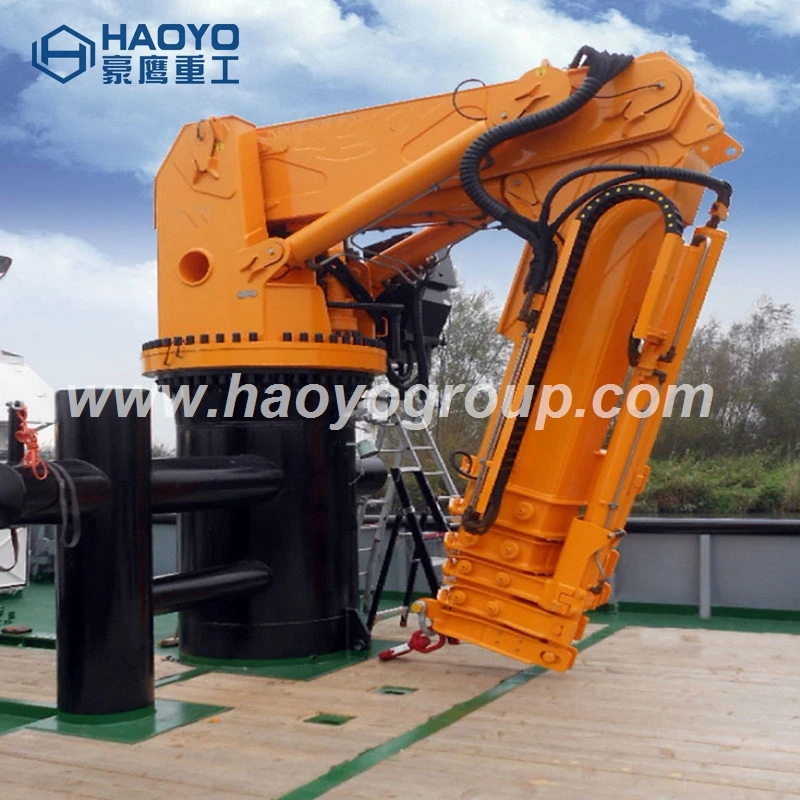

Knuckle Boom Marine Crane Pedestal Deck Crane
Our cranes design has been specially developed and improved for operation in marine environment.
All structures have been designed to take up heavy lateral forces and to have a low value of elastic deflection during loading. All parts have been designed and protected for easy maintenance.
Our cranes can work in any configurations: no matter if the boom is fully vertical extended up or if it is knuckled downwards.
The safe working load can be moved by any crane cylinders, including the telescopic ones.

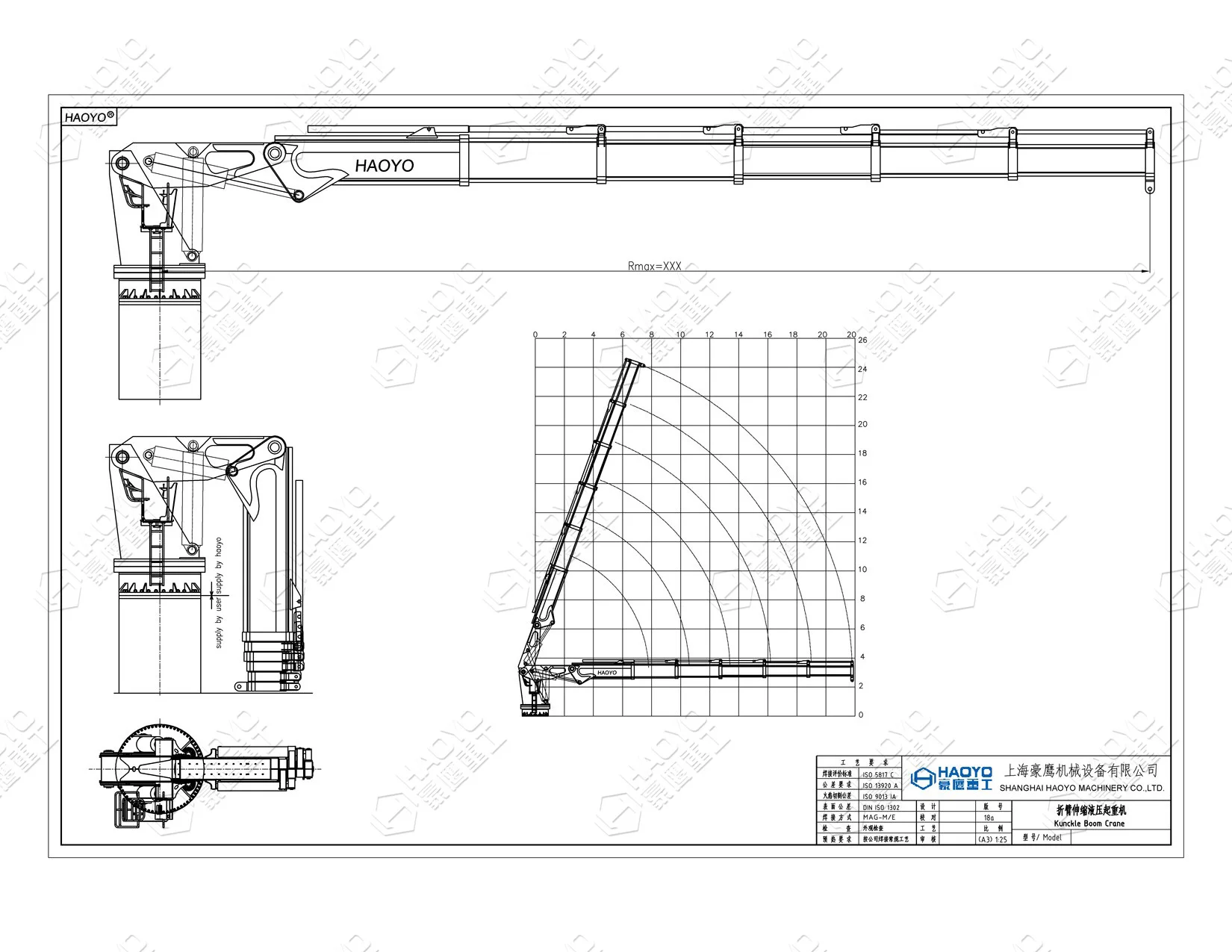

Model Sheet
MODEL | Outreach (m) | Lifting capacity(t) | Lifting Moment(kNM) | Total Moment (kNm) | Pedestal Diameter (mm) | Dead Weight (kg) |
CK650 | 5.54-19.84 | 11.5-2.05 | 406.7-619.2 | 650 | 1560 | 7500-9500 |
CK800 | 5.54-19.84 | 14.2-2.8 | 555.5-774 | 800 | 1560 | 8100-10250 |
CK1000 | 5.54-19.84 | 17.8-3.5 | 694.4-967.5 | 1000 | 1560 | 8700-10850 |
CK1300 | 6.72-20.6 | 18.0-4.2 | 865.2-1165.0 | 1300 | 1850 | 9600-15500 |
CK1500 | 6.72-20.6 | 20.8-4.7 | 968.2-1323.4 | 1500 | 1850 | 12000-16500 |
CK 1800 | 6.72-20.6 | 24.5-5.8 | 1194.8-1584.4 | 1800 | 2060 | 16200-19400 |
CK 2300 | 6.92-21.8 | 30.0-6.8 | 1482.4-1992.6 | 2300 | 2060 | 25800-30000 |
CK 2800 | 6.92-21.8 | 39.0-9.0 | 1962-2575.8 | 2800 | 2250 | 19200-23000 |
CK 3400 | 6.92-21.8 | 45.0-10.5 | 2354.4-2916 | 3400 | 2250 | 28300-33500 |

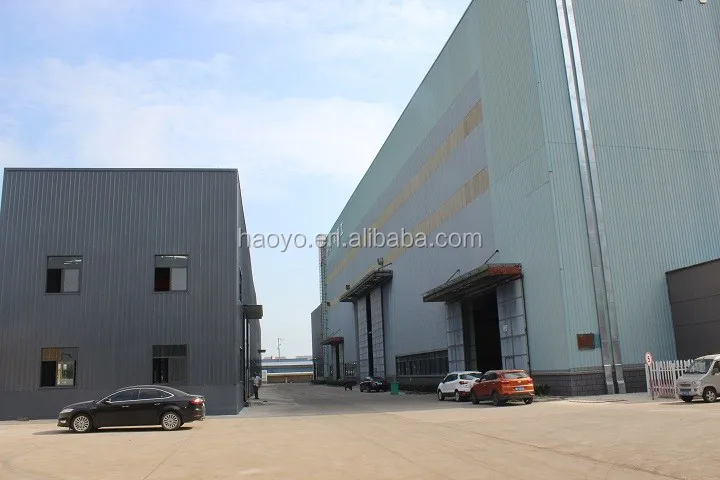

Factory View
Why Choose Us
ABOUT US
Focus marine crane for 15 years
CERTIFICATION
Meet almost all certification
PARTNER
Use best parts and materials
24 HOUR RESPONSE
Respond to customer any time
WELDING CERTIFICATION
All workers have welding certificates
MACHINING
Machining that other suppliers can't
Our Certifications
More Products
FIXED BOOM CRANE TELESCOPIC CRANE KNUCKLE CRANE FOLDING CRANE
IF YOU WANT MORE INFORMATION PLEASE CLICK THE PICTURE
FAQ
1.What's type of the crane you want (stiff boom crane,knuckle boom crane,foldable boom crane,telescopic boom crane)
2. Crane SWL requested (___T)
3. Max. working radius of the crane (____M)
4.Crane working voltage and what will the crane handle include working environment.
5.Need any certification(ABS,BV,CCS,RMRS,etc)?
6. Your company information or your own business card.
