Fully Automatic Toilet Paper Roll and Kitchen Towel Production Line.


outline:

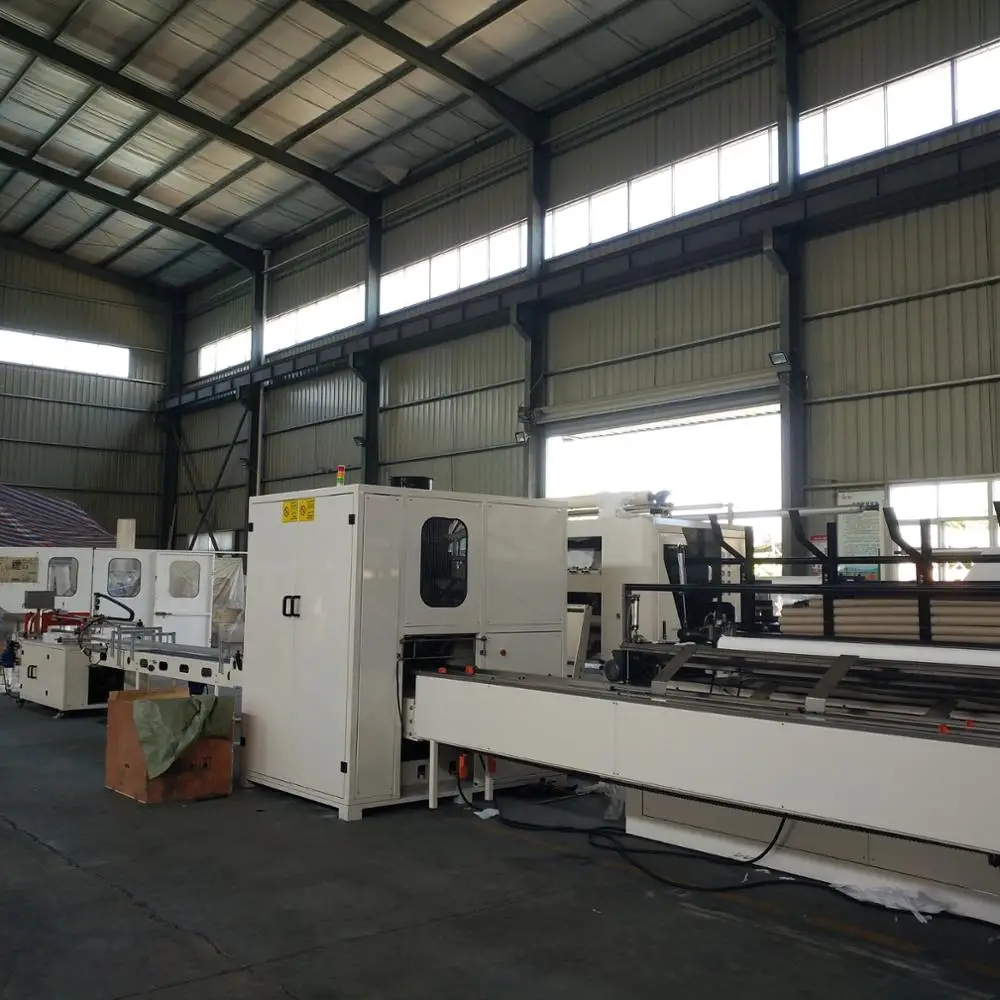

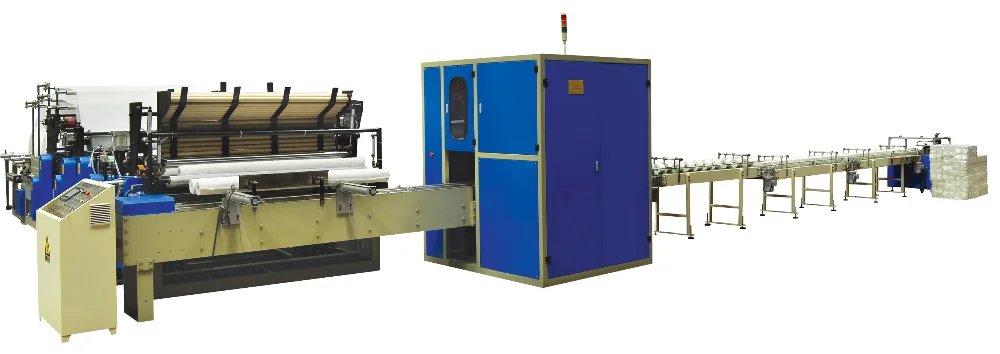

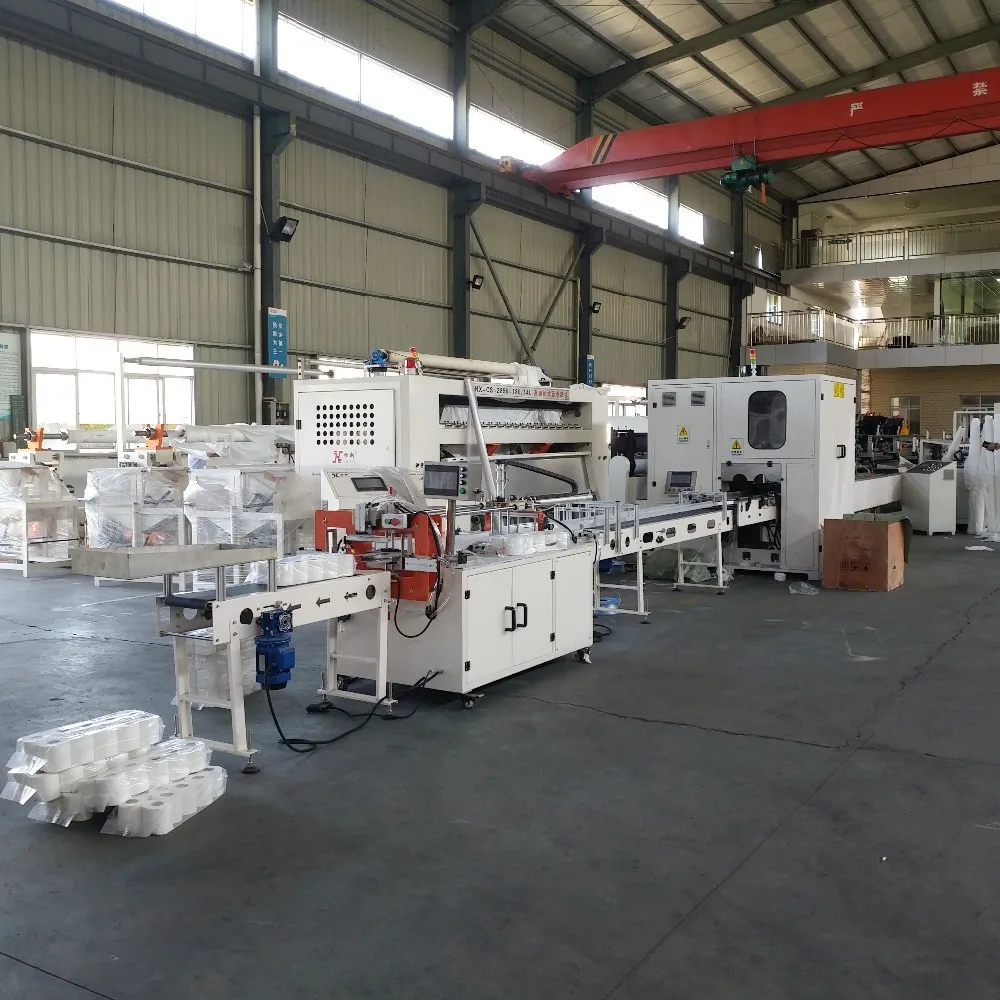

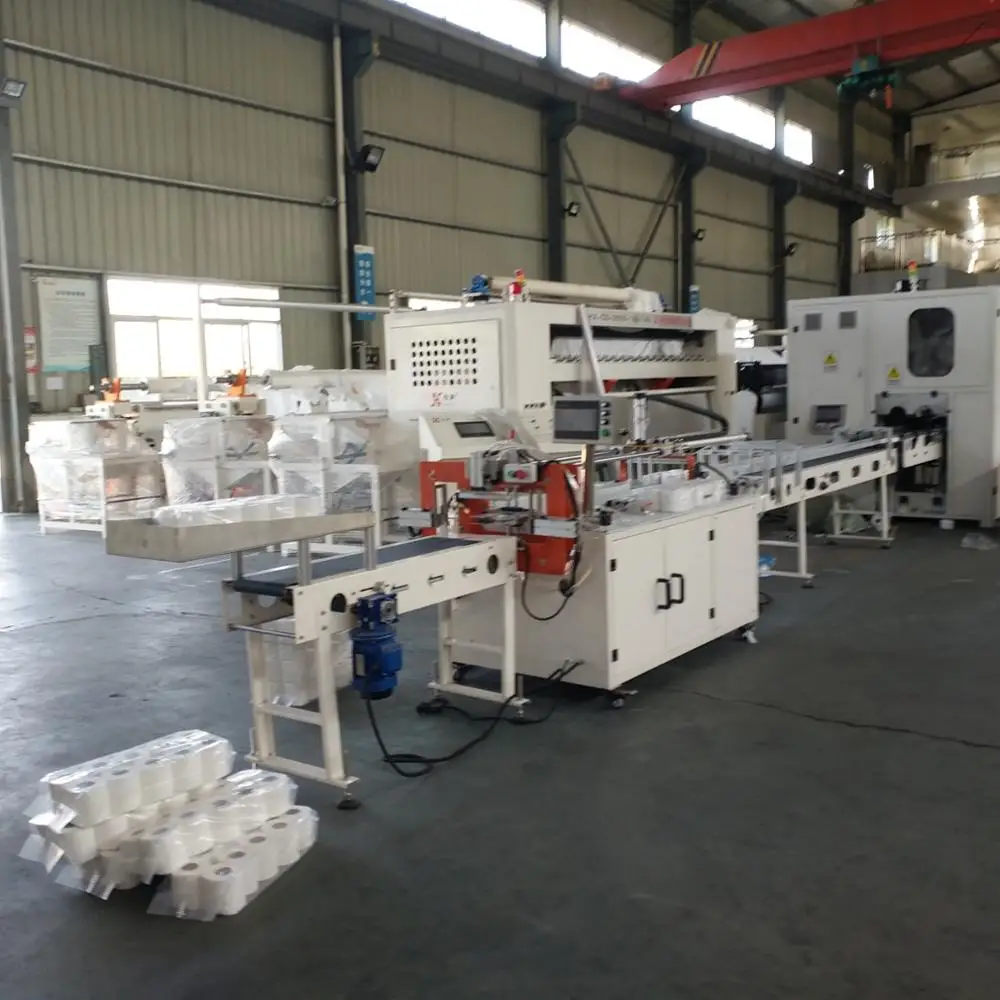

This production line consists of Automatic Color Printing Toilet Paper Roll Rewinding Machine, Double Channel Log Saw Machine and Semi-Automatic Multiple Rolls Packing Machine. It converts the jumbo roll into the finished rolls. The whole line work smoothly and run stable, saving the labor cost and reducing the labor strength, it’s best choice for the producing hygienic paper products.

function

1. This machine is used for making toilet paper roll and kitchen towel . Perforation Distance is adjustable, meeting different requirements.

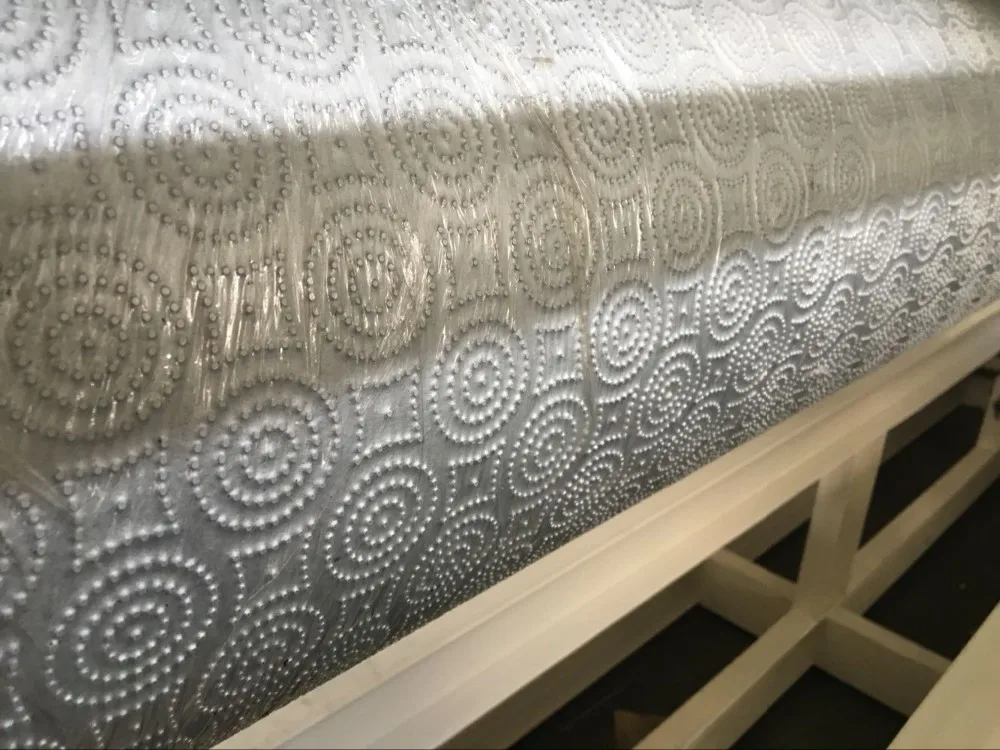

2. Adopt two set steel to rubber embossment rollers

3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.

4. Automatic edge-trimming, core feeding; auto edge trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.

5. Adopts international advanced PLC programmable controlling technique, human interface operation, data set and parametric fault shows on touch screen.

6.Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.

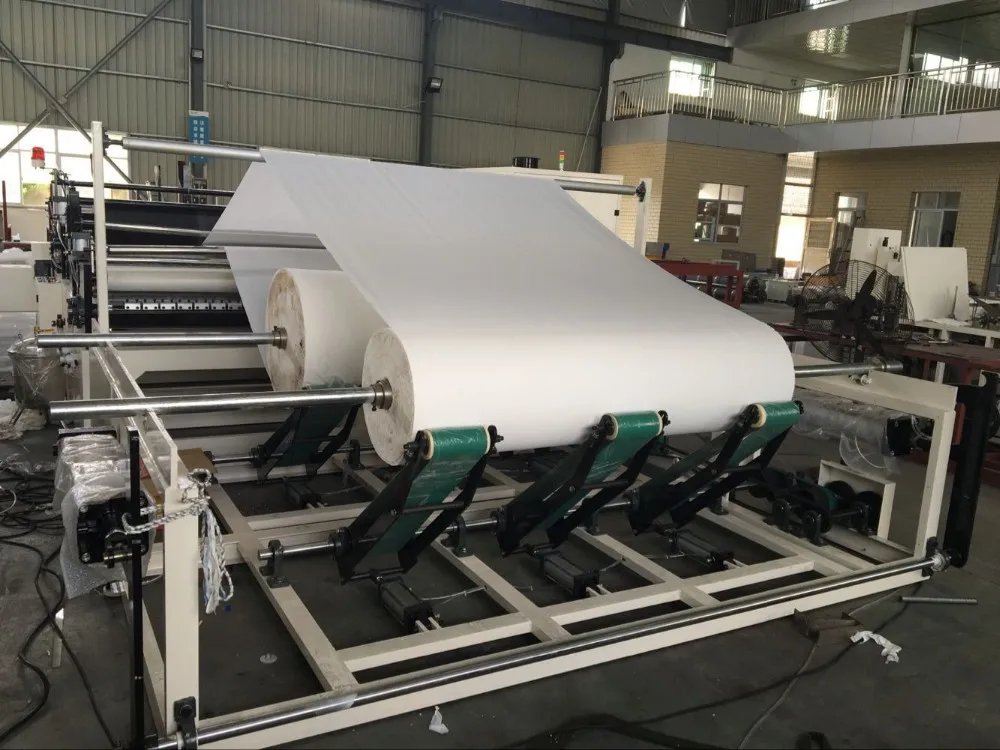

7. Two horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.

8. Adopt jogging switches for wearing the paper, easy and safe to operate.

9. Adpot flexography printing, accurate color register, pattern is clear.( can be specified)

10. Customer can order the lamination unit which makes two layers stick together.

parameters
\t

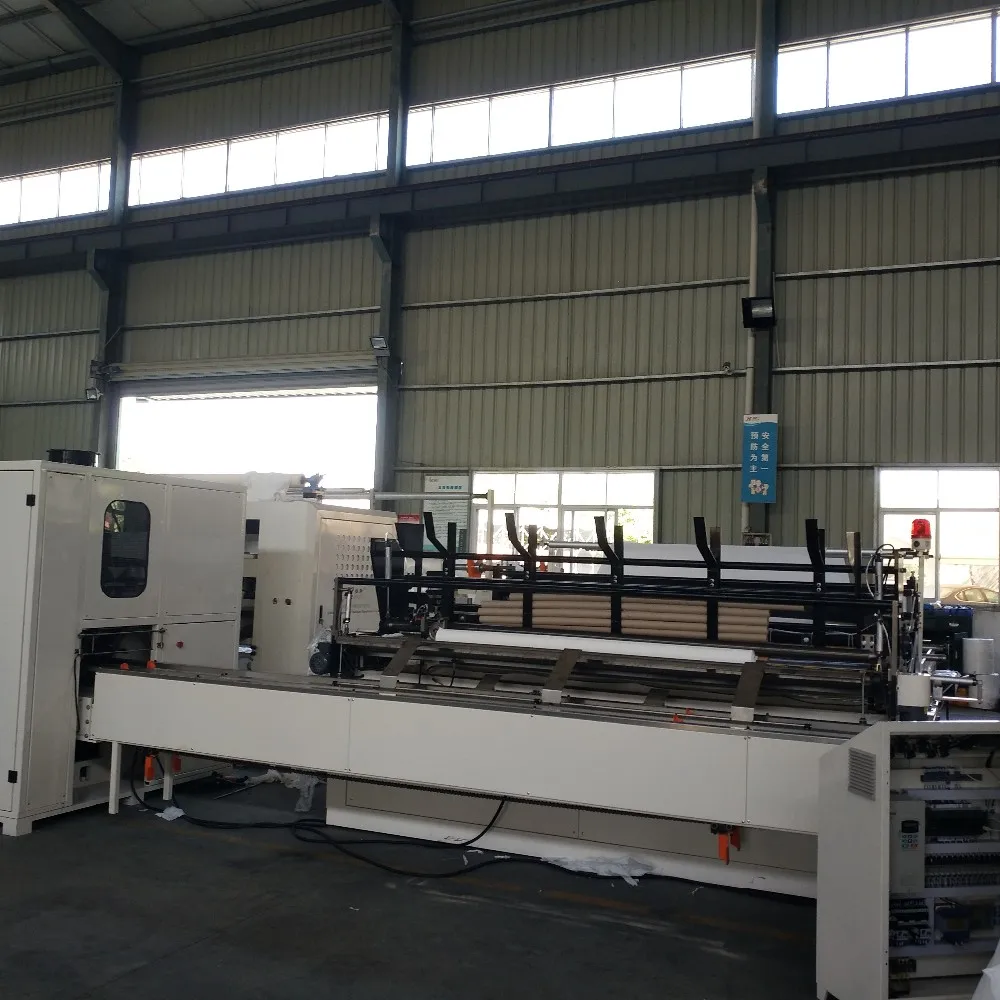

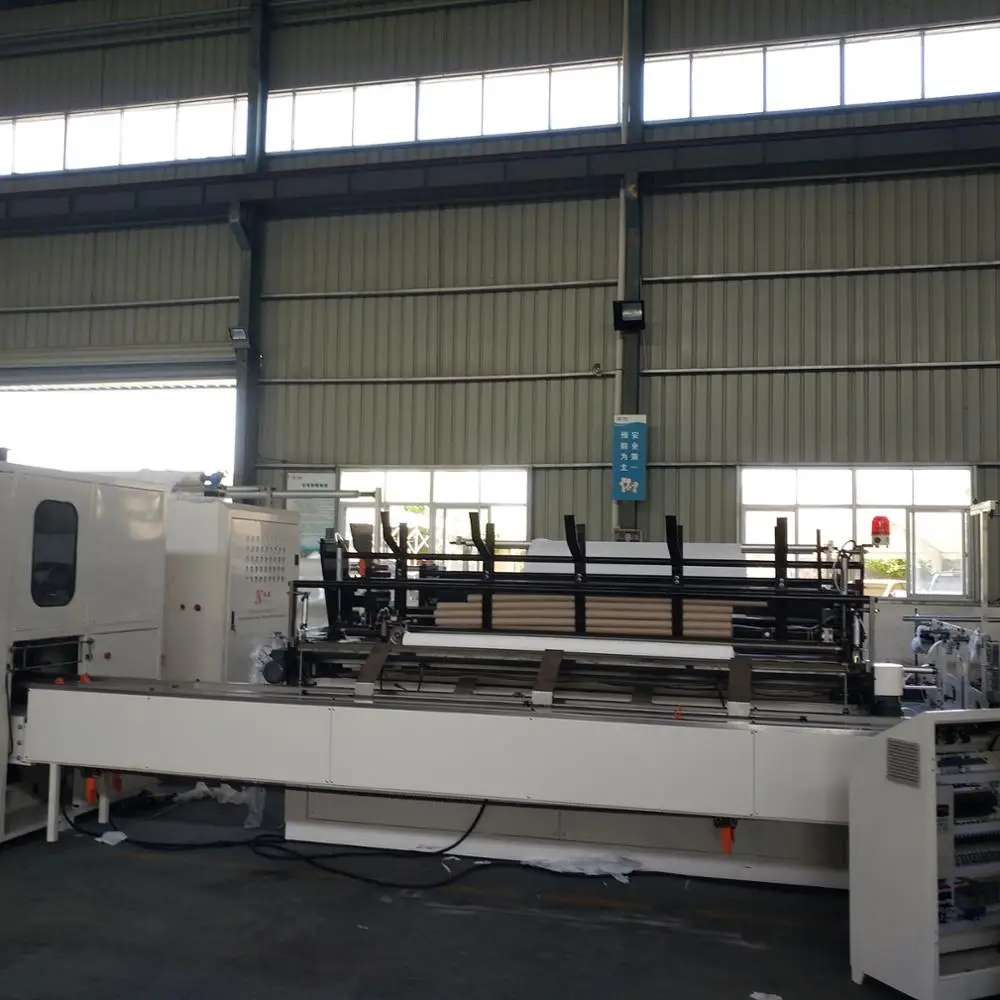

 Automatic Color Printing Toilet Paper Roll Rewinding Machine
\t
Jumbo Roll Max Width
\t
1750mm (Other size can be specified)
\t
Unwind Stands
\t
2 or 3 Stands
\t
Jumbo Roll Material
\t
1~3layers, 14-30gsm,Tissue Paper
\t
Jumbo Roll Diameter
\t
Φ1100mm
\t
Jumbo Roll Inner Diameter
\t
3inches(76.2mm) (Other size can be specified)
\t
Finish Product Diameter
\t
Φ90-φ140mm
\t
Finish Core Inner Diameter
\t
φ38-φ48mm
\t
Perforation Distance
\t
100-150mm
\t
Production Speed
\t
0-180m/min
\t
Parameter Set
\t
HMI, Touch Screen
\t
Pneumatic System
\t
3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa（Provide by user）
\t
Total Power
\t
7.5-15KW
(depends on model and configuration)
cutting machine

outline.

HX-DHX-150 Double Channel Log Saw Machine is used for cutting the toilet paper roll and kitchen towel paper roll, it’s with high automation and efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control and touching screen operation.

function.

1.Automatic blade grinding system, quickly setting parameter on PLC..

2.Sharpen wheel can grinding according to the wear degree.

3.Two Logs are feeding automatically, cutting then pushing.

4.Shortcuts can be kicked off from the quality products.

5.Equiped with two sets of clamping channels, easy to change.


\t
Double Channel Log Saw Machine
\t
Model
\t
HX-DHX-150 Log Saw Machine(Double Channel)
\t
Jumbo Roll Max Width
\t
1750mm  (Other size can be specified)
\t
Jumbo Roll Diameter
\t
Φ105~φ115mm (Other size can be specified)
\t
Design Speed
\t
150/mim
\t
Stable Speed　
\t
100/min
\t
Grinding System
\t
Pneumatic Sharpen, grinding time can be set
\t
Driving System
\t
Delta Servo Motor
\t
Power
\t
11KW
\t
Dimension
\t
6500*2500*2000mm m (Other size depends on model and configuration)
\t
Blade Diameter
\t
φ610*4.7（mm）
\t
Voltage
\t
380V 50HZ
\t
Weight
\t
About 4.5T

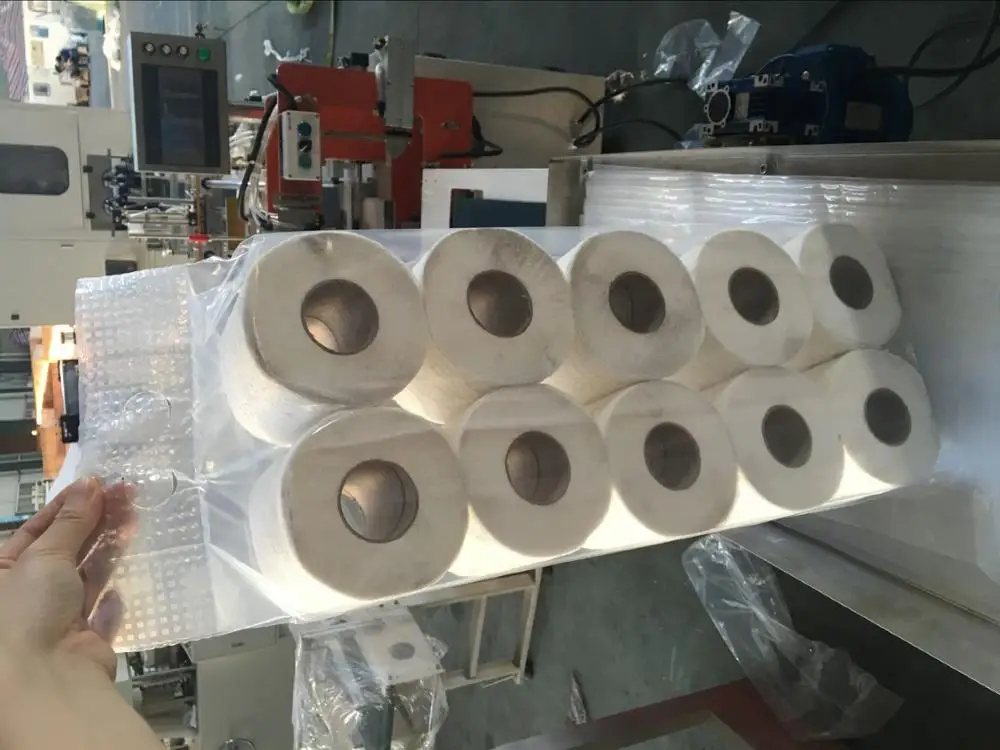

packing machien
\t
Multiple Rolls Packing Machine
\t
Voltage
\t
220V 50HZ
\t
Main Power
\t
0.74KW
\t
Sealing Transformer Power
\t
0.45KW
\t
Total Power
\t
1.19KW
\t
Air Pressure
\t
0.4---0.5MPA
pictures

services.


Our company provides a one-year warranty for the quality of the machines, and we can send the engineers to overseas for guidance.

Before purchasing the machine, you can come to our company in advance to check the machine, send special personnel to track and explain.

If you are new to this business. We will provide properly program from jumbo roll paper to finished products, to help you get familiar with this line and start business well.

We can special made machine according to client’s requirement.

We can recommend related raw material suppliers to you like jumbo roll, packing film if you like.

We can help you to find shipping forwarder and get the documents you need for customs clearance to help you make it easy.

About our company.

Quanzhou hengxin paper machinery manufacture Co.,LTD which are always devote to design ,research and develop, and manufacture paper machinery. Our machines main manufacture toilet tissue paper,napkin paper, hand towel,include:full automatic trimming and sealing rewinding machine/box drawing type facial tissue machine/napkin paper folding machine/toilet paper slitting machine/rewinding and perforating toilet paper machine/N folding hand towel machine,six series and other relating auxiliary equipment series.

delivery time .

Normally, our delivery time is 60 days, Different clients have different requirements, so all the machine only start production after ordered. And most of the machine main spare parts we process ourselves to make sure precision and quantity, If order standard size which have ready spare parts can shorten the delivery time to 45 days if you are lucky.(Asking the sales in advance)
