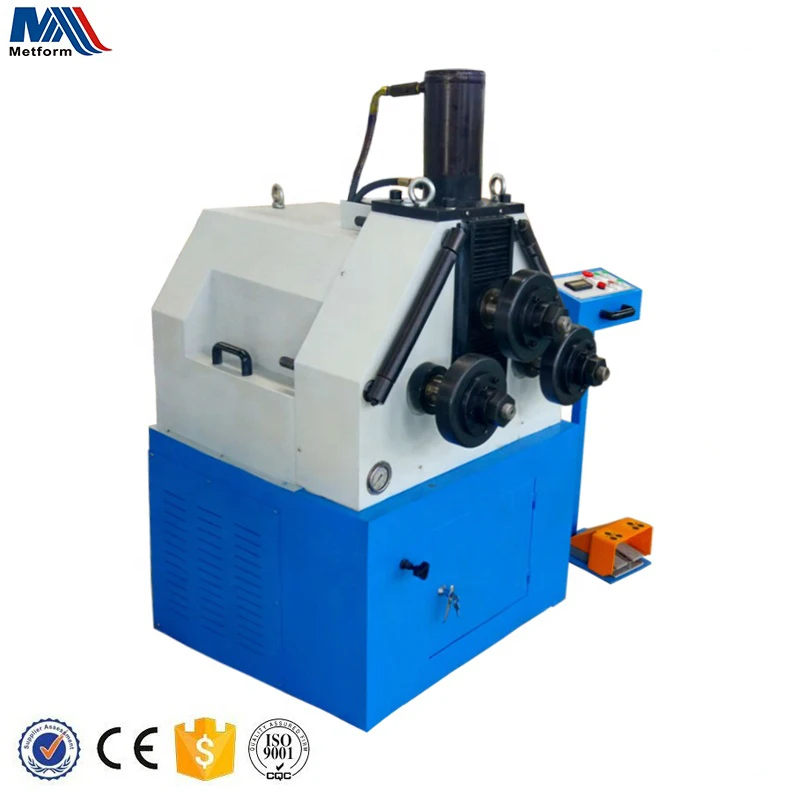

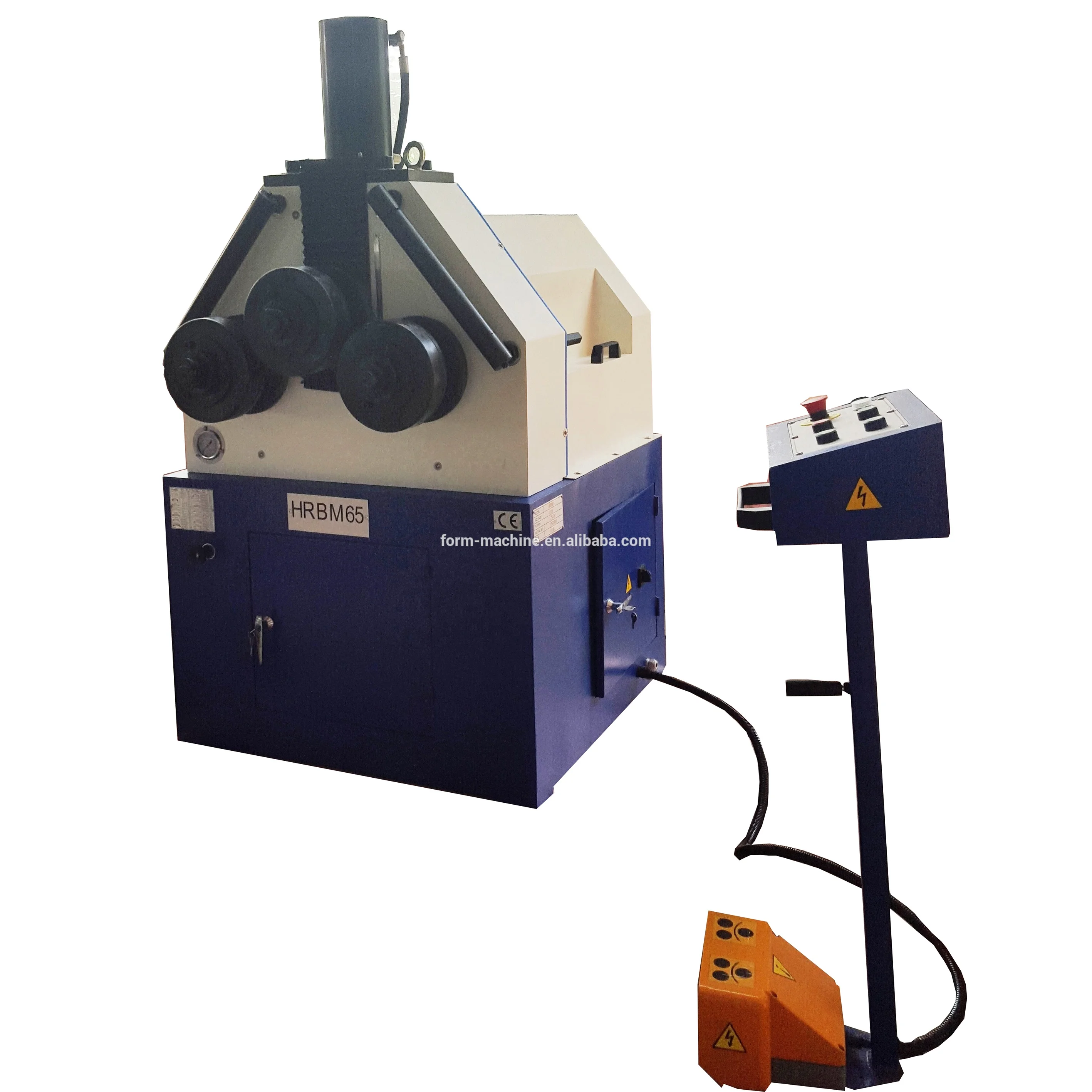

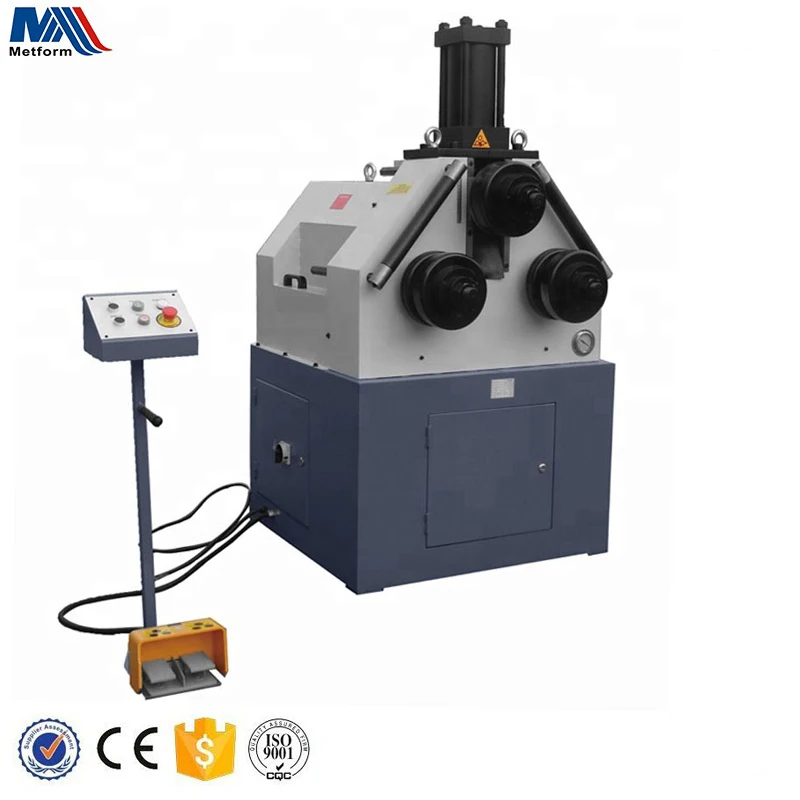

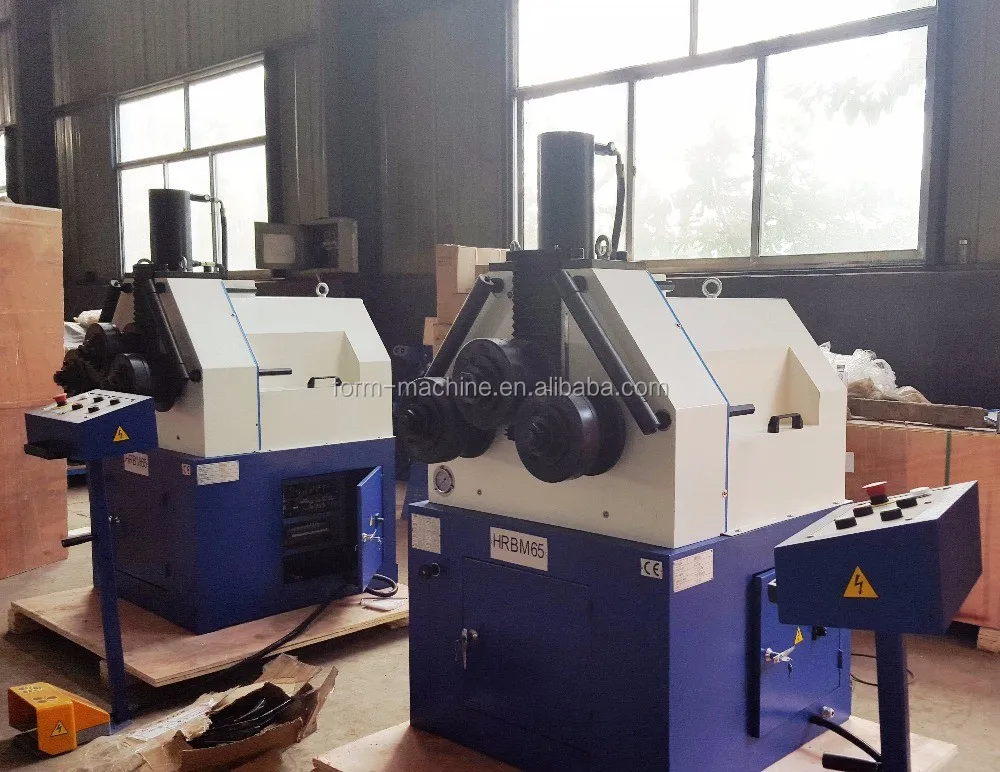

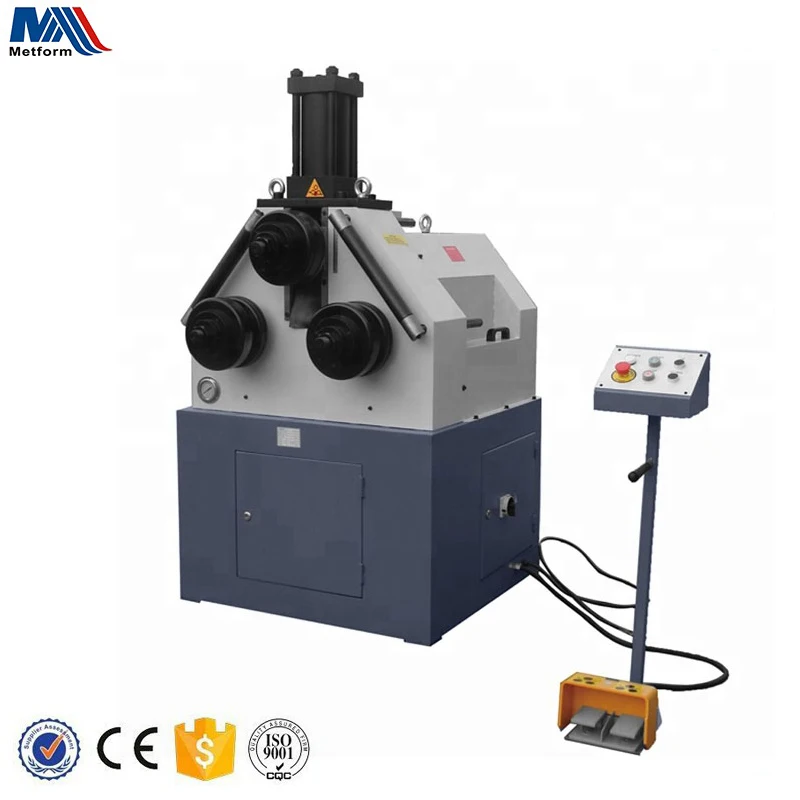

Hydraulic Pipe and Profile Roll bending machine
- Category: Metal & Metallurgy Machinery >>>
- Supplier: Metform (Shanghai) Machinery Co. Ltd.
Share on (60778195714):
Product Overview
Description
Products Description
Metform round bending machine can be combined with various mold wheels in order to meet various processing demands.
Pipe and Profile roll bending machine RBM65HV is a versatile, economical yet powerful universal profile bender. It is easy to operate and is well suited for bending angle, pipe, tube, aluminum extrusions and other section bars.
Casting machine frame
Rollers are made of alloy steel, hardened and grounded.
Hardened precision threaded shafts, made of alloy steel
Dual lateral guides
Rollers are driven by motor

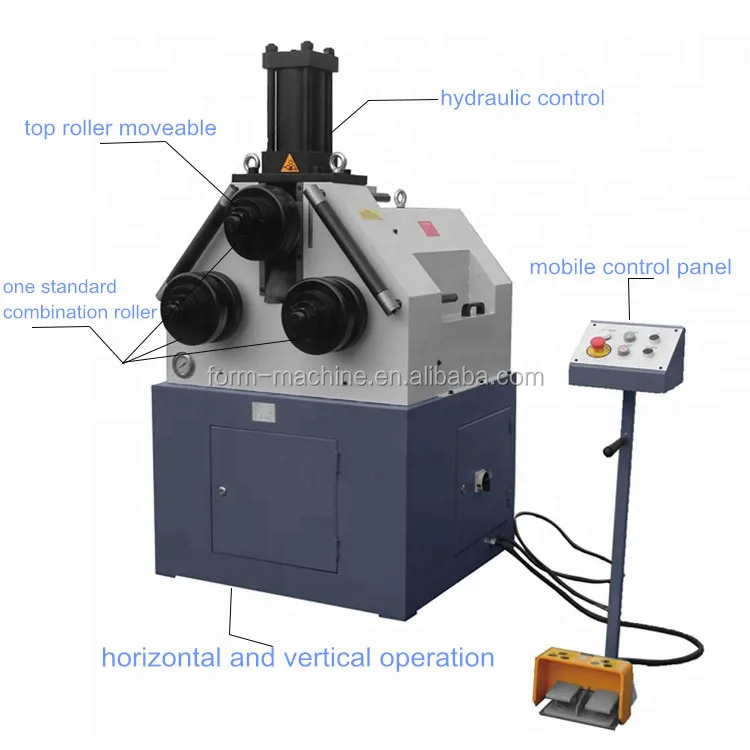

Upper roll is moveable and screw up and down manually.

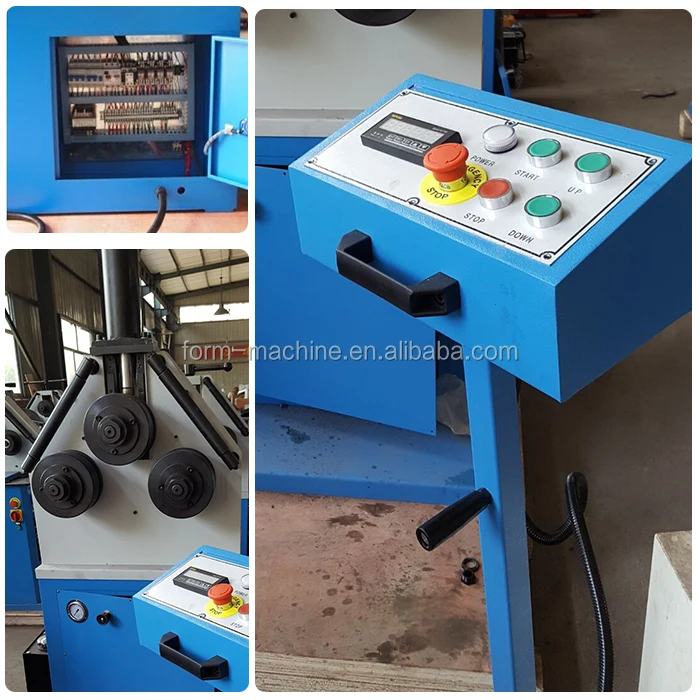

Pedal switch operating

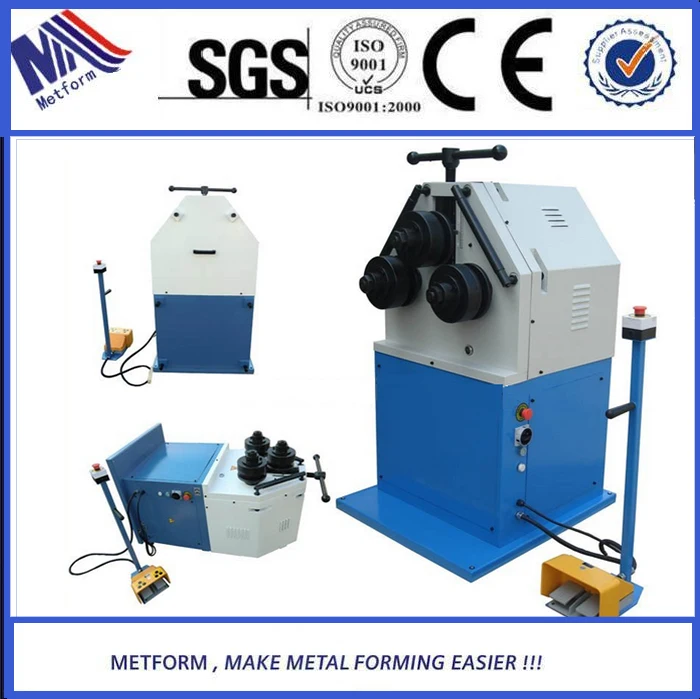

Working in both vertical and horizontal way
Standard Accessory: 1 set of general purpose rollers, composite type and suitable for Angle, flat and Rectangular tubes.
Special Accessories: Rollers for round pipe (upon request but not included in the price)
Casting machine frame
Rollers are made of alloy steel, hardened and grounded.
Hardened precision threaded shafts, made of alloy steel
Dual lateral guides
Rollers are driven by motor
Upper roll is moveable and screw up and down manually.
Pedal switch operating
Working in both vertical and horizontal way
Standard Accessory: 1 set of general purpose rollers, composite type and suitable for Angle, flat and Rectangular tubes.
Special Accessories: Rollers for round pipe (upon request but not included in the price)
Dia. Of roll Shaft φ65 (mm)
Motor Power: 2.25kW
Spindle speed: 9.3r/min
Packing Size: 125x115x180cm
N.W./G.W. 720/920 KG
Bending capacity as below
Motor Power: 2.25kW
Spindle speed: 9.3r/min
Packing Size: 125x115x180cm
N.W./G.W. 720/920 KG
Bending capacity as below

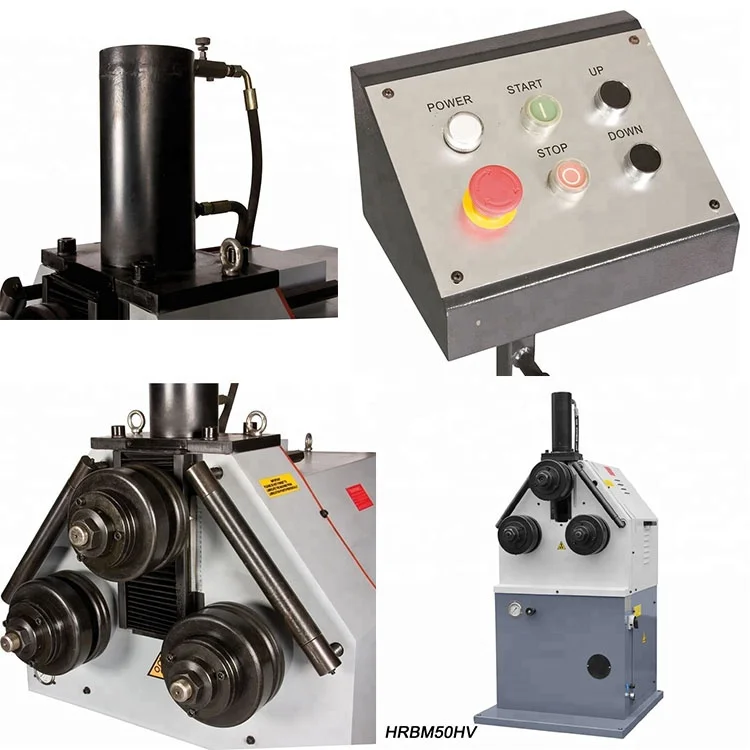

Model | RBM50 | RBM50HV | HRBM50HV | RBM40HV | HRBM40HV | |||
Dia. of rollers | 50mm | 40mm | ||||||
Power | 2.2 kW 3HP | 1.5kW/2HP | ||||||
Spindle speed | 9r/min | 9.3r/min | ||||||
Packing size | 100x82x155 | 100x82x153 | 122x82x180 | 140x95x134 | 134x93x185 | |||
N.W./G.W. | 450/520 | 460/537 | 515/650 | 425/495 | 490/586 | |||
Capacity | Size | Min Dia. | Size | Min Dia. | ||||
Solid Rectangular | 60x10 40x10 | 500 650 | 50x1020x6 | 600800 | ||||
Rectangular tube | 70x50x3 50x40x3 | 1200 800 | 50x25x2.540x20x2 | 8001000 | ||||
Solid Square | 35x3520x20 | 600 780 | 30x3010x10 | 6501100 | ||||
Squre Tube | 60x60x340x40x3 | 600 500 | 50x50x2.530x30x2 | 700800 | ||||
T-steel | 60x7 50x5 | 750 700 | 50x630x3 | 600500 | ||||
C channel | 80x45x665x40x5 | 650 550 | 60x40x630x15x4 | 600900 | ||||
Angle Iron | 60x550x5 | 700 700 | 50x530x4 | 500500 | ||||
Flat Bar | 100x1560x10 | 920 1150 | 60x2030x6 | 8001250 | ||||
Soild Round Bar | ø35ø30 | 600 650 | ø30ø10 | 6501100 | ||||
Company Profile

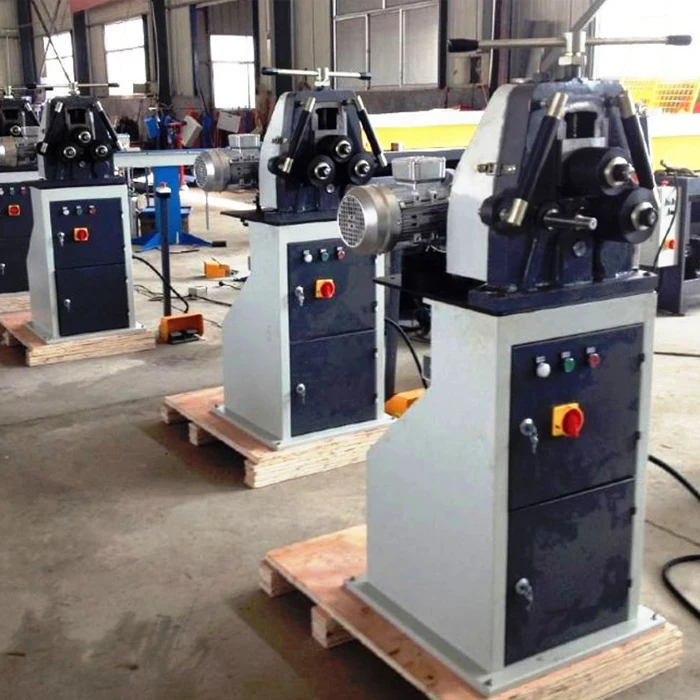

Customer Photos
Product packaging
FAQ
Q:How to get a accurate quotation from us?
A:provide us the detail of the material such as metal thickness and width
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your Customer.tell them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding machine is 85152900
Q:Payment terms,MOQ,warranty,FOB...
A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity:1 set,FOB Shanghai.
delivery time :20days after receipt of formal order and 30% deposit.
warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time,if urgently,please call us.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.post-tension corrugated duct tube making machine for bride
A:provide us the detail of the material such as metal thickness and width
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your Customer.tell them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding machine is 85152900
Q:Payment terms,MOQ,warranty,FOB...
A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity:1 set,FOB Shanghai.
delivery time :20days after receipt of formal order and 30% deposit.
warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time,if urgently,please call us.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.post-tension corrugated duct tube making machine for bride
