SMD chip reel counter with leak detection

Product Overview

Description



Who are we ?

Yuanzhi Automation Technology Co., Ltd was established in Shenzhen in January, 2001. Our company has a team of experienced system engineers, advanced programmers, circuit designers, precision machinery designers, structural engineers and mechatronics engineers. They are engaged in researching and developing the software and hardware of industry control system and have committed to the development, production, sales and service of new automation system and automation equipment. Now we have made outstanding achievement in CNC technology, automation.

What is our product ?

Our products include,

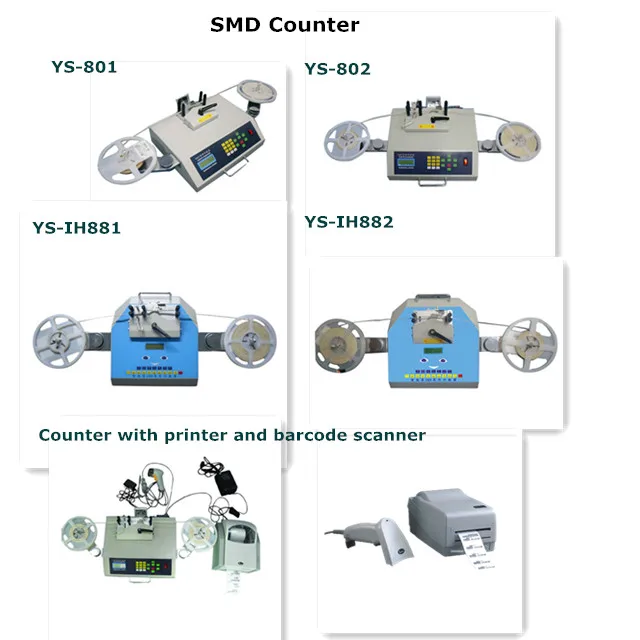

Intelligent SMD components counter:YS-801,YS-802,YS-IH881,YS-IH882,SMD counter with printer and scanner.

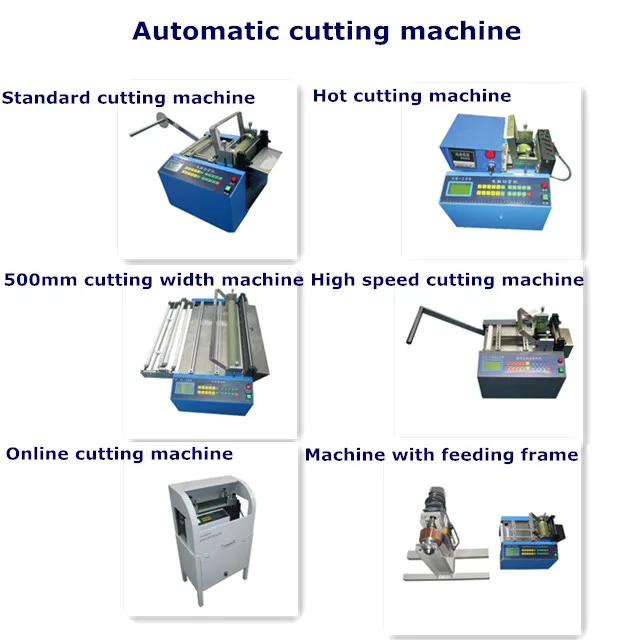

Automatic cutting machine: standard cutting machine, hot cutting machine,widen type cutting machine, higher type cutting machine, cutting machine with feeding device.

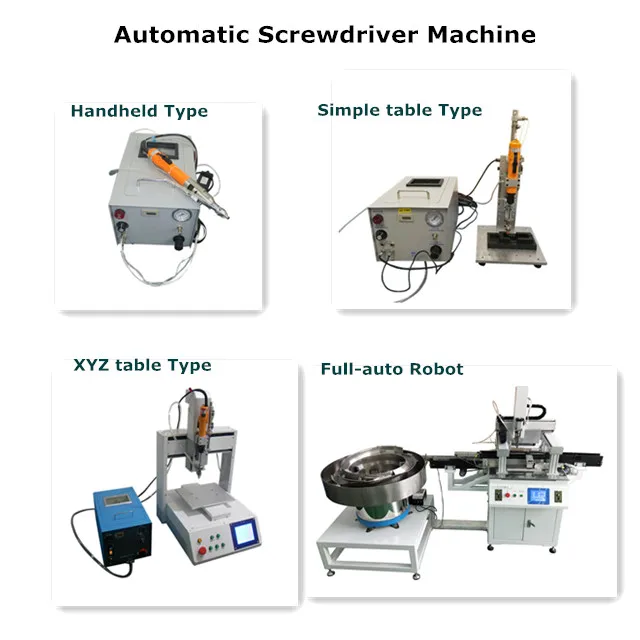

Automatic screwdriver machine:Screw feeding machine,simple table screw tightening machine,XYZ screw feeder, robotic screw fastening machine.

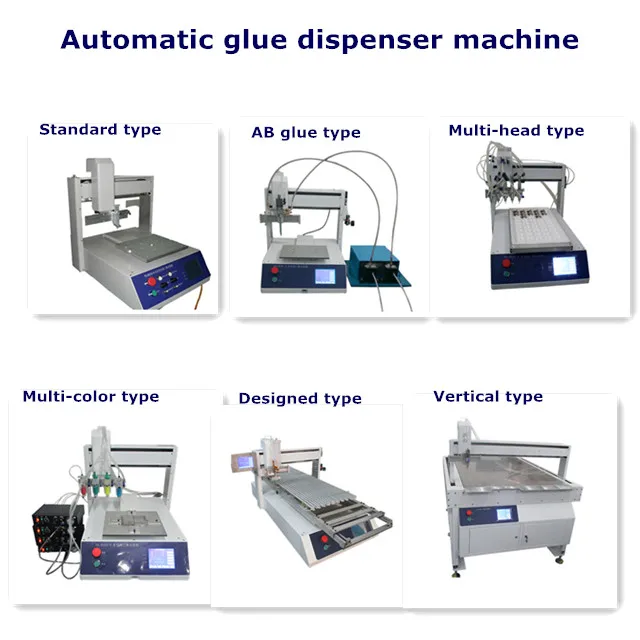

Automatic glue dispenser machine:standard glue dispenser machine,AB glue dispenser machine,multi-head glue dispenser machine and customized glue dispenser machine.

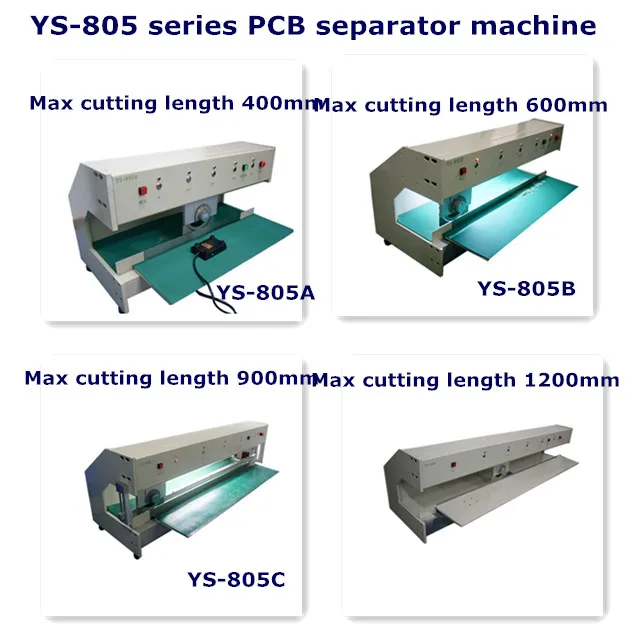

Automatic PCB separator machine:400mm/600mm/900mm/1200mm PCB cutting length.

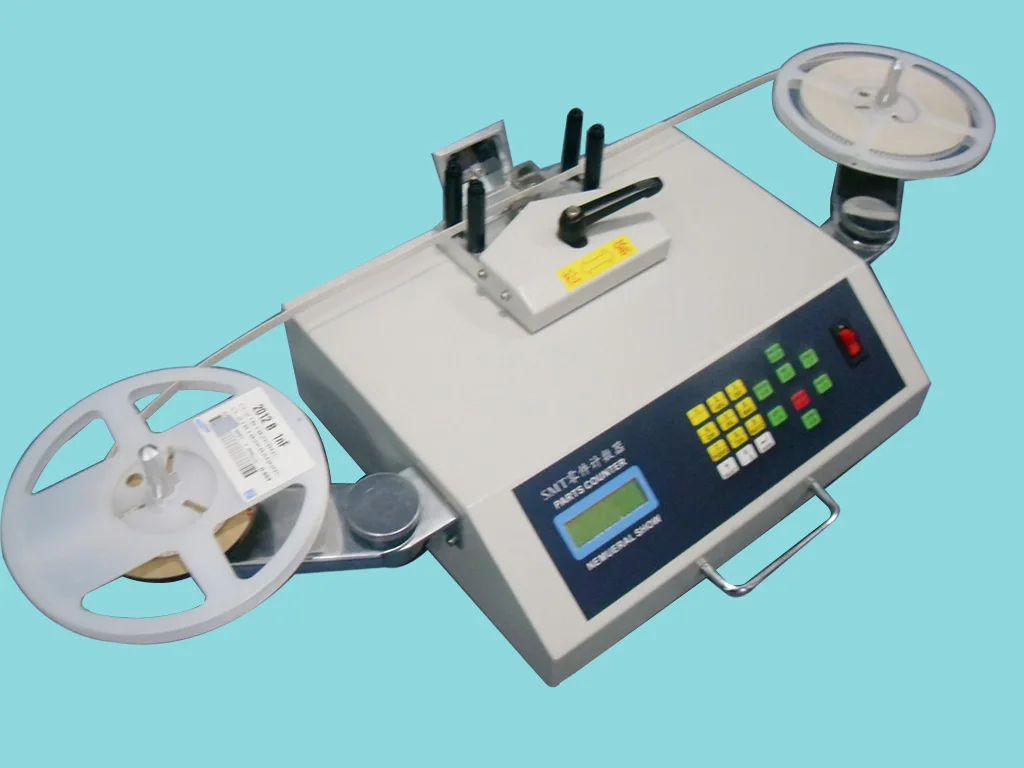

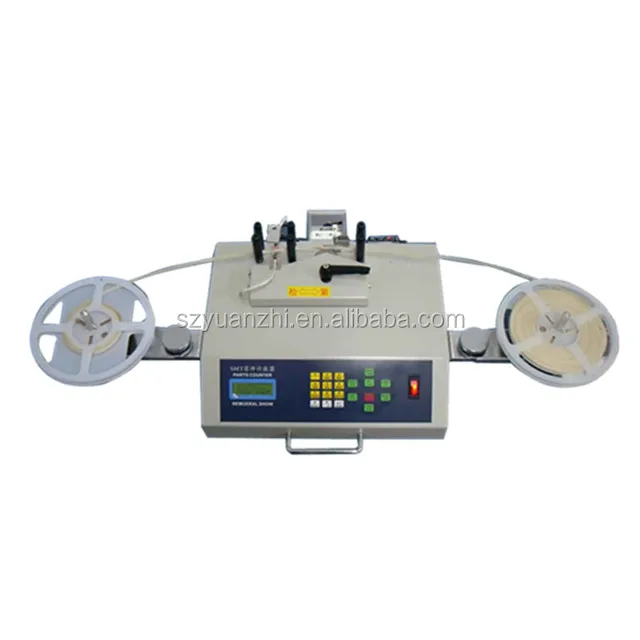

Tape & reel SMD component counters

Application



 1.The SMD Component Counting Device is suitable for reel SMD components.

2. Space between two components:  2,4,8,10,12,16,24, 32, 44,56 mm

3. Width of reel:  8, 12, 16, 24, 32, 44, 56mm

4. Suitable for all industries related to SMD components



Specification



Model	YS-801
Power	220V /110V 30W
Suitable for	Reel SMD components
Reel size	Any Size
Width of tape	8,12,16,24,32,44,56(mm)
Counting range	-99999~99999pcs
Pitch of tape	2,4,8,12,16,20,24,28,32,36,40,44,48,52,56(mm)
Leak detection	NO, it can not detect empty componets



Model	YS-802
Power	220V /110V 30W
Suitable for	Reel SMD components
Reel size	Any Size
Width of tape	8,12,16,24,32,44,56(mm)
Counting range	-99999~99999pcs
Pitch of tape	2,4,8,12,16,20,24,28,32,36,40,44,48,52,56(mm)
Leak detection	Yes, it can detect missing / empty components





Model	YS-IH881
Voltage	220V /110V   60HZ /50HZ
Power	80W
Counting range	-16777216~16777216pcs
Dimension	L490xW280xH280mm
Weight	11KG
Voice counting off	Yes
Auto-stop	Yes, stop automatically when finishing counting
Leak detection	NO, it can not detect empty components
Speed	Fast, 8 levels adjustable
Warranty	3 years



Model	YS-IH882
Voltage	220V /110V   60HZ /50HZ
Power	80W
Counting range	-16777216~16777216pcs
Dimension	L490xW280xH280mm
Weight	11KG
Voice counting off	Yes
Auto-stop	Yes, stop automatically when finishing counting
Leak detection	Yes, it can detect empty components
Speed	Fast, 8 levels adjustable
Warranty	3 years



Features

1, Automatic SMD parts counting machine, Simple operation, Adjustable counting speed

2, For both counting components and getting certain number of components you need

3, Can both forward and reverse counting, double directions to make sure zero error

4, Optional scanning gun and the bar code printer, facilitates the management work

5, Small in size, Portable, suitable for desktop operation



Working principle

Based on Photoelectric sensing, the SMD counter takes advantage of the corresponding relationship between the holes on the belt and parts, it can count SMD components accurately and easily. It is an effective tool to manage the SMD parts for SMT factories. With it, it is very easy to count the number of SMD reel parts, and get certain number of components you need.
