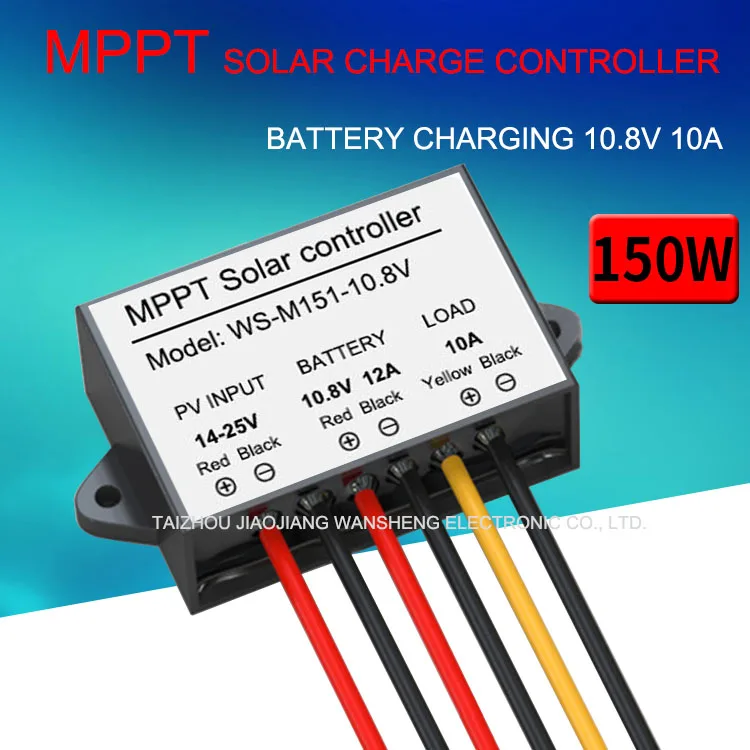

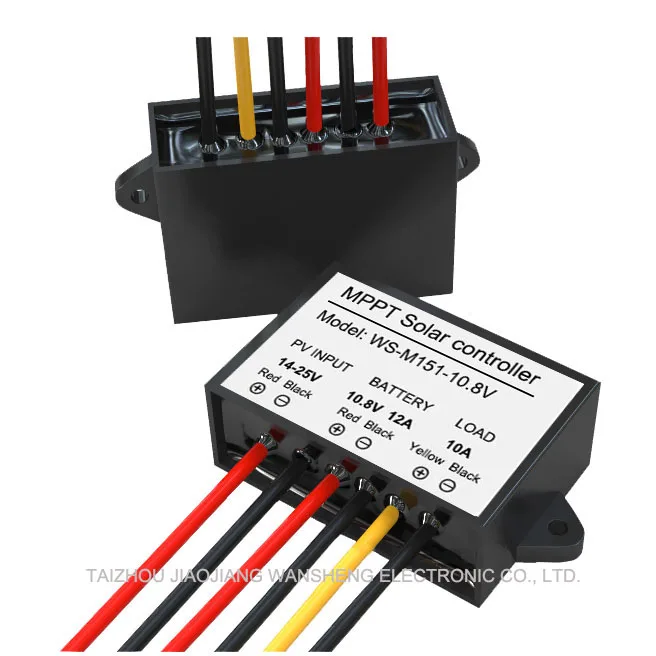

MPPT SOLAR CHARGE CONTROLLER 150W MPPT SOLAR CHARGER 99% MPPT EFFICIENCY SOLAR BATTERY CHARGE CONTROLLER WS M151 10.8V

Product Overview

Description

Professional MPPT solar charge controller factory in China

All of the MPPT solar charge controllers have passed CE certification.

MPPT: Maximum Power Point Tracking
The MPPT controller utilizes Solar Maximum Power Point Tracking (MPPT) technology to extract maximum power from the solar array. The tracking algorithm is fully automatic and does not require user adjustment. MPPT technology tracks the array maximum power point as it varies with weather conditions, ensuring that maximum power is harvested from the array throughout the course of the day.



PRODUCT NAME		MPPT SOLAR CONTROLLER
MANUFACTURER		WANSAN
MODEL		WS-M151-10.8V
CHARGING MODULE	PHOTOVOLTAIC INPUT POWER	150W
	PHOTOVOLTAIC INPUT VOLTAGE	14-25V
	OUTPUT TO BATTERY VOLTAGE	10.8V
	OUTPUT TO BATTERY CURRENT	12A
	PWM CONVERSION EFFCIENCY	97%
	MPPT EFFECTIVENESS	99%
DISCHAGING MODULE	INPUT VOLTAGE	EQUAL BATTERY VOLTAGE
	LOAD OUTPUT VOLTAGE	EQUAL BATTERY VOLTAGE
	LOAD OUTPUT CURRENT	10A
	LOAD OUT TYPE	NORMALLY OPEN
PROTECTION MODULE	BATTERY OUTPUT UNDERVOLTAGE PROTECTION	11.2V(10 seconds delay)
	BATTERY SHORT CIRCUIT PROTECTION	YES
	LOAD SHORT CIRCUIT PROTECTION	YES
	TEMPERATURE PROTECTION	YES
	IP CLASS	IP67
LINE LENGTH		10CM
DIMENSIONS		58mm × 40mm × 22mm
N.W.		115g



COMPANY INFORMATION



FAQ:

1. Are you a manufacturer?

100% yes, if you have a chance, you can visit our factory anytime.

2. Do you have any MOQ limit?

One piece is possible, you can buy one sample for testing first.

3. What about the lead-time?

Normally 1-2 working days after receive the payment.

4. How to pay for the sample fee?

Please send the payment to our PayPal account or from Alibaba directly.

5. How do you ship the goods?

We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.

6. Do you offer guarantee for the products?

Yes, we offer 1-year warranty for all solar charge controllers.

7. I cannot find the suitable model, can I ask for a special model I need?

Sure. We are professional solar charge controllers’ designer and manufacturer in China, please advising the detail specification you need, we will make it according to your request.
