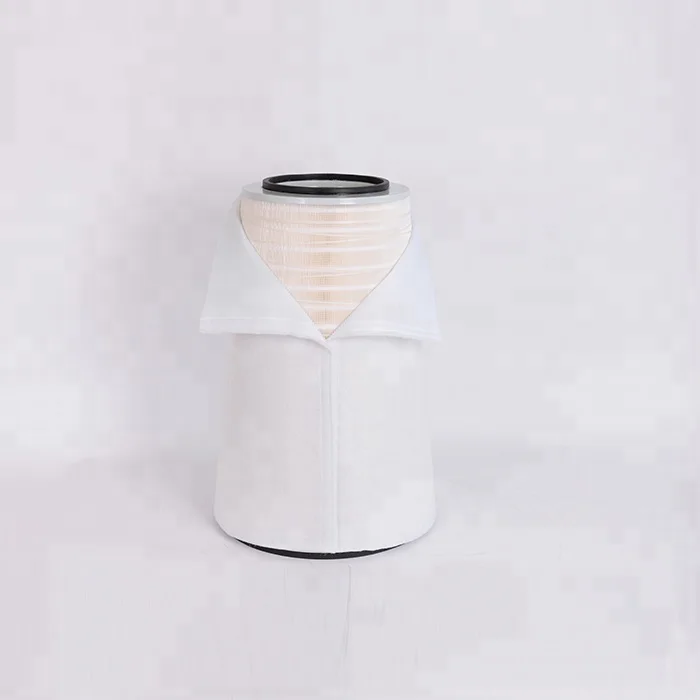

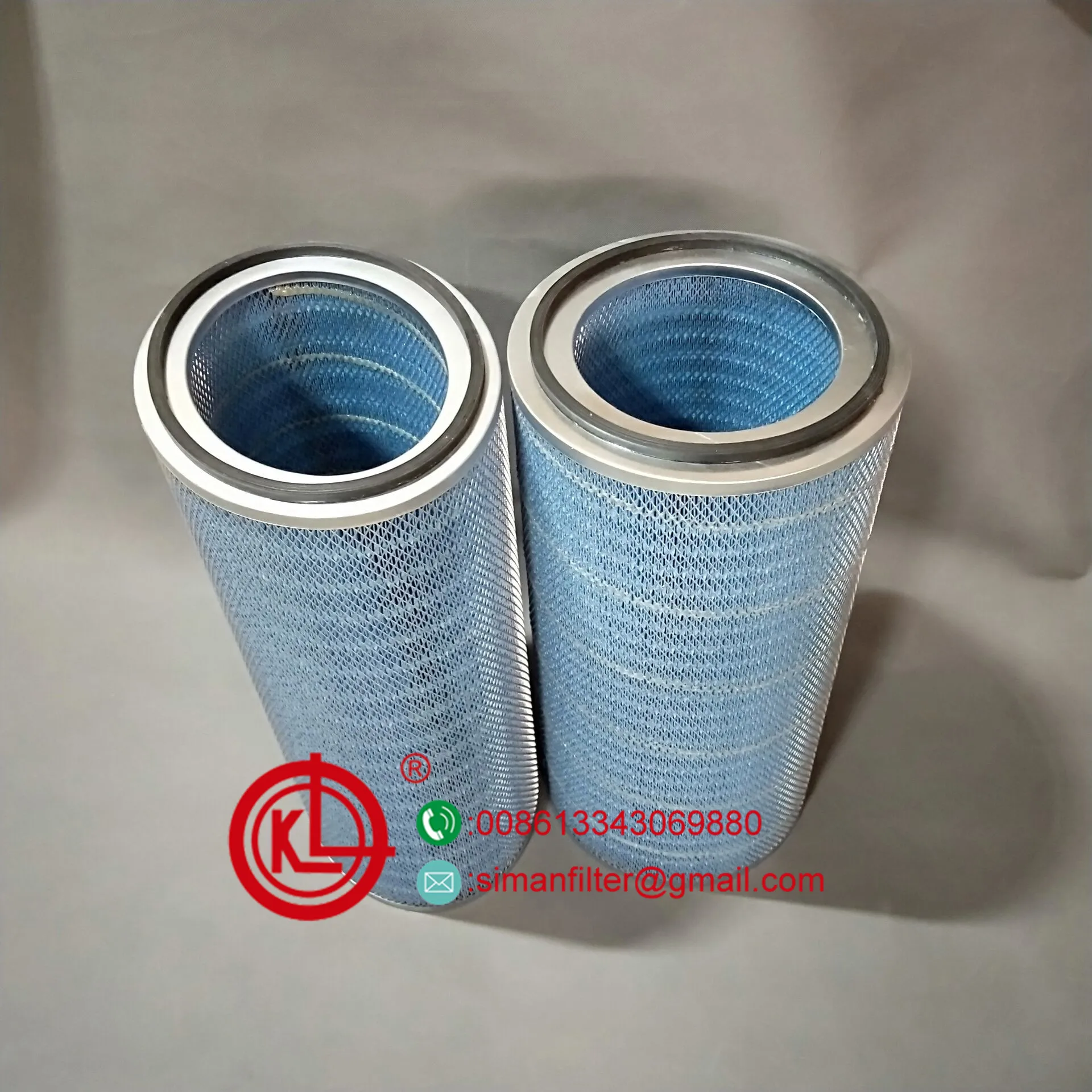

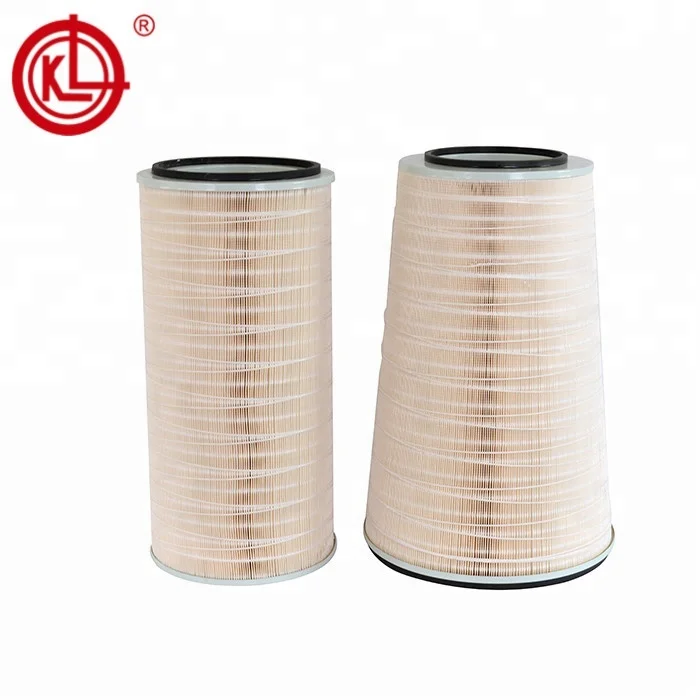

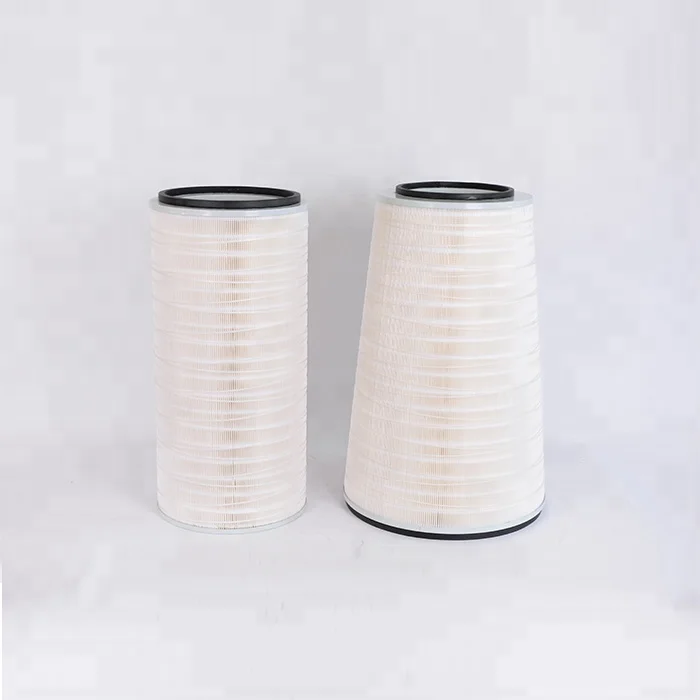

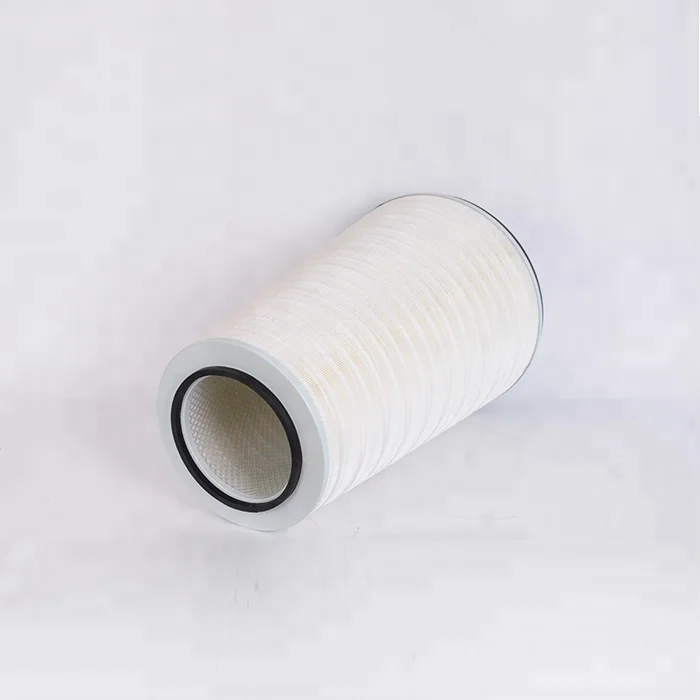

High quality gas turbine air filter P191920

Filteration Classify:

Construction of gas turbine air filter:

Filter media – fully synthetic composite.

End caps – Electrostatic-Coating, Seepage zinc plate, Galvanized (ASTM A653, 60G TST, both sides) or stainless steel.

In / Outside Liner – Electrostatic-Coating, Seepage zinc plate, Galvanized (ASTM A653, 60G TST, both sides) or stainless steel.

Potting – Media shall be permanently and completely bonded to the end caps with Polyurethane or Plastisol or epoxy sealant.

Gasket – Seamless EPDM rubber (ethylene propylene diene monomer rubber - ASTM D1418) or molded in place urethane or polyisoprene sponge rubber.

Pleats are to be stabilized by hot-melt adhesive on both inner and outer cores.

Filters are to have polyester coalescing wrap (per-filter) pre-installed by the manufacturer.

Performance of gas turbine air filter:

Efficiency - F9. Minimum 99.9% (HEPA).

Hydrophobic (water proof),  moisture proof,  Antiflaming.

Salt Repellent – must remove 99.5% of all salt crystals from turbine inlet air.

Wet Burst Pressure – greater than 7500 Pa (30” wc).

Initial Pressure Drop – 180 Pa @ 2500 m3/h (.72” wc @ 1472 cfm).

Temperature Range -   -40°C to +65°C (-40°F to +149°F).

Humidity Range – 0 to 100% relative humidity.

Flame Retardance – E d 2 according to EN 13501.

Must result in no (0%) Combustion Turbine Mega Watt power loss in 8000 hours of operation.

Must fit into air inlet systems without modification.

Manufacturing tolerances and joint details shall be such that no gaps or air/water leaks occur in the assembly after installation and during operation.

The performance of the filters is to match (or better) the below charts.

Please click to learn more

Please click on the picture for more products

Warranty :

Defects in material and workmanship for 2 years from time of installation.

Will last one (1) year of continuous service (8000 hours).

Filter must result in no power loss due to compressor fouling or filter dP increase over 8000 hours of operation.

1.Are you a trading company or manufacturer?

We are professional manufacturer with factory in China, since 1988.

2.What kinds of filter do you produce?

It covers widely for air filter,oil filter,fuel filter for trucks, construction machinery, power plant equipment,compressor-turbine unit etc.

3.Is Customized filter available?

Yes,please offer your required specifications and drawing

4.Can I get you products with our logo and design?

Yes, you can. Most of our products can be customized according to your requirements.

5.How can we get the quotation of filter cartridges ?

Please let us know the specifications, such as the materials, length, macron, apply in which industry etc.

6.Do you Accept OEM service?

YES!

7. Would it be possible for us to visit you factory?

Sure we are very welcome you at any time!

8.What's your delivery terms?

(1)FOB (2)CFR (3)CIF

9.What's your Delivery Time?

1)generally the samples will be sent immediately by the air express in 3-5 days if the goods are in stock

2)Normally within 15 to 30 days,please confirm with us before order!

10.What's the Payment Terms?

Usually,30% as deposit,70% before shipment by T/T

Western Union acceptable for small amount.

L/C acceptable for large amount.

Escrow, Paybal, Alipay Credit card are also available

11.How to solve the quality problem?

If the products are not comfort to customer sample or have quality problems, our company will be responsible to make a composition for it.

12.How you pack products?

Normally, poly bag inside and carton outside .We'll do according to customers' requirement.

13.What's your available port of Shipment?

Normally, Shanghai and Tianjin

Other ports available but you should afford extra charges.
