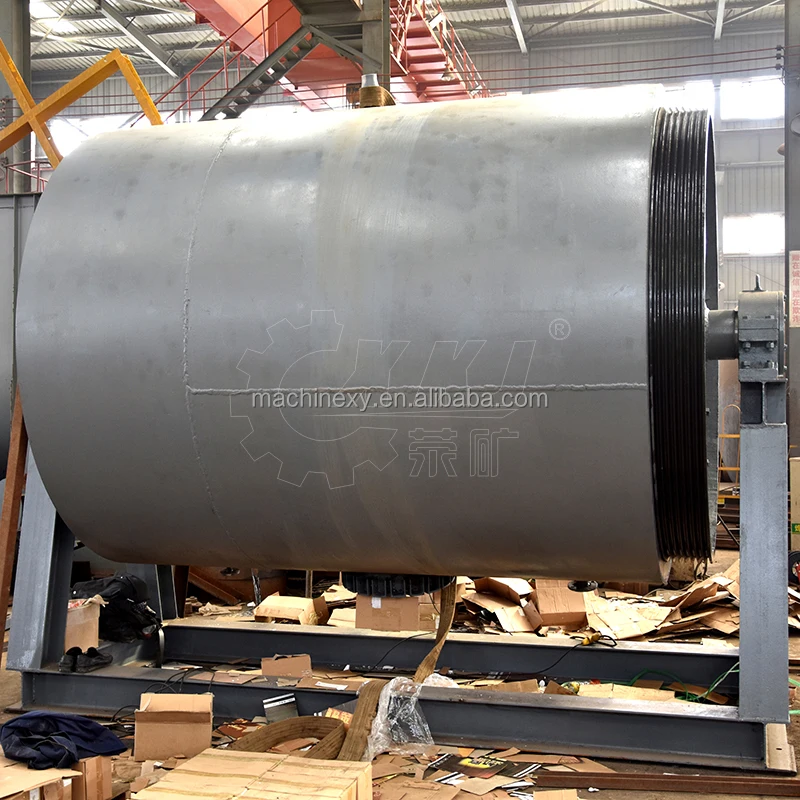

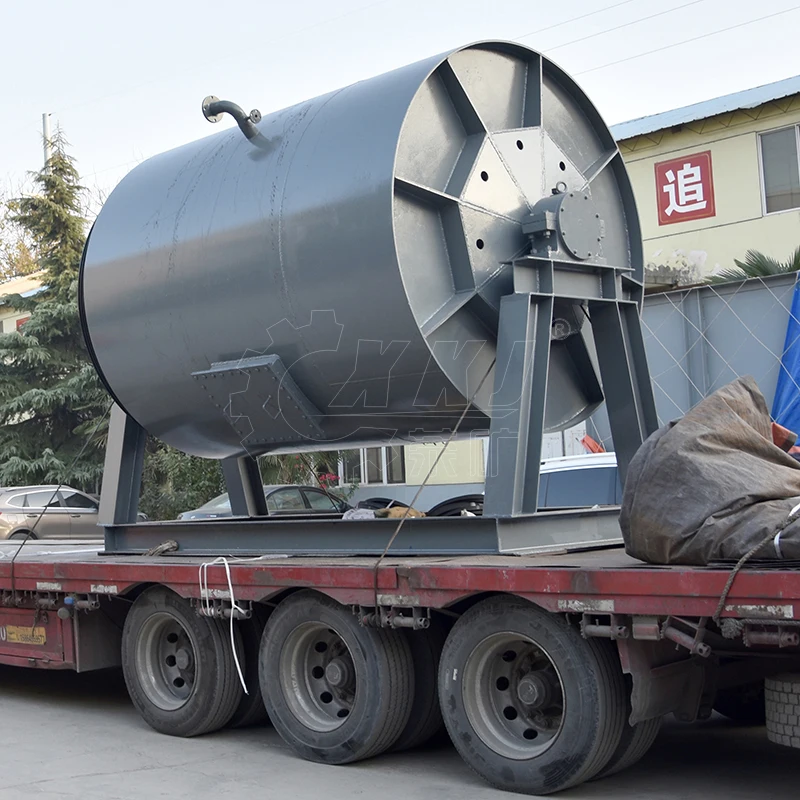

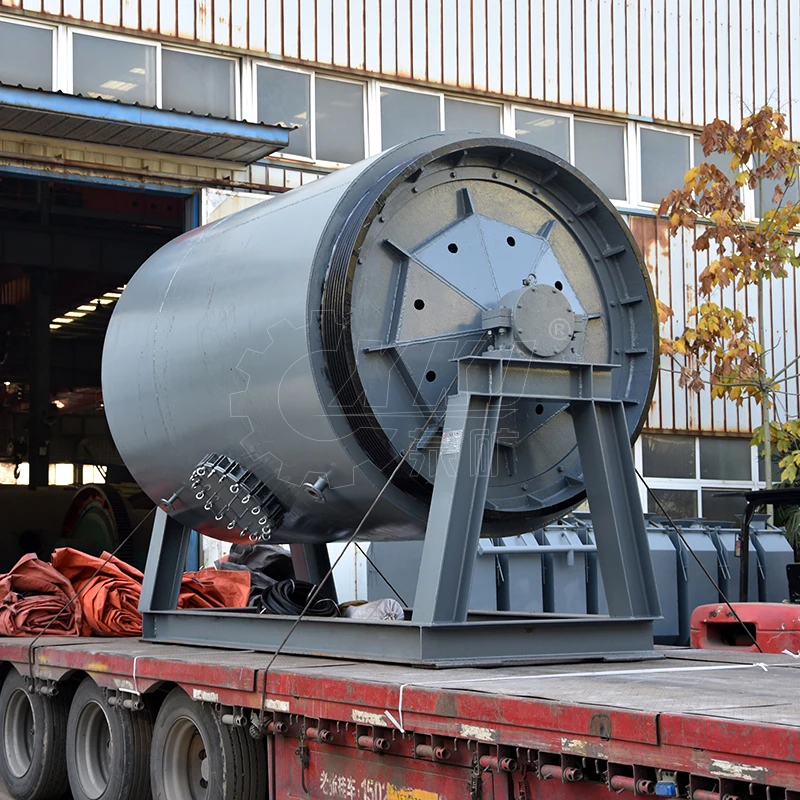

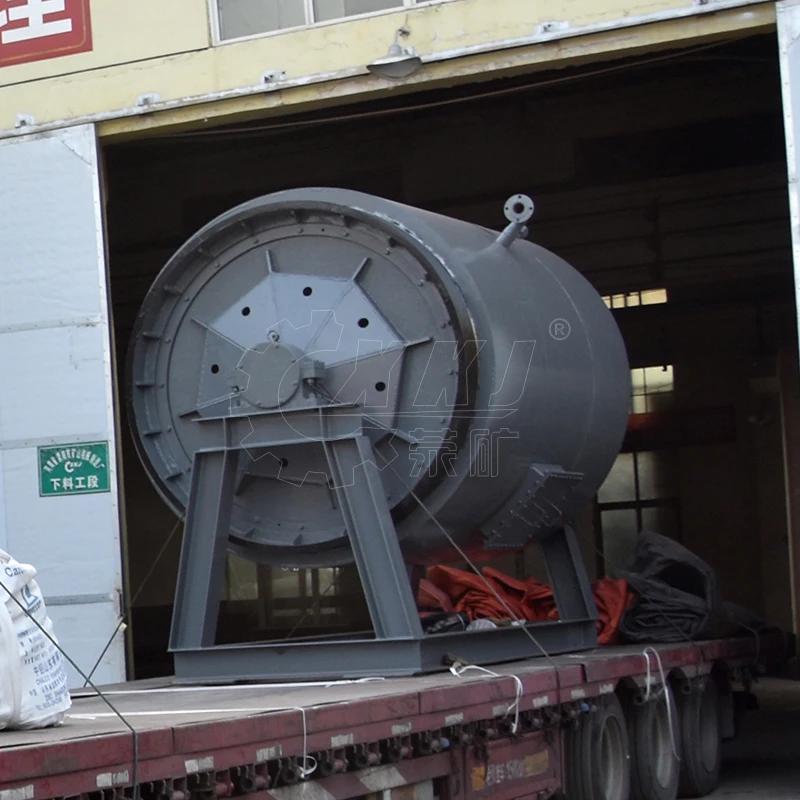

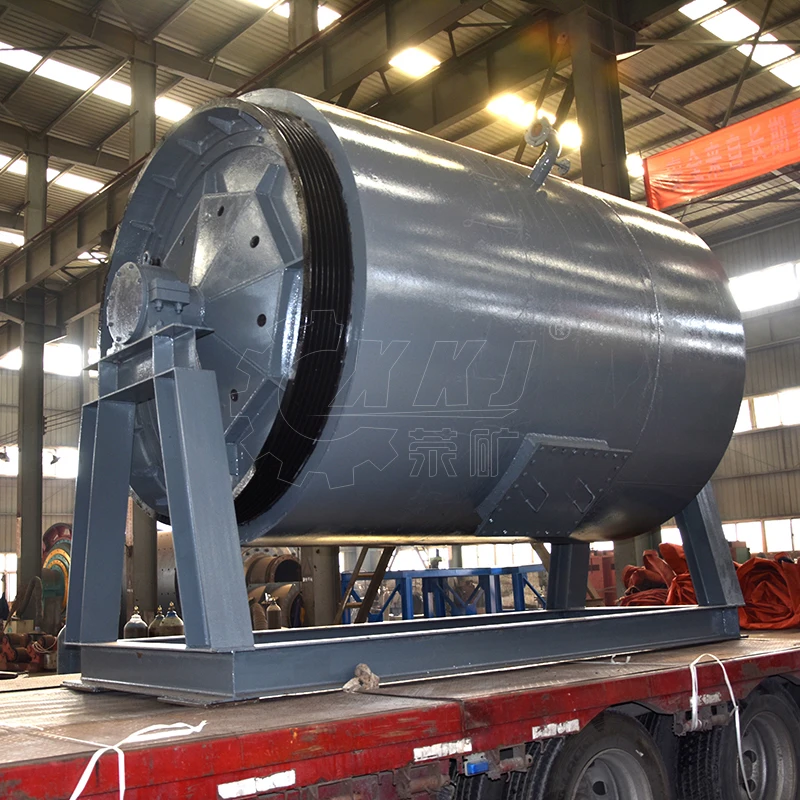

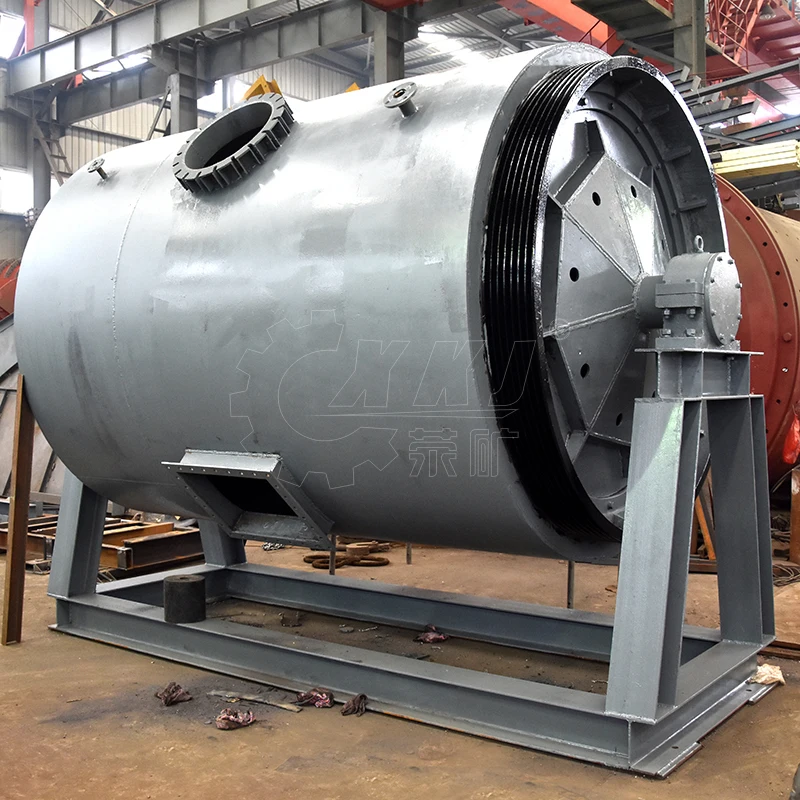

Hot sale factory price 2t per batch powder grinding ceramic ball mill for sale

Product Overview

Description

ceramic ball mill Application

Batch Ball Mill is mainly used for grinding materials in such production industries as ceramic, silicate product, new building materials, chemical engineering, glass,refractorty etc. It is used for grinding various types materials dry or wet, we also can manufacture batch or continuous ceramic mill.



ceramic ball mill Working Principle

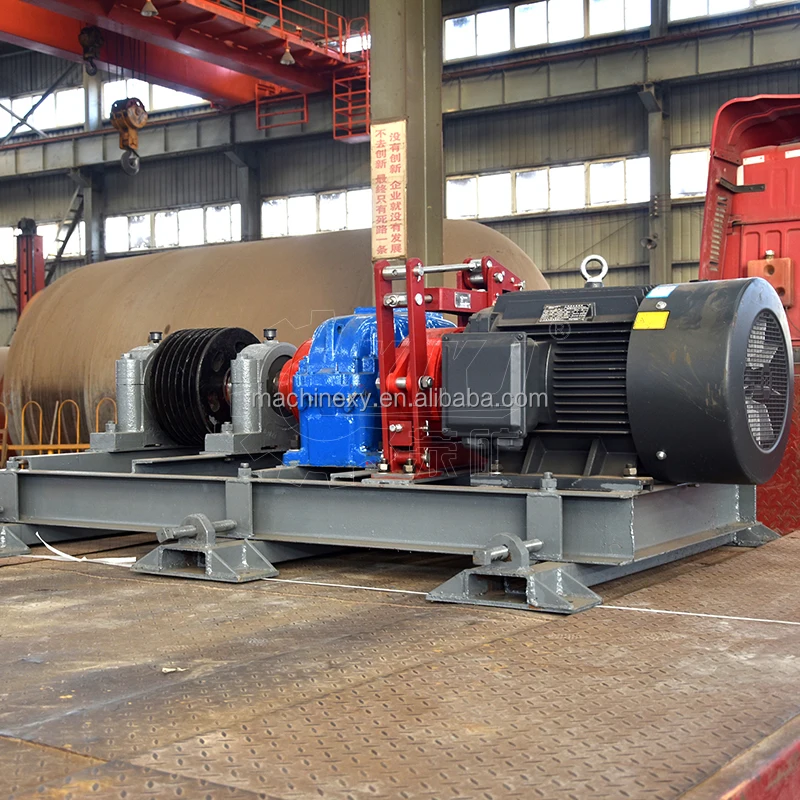

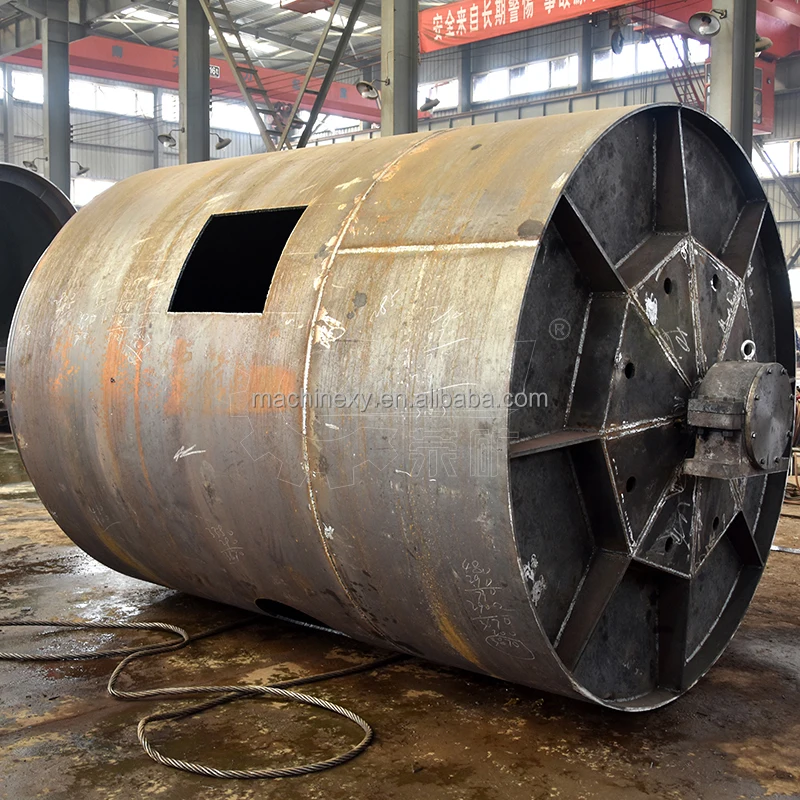

Our batch ball mill is of horizontal, cylindrical and tubular structure. The mill is transmitted by the belt. The materials are transferred to the grinding chamber through feeding hole , it discharge from the same hole. The motor drives the cylinder rotation through the belt, and the crushed ore and grinding balls in the cylinder body are brought to a certain height by the lining plate under the action of friction force and centrifugal force when the cylinder body rotates. After that, due to the action of gravity, they are thrown and dropped, and the material is gradually grind under the impact and grinding effect. It is discharged out of the cylinder through the discharge part.



 Ways of Improving Productivity of  Ceramic Batch Ball Mill

In addition to manufacturing ball mill, we also carry our research on improving its productivity. Generally speaking, the productivity of ball mil can be improved by

(1) adding fine crusher before the ball mill.

(2) improving grinding system to achieve better grinding efficiency.

(3) adding powder concentrator.



alumina ceramic ball mill Advantages

(1) wet and dry intermittently to mill, mix, discharge material

(2) large processing volume

(3) it is mainly used for ceramic raw material grinding,such as feldspar, quartz,clay,etc.

(4) the slurry can pass through 1000 sieve pore

(5) it is a super fine grinding mill, so the material should be medium size or below to get the best grinding efficiency



 Technical Parameters of alumina ceramic ball mill:



Specification	Cylinder size (mm)	Output size(mm)	Weight of loading(t)	Speed of bucket(r/min)	Power(kw)	Piece Weight(kg)
0.2T	Φ910×1120	0.075-0.89	0.2	35	2.2	1910
0.5T	Φ1200×1420	0.075-0.4	0.5	31.45	4	2500
1T	Φ1400×1800	0.075-0.4	1	27	7.5	3000
1.5T	Φ1800×2100	0.075-0.4	1.5	23	11	4500
2.5T	Φ2200×2200	0.075-0.4	2.5	20	18.5	6500
3T	Φ2200×2600	0.075-0.4	3	20	22	7000
5T	Φ2500×3000	0.047-0.4	5	16	37	13000
8T	Φ2800×3400	0.047-0.4	8	13.8	45	19000
10T	Φ2800×4000	0.047-0.4	10	13.8	55	20000
15T	Φ3000×5000	0.047-0.4	15	13	75	28000
18T	Φ3100×5000	0.047-0.4	18	12	90	28500
20T	Φ3200×5800	0.047-0.4	20	13	90	29900
30T	Φ3400×6500	0.047-0.4	30	14.2	110	32000
40T	Φ3600×7000	0.047-0.4	40	13	132	36000
50T	Φ3800×8000	0.047-0.4	50	11	200	45000
60T	Φ4000×8500	0.047-0.4	60	.10	200	52000

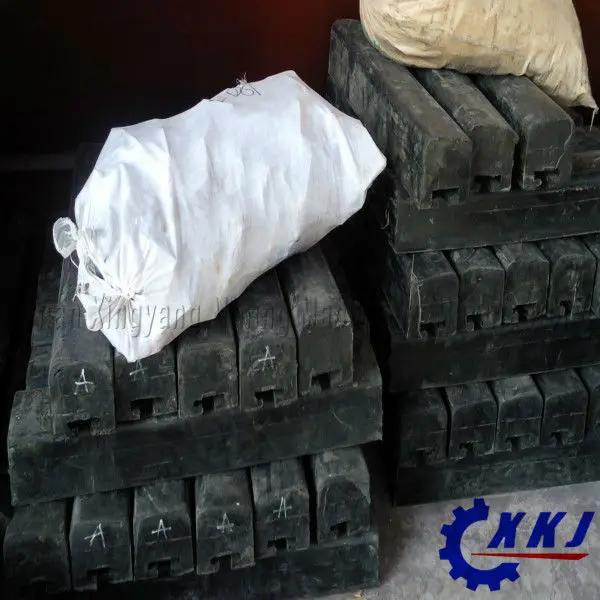

 Rubber liner:



 Ceramic mill with rubber liner

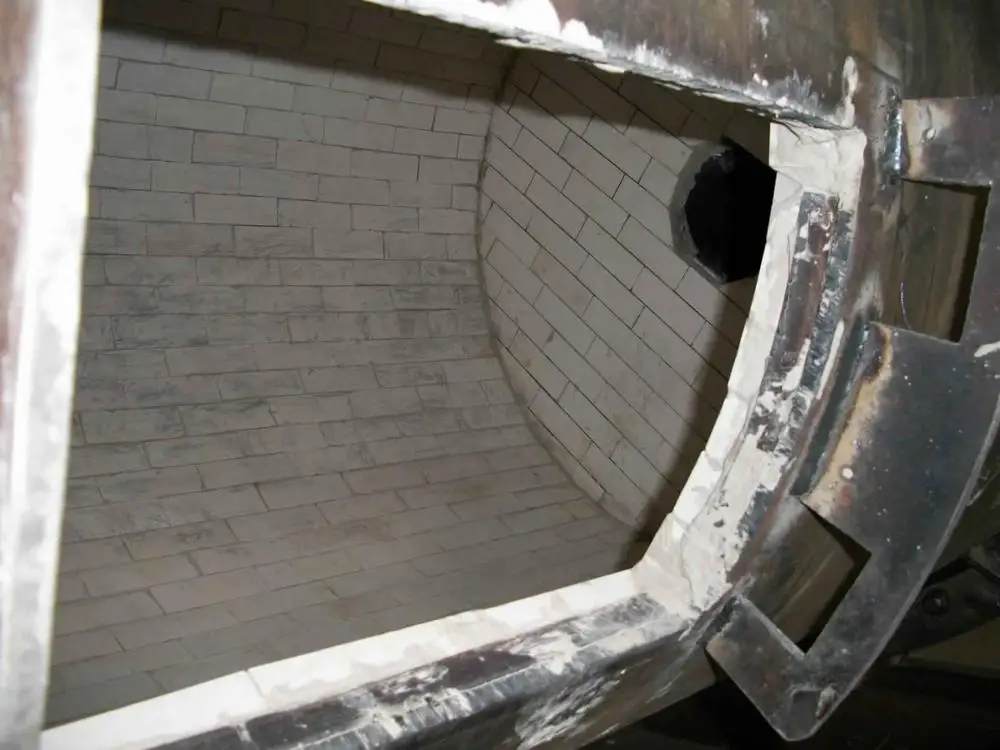

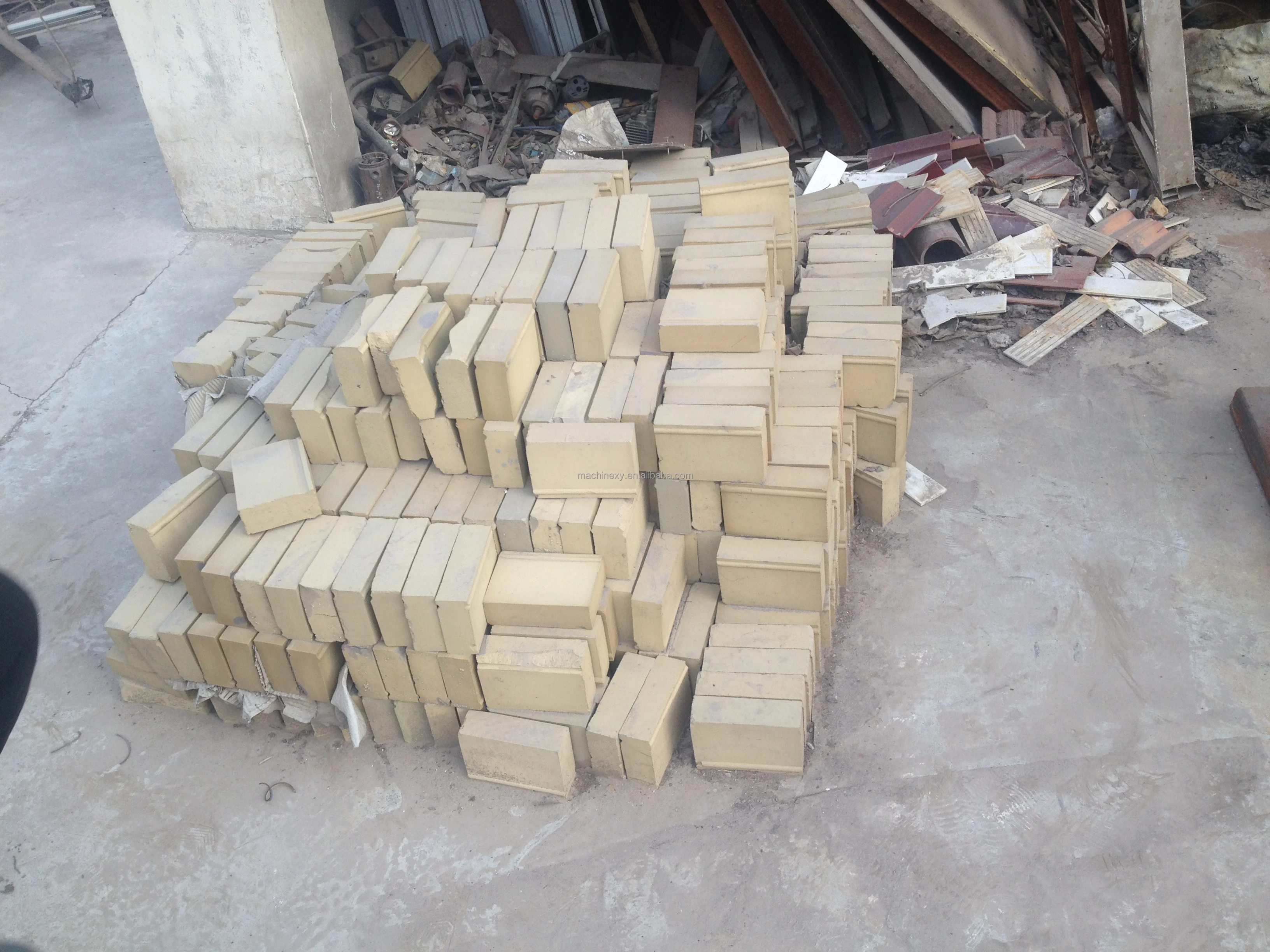

Silica liner:

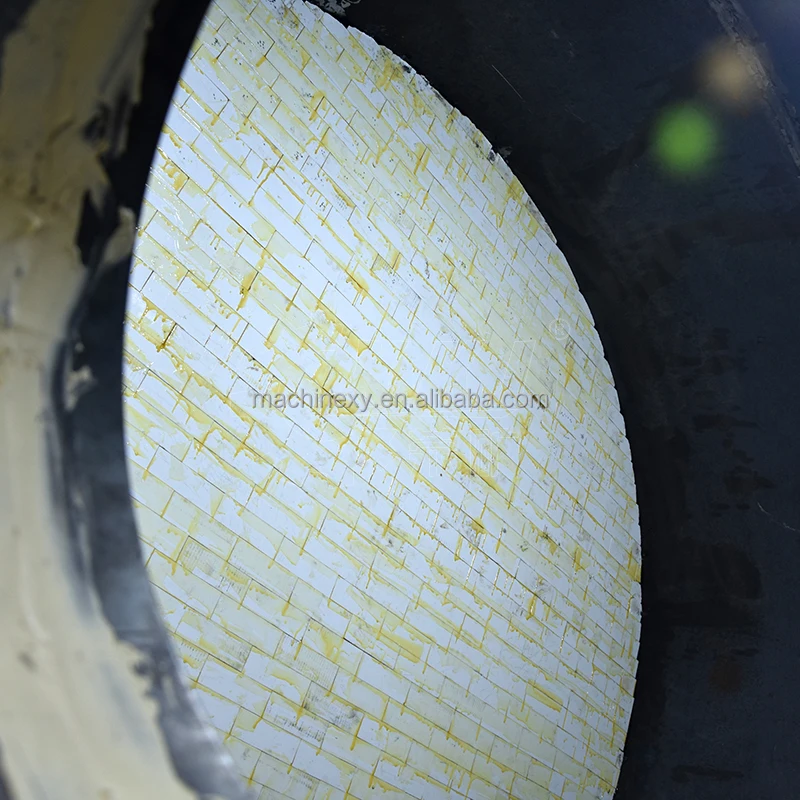

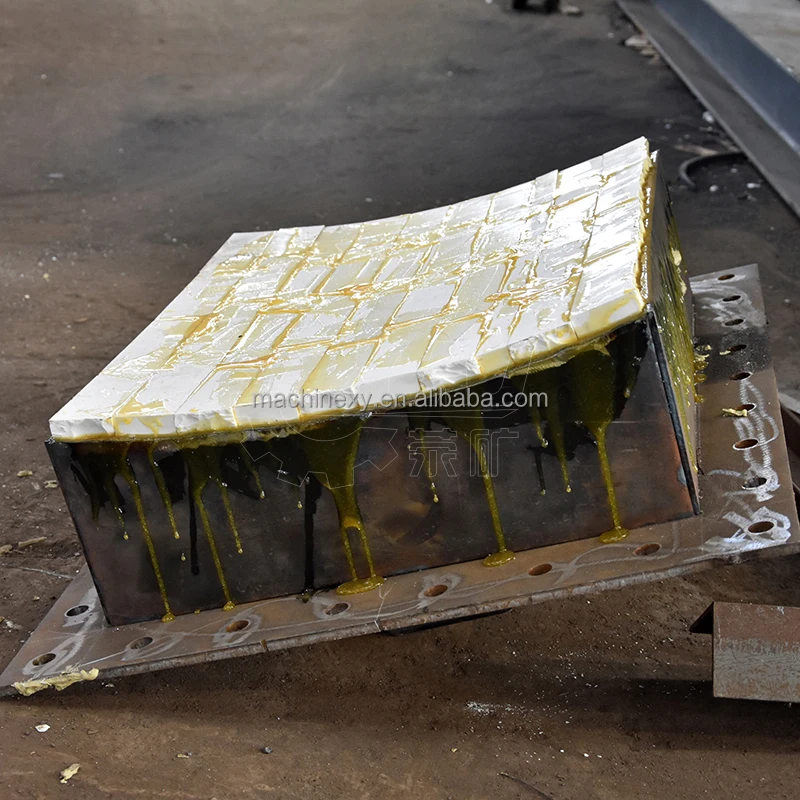

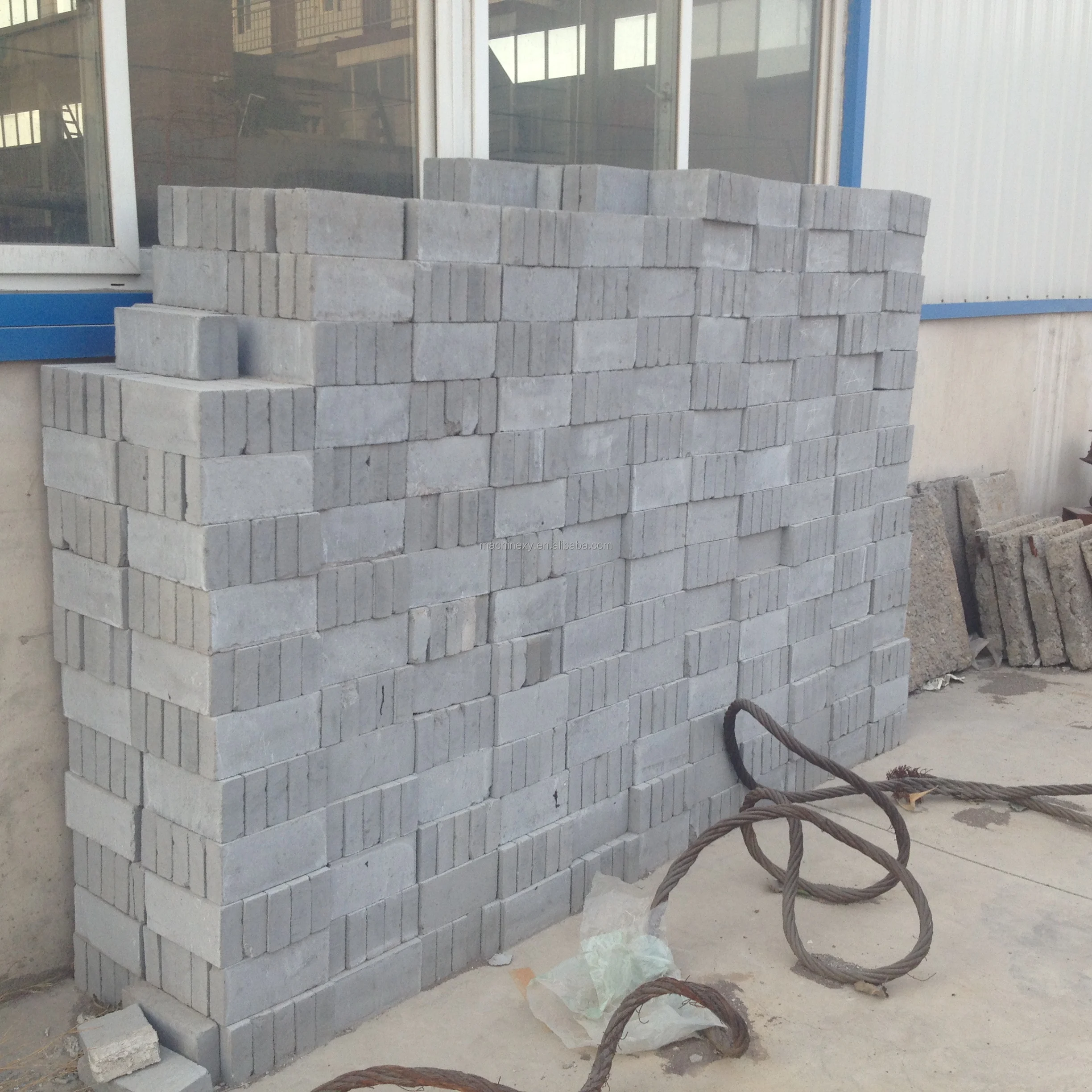

 High alumina liner :

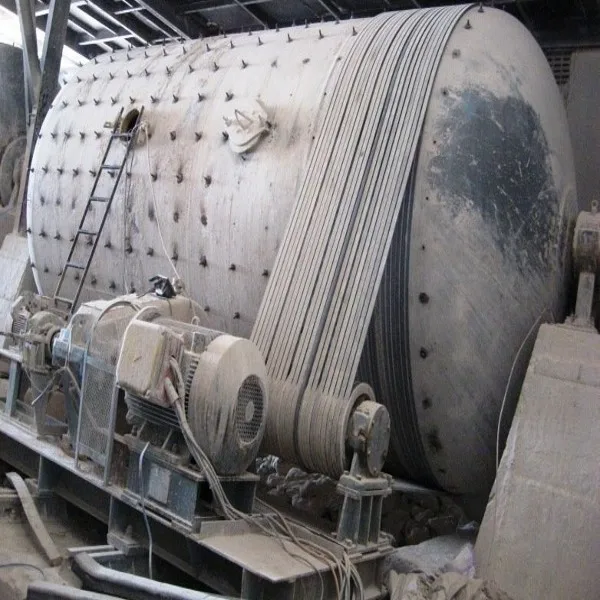

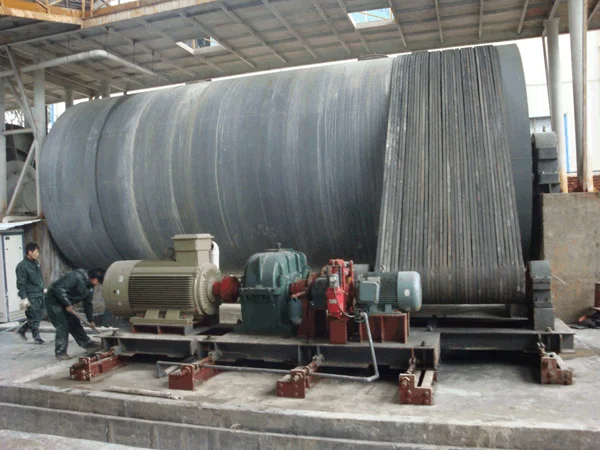

 Alumina cerami mill working site:
