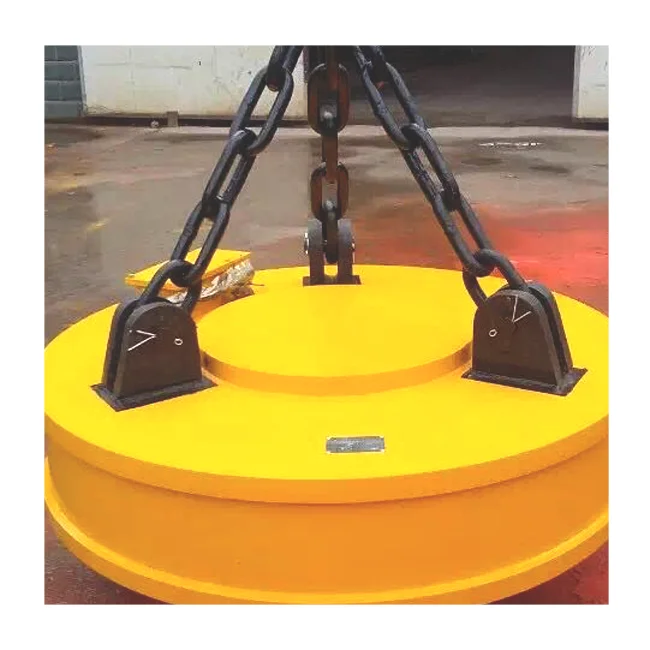

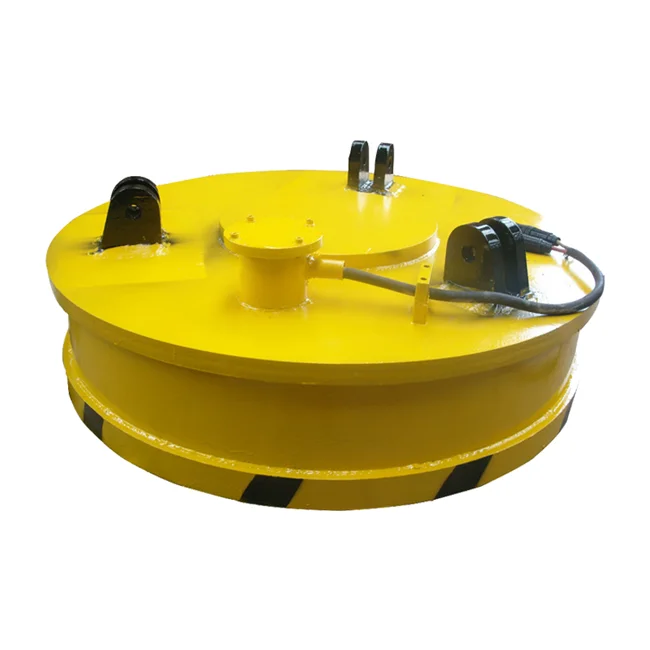

Electromagnetic Chuck, Lifting Magnet for Lifting Scrap Iron Magnetic Chuck
- Category: Magnetic Lifter >>>
- Supplier: Xinxiang Weiying Machinery Co. Ltd.
Share on (60796924460):
Product Overview
Description
Products Description
Electromagnetic Chuck, Lifting Magnet for Lifting Scrap Iron Magnetic Chuck
Electromagnetic chuck is a kind of machine tool accessory product produced by electromagnetic principle, through electrifying the internal coil to produce magnetic force, through the magnetic panel, will contact the workpiece on the surface of the panel to tightly absorb, through the coil power off, magnetic force disappear to realize demagnetization, take off the workpiece principle.The main application is: grinder, FYMC series electromagnetic tool grinder, gantry milling machine, gantry planer and other iron workpiece processing workpiece fixed.
NOTE:
Electromagnetic Chuck, Lifting Magnet for Lifting Scrap Iron Magnetic Chuck

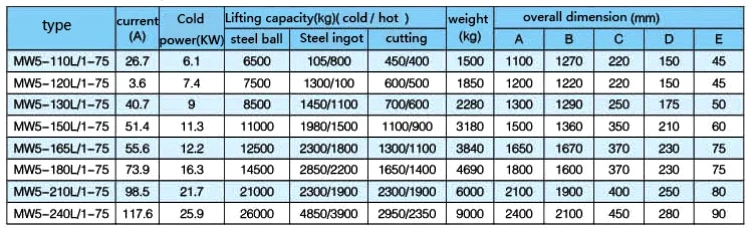

Normal temperature type(rated voltage DC-220v,power on duration TD-75%)main technical parameters
Type | Current (A) | Cold Power (KW) | Lifting capacity(kg)(cold/hot) | Weight (kg) | ||||
steel ball | steel ingot | cutting | ||||||
MW5-110L/1-75 | 26.7 | 6.1 | 6500 | 105/800 | 450/400 | 1500 | ||
MW5-120L/1-75 | 3.6 | 7.4 | 7500 | 1300/100 | 600/500 | 1850 | ||
MW5-130L/1-75 | 40.7 | 9 | 8500 | 1450/1100 | 700/600 | 2280 | ||
MW5-150L/1-75 | 51.4 | 11.3 | 11000 | 1980/1500 | 1100/900 | 3180 | ||
MW5-165L/1-75 | 55.6 | 12.2 | 125000 | 2300/1800 | 1300/1100 | 3840 | ||
MW5-180L/1-75 | 73.9 | 16.3 | 145000 | 2850/1800 | 1650/1400 | 4690 | ||
MW5-210L/1-75 | 98.5 | 21.7 | 21000 | 2300/1900 | 2300/1900 | 6000 | ||
MW5-240L/1-75 | 117.6 | 25.9 | 26000 | 4850/3900 | 2950/2350 | 9000 | ||
Product details

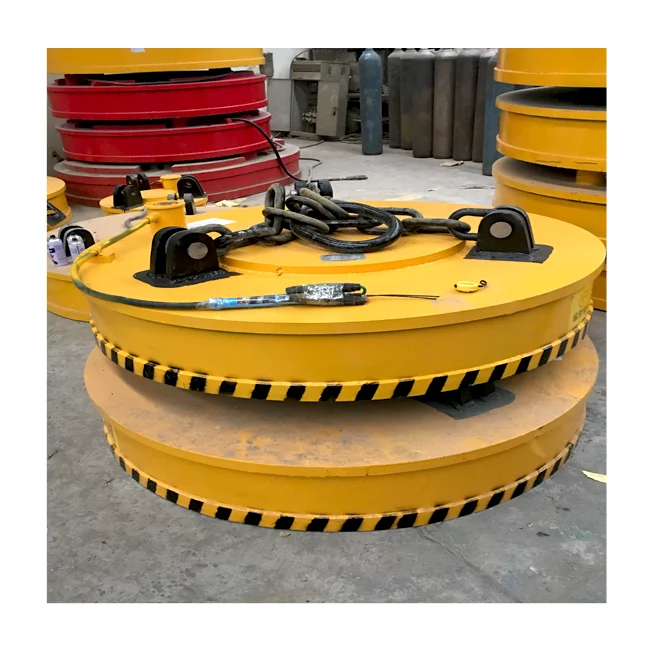

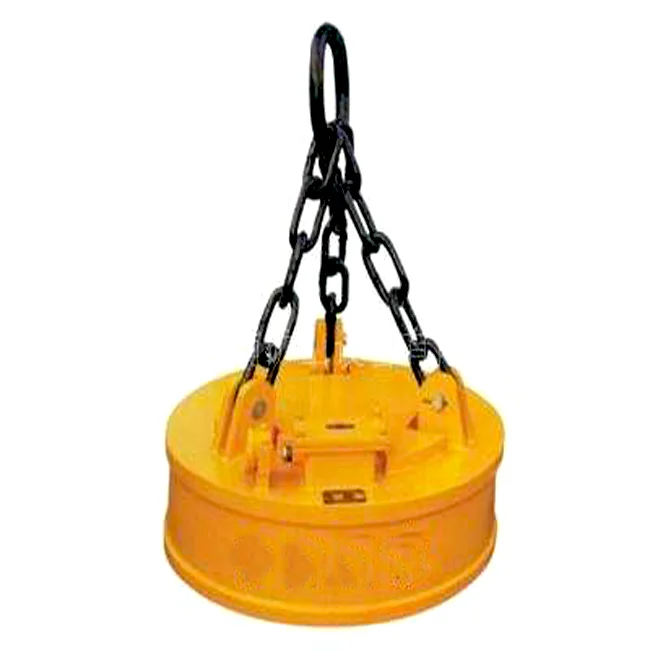

Electromagnetic Chuck, Lifting Magnet for Lifting Scrap Iron Magnetic Chuck
1. Select appropriate materials for welding or casting of the bottom shell
2. Install the iron core on the bottom shell according to different types of suction cups
3. Wrap the coil with the corresponding number of turns and technical parameters, and wrap it on the iron core after drying
4. Pitch or other waterproof materials shall be poured inside the bottom shell
5. Make the panel and install it together with the bottom shell
The electromagnetic chuck adopts dc power supply, which has the characteristics of stability, strong suction and small remanence.
Electromagnetic suckers can be divided into common suckers and strong suckers according to different classes.common suckers have a suction force of 10-12 kg per square centimeter. strong electromagnetic suckers are not less than 14 kg per square centimeter. According to their USES, they can be divided into electromagnetic suckers for grinding machines, electromagnetic suckers for milling machines and planers, and mechanical and electrical magnetic suckers for grinding knives.
2. Install the iron core on the bottom shell according to different types of suction cups
3. Wrap the coil with the corresponding number of turns and technical parameters, and wrap it on the iron core after drying
4. Pitch or other waterproof materials shall be poured inside the bottom shell
5. Make the panel and install it together with the bottom shell
The electromagnetic chuck adopts dc power supply, which has the characteristics of stability, strong suction and small remanence.
Electromagnetic suckers can be divided into common suckers and strong suckers according to different classes.common suckers have a suction force of 10-12 kg per square centimeter. strong electromagnetic suckers are not less than 14 kg per square centimeter. According to their USES, they can be divided into electromagnetic suckers for grinding machines, electromagnetic suckers for milling machines and planers, and mechanical and electrical magnetic suckers for grinding knives.

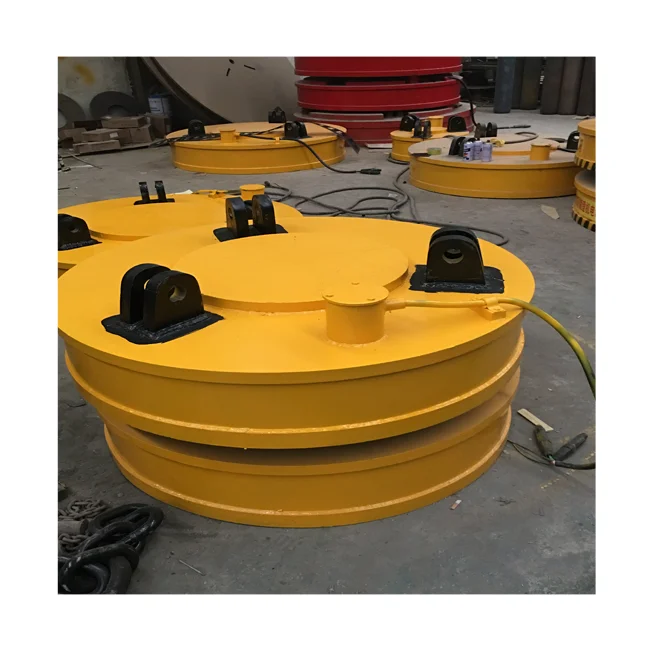

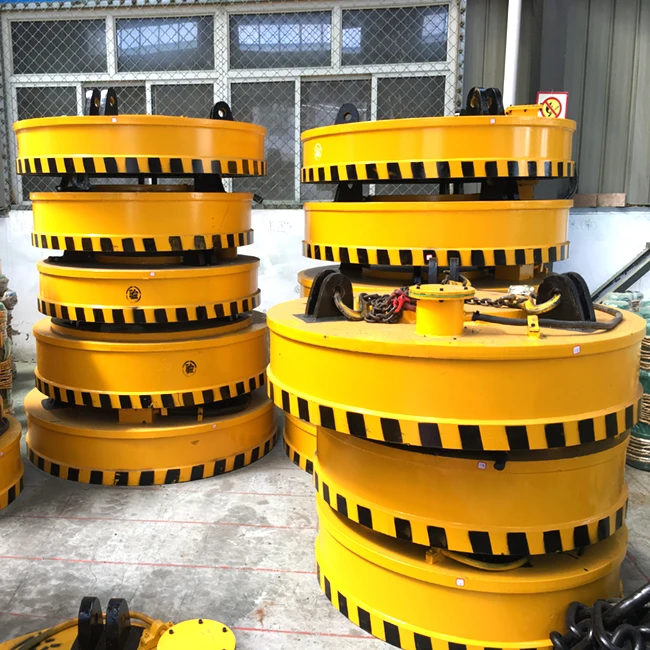

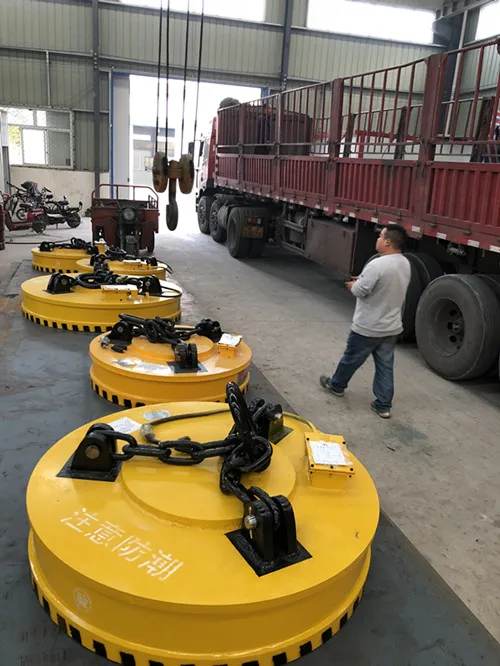

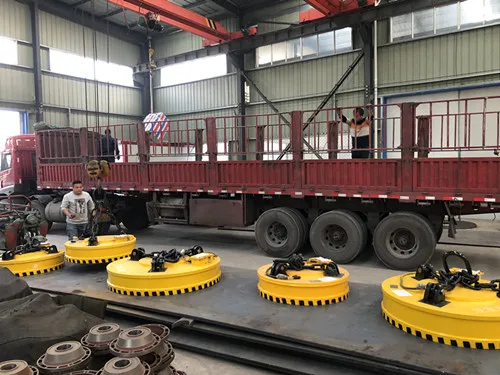

Factory show
Electromagnetic Chuck, Lifting Magnet for Lifting Scrap Iron Magnetic Chuck application
1. It is used to lift and transport steel and other magnetic materials in metallurgy, mining, machinery, transportation and other
industries.
industries.
2. It is used for electromagnetic manipulator, holding steel and other magnetic materials.
Related product
Permanent-Magnetic Chuck 1000 Kg
Electric Large Rectangular Lifting Magnets
MW84-16040L/1 Magnetic Chuck
Packing & Payment & Delivery
>> Packaging Details:
Plywood Case(Composite Material Box)
>> Delivery Time:
5-7 Days after receipt of the deposit
>> Payment Terms:
30%(T/T) as deposit, the Rest 70%(T/T) Before Shipment
In order to give you a good price, please tell us the following information.
1.Magnetic lifter diameter?(size)
2.Where is it used?(Usage environment)
3.What is the voltage?(380V 50HZ 3PH?)
4.Which kinds of cargos will be load by magnetic chuck ?( Ingot,Scrap,steel plate,steel ball....)
5.How many sets do you need?
