Brake Drum Disc lathe Cutting Machine C9335 Brake Drum Turning Lathe Machine
Brake Drum Disc lathe Cutting Machine C9335 Brake Drum Turning Lathe Machine
Brake Drum Disc lathe Cutting Machine C9335 Brake Drum Turning Lathe Machine
Brake Drum Disc lathe Cutting Machine C9335 Brake Drum Turning Lathe Machine
Brake Drum Disc lathe Cutting Machine C9335 Brake Drum Turning Lathe Machine
Brake Drum Disc lathe Cutting Machine C9335 Brake Drum Turning Lathe Machine
Brake Drum Disc lathe Cutting Machine C9335 Brake Drum Turning Lathe Machine

Brake Drum Disc lathe Cutting Machine C9335 Brake Drum Turning Lathe Machine

Share on (60797307931):


Price:

Quantity:


Product Overview

Description


Product Description

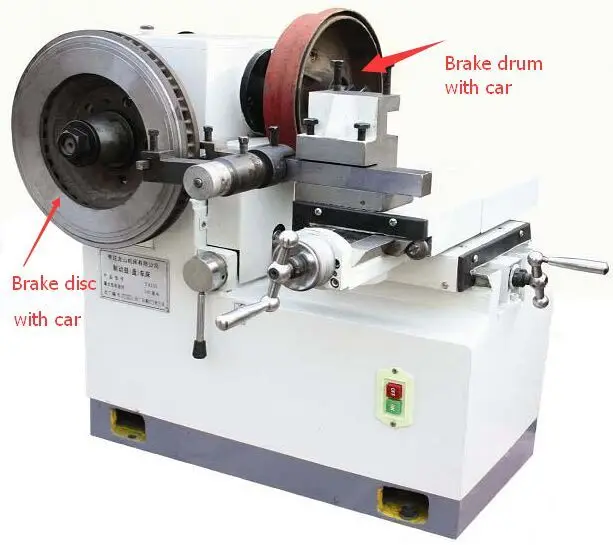

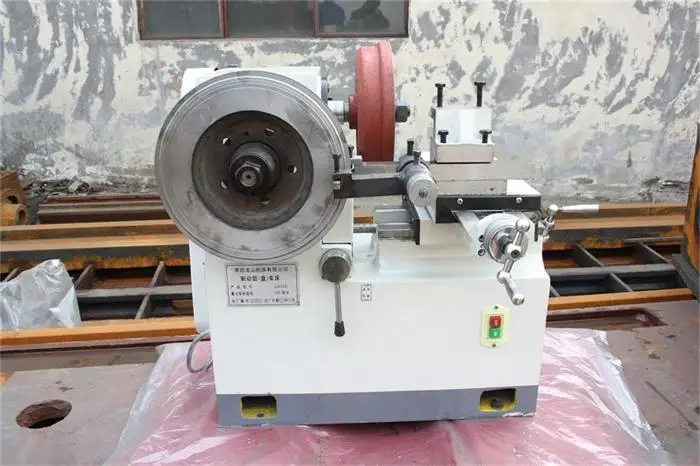

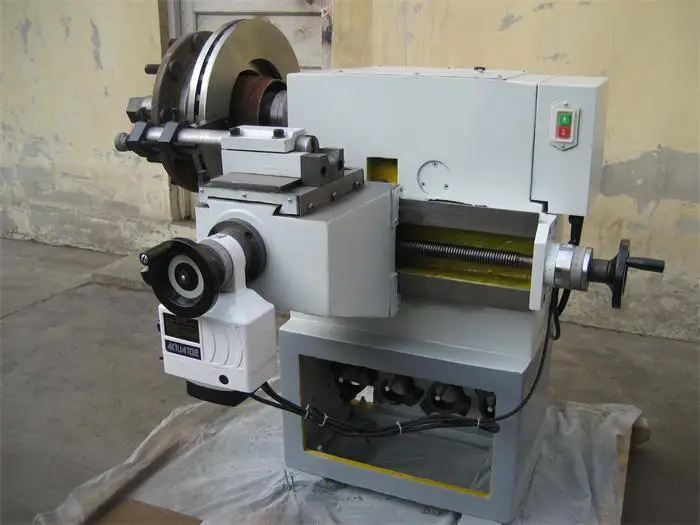

Brake Drum Disc lathe Cutting Machine C9335 Brake Drum Turning Lathe Machine

Main feature
1.  In the same machine, you can complete machining and repair for the brake drum and brake disc.
2\t The maximum size: brake drum is 350mm, Brake disc is 350mm.
3 Gearbox is lubricated with oil pump.
1.4 Mainly for cutting brake drum/disc of car.

\t
Specifications
\t
Unit
\t
C9335
\t
Range of machining Diameter
\t
mm
\t
Brake Drum:180-350MM
Brake Disc:180-350MM
\t
Rotating Speed of Work-piece
\t
r/min
\t
90MM
\t
Max. Travel of Tool
\t
mm
\t
100
\t
Motor Power
\t
kw
\t
0.75
\t
Rotating Speed of Work-piece
\t
r/min
\t
90
\t
Power
\t
\t
Three-phases  : 380V/50HZ
Or single- phases : 220V/50HZ
\t
Overall Dimensions
(L x W x H)
\t
mm
\t
695×565×635
\t
Packing Dimensions
(L x W x H)
\t
mm
\t
750×710×730
\t
N.W
\t
kg
\t
200
\t
G.W
\t
kg
\t
260
Our customers

We have the right to export, the product has been exported more than 40 countries and regions.

Certifications

We have passed SGS / TUV / CE and other product quality certification, we have the ability to provide you with quality products and services.

Related Products
 C9335 Brake Drum(Disc)Lathe
1.In the same machine, you can complete machining and repair for the brake drum and brake disc.
2\t The maximum size: brake drum is 350mm, Brake disc is 350mm.
3 Gearbox is lubricated with oil pump.
4 Mainly for cutting brake drum/disc of car.

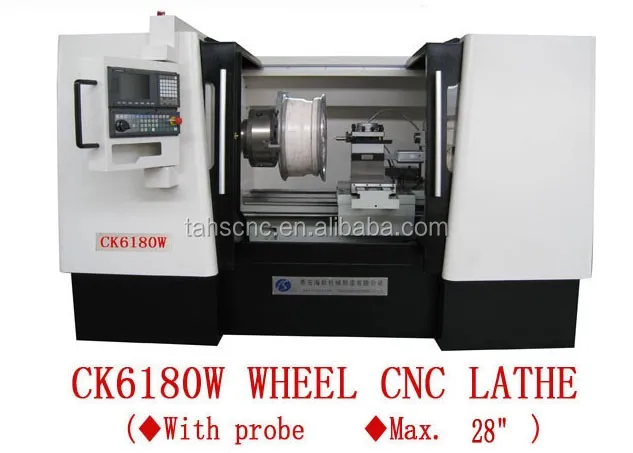

Wheel repair lathe (wheel hub)

◆The machine tool suitable for High-precision turning and repair processing for surface of car wheel.
◆The machine tool has also the function of the general CNC lathes .
◆We can provide processing 5-inch to 39-inch wheel repair equipment
◆Can choose to polish function
◆Can be equipped with CNC system or touch screen controller

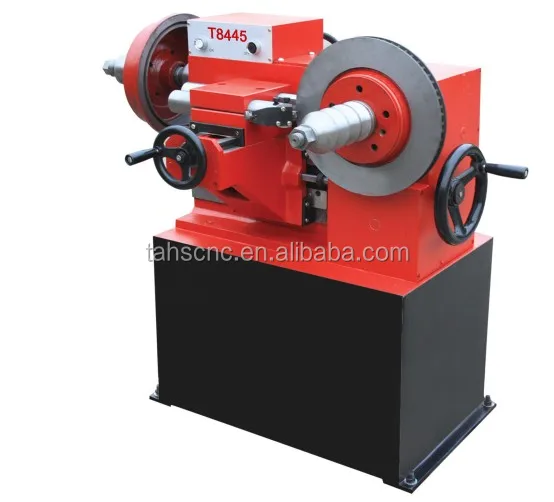

T8445/T8465 Brake Drum(Disc)Lathe

◆ It can fulfill the repair of brake drum,brake disc & brake shoe of automobiles from mini to medium.
◆Mainly for cutting brake drum/disc of car or minibus.
◆ Can handle a variety of sizes of brake drums, brake discs.
◆ Lifting bracket(Optional)

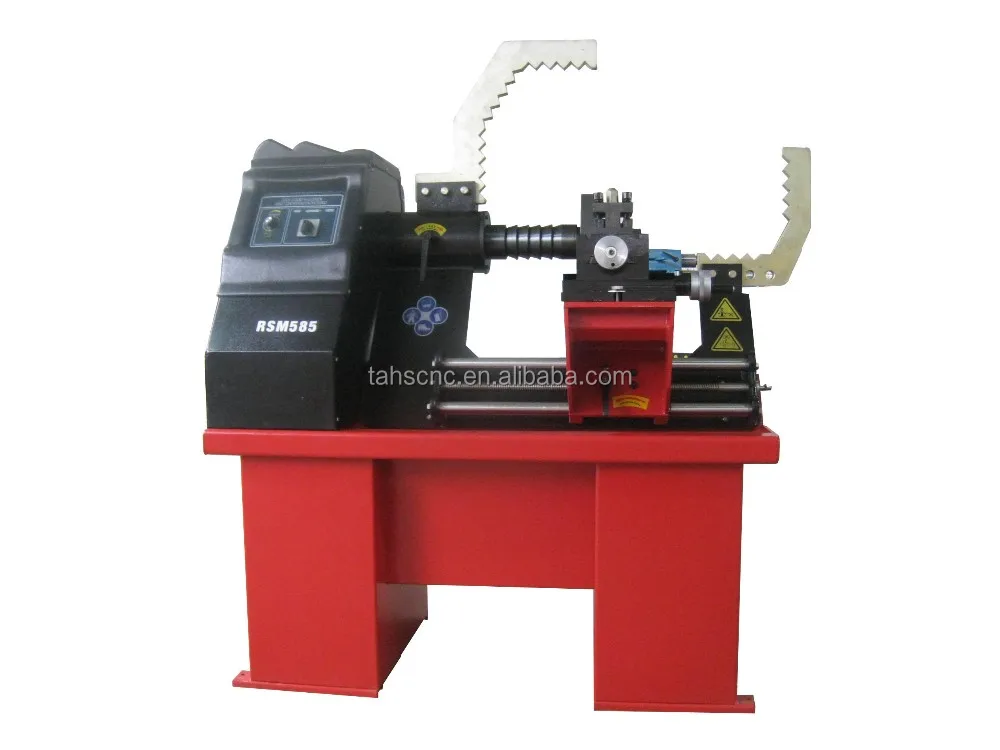

RSM585/RSM595/RSM695

RSM585 is machine which can straighten & mill the uneven places of car rim
We can provide you with a variety of colors, a variety of functions (such as polishing, turning, etc.), processing a variety of sizes of wheel hub equipment.
