Product Overview

Description


Product Introduction

IoT Outdoor LoRa Lorawan Gateway Device The Things Network


GW300 is an IoT gateway based on LoRaWAN and target to LPWAN network. It is an IEEE 802.3 af/at compatibility PD, which powered by PoE. Both Ethernet and LTE-4G are supported to connect to network server. With an integrated GPS module, the Gateway could support LoRaWAN Class B protocol with the synchronous clock from GPS PPS signal.

This device integrate an high performance CPU ARM Cortex-A53 core, one pcs of baseband processor SX1301, that it could support 8 multi-SF channel (SF12 to SF7), 1 single-SF channel and 1 GFSK channel. Output power could achieve to 27dBm max. Sensitivity is up to -141dBm@300bps. With specified payload length and transmit period, one Gateway could support up to 5k nodes.


GW300 is a smart device but with high reliability, that it could work outdoor or in a complexity environment.

Applications

M2M,IOT and LPWAN
Wireless sensor network
AMR
Industry 4.0,Industrial monitor
Wireless remote control and monitor
Smart Home, Smart building, Smart community and Smart city;
Wireless alarm and security
Environment monitor

Key Feature

LoRaWAN half-duplex operation mode
Uplink include 8 multi-SF LoRa channel, 1 single-SF LoRa channel, and 1 GFSK channel
Output power achieve to 27dBm max, receiver sensitivity is up to -141dBm@300bps
Support LoRaWAN Class A/B/C mode
Support PoE IEEE 802.3 af/at;
Support 10/100M Ethernet connection and GPRS/3G/4G connection, switch automatically
Supply with 100m cable via PoE
High reliability industrial device, IP66 device,easy to setup LPWAN network outdoor

Specifications
\t
Item Group
\t
Item
\t
Description
\t


System Configuration
\t
Core
\t
ARM Cortex-A53
\t
Basic Frequency
\t
1.2GHz
\t
RAM
\t
1G bytes
\t
Flash
\t
4G bytes eMMC
\t



Communication
\t
Wired Network
\t
Ethernet 10M /100Mbps
\t
Mobile Cellular
\t
GSM/3G/4G Wireless connection
\t
LoRaWAN
\t
Long Range Wireless Communication
\t



Electrical Specification
\t
Power supply input
\t
PoE +48 Input, IEEE 802.3 af/at
\t
Average Power Consumption
\t
5W
\t
LoRa Output Power
\t
Max. 27dBm, type. 14dBm
\t
LoRa Sensitivity
\t
-141dBm @ SF12,BW=125kHz
\t
Sensor
\t
Temperature
\t
Monitor device internal temperature
\t


User Interface
(External)
\t
Mobile Cellular 4G Antenna
\t
Connect gateway with internet
\t
LoRaWAN Antenna
\t
LoRaWAN transceiver, IoT data collection
\t
Ethernet
\t
Connect gateway with internet
\t
Power supply
\t
Power supply input
\t
\t
Micro SIM Card Slot
\t
Support Micro SIM Card
\t
USB
\t
USB bootloader (Device Firmware Upgrade)
\t
UART
\t
UART Terminal for debugging
\t



User Interface
(Internal)
\t
LED100 (Internal) System indicator

LED200 (Internal) Ethernet full/half duplex indicator

LED201 (Internal) Ethernet link status indicator

LED202 (Internal) Ethernet data speed indicator

LED203 (Internal) 4G modem
\t


Dimensions Installation
\t
Dimensions
\t
145 x 95 x 40 mm
\t
Weight
\t
715g
\t
Installation
\t
Derrick installation, Fixed on the wall
\t
Operating Range
\t
Operational temperature range
\t
-40 to +75°C
\t
Storage temperature range
\t
-40 to +85℃

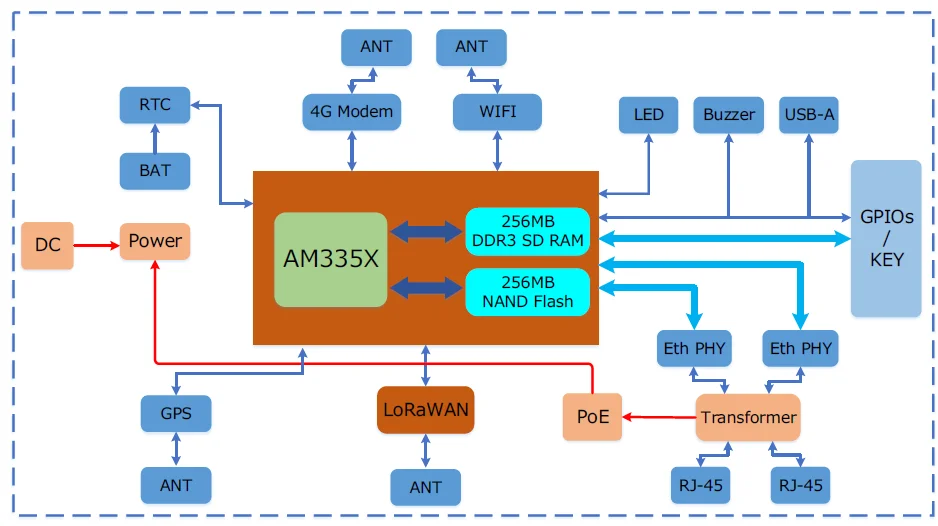

System composition block diagram

Our Company

Friendcom, a provider of wireless M2M solutions, who dedicated to wireless communications research for more than 10 years. As an owner of independent intellectual property of CellMesh wireless fixed network, we provide comprehensive solutions for smart grid, utility metering, wireless connectivity and test equipment. We also serve in the area of smart home,intelligent security, intelligent transportation, precision agriculture, utilities meter data collection, etc.


We persist to create value for clients by continuous technology innovation and invest 10% of revenue for R&D. Hundreds of our engineers focus ontechnology innovation, establish joint laboratories with several world'sfirst-class customers and industry-chain partners for collaborative innovation.We have nearly a hundred patents and software copyrights.


We also play an important role in the establishment of Chinese wireless communication standard.We cooperate closely with several domestic and overseas first-class universities,research institutions and laboratories, to consolidate and enhance our core competencies, to strive to be the leading supplier of wireless M2M solutions. We're ready to contribute our effort to promote wireless M2M development and application.
