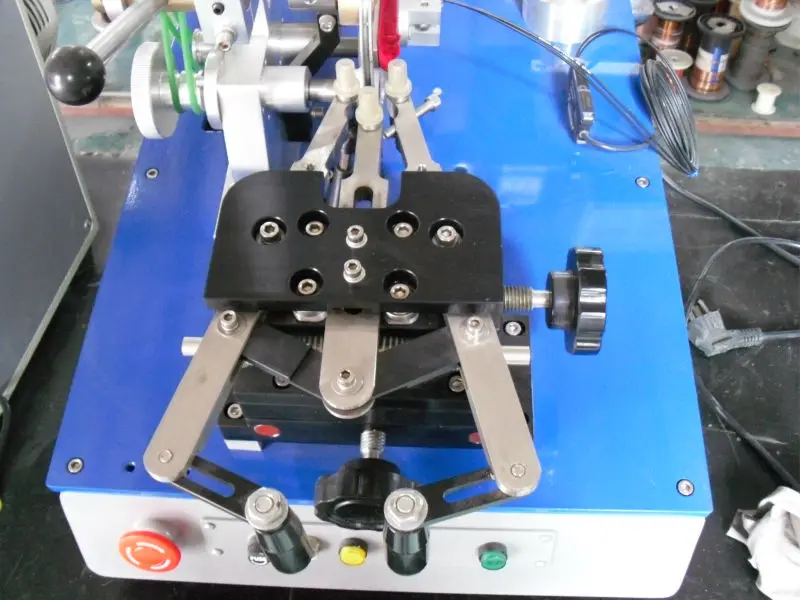

High density motor coil winding machine

HEAD TYPE

TT-H04P

BELT TYPE TOROIDAL COIL WINDIG

MACHINE

TT-H06P

BELT TYPE TOROIDAL COIL WINDING MACHINE

TT-H04B

   SLIDER TYPE TOROIDAL COIL WINDING MACHINE

TT-H06B

 SLIDER TYPE TOROIDAL COIL WINDIND MACHINE

COIL O.D.

10~60mm

10~60mm

8~60mm

8~60mm

MIN.FIN. I.D.

4mm

5mm

5mm

7mm

MAX. HEIGHT

25mm

45mm

25mm

45mm

WIRE SIZE

0.15~0.6mm

0.25~0.9mm

0.05~0.25mm

0.05~0.35mm

SHUTTLE DIAMETER

98mm

136mm

98mm

136mm

SHUTTLE WIDTH

2.4, 2.5, 2.8, 3.4
4.7, 6.3, 7.9, 9.5

4.7, 6.3, 7.9
9.5,12.7, 15.6

4.7, 6.3, 7.9, 9.5

4.7, 6.3, 7.9
9.5,12.7, 15.6
