Africa type Single phase Digital Meter KHLSM
US $6.83-$7.10

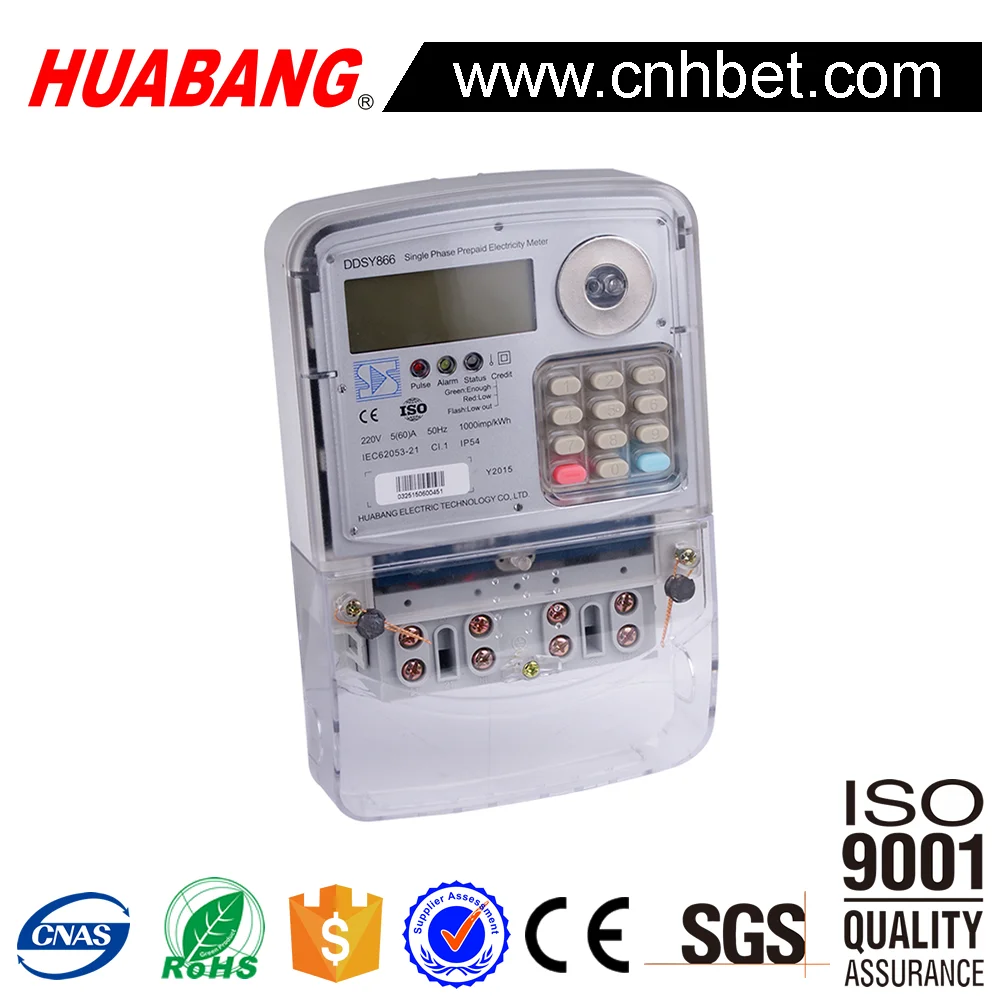

HUABANG DDSY866 IEC61107 infrared single phase 1 phase keypad prepaid meter software
- Category: Energy Meters >>>
- Supplier: Huabang Electric Technology Co. Ltd.
Share on (60803101696):
Product Overview
Description
Company Information
 | China National Accreditation Service for Conformity Assessment.
CNAS confirms its ability to carry out appropriate conformity assessment activities.
HUABANG ENERGY METER TEST REPORT UNDER THIS ORGANIZATION |
 | EU legislation, mainly used to regulate the electrical and electronic products, materials and process standards, making it more conducive to human health and environmental protection
HUABANG UNDER THE RoHS 2 DIRECTIVE 2011/65/EU |
 | “Conformite Europende”
|
 | ISO 9001 is a standard that sets out the requirements for a quality management system. It helps businesses and organizations to be more efficient and improve customer satisfaction.
HUABANG PRODUCTION ACTIVITY REFERENCE IS09001: 2015 |
 | By the Alibaba platform authority strength verification of high-quality suppliers, through the online and offline combination of the way, the platform for business enterprise qualifications, commodity qualifications, enterprise capabilities and other all-round strength of certification and strength transmission |
Prepaid meter
1. Introduction
Prepayment meter also called quantitative meter, IC card prepaid meter, in addition to the ordinary energy meter measurement functions, especially the user need to buy electricity FIRST, USE second, after run out of power if the user does not continue to buy electricity, the meter will automatically cut off, this meter is best way to solve payment collection problem, it also has function of anti-tampering, over load protection, management of energy consumption and user information.
2. Prepaid mode ( one from all only )
1.Single card prepaid meter only can have one card, when the electricity is used up, take card to charge station to buy electricity.
2.Multi card prepaid Electricity meter :
2.1 As multi user, the money will keep in the IC card, each person will use their own, pull out when finish
2.2 Working like a refill card, you can add more money any time
3. Features
3.1 ABS anti-flaming Meter case, terminal block is high temperature, moisture resistant
3.2 CQC proved safe, Highly reliable special designed IC card entrance
3.3 LCD 6+2 digits display, satisfy user demand, maximum 999999.99 kWh.
3.4 When the meter balance is reached zero, relay will automatically cut off, expect the Administrator agree to open additional credit for user
3.5 The meter can set alarming kWh quantity, indicated by LED flash and secondary notice user the energy is staying Low, it’s in order to remind user to recharge power on time, avoid unnecessary loss.
3.6 Load control, over-load automatically switch off, prevent Meter damage
3.7 Datacopying function makes the electricity department easily to manage, data can be preserved for more than 10 years without power supply.
3.8 Electricity price settable, easy to manage and adjustment
4. Technical Parameters
4.1 Single phase prepaid meter
| Model No. | DDSY866 |
| Installation | Wall mounted |
| Accuracy | Class 1 |
| Rated voltage | 110V/220V/230V/240V |
| Voltage range | 0.8 ~ 1.2 Un |
| Rated current | 5(30)A, 10(40)A, 15(60)A, 20(80)A,30(100)A |
| Starting current | 0.05Ib |
| Power consuption | 1W / 10VA |
| Standard | IEC62052-11 IEC62053-21 |
| Frequency | 50/60Hz |
| Constant | 1600imp/kWh, 800imp/kWh |
| Humidity | <85% |
| Protection | IP51-II |
| Temperature | -25℃ ~ 65℃ |
4.2 Three phase prepaid energy meter DTSY866
| Model No. | DTSY866 |
| Installation | Wall mounted |
| Accuracy | Class 1 |
| Rated voltage | 3x220/380V, 3x230/400V, 3x240/415V |
| Voltage range | 0.8 ~ 1.2 Un |
| Rated current | 5(30)A, 10(40)A, 15(60)A, 20(80)A,30(100)A |
| Starting current | 0.05Ib |
| Power consuption | 1W / 10VA |
| Standard | IEC62052-11 IEC62053-21 |
| Frequency | 50/60Hz |
| Constant | 1600imp/kWh, 800imp/kWh |
| Humidity | <85% |
| Protection | IP51-II |
| Temperature | -25℃ ~ 65℃ |
