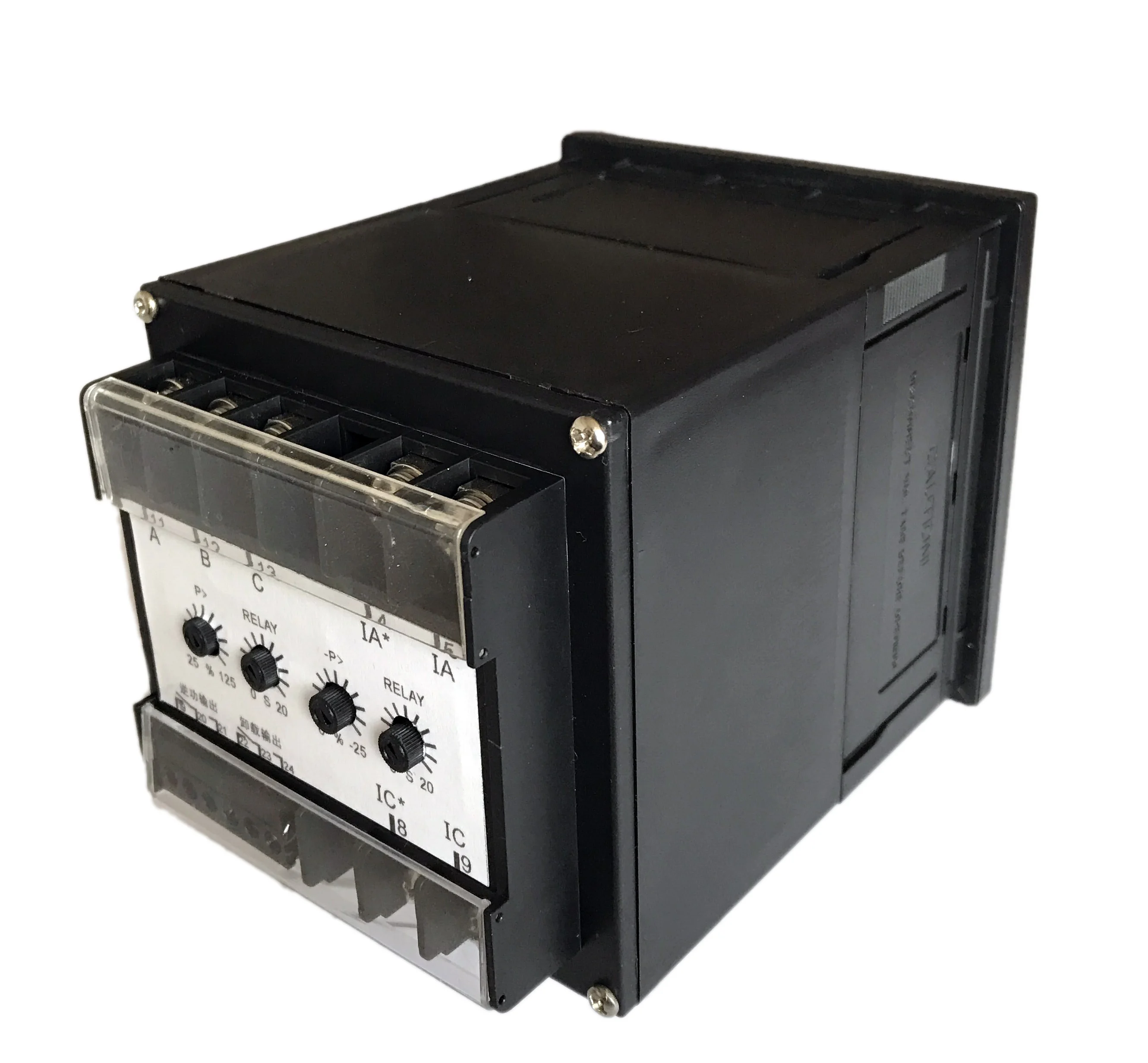

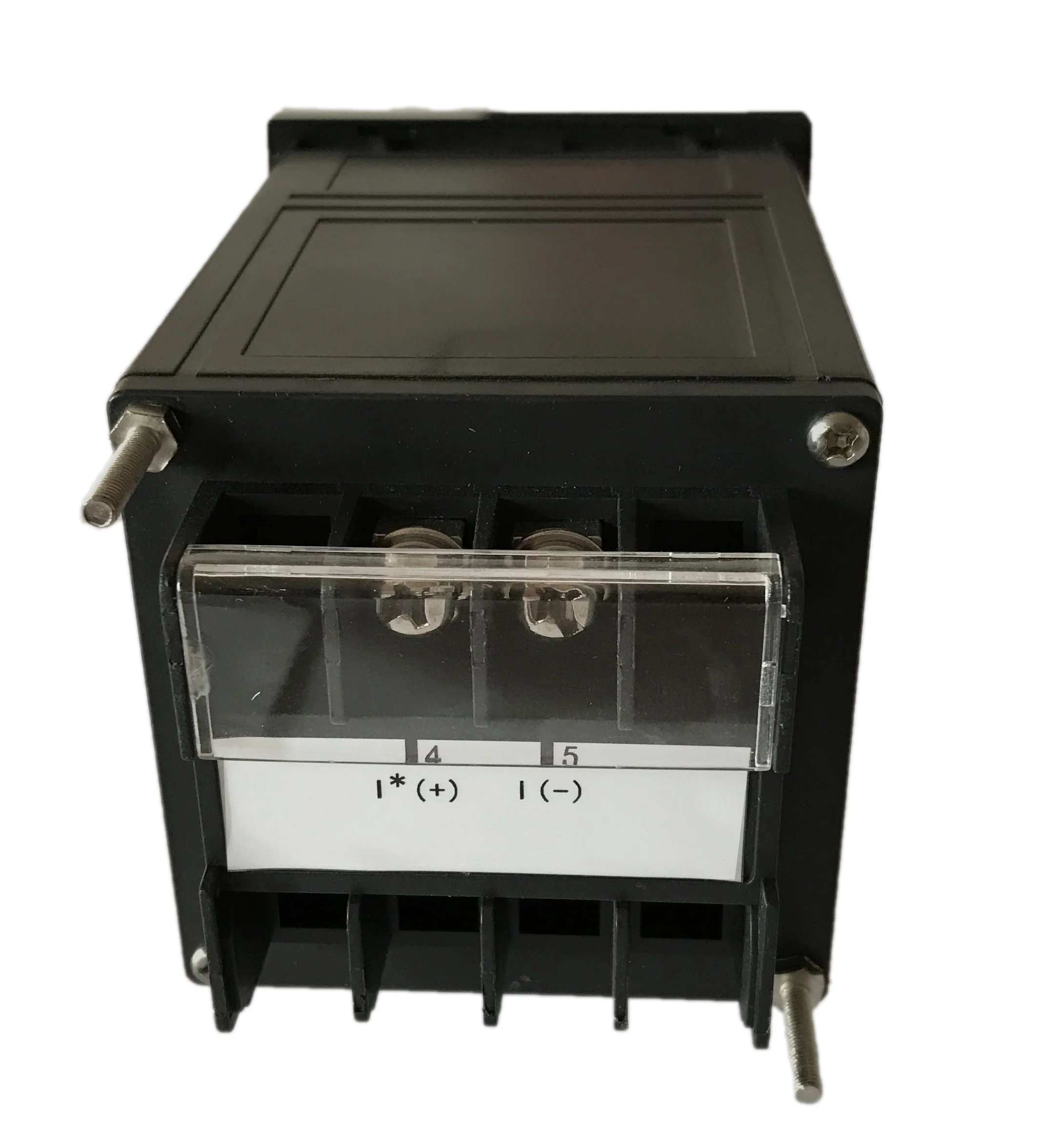

Marine Type 3P3W Unbalanced Load Square Analog Power Meter 0 100W
Marine Type 3P3W Unbalanced Load Square Analog Power Meter 0-100W
Marine Type 3P3W Unbalanced Load Square Analog Power Meter 0-100W
Marine Type 3P3W Unbalanced Load Square Analog Power Meter 0-100W

Marine Type 3P3W Unbalanced Load Square Analog Power Meter 0 100W

Share on (60803877123):


Price:RUB 2,684.72 - RUB 7,132.96

Quantity:


Product Overview

Description

Introduction


Using on balanced or unbalanced load circuit, measuring active power or reactive power on single phase or 3-phase circuit. WIth moving coil structure.

Usage & Application


Mainly used in various AC/DC transmission and distribution system, power control panel and electric equipment for various industries such as marine,rail, aviation, chemical and explosive-proof,nuclear power, hig/mid voltage equipment, power generator set and control engineering. It is high end meter, and suitable for complicated environment to measure electric/non-electric energy;


Also used on low voltage equipment, construction/mechanical equipment, various AC/DC power distribution system, electrical control panel and equipment. It is mid/low end meter, and suitable for universal environmental to measure electric/non-electrical energy.

Technical Parameters
Item
Technical Data
International Standard
Technical Standard
GB/T7676-1998
IEC60092-50
Environment Standard
GB8355-1987
IEC92-504-74
Safety Standard
GB4793-20
IEC61010
Working Temperature
-40℃-65℃
Temperature Influence
-13-33℃, 100% comply with accuracy class
Indicating Angle
240-270° (Synchroscope meter:360°)
Color of Shell
Black/white , board frame , terminal plate : Black
Color of Dial Plate
Black/white, other colors are available on requests
Mounting
Vertical mounting

Dimension
110*110mm,  80*80mm
96*96mm, 72*72mm, 48*48mm
Overshoot
Less than 20% when scale reaches to 2/3
Insulation Withstand
Circuit & shell: AC2600V/1 minute(Water area)
Vibration Resistance
24.5m/s2
Impact Resistance
147m/s2
Material
Shell/terminal board: ABS;  Cover: Transparent Glass
Ordering Code
Our Company

Factory Building

Our General Manager

Office First Sighting

Workshop

Certifications
Using Instruction



1.  Measure for 3-phase active power, with 4-20mA transducing output;


 2.  Load capacity of transducing output: Up to 500Ω;


 3.  Transducing accuracy: 1%


 4. Measured data can be adjusted according to requests.


FAQ



1. Who is Wei Dian Union?

Wei Dian Union is a new company, eastablished in the year of 2015, we have 15 technical engineer and 10 sales man, including domestic and international sales. Our team is young, which guarantee us more vitality.



2. Is your company manufacturer or trading company?

Yes, we are the manufacturer, we buy house and develop moudles all by ourselves.



3. What is the warranty of your products? and how about your quality?

All of our meters have 18 months warranty, and we cooperate with the university to develop new items and quality control, besides our own technical team.



4. How about your payment term and shipment?

We accept T/T, L/C and western union, prefer to TT, delivery date should be within one week after payment.



5. What's your advantage? Why should I choose your company?

Price: Compared with other famous company, our cost is much lower;

Quality: We have strict quality control, each meters have to accept life-time testing & inspection.


Sales supports: We are not big company, so our policy is flexible, quick action to any requirements.
