Using for single-phase or three-phase circuit, measuring the cos∅ in power system, 3P3W balanced load, 3P3W unbalanced load, 3P4W unbalanced load.
Basic Data
Product Name

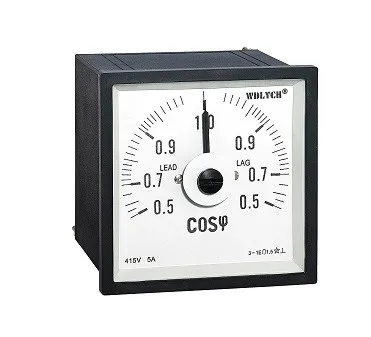

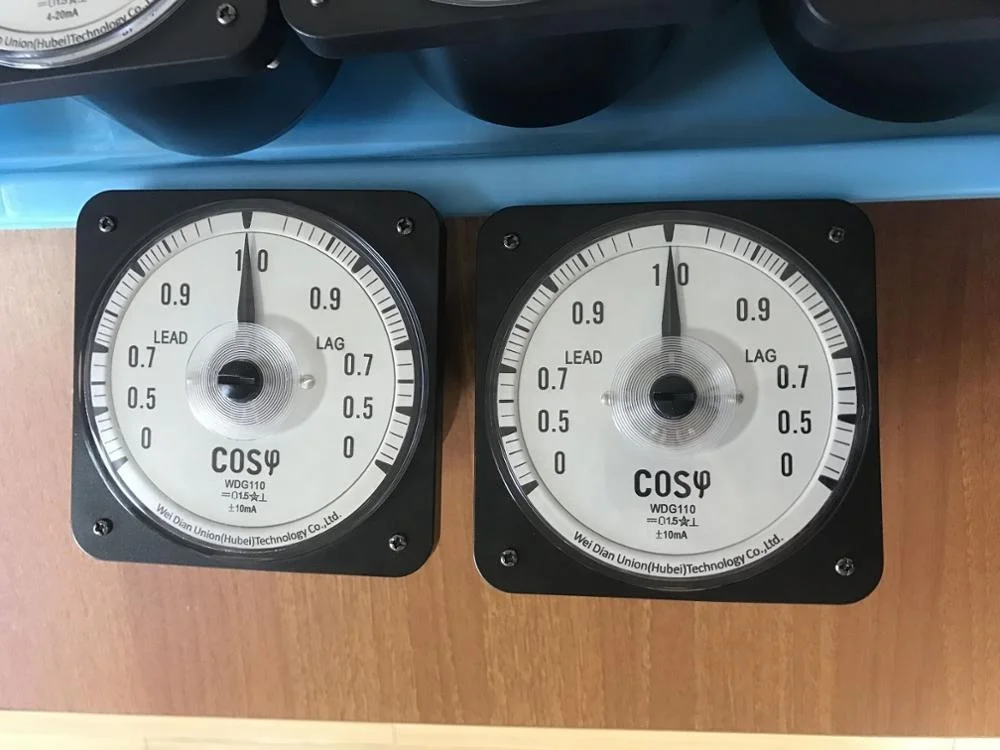

Power factor meter
Indicating Angle
90°
Dimension
96*96-108mm
Hole Size
92*92mm
Measurement
0.5C-1-0.5L/0C-1-0L

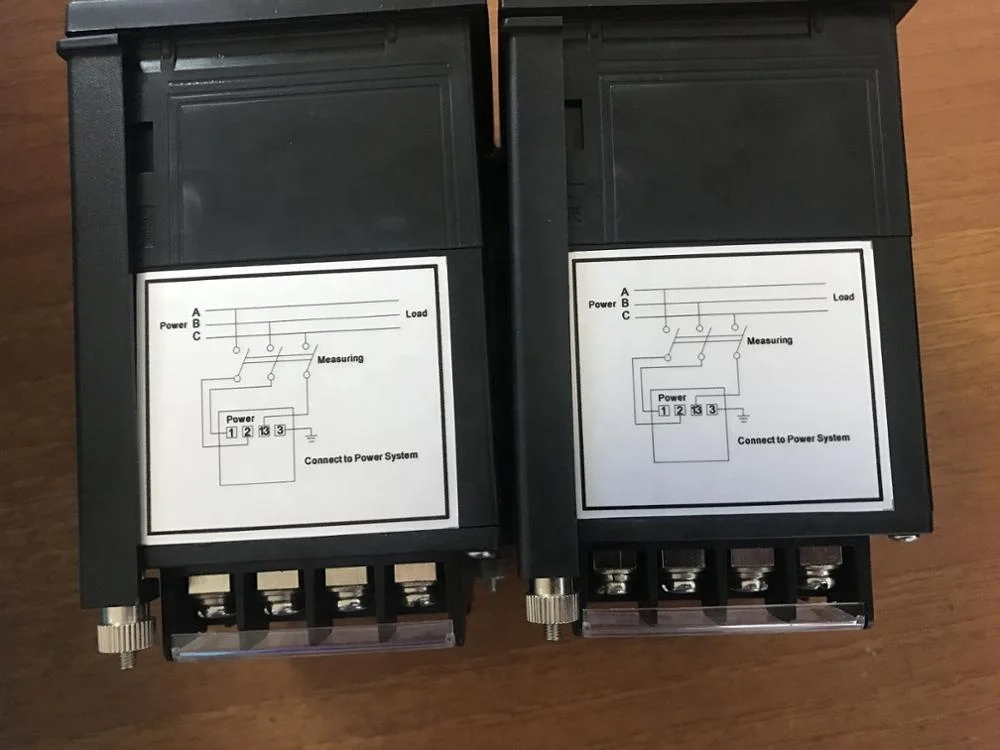

Connection
100V/5A,220V/5A,380V/5A,400V/5A,440V/5A
Application
WDLYCH series meter are direct acting indicating and analogue electrical measuring instruments. Measuring AC/DC current, voltage, frequency, power, power factor, phase sequence,synchroscope, position indication, network insulation monitoring, hours run meter and other non-electric measurements.
Mainly used on various AC/DC transmission and distribution system, power control panel and electrical equipment for various industries such as marine, rail, aviation, chemical and explosive-proof, nuclear power, high-mid voltage equipment, power generator set and control engineering. It is high end meter, and suitbale for complicated environment to measure electric/non-electric energy.
Technical Parameters
Item
Technical Data
International Standard
Technical Standard
GB/T7676-1998
IEC60092-50
Environment Standard
GB8355-1987
IEC92-504-74
Safety Standard
GB4793-20
IEC61010
Working Temperature
-40℃-65℃
Temperature Influence
-13-33℃, 100% comply with accuracy class
Indicating Angle
240-270° (Synchroscope meter:360°)
Color of Shell
Black/white , board frame , terminal plate : Black
Color of Dial Plate
Black/white, other colors are available on requests
