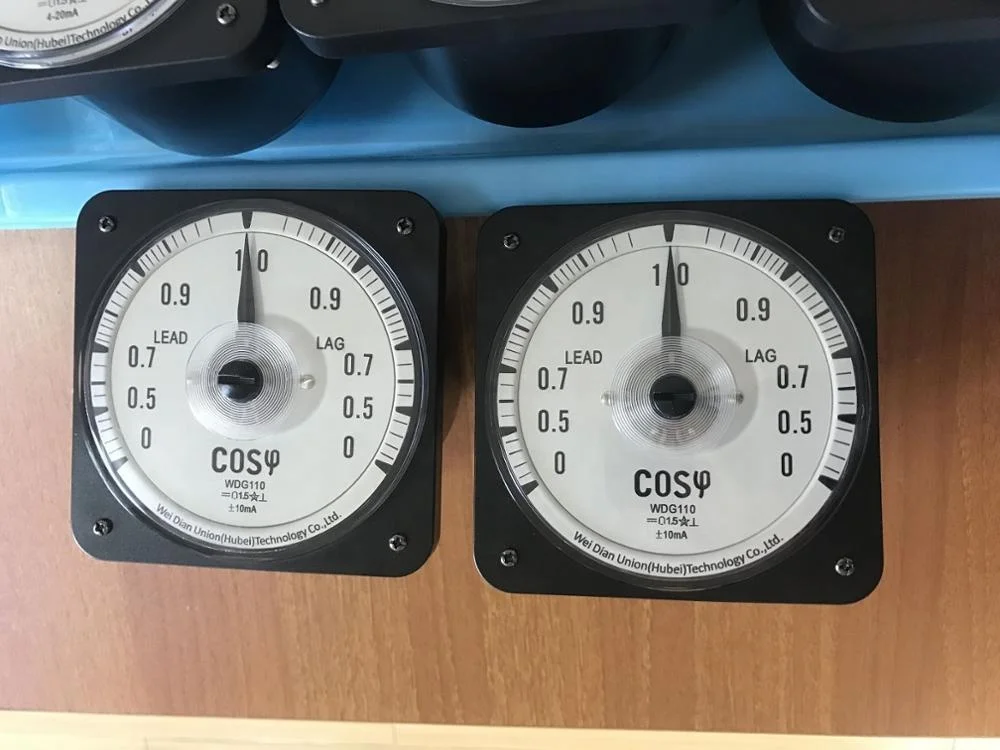

Marine Type Analog Power Factor Meter With Measuring Range 0.5C 1 0.5L

WDLYCH series meter are direct acting indicating and analogue electrical measuring instruments. Measuring AC/DC current, voltage, frequency, power, power factor, phase sequence,synchroscope, position indication, network insulation monitoring, hours run meter and other non-electric measurements.

Mainly used on various AC/DC transmission and distribution system, power control panel and electrical  equipment for various industries such as marine, rail, aviation, chemical and explosive-proof, nuclear power, high-mid voltage equipment, power generator set and control engineering. It is high end meter, and suitbale for complicated environment to measure electric/non-electric energy.

Technical Parameters

Item	Technical Data	International Standard
Technical Standard	GB/T7676-1998	IEC60092-50
Environment Standard	GB8355-1987	IEC92-504-74
Safety Standard	GB4793-20	IEC61010
Working Temperature	-40℃-65℃
Temperature Influence	-13-33℃, 100% comply with accuracy class
Indicating Angle	240-270° (Synchroscope meter:360°)
Color of Shell	Black/white , board frame , terminal plate : Black
Color of Dial Plate	Black/white, other colors are available on requests
Mounting	Vertical mounting
Dimension	110*110mm,  80*80mm
	96*96mm, 72*72mm, 48*48mm
Overshoot	Less than 20% when scale reaches to 2/3
Insulation Withstand	Circuit & shell: AC2600V/1 minute(Water area)
Vibration Resistance	24.5m/s2
Impact Resistance	147m/s2
Material	Shell/terminal board: ABS;  Cover: Transparent Glass

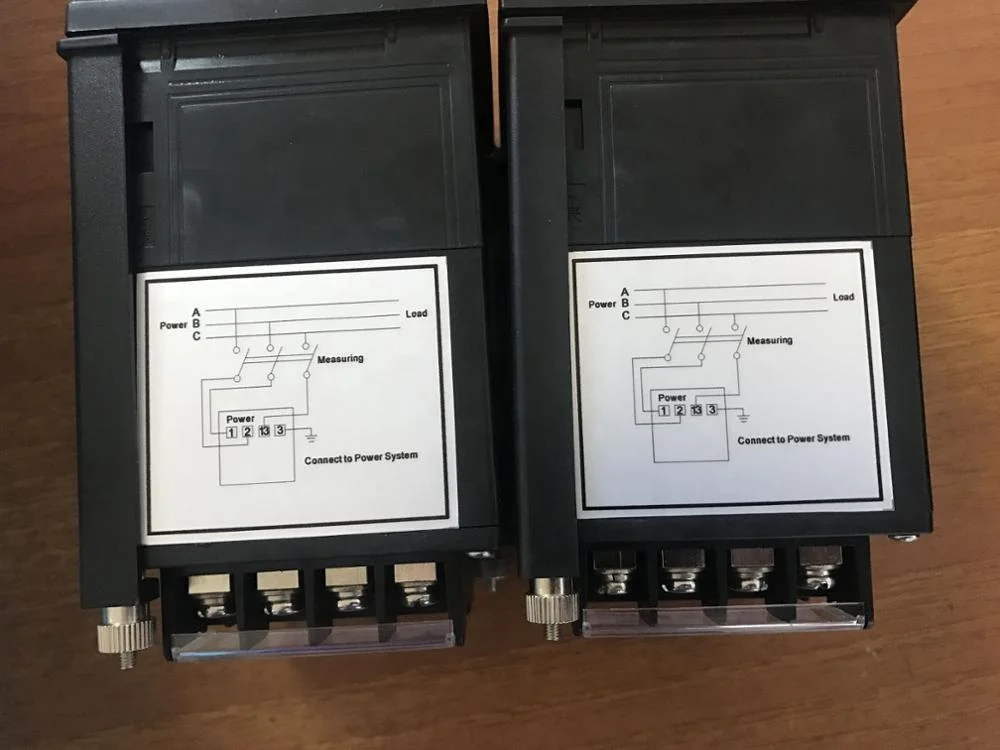

Wiring Diagram
