3. Ele. Needed: 380V AC three phase four wires 50HZ BVR 6M2 2.2KW
4. Gas Pressure: 0.4-0.6m3/min
5. Environment temperature 5-35 degree
(2). The requirements for structure:

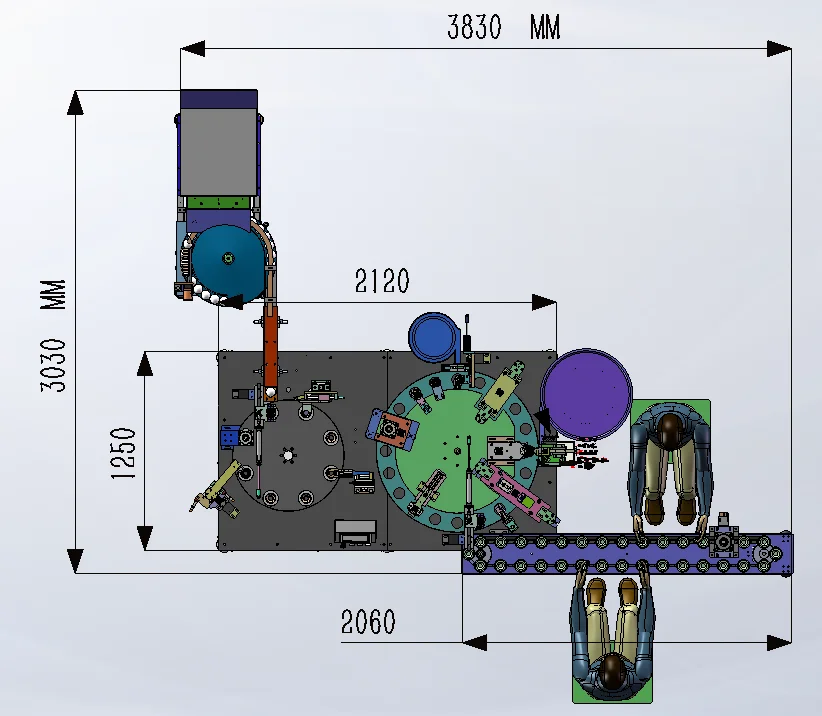

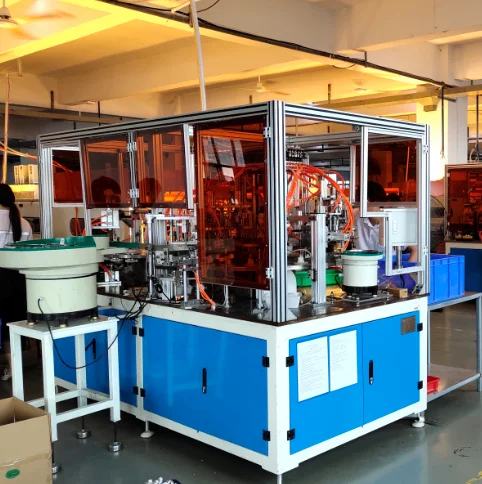

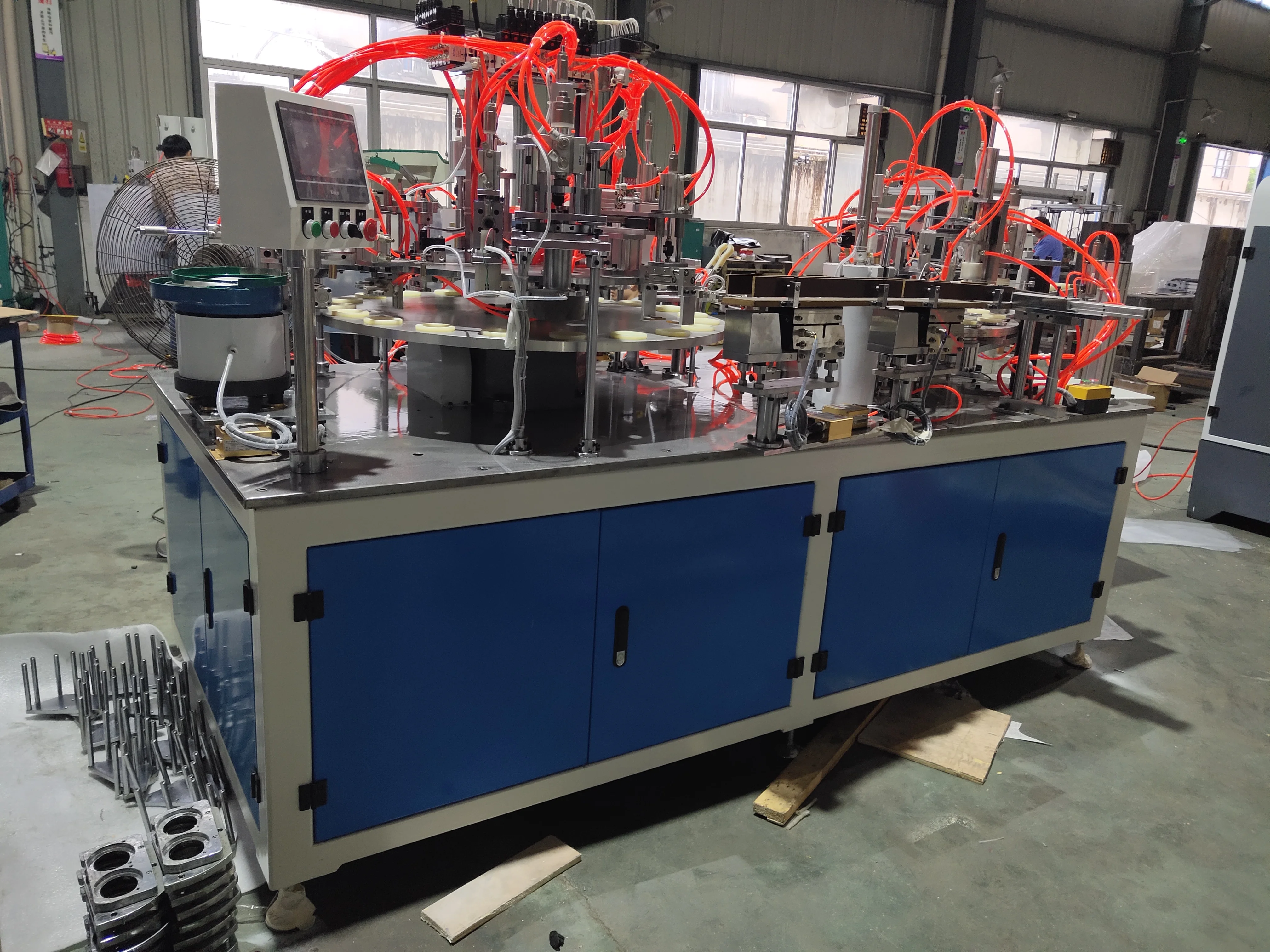

1. This machine is with single plate, totally 24 work station The material load belt is 3m, including: material load(manual),mechanical hand take material to plate work station. Bulb body position, wire arrangement, automatic cap transmit, wire through cap, wire scan, cap press, extra wire cut, wire bend, rivet transmit, rivet press, current wattage check, qualified lamp base crimping, qualified lamp transmit to one belt, unqualified lamp take out
2. The machine is with 1500-2000pcs/hr capacity, with qualification rate more than 98%, this machine need 3 workers for loading material and 1 worker for cover.
