9FQ series Hammer mill are used for grinding the Bio-mass like straw / stalk / wood chips / tree branches and forest waste into small granular material of less than 3-5mm,which is perfect size before pelletizing and briquetting.
It is equipped with high carbon steel blade and works with high efficiency. widely used in swine farm, wood factory, etc.
Specification
Model
Power(kw)
Capacity(kg/h)
Dimension(mm)
Weight(kg)
9FQ 360-20
5.5
300-350
900*500*800
260
9FQ 400-28
7.5
400-500
1100*550*850
350
9FQ 500-28
11
600-800
1250*650*1000
450
9FQ 500-40
22
900-1000
1400*780*1250
750
9FQ 500-50
30/37
1500-2000
1600*850*1350
900
9FQ 500-60
37/45
2000-3000
1750*900*1550
1300

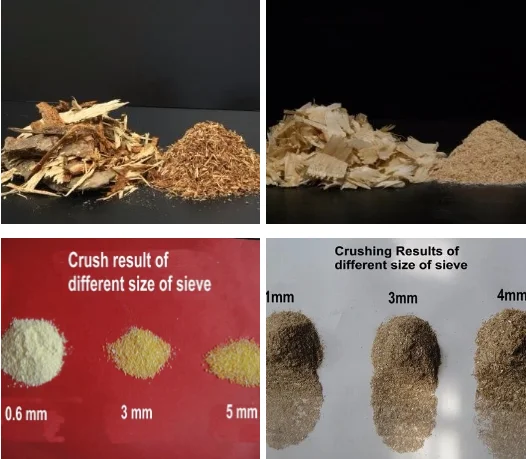

Application
Products Processing
Raw Materials
1.corn, beans,grain,maize,spice,chili,herb,wood,tree branch etc. 2.grain straw,rice wheat bean straw ,corn forage crops stalk, potato stem, various biomass

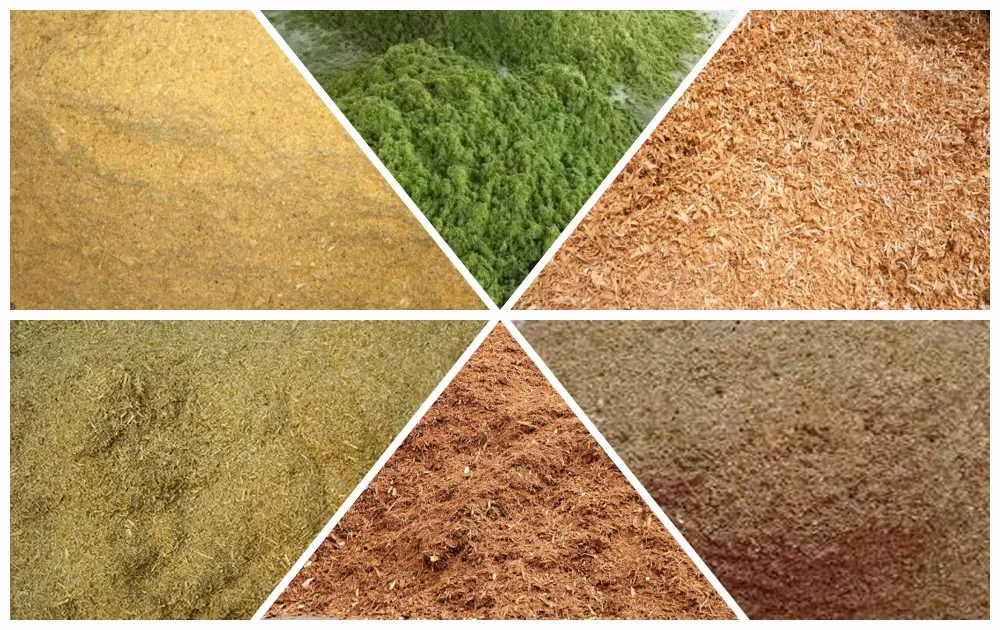

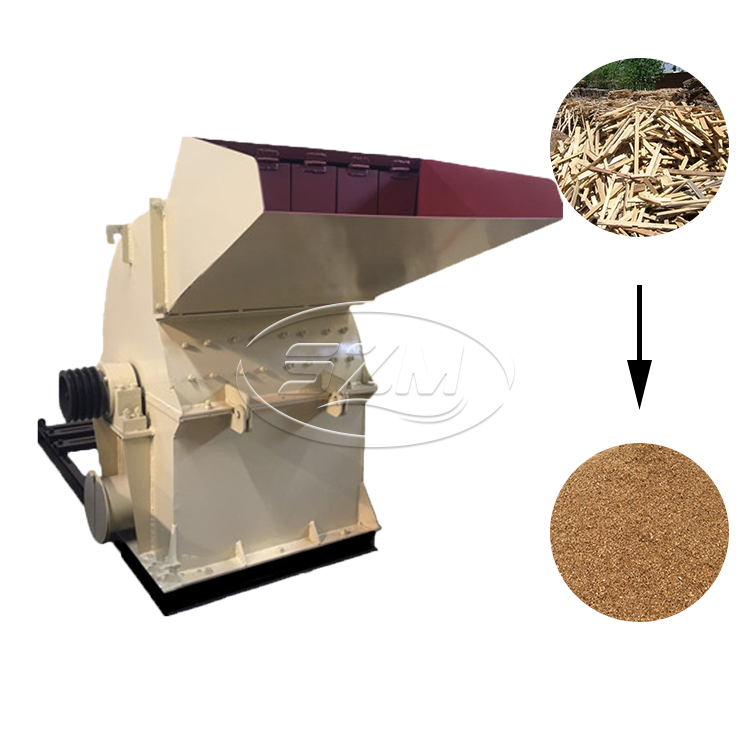

Finished Products

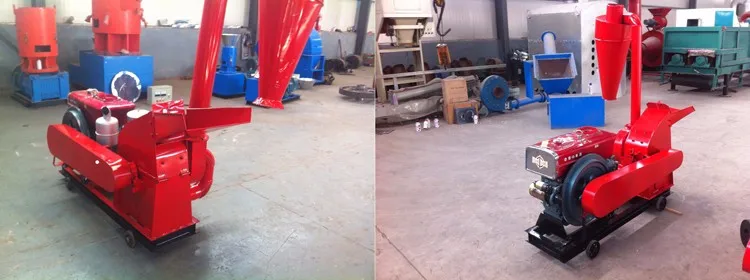

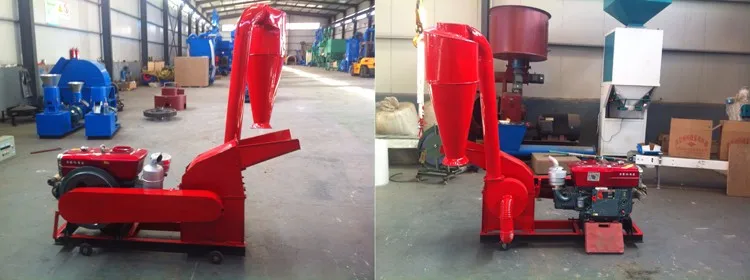

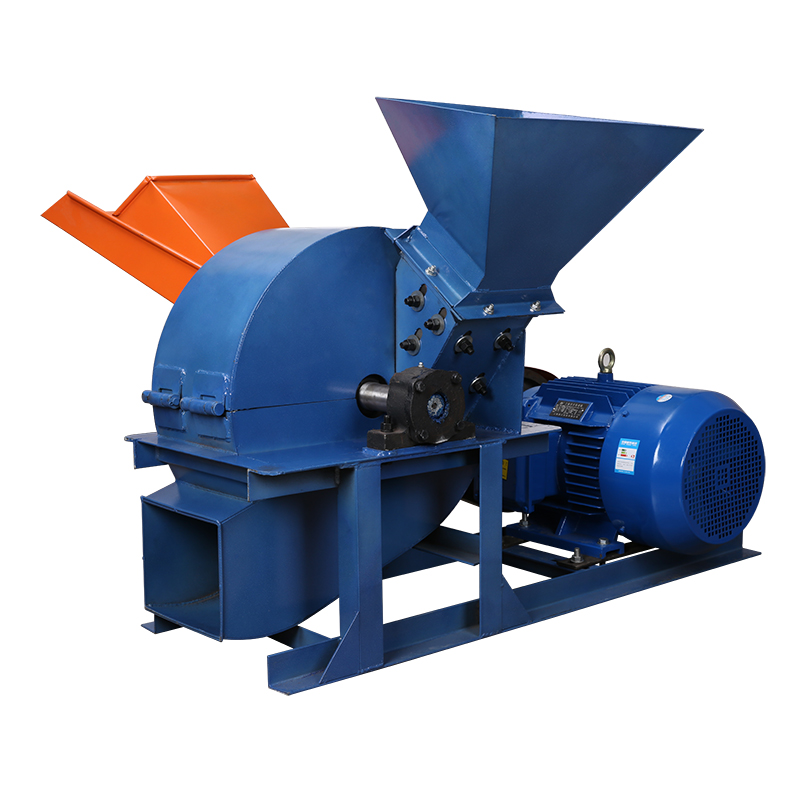

Product Show

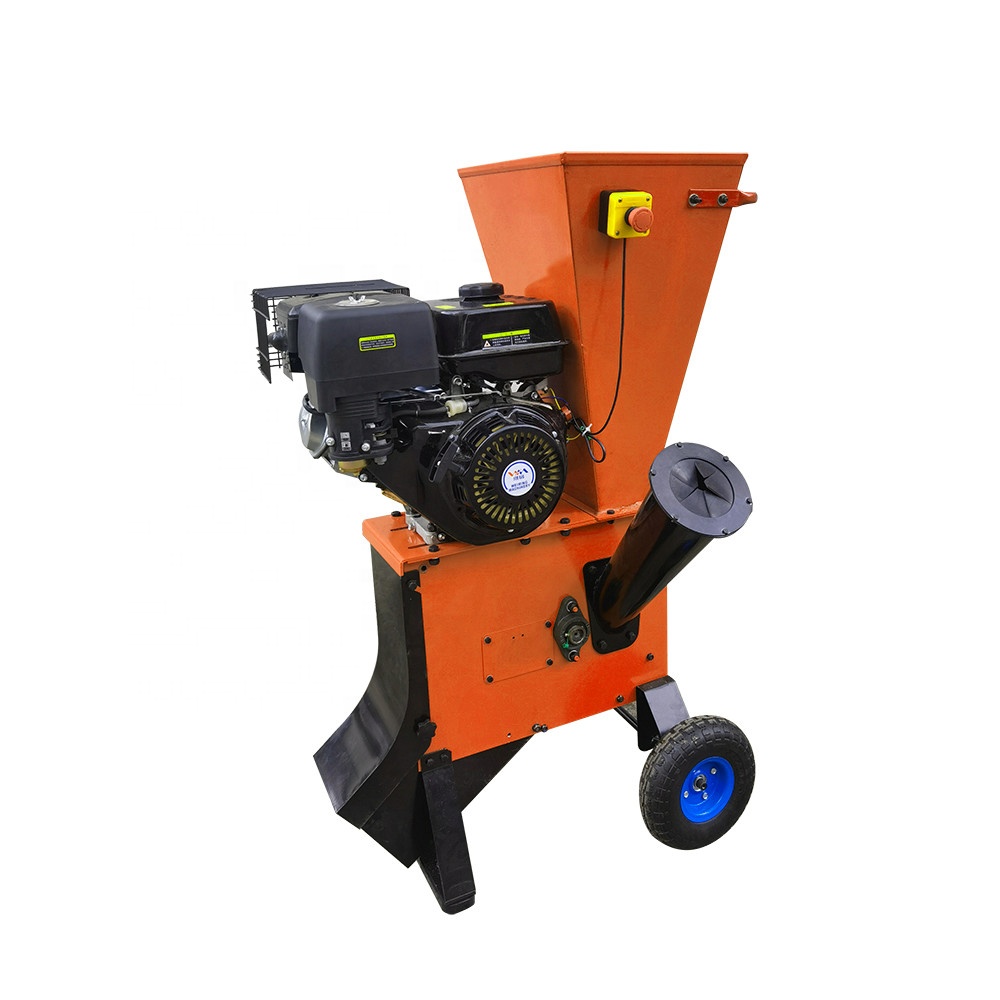

Related Products

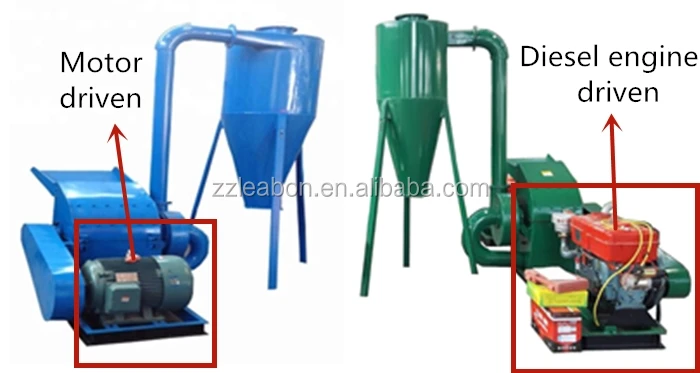

Two Type Hammer Mill
Packing & Delivery
Packing Details
International standard packaging of wood pellet machine in wood pellet mill
