ironworker press hydraulic punch hydraulic cutter hydraulic hole punch
- Category: Hydraulic Ironworker >>>
- Supplier: Anhui Zhongyi Machine Tool Manufacturing Co. Ltd.
Share on (60815560353):
Product Overview
Description

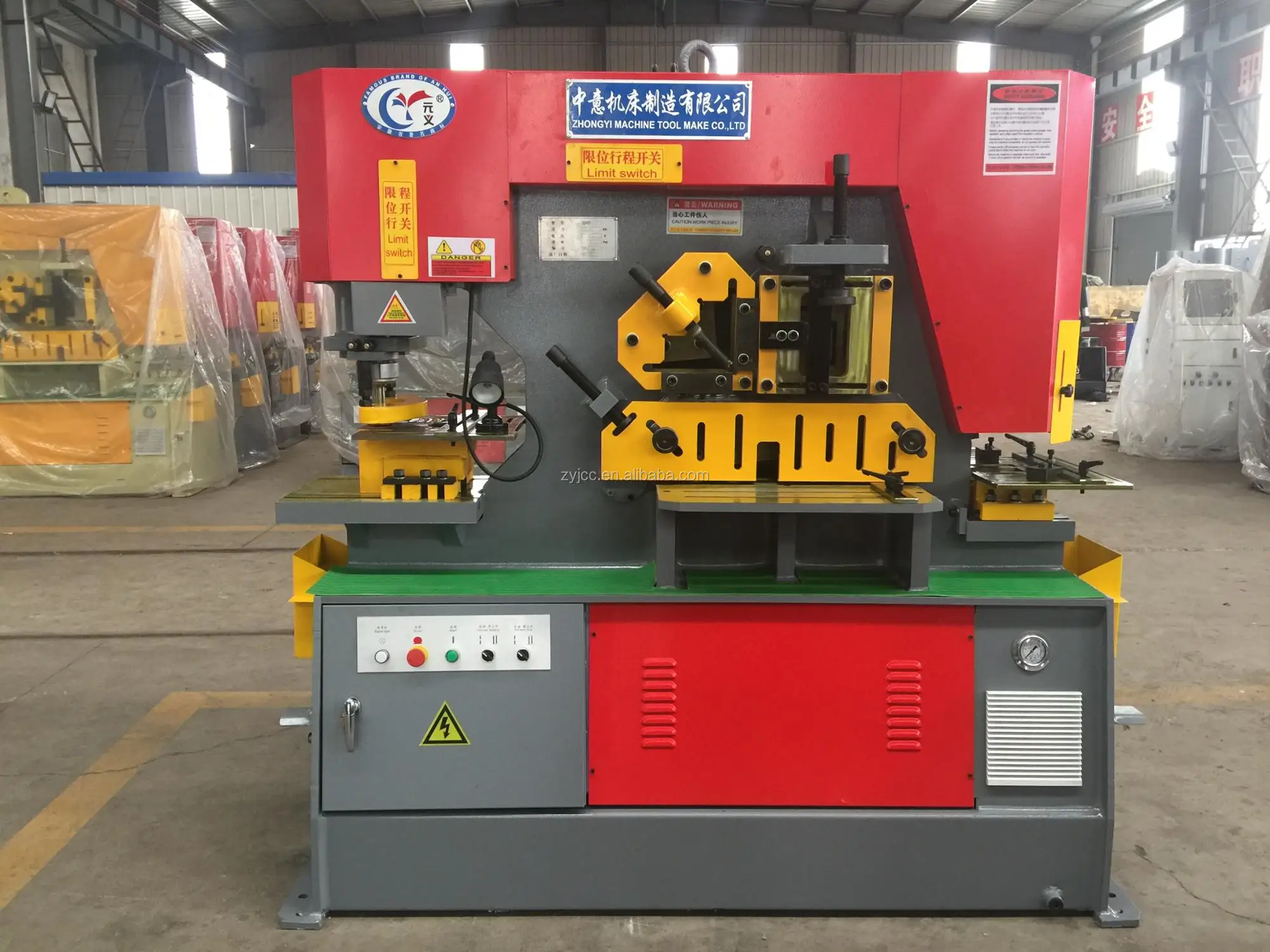

HIW - 60T Hydraulic ironworker , Iron worker
Company Information
| Factory Information: Anhui Zhongyi Machine Tool Manufacturing Co.,LTD is a manufacture of hydraulic ironworker , punching machine ,press brake ,shearing machine,rolling machine,punch press, and other sheet metal machines, export to more than 30 countries .Our products are famous for its stabilty and suitable price. Any inquiry will be warmly welcomed! |
| Brand: Yuanyi |
Address: Bowang Industrial Park, Maanshan, Anhui, China |
Tel: +86 0555 6767628 Fax: +86 0555 6767628 Phone: +86 13955577747 +86 15375552121 |
E-m-a-i-l : zhongyi(at)zyjcc.net.cn |
| English Web : www.zyjcc.en.alibaba.com |
| Chinese Web : www.zyjcc.cn.alibaba.com www.cnzyjc.com |
Product Image
Punching Shearing
Notching Bending
Product Description

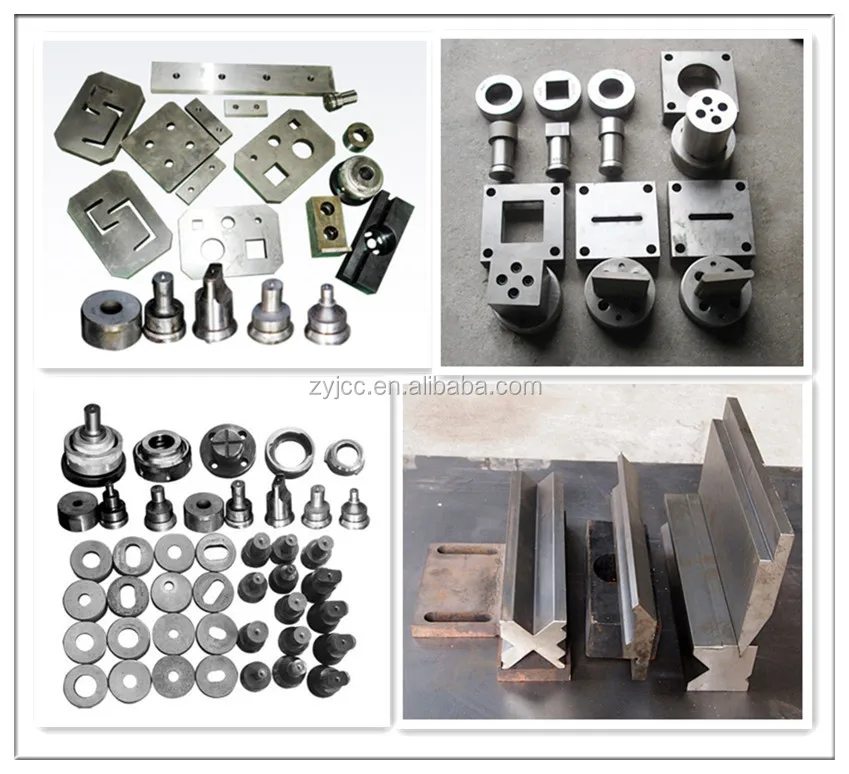

Accessories List :
a. A set of round hole punching die
b. A set of angle steel blade
c. A set of channel blade or round and square bar blade
d. A set of shearing plate blade
e. A set of notching blade
The above moulds will be installed in the machine, safety guards are also fitted as standard on all working stations.
For other dies and blades, customers need to order and pay additionally.

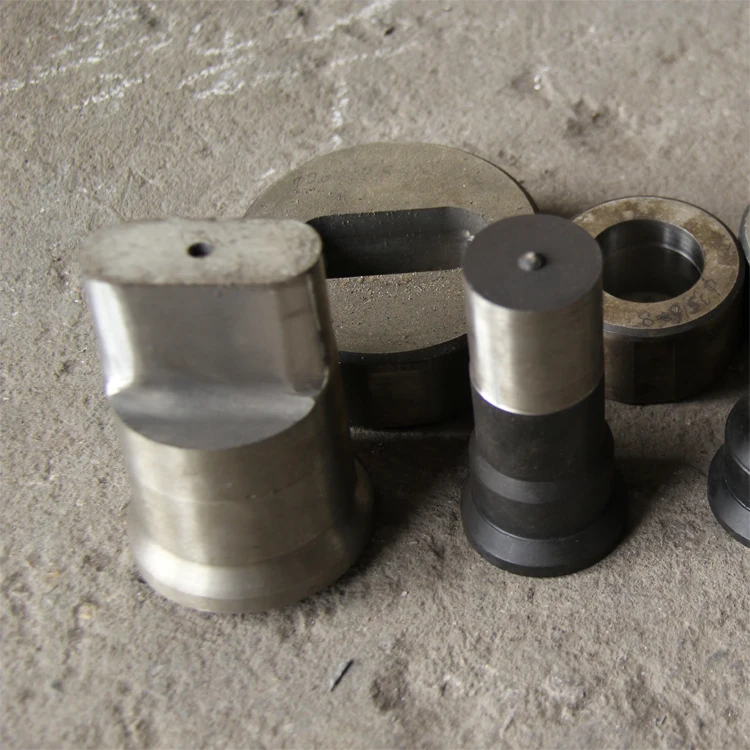

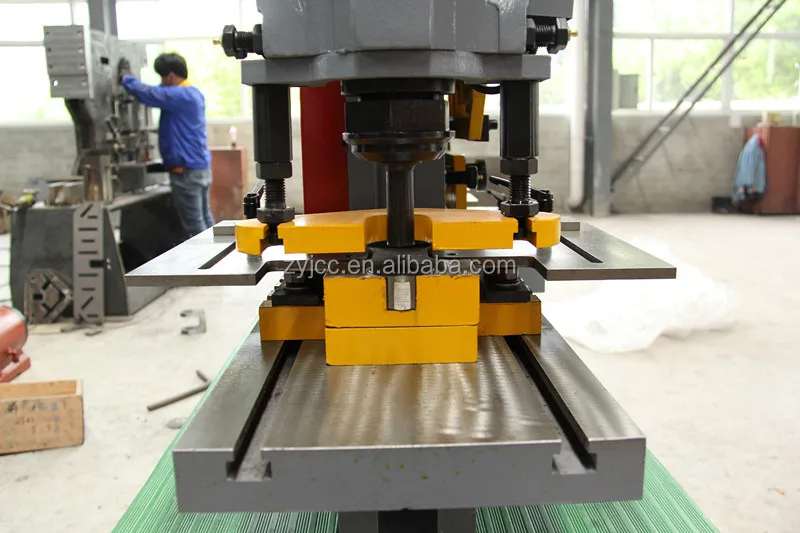

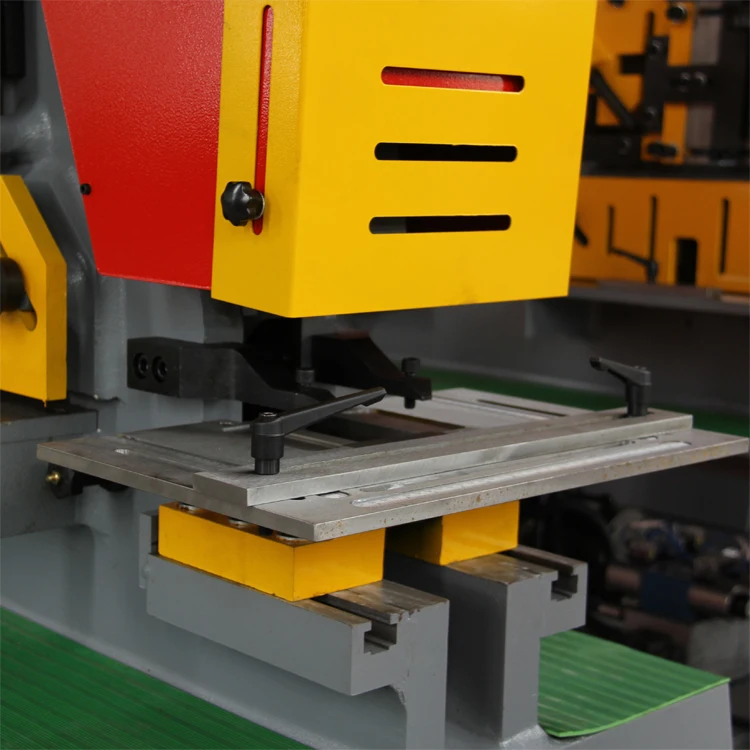

Punching Die
A set of round hole punching die will be installed in the machine .
For other size of punching dies , you have to order and pay additionally .

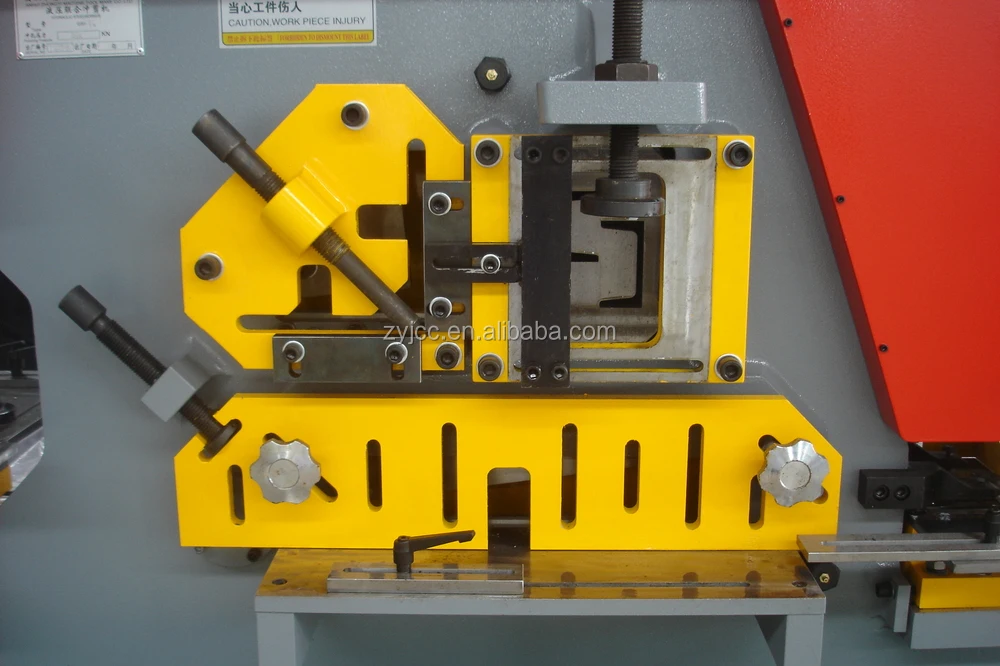

Flat Bar Cutting Blade
The cutting blade will be installed in the machine .

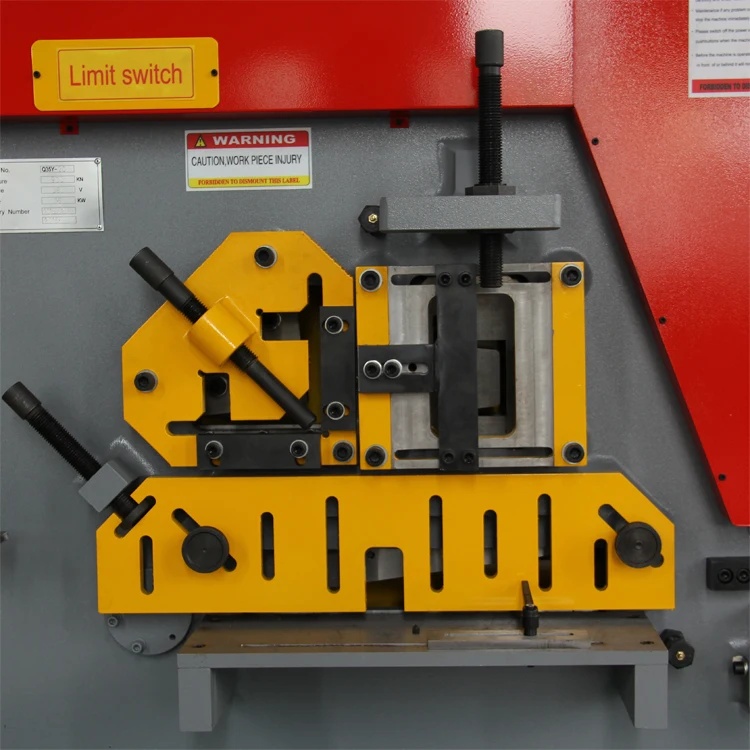

Angle Steel Shearing Blade
The cutting blade will be installed in the machine .
Profile Cutting Blade
A set of round and square bar blade will be installed in the machine .
Also if you have to shear channel steel or I-beam steel , pls inform me the size .
For other blade , you have to order and pay additionally .
Notching Blade
The notching blade will be installed in the machine .
Technical Parametes
| Item | Metric | Unit | |
| Hole Punching | Punching pressure | 600 | KN |
| Max.punching thickness | 16 | mm | |
| Max.diameter of punching | 25 | mm | |
| Depth of throat | 300 | mm | |
| Max.length of cylinder stroke | 80 | mm | |
| Stroke times | 11-20 | time/min | |
| Flat bar shearing | Angle of shear | 8° | |
| Max.shearing thickness | 16 | mm | |
| Flat bar | 16*250 8*400 | mm | |
| Angle steel shearing | 90° shearing of equal angle steel | 120*120*12 | mm |
| 45° shearing of equal angle steel | 50*50*5 | mm | |
| Profile steel shearing | Round bar | 45 | mm |
| Square bar | 40*40 | mm | |
| C-channel | 120*53*5.5 | mm | |
| I-beam | 120*74*5 | mm | |
| Material tensile strength | 450 | N/mm² | |
| Motor power | 5.5 | Kw | |
| Overall dimension(L*W*H) | 1740*810*1830 | mm | |
| G.W | 1800 | kg | |
Product Functions

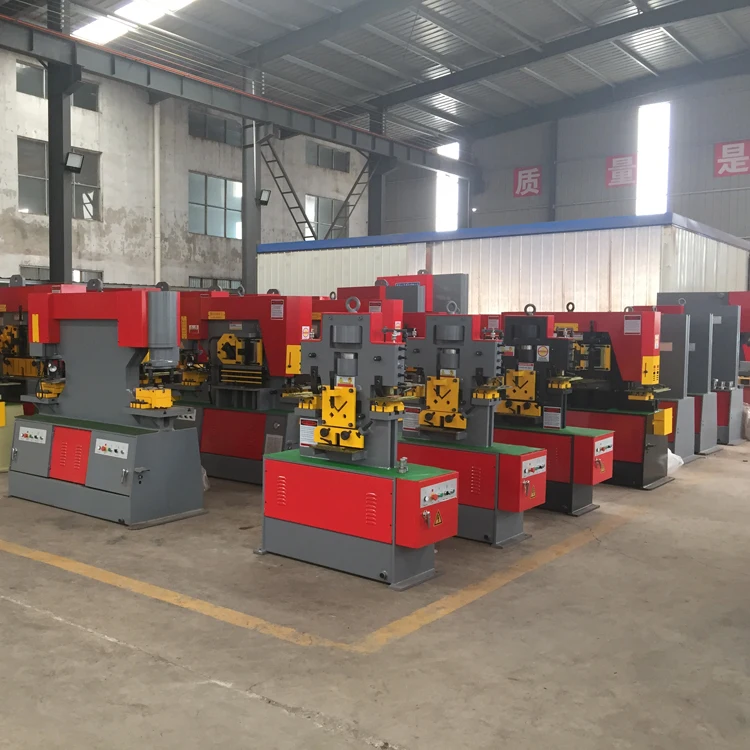

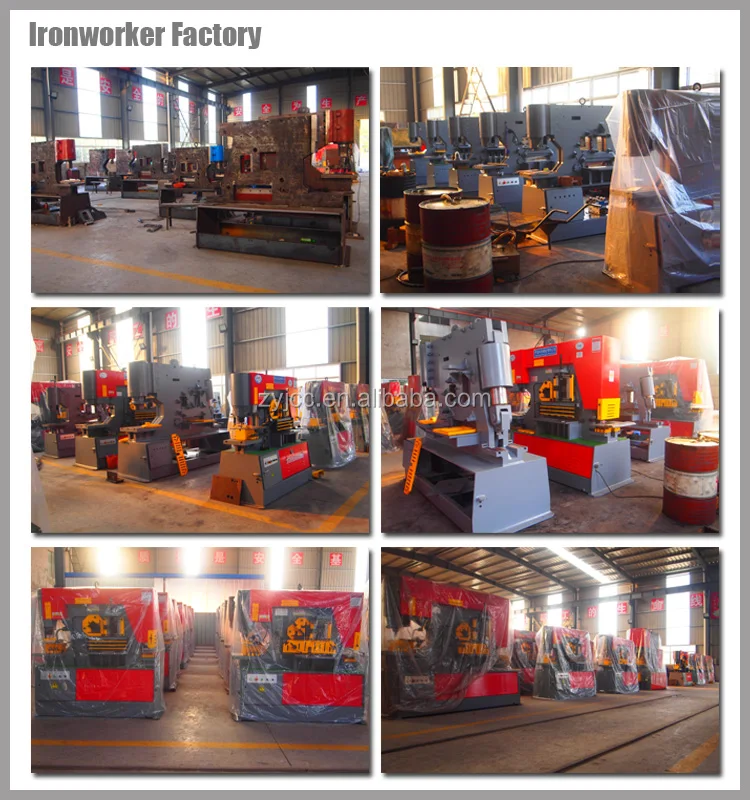

Factory
Packaging & Shipping
Package:
protective film, if necessary we could packed as customers' request .
Client
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory for ironworker machine.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Maanshan(next to Shanghai), Anhui Province,China.You can fly to Shanghai airport
directly. All our clients, from home or abroad, are warmly welcomed to visit us!
3.Q:How does your factory do regarding quality control?
A:Quality is priority. we always attach great importance to quality controlling from the very beginning to the very
end. Our factory has gained ISO,BV authentication.
4.How about your service?
A:We provide 1 years warranty. Besides, we will provide solutions in one day and solve complaints in two days.
5.Trade Terms:
♦Payment: T/T,Western Union,MoneyGram,PayPal; 30% deposits;70% balance before deliverying.
♦Delivery Time: about 5-10 days
♦MOQ: 1 pcs
6.Why choose us?
♦We are China Leading ironworker machine manufacturer.
♦Alibaba assessed 8 years Gold Supplier for ironworker.
♦Inspected by the Inspection Institution of Bureau Veritas Certification.
♦100% QC inspection Before Shipment.
♦Best Quality & Best Service with Competitive price.
