Product Overview
Description
Product Description
magnetic lifter lifting magnet manufacturer magnet lifter
A lifting magnet is exactly what it sounds like :a high-powered magnetic device that is used to lift objects.
Countless manufacturing companies use lifting magnets in their daily operations.This ergonomic lifting solution allows manufacturing worker to easily lift,move and manipulate heavy objects.
To lift a heavy object,a manufacturing worker just needs to place the lifting magnet over the object then activate the magnetism by rotating the handle to on position.Then objects can be moved to expected place.
Usage:
Widely used for lifting flat mechanical parts ,steel and other permeability magnetic material,and in mechnical manufacturing industry , molding industry,warehouse.
Features:
1) Nd-Fe-B42 magnet as core component,smaller size,stronger lifting force and lasting magnetic force.
2) High safety factor up to 3.5 times pulling-out force than rated lifting.
3) V style design at the bottom of lifter,can lift round steel or steel board.
4) Hand switch with safety button,can be operated by one hand,safe and convenient
5) Optimized magnet circuit design makes residual magnetism almost zero.
Model | Rated load/kg | Max Breakaway /kg | A /mm | B /mm | C /mm | D /mm | Package size/mm | G.W. /kg |
PML-1 | 100 | 300 | 132 | 62 | 72 | 160 | 225*130*125 | 3.8 |
PML-4 | 400 | 1200 | 206 | 94 | 93 | 215 | 300*148*190 | 10.8 |

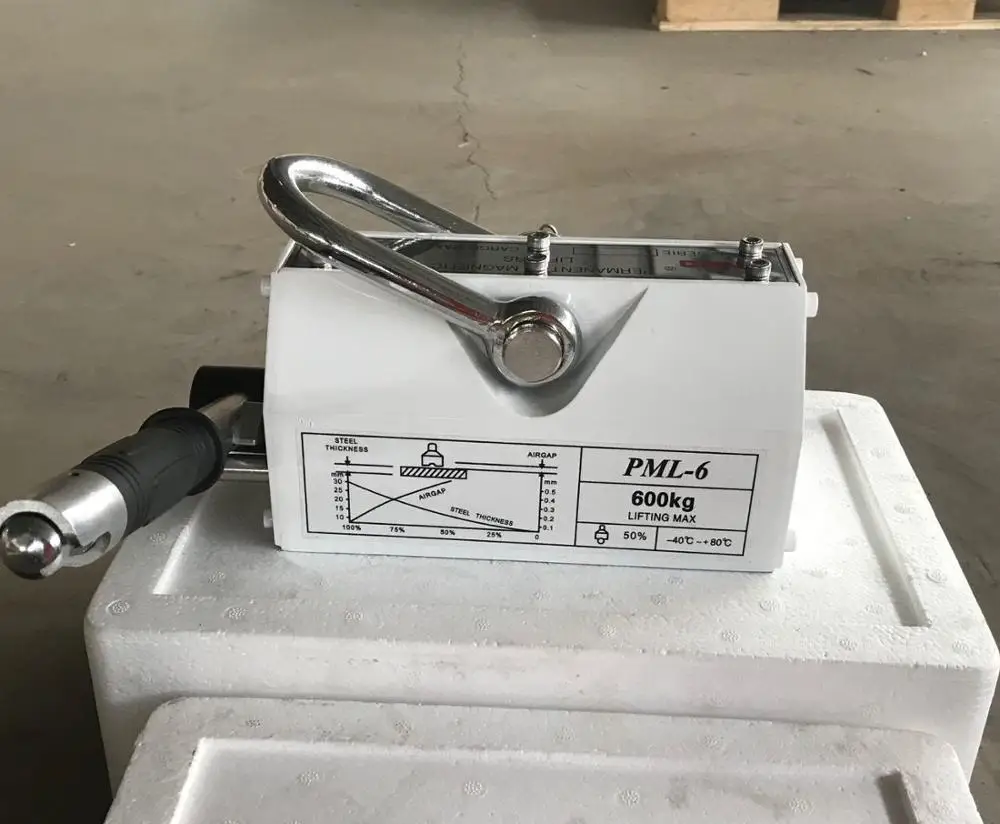

PML-6 | 600 | 1800 | 270 | 120 | 115 | 240 | 350*210*220 | 22 |
PML-10 | 1000 | 3000 | 322 | 138 | 140 | 265 | 410*230*260 | 39 |
PML-20 | 2000 | 5000 | 410 | 160 | 167 | 360 | 480*280*290 | 68 |
PML-30 | 3000 | 7500 | 459 | 160 | 167 | 360 | 590*280*290 | 86 |
PML-50 | 5000 | 12500 | 570 | 230 | 215 | 490 | 680*380*370 | 200 |
Detailed image

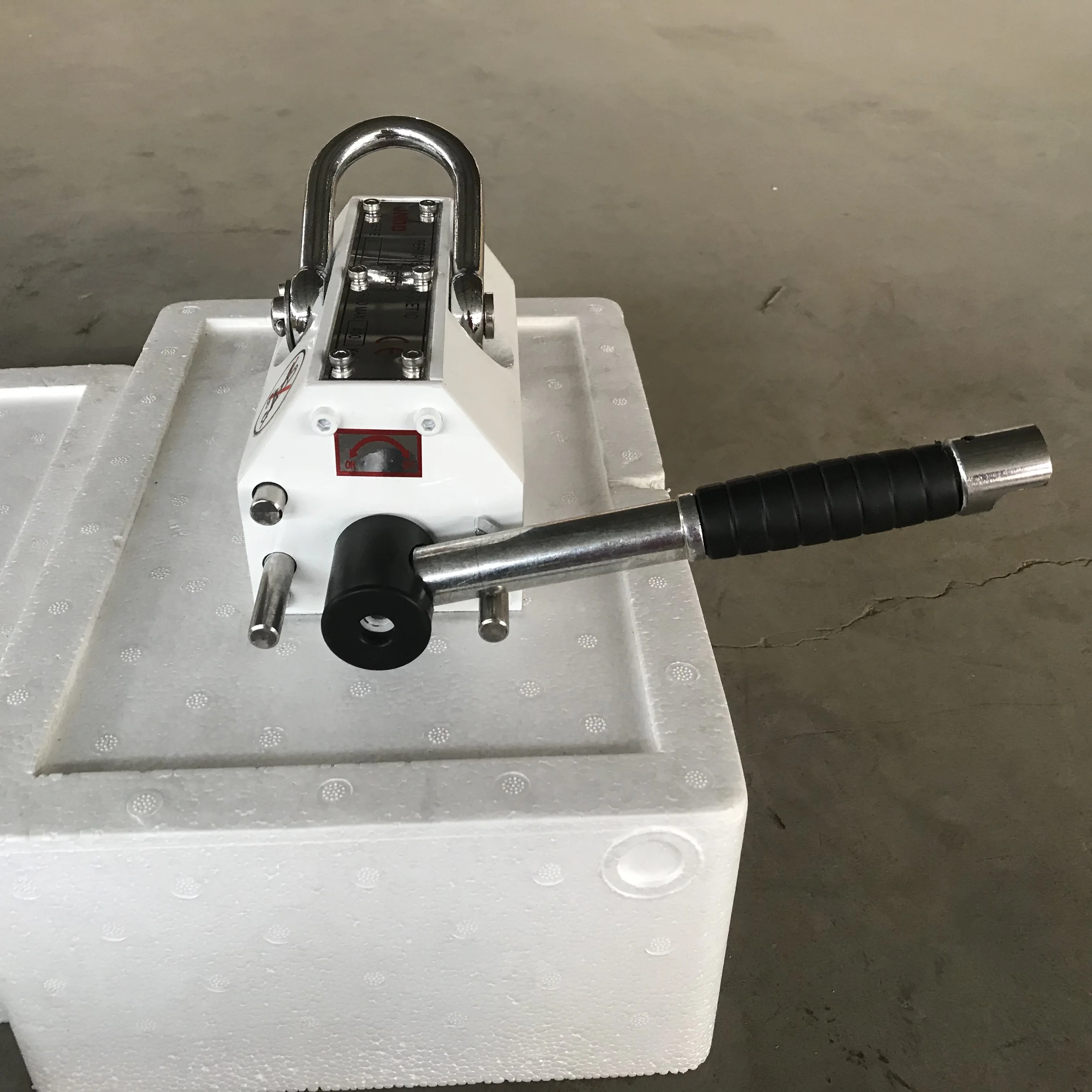

Flexible axis for handle rotating and safety lock to fix the handle when it is in magnetism and prevent
Any possible accidential deactivation of the lever.

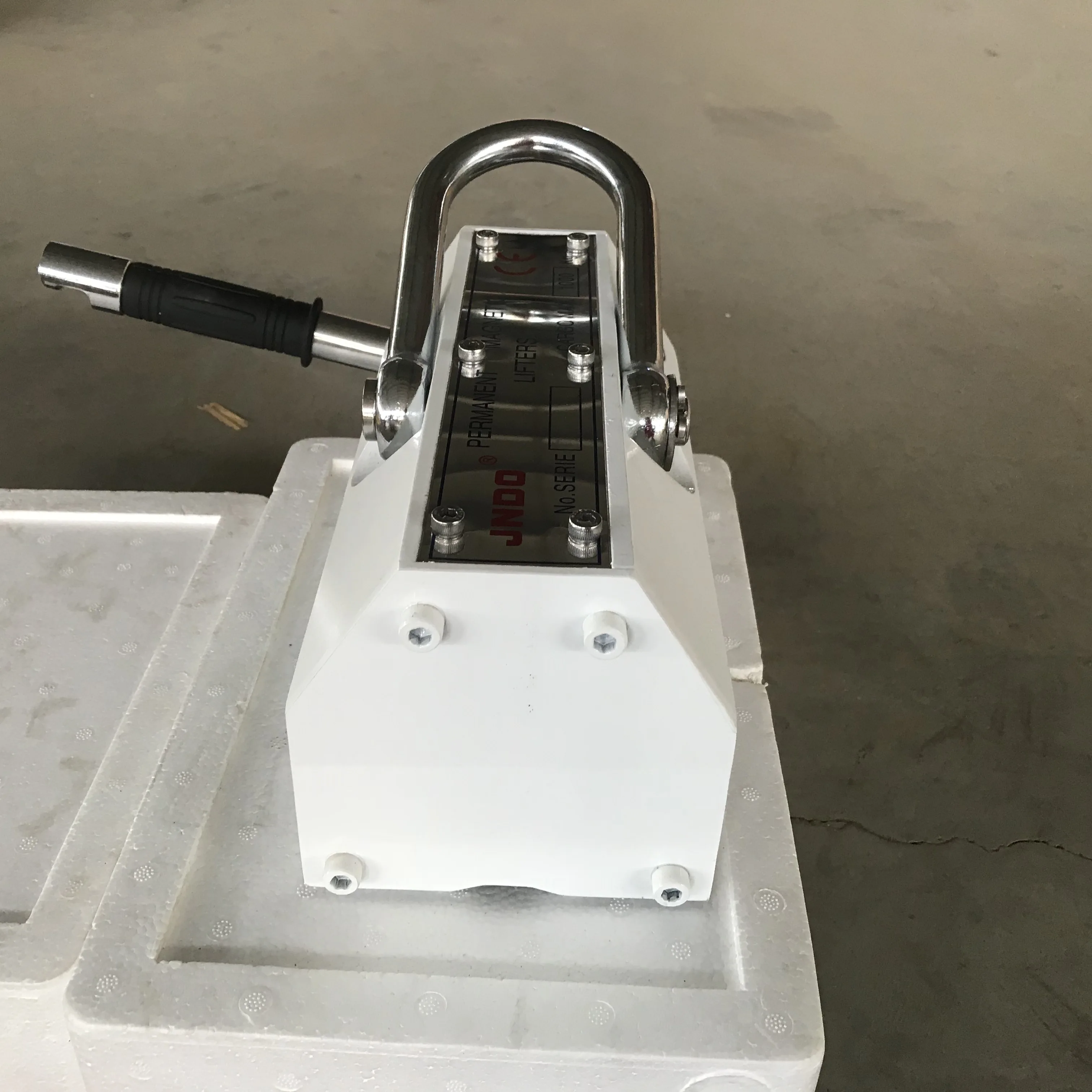

Heavy duty shackle ,made of high-tensile alloy steel,polished and chrome plated,tough and smooth.

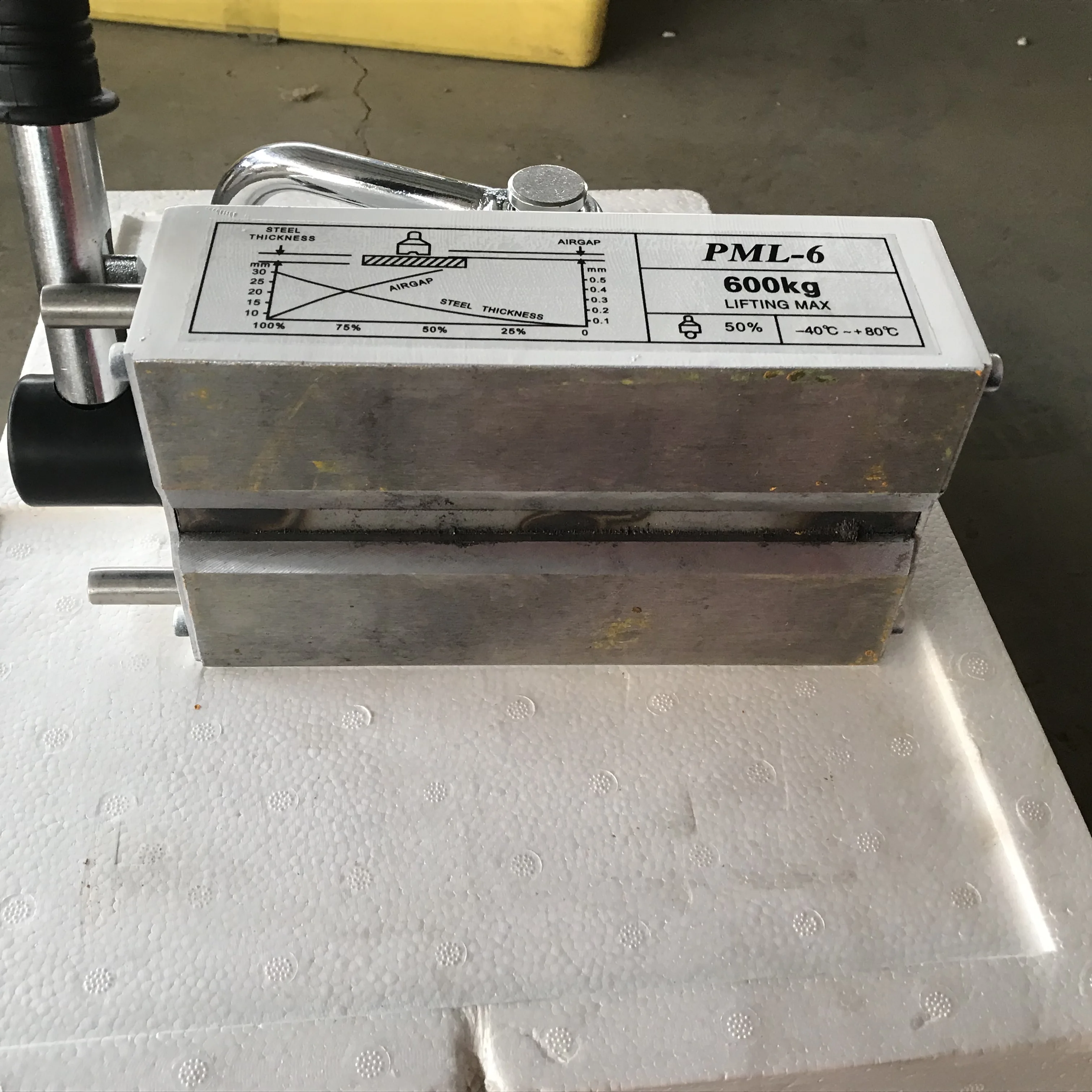

V bottom,increasing magnetism contact area for roung steel.
Hand switch with rubber
Display
Procedure details
Cast steel
Our factory is located in Baoding city,Hebei province which is the largest steel production area in China.We can get high quality steel to make the product.
Cutting into steel slabs for further machining.
Frame
After machining,welding and polishing,the steel slabs become the frames of the magnet lifters.
Every step is done by experienced.
Dust and rust are removed thoroughly.
After machining,welding and polishing,the steel slabs become the frames of the magnet lifters.
Every step is done by experienced.
Dust and rust are removed thoroughly.
Axis of rotation
The axis of rotation are also made of cast steel and machined,polished by our mechanics.
The surface is very smooth for rotation and the dimension of the groove is accurate for magnets.
Magnet
The magnets are made of NdFeB-42,the strongest type of permanent magnet available.
The groove of the frame is full of magnets and owns super magnetic force.
The bearing and sealing ring
The bearing rotates smoothly,you can not feel any friction.
The sealing ring prevents dust from enter.
Painting
High-adhesion primer and finish,will never flake off.Colors can be choosen by customers.
Our factory
