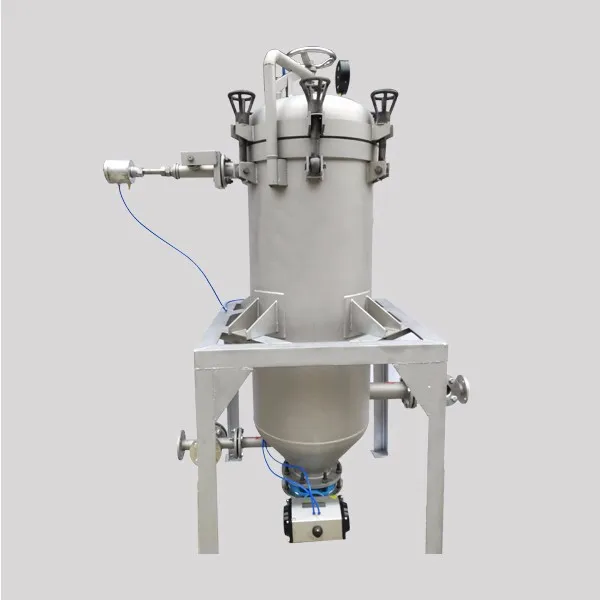

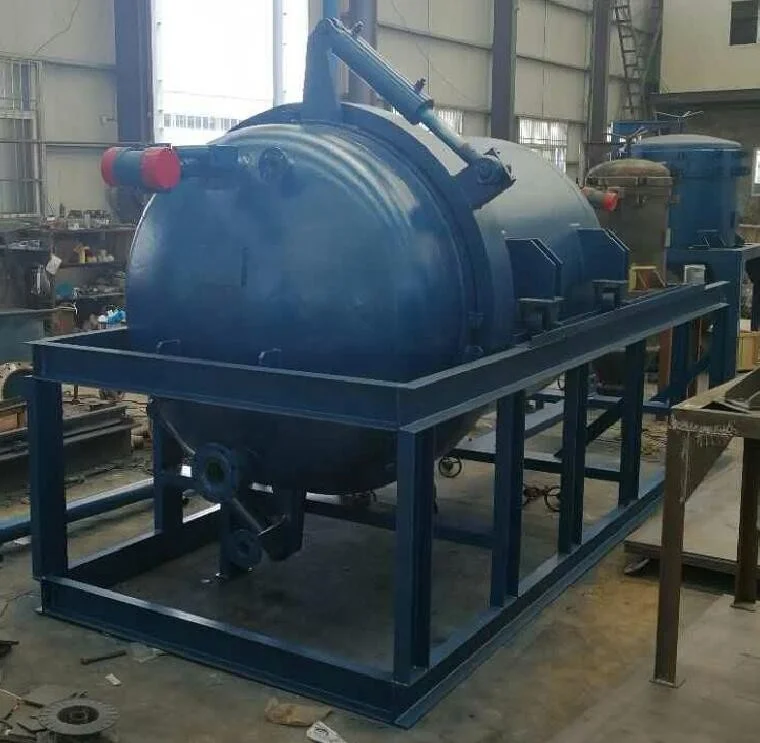

High quality CFP SS304 Stainless Steel Pressure Leaf Filter Vegetable oil filter

CFP Filter is a kind of precision clarifying filtration equipment featuring high efficiency, energy saving and closed-form operation. It is designed with unique structure, small size, high filtering efficiency and transparent filtrate, featuring no material loss, no consumption of filter paper, filter cloth or filter element, and only small consumption of filter aid. It is therefore characterized by low filtration cost as well as easy operation, maintenance and cleaning. It applies to solid-liquid separation or clarifying filtration in many fields such as seasoning, liquor, grease, chemical engineering, pharmacy and beverage.

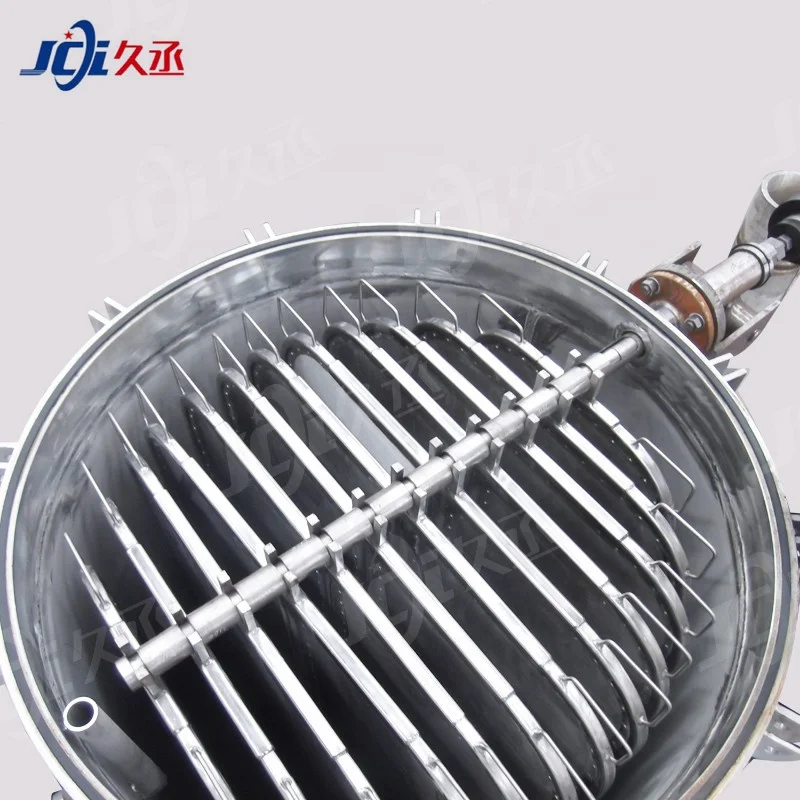

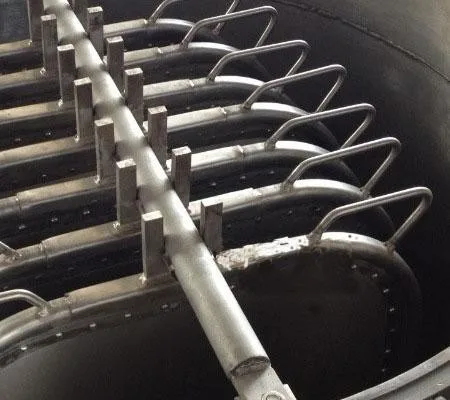

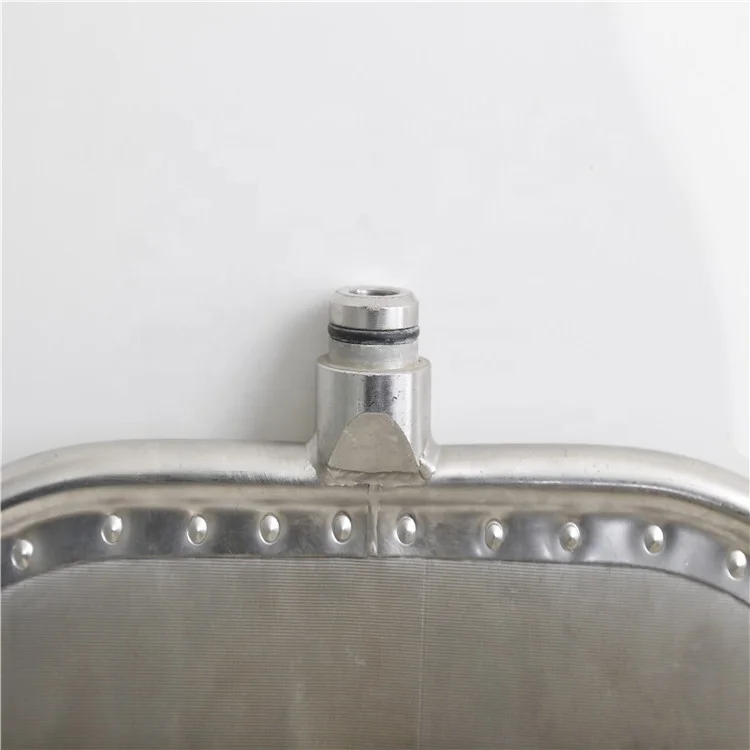

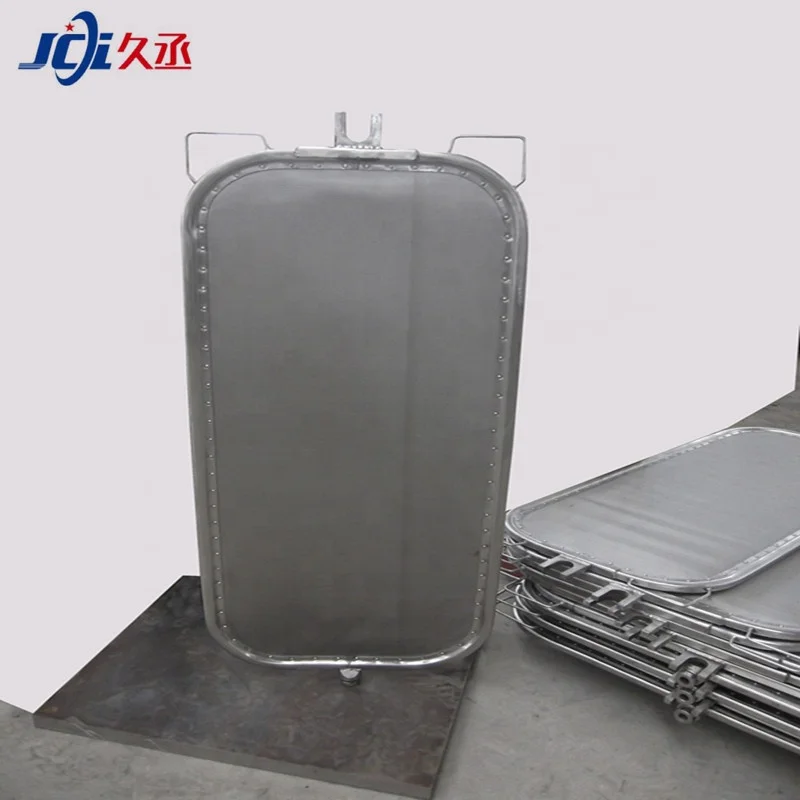

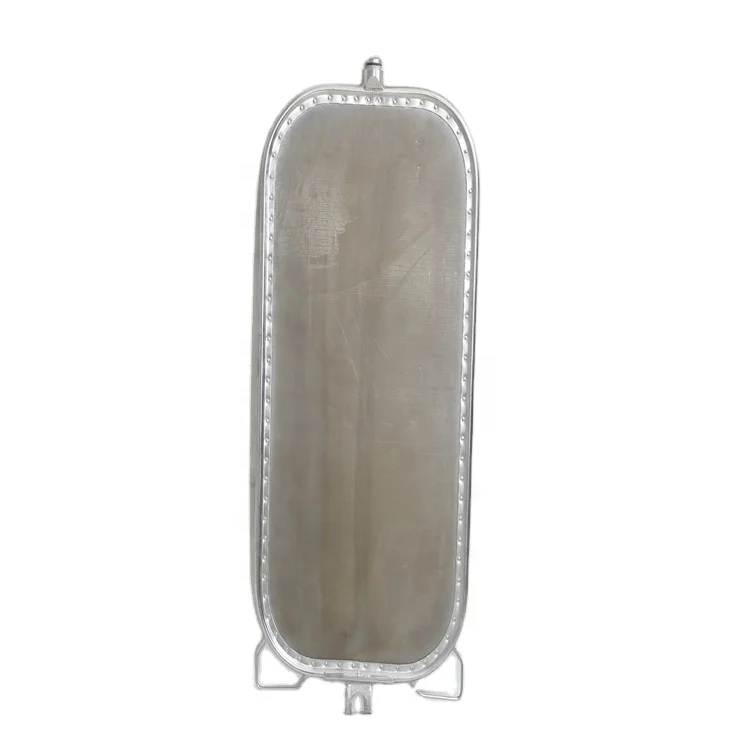

CFP filter screen is totally made of stainless steel. The whole filtration process is carried out in a closed container. After filtration is completed, automatic discharge can be realized.

CFP filter is a dual-area filter, the filtration area from 2 to 200 m2 for users to choose from. Material for closed containers can be customized carbon steel or stainless steel as the filtration process requirements.

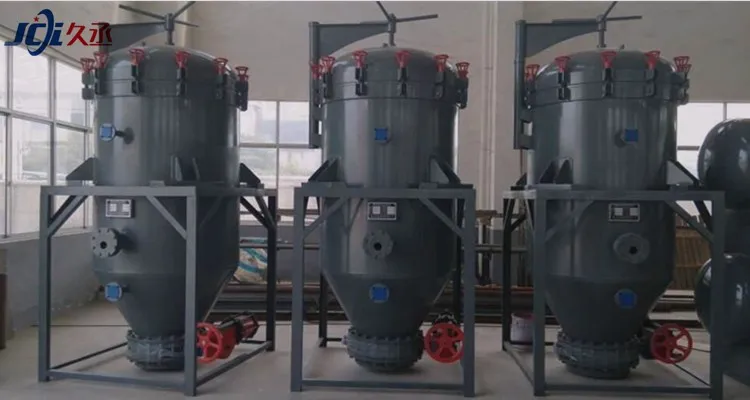

Product Details Show

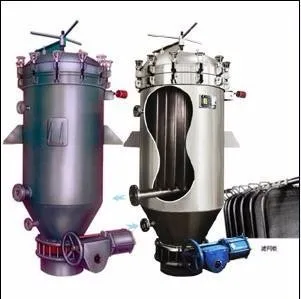

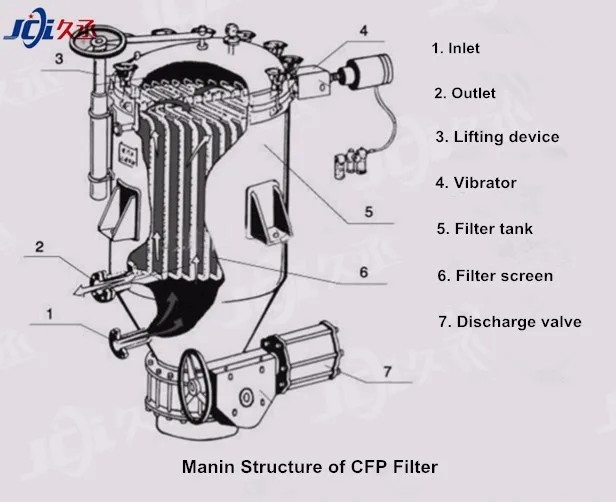

How Does It Work?

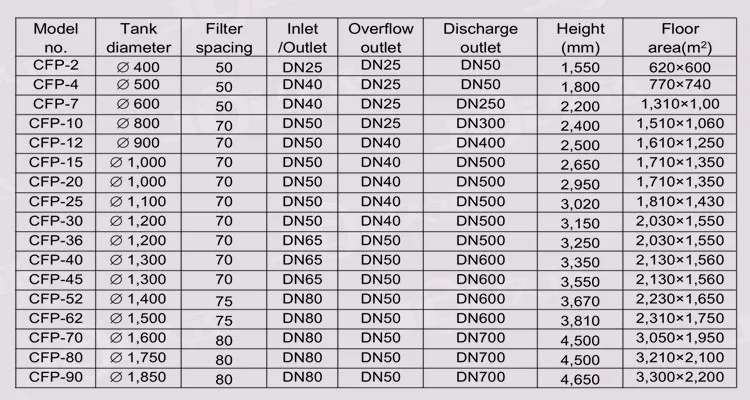

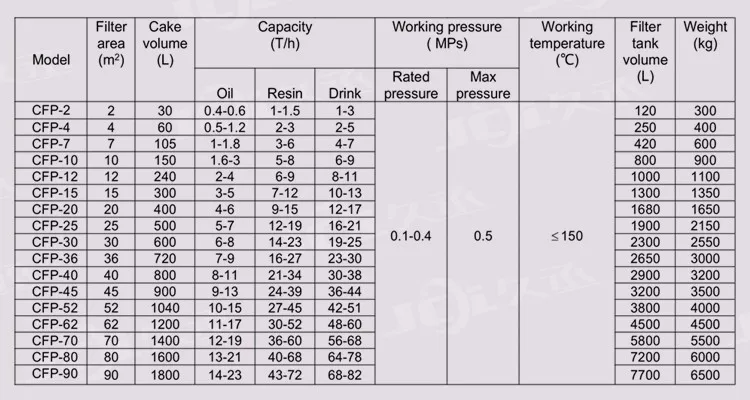

Technical Parameters & Specifications

Application Industries

1.\tPetrochemical engineering: MMA, TDI, polyurethane, PVC and other synthetic resins, caprolactam, DOP and other plasticizer, terephthalic acid, adipic acid, petroleum resins, epoxy resins, all kinds of organic solvents;

2.\tOrganic chemistry: organics pigments, dyes, ethylene glycol, propylene glycol, poly propylene glycol, surfactants, various catalysts, activated carbon decolorization filtration, etc.

3.\tInorganic chemical industry: inorganic pigments, waste acid, sulfuric acid, sodium phosphate and other solutions, titanium dioxide, cobalt, titanium, zinc and other refining, nitrocellulose, pesticides, insecticide.

4.\tOil industry: all kinds of animal and vegetable oil white soil filtration, lecithin soybean crude oil filtration, hardening oil and fatty acid catalyst filtration, dewaxing, waste white soil treatment, edible oil refining filtration, etc.

5.\tFood industry: sugar, caramel, maltose, glucose, tea, fruit juice, refreshing drink water, wine, beer, wheat juice, dairy products, vinegar, soy sauce, sodium alginate, etc.

6.\tFiber industry: rayon, acetic acid fiber solution, chemical fiber intermediates, waste liquid, etc.

7.\tPaint: natural paint, acrylic resin varnish, paint, rosin natural resin, etc.

8.\tPharmaceutical industry: fermentation broth, culture liquid, enzyme, amino acid crystallization slurry filtration, cleaning and drying, glycerol activated carbon filtration, etc.

9.\tMineral oil: white soil filtration of mineral oil, cutting oil, grinding oil, roll oil, waste oils, etc.

leaf Filter Overall & Installing Dimensions

Automatic Cleaning Control System

CFP Filter is equipped with automated cleaning control system, integrated differential pressure cleaning and timing cleaning parallel control function, which controls its efficient working, according to the operating conditions. If necessary, the system is able to realize real-time and remote monitoring of DCS by custom.Differential pressure cleaning is the most efficient cleaning mode, which reflects the accumulation of of filter cakes and the blocking of the filter element. When the preset pressure differential is reached, it starts the self-cleaning action. It is suggested that the cleaning pressure differential is 0.1MPa, which can be adjusted within the scope of 0.01-0.1MPa, by the working conditions. Periodically cleaning can be set 0-24 hours, and if the differential mode is inefficient, time pattern still works. It can be considered as the ultimate protection. The cleaning period setting should be close to the average period of the filter pressure differential cleaning mode.

Part of Applicable Industries

Applicable fluid types: Water, cooling liquid, edible oil, paint, resin, adhesive, ink, pigment, polymer, kerosene, citric acid, fermentation broth, protein, soap, sorbitol, wet-end additive, rubber, ethanol, chocolate, candy, high-temperature oil, fruit juice and diesel, etc.

Filtration effect: Constant-value screening, removing large particles, purifying fluid, and protecting key equipment.

Filtration type: Mechanical online scraping filtration.
