Кэсин KX 5188A18 индукционный нагреватель промышленной золото литье Индукционный Нагреватель Машина

Product Overview

Description









 Technical parameters

Model	KX-5188A18
Rated Power output	18KW
Frequency rang	100-200KHZ
Single- phase input	One-phase 220V /50HZ
Current input	5-40A
Efficiency	95%
Duty cycle	100%
Volume(mm 3)	550mmx250mmx500mm
Net  Weight	28KG
Gross weight	40KG
Cooling water flow	hydraulic pressure≥0.2MPa,flow rate:5-20L/Min
Cooling water temperature	≤ 40°C
Waterway of power supply	Control box: 2 inlets ,2 outlets
Application	Quenching, annealing, conditioning saw blades, drill, turning welding standard parts of axial etc  fastener local heating, forging, melting, high frequency induction heating equipment.

 Renderings:







Characteristics
1)The digit phase locked:
  The digit phase locked the technique realizes the frequency is automatic to follow,can adapt to every kind of inductor automatically.

2)The module piece turns the design:
  The adoption drives module a control,insuring the dependable of the equipments,maintaining easily.

3)The resonance flaps to change frequency technique :
  The adoption resonance flaps to change frequency then equipments the whole efficiency ≥90%, efficiently, economyenergy,consume the electricity measures only for electronics the tube inductor 20%-30% of the heating equipments.

4)The Whole solid turns:
  Adoption IGBT inverter device, high frequency, The physical volume is small, the weight is light.

5)Simpleton type design:
  Install simple,have no to need to adjust to try, usage convenience.

6)The safety is dependable:
  The equipments has no ten thousand the high voltageope ration safety, can continue 24 hours work.





Product details

1.   deeply the heat shaping (change to high frequency):
  A. Various standard a tight firmware and other machine piece, hardware tool, handle drill, keep the hot upsetting. keep the hot cutting. it circle steel of the diameter 16 mms. heat 3s-5s or so proceeding to squeeze to squeeze to shaping then.
  B. to the metals mate rail. to neat or to back the fire, in order to pull to stretch, the shape presses flower etc. , for example the steel pipe pulls to stretch. bend the tube and hit head, the steel wire, steel wire heats to make the nail. the stainless steel products to anneal ,pulling to stretch, rising the type .

2.the heat treatment  ( Chang to High frequency first)
  Various hardware tool, electricity-moves components, liquid-presses components, Gas-moves components, Auto car-components, Motorcar-components, etc. machine metals parts, the Quenching for surface, of inside bore or part or for the whole. for example :Quenching for hammer knife. shear. pliers and every kind of stalk. cam. chain belt gears etc. and large machine beds lead the orbit with the cast-iron the Quenching Ductile Iron.
domestic numerous factory productions chain and machine tool leading the orbit they are many have adopted the equipments of our company proceeds the heat treatment.

3.WELD,DRILL (change to high frequency)
  Carbide cutting tools weld, for example: Tuning tool, Milling cutter, Planning  tool, Diamond saw-toothed weld, Saw tooth weld, grinding machine tool welds, drill the machine tool welds blade tool welds .The other metals material reunites to welds. Such as the brass welds ,red copper parts welds, valve door welds. stainless steel a bottom welds etc.

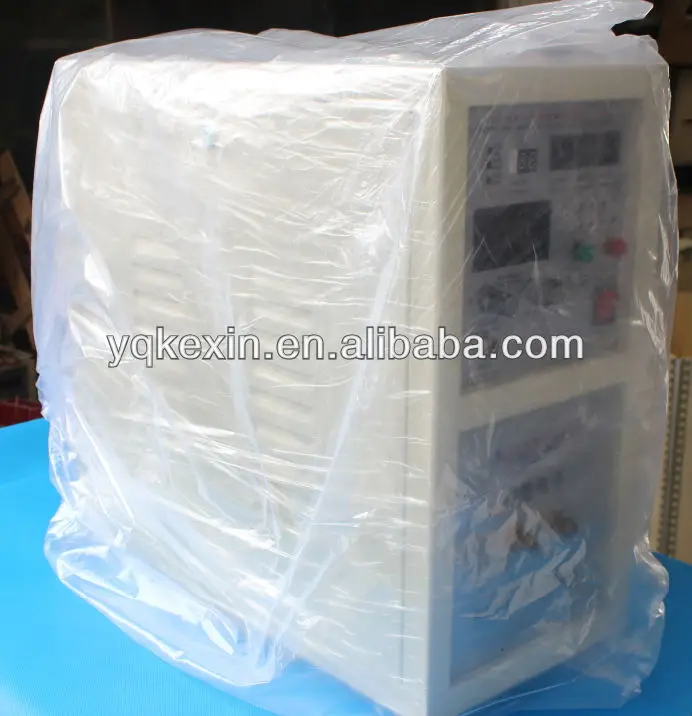

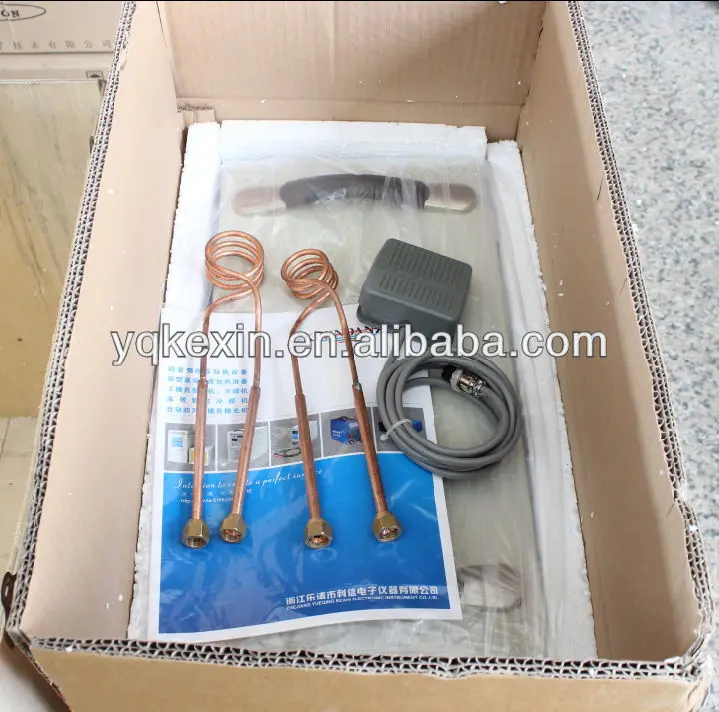

Packing Details:Export standard packing,inner carton outer wooden box,double protection

Delivery Details:In stock,in one day after geting payment

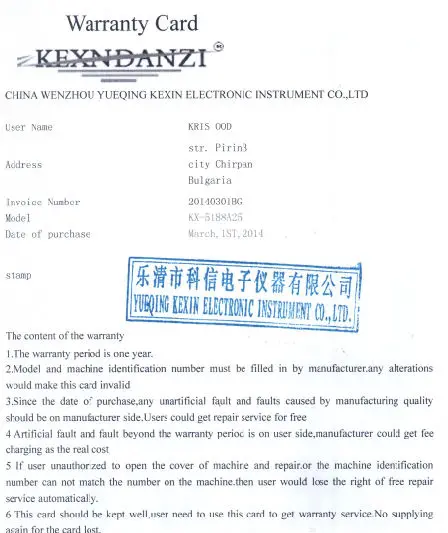

Guarantee  And Off Sale Service:

1 One year guarantee for the whole machine except for the shipping cost of warramty parts.

2 24 hours technical support by mail or skype.

3 Using pictures or video to guide user in time.
