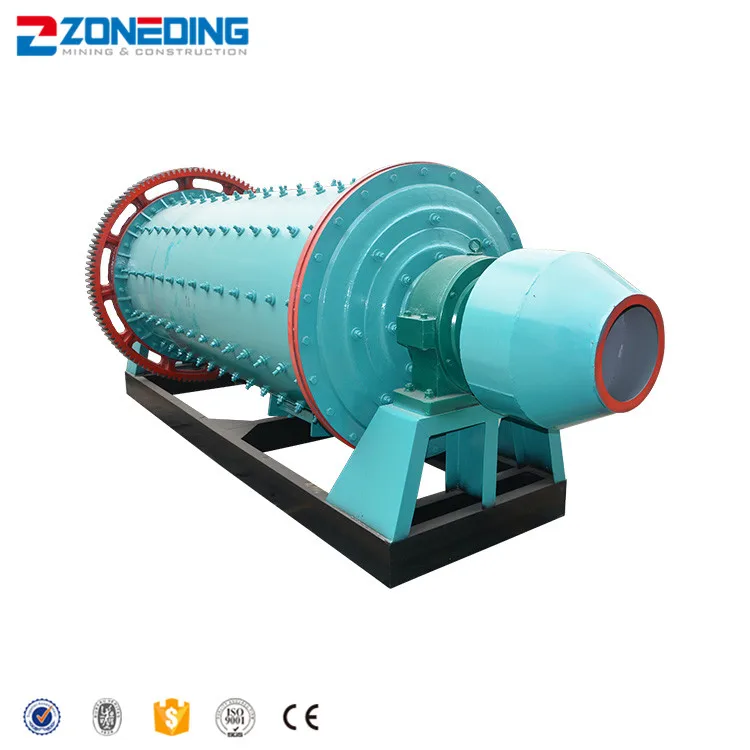

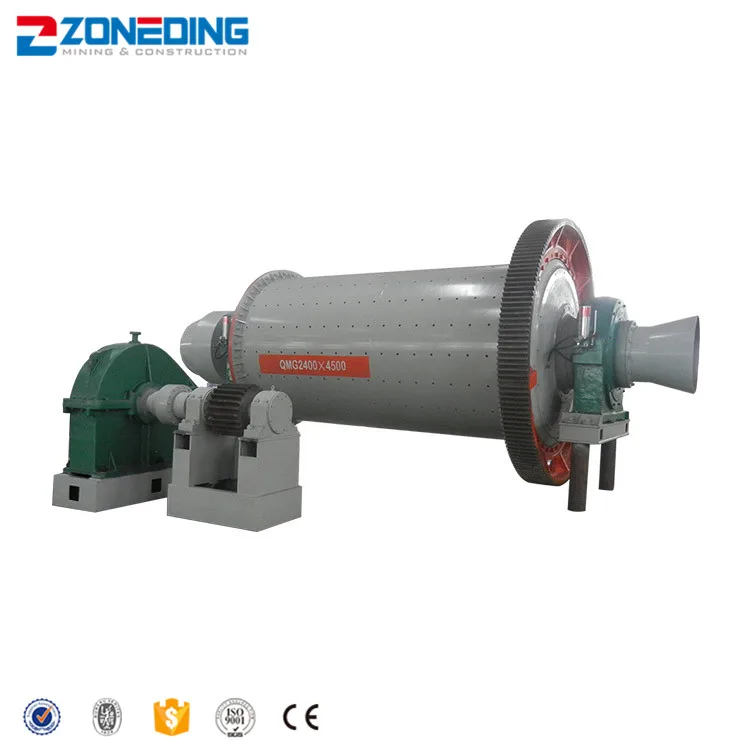

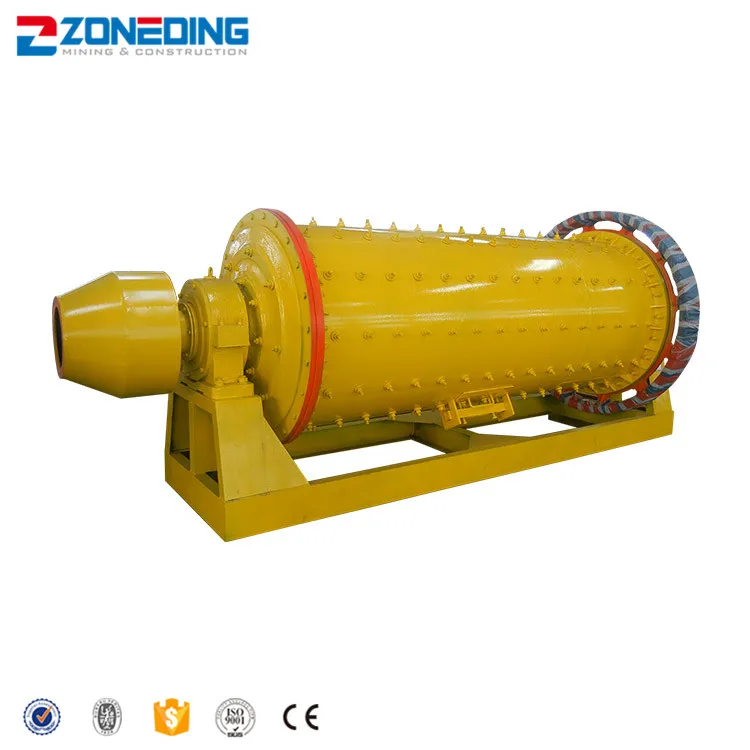

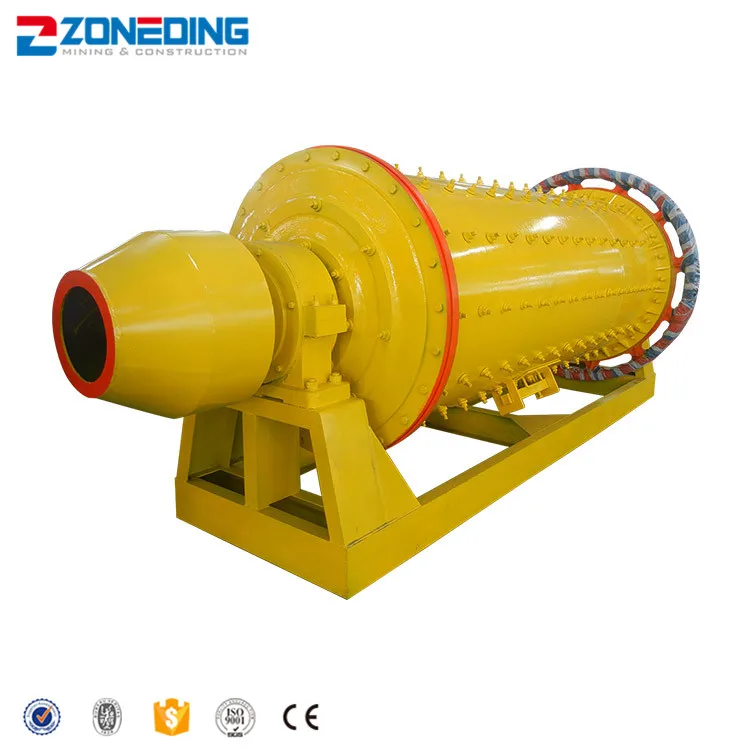

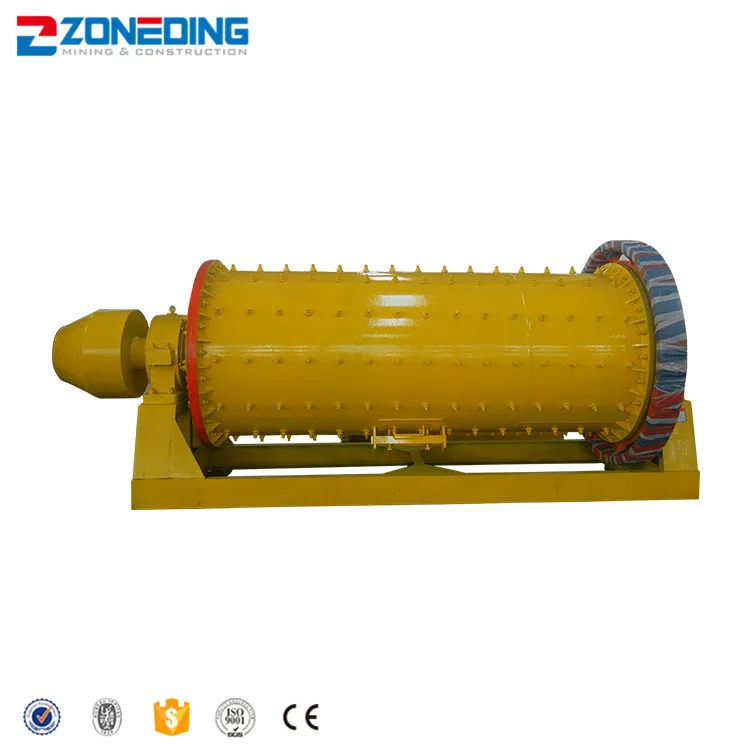

Китайская шаровая мельница для мокрой шлифовки руды, непрерывная шаровая мельница по цене
- Category: Mine Mill >>>
- Supplier: Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co. Ltd.
Share on (60829913351):
Product Overview
Description
China ore wet grinding ball mill continuous ball mill machine with price
Zoneding ball mill is a key equipment to grind the crushed materials, which is widely used
in the manufacture industries, such as cement, silicate, new building material, refractory
material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.

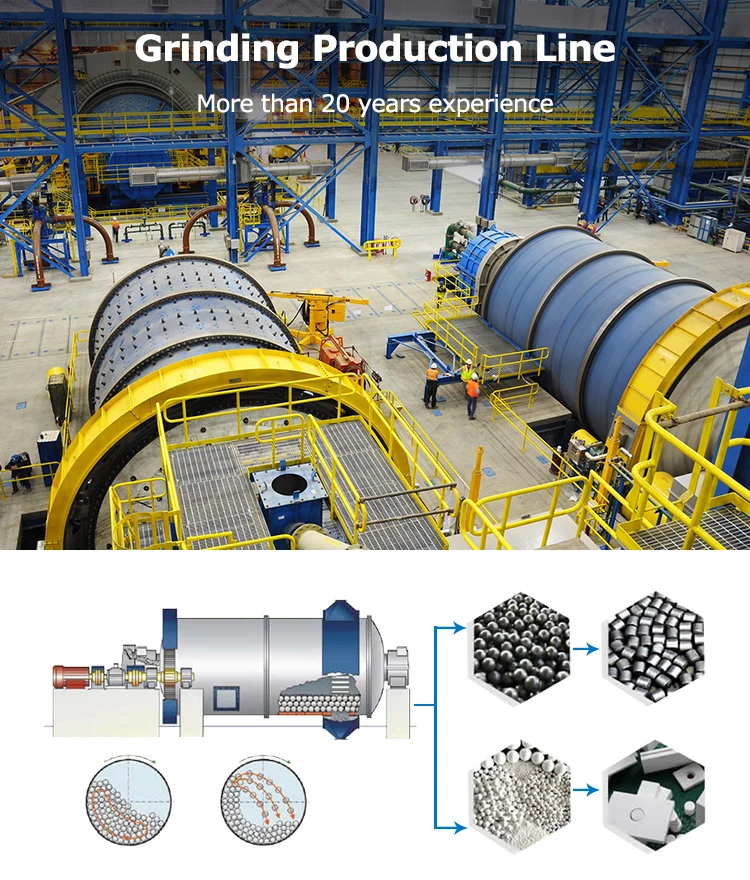

Working Principle
When the materials processing, they are transferred to the grinding chamber through
the quill shaft uniformly. Firstly the centrifugal force caused by rotation of barrel
brings the steel balls to a certain height, then the steel balls impact and grind the
materials into fine powder over a period of several hours. The ground materials are
discharged through the discharging board ,lastly the grinding process is finished.
Bearing | Feeder | Gear |
Coupling | Steel Ball | Liner |
Technical Parameters VIEW MORE»»
| Model | Speed (r/min) | Max. weight of balls (t) | Input size (mm) | Output size (mm) | Power (kw) | Capacity (t/h) | Weight (t) |
| Φ900×1800 | 37 | 1.8 | ≤15 | 0.075-0.89 | 15 | 0.5-2 | 3.4 |
| Φ900×2100 | 37 | 2.3 | ≤15 | 0.075-0.4 | 18.5 | 0.4-2 | 3.9 |
| Φ900×3000 | 35 | 3.85 | ≤25 | 0.075-0.4 | 30 | 1.1-2.5 | 7.78 |
| Φ1200×2400 | 35 | 4.6 | ≤25 | 0.075-0.4 | 30 | 1.3-3.2 | 8.65 |
| Φ1200×2800 | 35 | 5.4 | ≤25 | 0.075-0.4 | 37 | 1.5-3.7 | 10.02 |
| Φ1200×4500 | 35 | 8.6 | ≤25 | 0.075-0.4 | 45 | 2.7-6.79 | 14 |
| Φ1500×3000 | 29 | 9 | ≤25 | 0.047-0.4 | 75 | 3.3-8.2 | 14.12 |
| Φ1500×3500 | 29 | 10.5 | ≤25 | 0.047-0.4 | 75 | 3.3-8.5 | 15.64 |
| Φ1500×4500 | 29 | 13.5 | ≤25 | 0.047-0.4 | 90 | 4.5-12 | 20 |
| Φ1500×5700 | 29 | 17 | ≤25 | 0.047-0.4 | 110 | 2.6-14 | 21.5 |
| Φ1830×3000 | 24 | 13.5 | ≤25 | 0.047-0.4 | 135 | 4-15 | 28 |
| Φ1830×3600 | 24 | 14 | ≤25 | 0.047-0.4 | 135 | 4-15 | 29 |
| Φ1830×4500 | 24 | 20 | ≤25 | 0.047-0.4 | 155 | 4-19 | 32 |
| Φ1830×7000 | 24 | 31.5 | ≤25 | 0.047-0.4 | 210 | 6-22 | 37.5 |
| Φ2100×3000 | 22 | 18 | ≤25 | 0.047-0.4 | 210 | 6.4-28 | 40.79 |
| Φ2100×3600 | 22 | 20 | ≤25 | 0.047-0.4 | 210 | 7-28 | 42 |
| Φ2100×4000 | 22 | 21.5 | ≤25 | 0.047-0.4 | 210 | 7.6-28 | 43.45 |
| Φ2200×3600 | 21.7 | 25 | ≤25 | 0.047-0.4 | 245 | 5.2-32 | 44 |
| Φ2200×7000 | 21.7 | 46 | ≤25 | 0.047-0.4 | 380 | 15-38 | 63 |
| Φ2400×3600 | 21 | 28 | ≤25 | 0.047-0.4 | 320 | 8-60 | 47 |
| Φ2400×4500 | 21 | 35 | ≤25 | 0.047-0.4 | 380 | 8.5-60 | 70.5 |
| Φ2700×3600 | 20.7 | 40 | ≤25 | 0.047-0.4 | 400 | 12-80 | 75.5 |
| Φ2700×4500 | 20.7 | 48 | ≤25 | 0.047-0.4 | 450 | 12-90 | 102 |
| Φ3200×4000 | 18 | 65 | ≤25 | 0.047-0.4 | 800 | 30-180 | 137 |
Note: Any change of technical data shall not be advised additionally.
Customer Case
Mongolia Limestone Grinding Project
Input Size: 20mmOutput Size: 150meshCapacity: 50t/h
Equipment: Φ2100X2400 Ball Mill, Dust Collector, Ball Mill Spare Parts
Molybdenum Ore Beneficiation Plant in Philippines
Capacity: 1000t/dRaw Material: Molybdenum Ore
Equipment: Jaw Crusher, Ball Mill, Spiral Classifier, Belt Conveyor, Steel Balls
