Product Overview
Description
| SZFM-1200 automatic water-based bopp film laminating machine for paper sheet box bag book |
Introduction:
SZFM-1200 Automatic Waterbased Cold Laminating Machine is designed for cold waterbased glue lamination, speed up to 100m/min, features high automation, high laminating speed, high accuracy, electrical appliance is centralized by programmable system, easy to operate.
Configuration&Functions:
1. Automatic High Speed Feeder: Adopt high speed pneumatic offset feeder, speed up to 100m/min. Pre-stacking system can realize non-stop feeding, obviously improving work efficiency.
2. High Accuracy Lap Control: Servo-controlled lap within ±2mm, synchronizes with feeder, high accuracy front lay and pnuematic side lay regulator ensure accurate and stable position.
3. Automatic Shutdown Protection System: Equipped with photoelectrically controlled automatic shutdown protection devices, in case of paper shortage, paper broken and paper overlap.
4. Immerging Coating System: Adopts immerging coating method, can save glue consumption and easy to control coating amount.
5. Heating Lamps: Equipped with heating lamps, ensure that the machine can work in cold weather.
6. Perforation Knife: Equipped with high accuracy perforation knife, cooperate with our pneumatic differential pull and separating device to cut sheets perfectly.
7. Rewind to Roll:After lamination, the sheets are rewound to roll to dry the glue and prepare for cutting.
8. Anti-curvature Delivery Platform: Especially designed for thin paper, avoid paper curvature.
Product Description
Main technical parameter |
| Model | SZFM-1200 |
| Max.Paper Size | 1000X1150mm |
| Min.Paper Size | 285X350mm |
| Paper Thickness | 100-500gsm |
| Film Thickness | 8~25 micron |
| Max. Speed | 100m/min |
| Voltge | 380V 50Hz |
| Total Power | 8KW |
| Working Power | 3~5KW |
| Lap Accuracy | ±2mm |
| Coating Glue Amount | 3~8g/m^2 |
| Hight of Feeder Pile | 1000mm |
| Dimension (L*W*H) | 4900×2000×2100 mm |
| Wood Box Dimension (L*W*H) | 1.1820×2050×2200 mm(FEEDER) 2.2000×2050×1900 mm(LAMINATING PART) |
| Total Weight | 2000 kg |
Main Parts |
PLC and touch screen | Chinese Taiwan Weinview |
Transducer | China Kewo |
Programming controller | Chinese Taiwan Delta |
Servomotor | Chinese Taiwan Delta |
Ac contactor | Frence schneider |
relay | Frence schneider |
Push button | Frence schneider |
Automatic water-based Laminating machine picture Show |

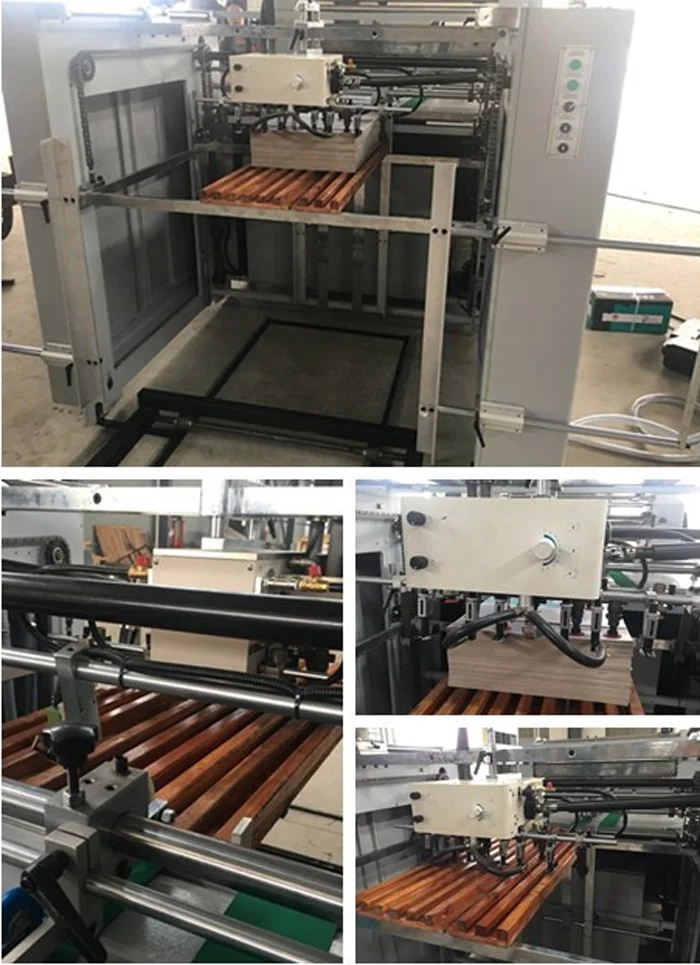

1. Feeder Part
Adopt high speed offset feeder and chain drive non-stop pre-stacking system, can feed sheets up to 100 m/min, smoothly without stop, obviously increase the efficience.
2. Delivery Platform
Equipped with high accuracy front lay and pneumatic side lay regulator, accurate position, anti-curvature device can deliver sheets in high speed without curvature.

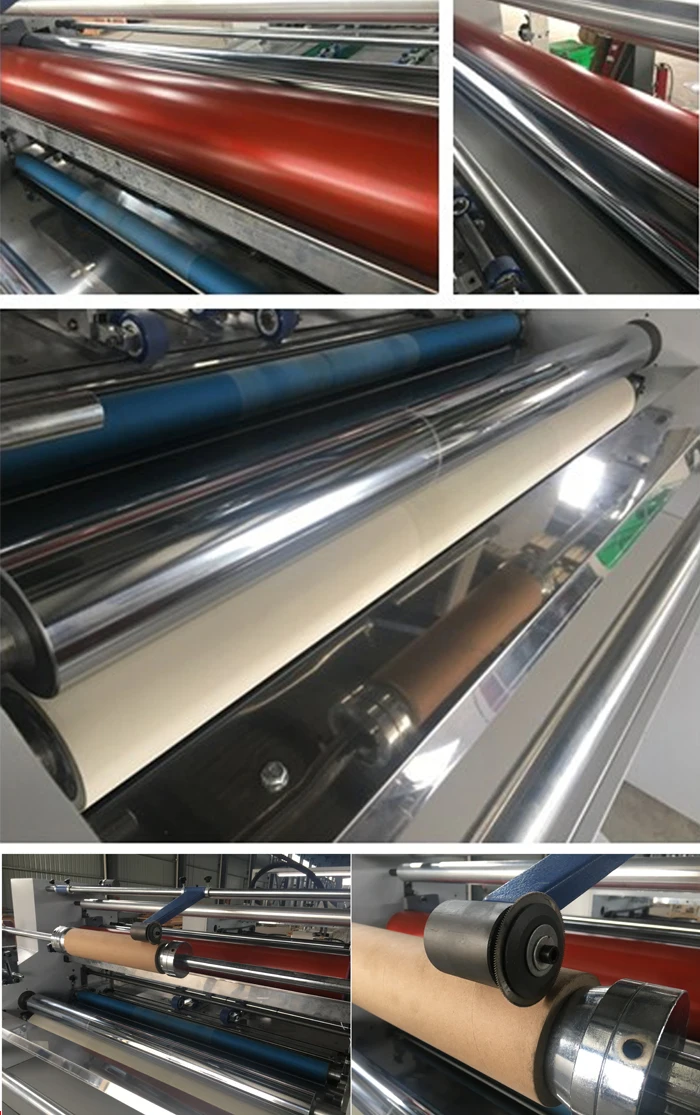

3. Lamination Main Part
Adopts Immerging coating system with rubber coating roller, can coat glue even and save much glue.
Rubber and high accuracy mirror laminating rollers ensure high laminating performance.
Equipped with High accuracy Perforation Knife, assist for cutting process.
4. Heating Lamps
Equipped with heating lamps to ensure glue can work in cold weather.
5. Rewinding Part
After lamination, the sheets are rewound to roll to dry the glue and prepare for cutting.
Related Products
Company Information
Ruian AoTe packaging machinery co., LTD is located in Ruian economic development zone XiaoZhai dedicated road no. 1, close to Wenzhou BinHai avenue road Wenzhou airport 25 kilometers, 10 kilometers away from Ryan moving station, convenient transportation network and excellent geographical location for my company to provide a good external environment.
Our company has more than 20 years of post-press equipment manufacturing experience, is a collection of scientific research, design, manufacturing, service as one of the professional company. Our strong technical force, high-quality "AoLi" brand products and perfect after-sales service, won the trust of customers at home and abroad. Company has been rated as "trustworthy product" government agencies, "heavy contract, keep promise", "good faith enterprise", "AAA grade credit enterprise", and through ISO9001:2008 quality management system and CE safety certification.
More about us
Our Services
After sale services and component replacement.
During the period of quality guarantee, we supply the spare parts in free for replacement, in case of quality problem.
Quality Assurance.
Seller provides a 12-month guarantee period. After the guarantee, seller shall still provide technical support to buyer.
Training, Installation and Test Run.
Seller can arrange operation training in Seller’s factory; or that if Buyer requires seller to send technicians to Buyer’s factory for installation and training, Buyer shall pay visa applying cost, round air ticket, accommodation and daily salary $100/person upon final confirmation.
*This quotation is valid for 60 days.
**All the above prices and conditions are subject to our final confirmation.
Packaging & Shipping
Packaging. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.
Delivery Date. Within 30 days after payment of deposit.
Terms of Transportation. Seller shall deliver equipment at its factory and may arrange transportation for Buyer but freight shall be for Buyer’s account.
Terms of Payment. 30% deposit by T/T upon final confirmation; balance by T/T before shipment; or 100%L/C at sight.
*This quotation is valid for 60 days. **All the above prices and conditions are subject to our final confirmation. |
