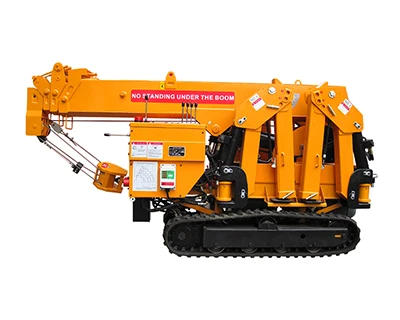

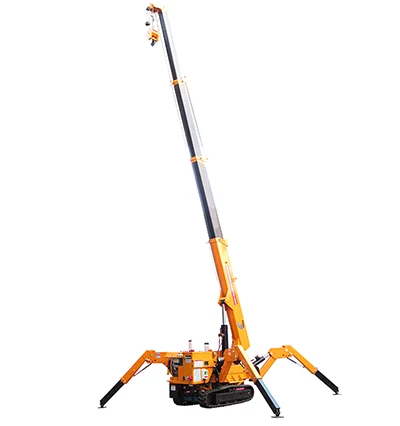

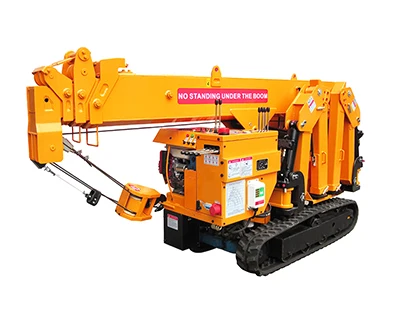

9.5m Spider Crawler Construction Mini Hoist Cranes With Capacity 3 Tons
- Category: Cranes >>>
- Supplier: Beta(Hangzhou) Industrial Machinery Co. Ltd.
Share on (60838947121):
Product Overview
Description
Products Description
Technical data:
Model | HXB 3.0 | ||
Crane capacity | 3.0t x 1.3m | ||
Max working radius | 8.45m | ||
Max lifting height | 9.5m | ||
Winch | Hook up speed | 5.5m/min （4 falls） | |
Diameter and length of wire rope | φ8mmx50m | ||
Telescopic system | Boom length | 2.56-8.92m | |
Telescoping speed | 6.36m/25 seconds | ||
Boom type | 5-section hydraulically box beam, telescoping boom | ||
Derrick | Derricking angle/speed | 0-75°/25 seconds | |
Slewing | Slewing angle | 360° (continuous) 0.6rpm | |
Form of outrigger | First phase--automatic Second phase--manual | ||
Max extend range | Distance between two outriggers 4.04m（width）x3.47m（length） | ||
Traction system | Drive | Hydrostatic，stepless forward and reverse | |
Travel speed | 0-3km/h | ||
Gradeability | 30% | ||
Track | Synthetic rubber | ||
Track ground length | 1.4m | ||
Track ground pressure | 36Kpa | ||
Track width | 200mm | ||
Engine | Choose diesel or gasoline | Diesel engine: Yanmar L100N6-METM 7.4kw tank capacity 5.4L Gasoline engine: Honda GX390 9kw Electric start tank capacity 6L | |
Dual power optional | Diesel + Electric motor Gasoline + Electric motor | ||
Motor | Power | 3KW | |
Voltage | 380V/50Hz and optional for others | ||
Remote control | Operation | Boom rotation, boom derricking, boom telescopic, hook up and down, emergency stop button (Outriggers and walking are optional) | |
Dimension | Folded | 3000(l) x 800(w) x 1500(h) mm | |
Weight | Unladen | 2000kg | |
Hydraulic tank capacity | 38L | ||
