V 100 V Shape Powder Cone Mixer Machine V Shaped Mixer
- Category: Chemical Machinery & Equipment >>>
- Supplier: ZHEJIANG CAPSULCN MACHINERY CO. LTD
Share on (60840680048):
Product Overview
Description
Welcome to visit CapsulCN factory!
Why Choose Us:
1. 16 years professional pharmaceutical machinery manufacturer and supplier.
2. 3 Years Warranty， 14 Days Delivery，Factory Price.
3.12680㎡ factory，Own R&D Team.
4. Free design service，free professional solutions.
5.Passed ISO 9001，CE，SGS，Intetek certificates .
6.Provide alibaba quality and delivery guarantee services.
1. 16 years professional pharmaceutical machinery manufacturer and supplier.
2. 3 Years Warranty， 14 Days Delivery，Factory Price.
3.12680㎡ factory，Own R&D Team.
4. Free design service，free professional solutions.
5.Passed ISO 9001，CE，SGS，Intetek certificates .
6.Provide alibaba quality and delivery guarantee services.
Product Description

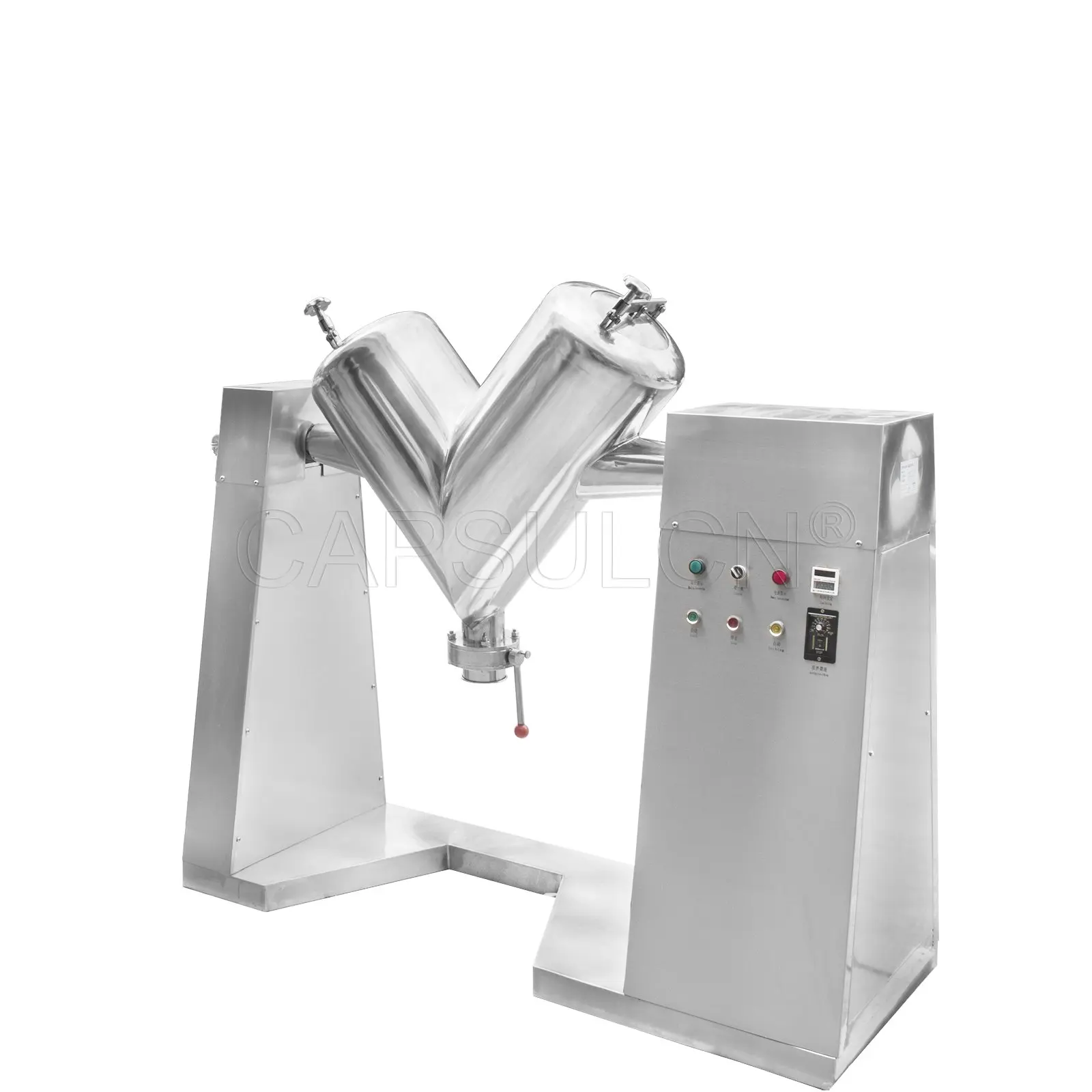

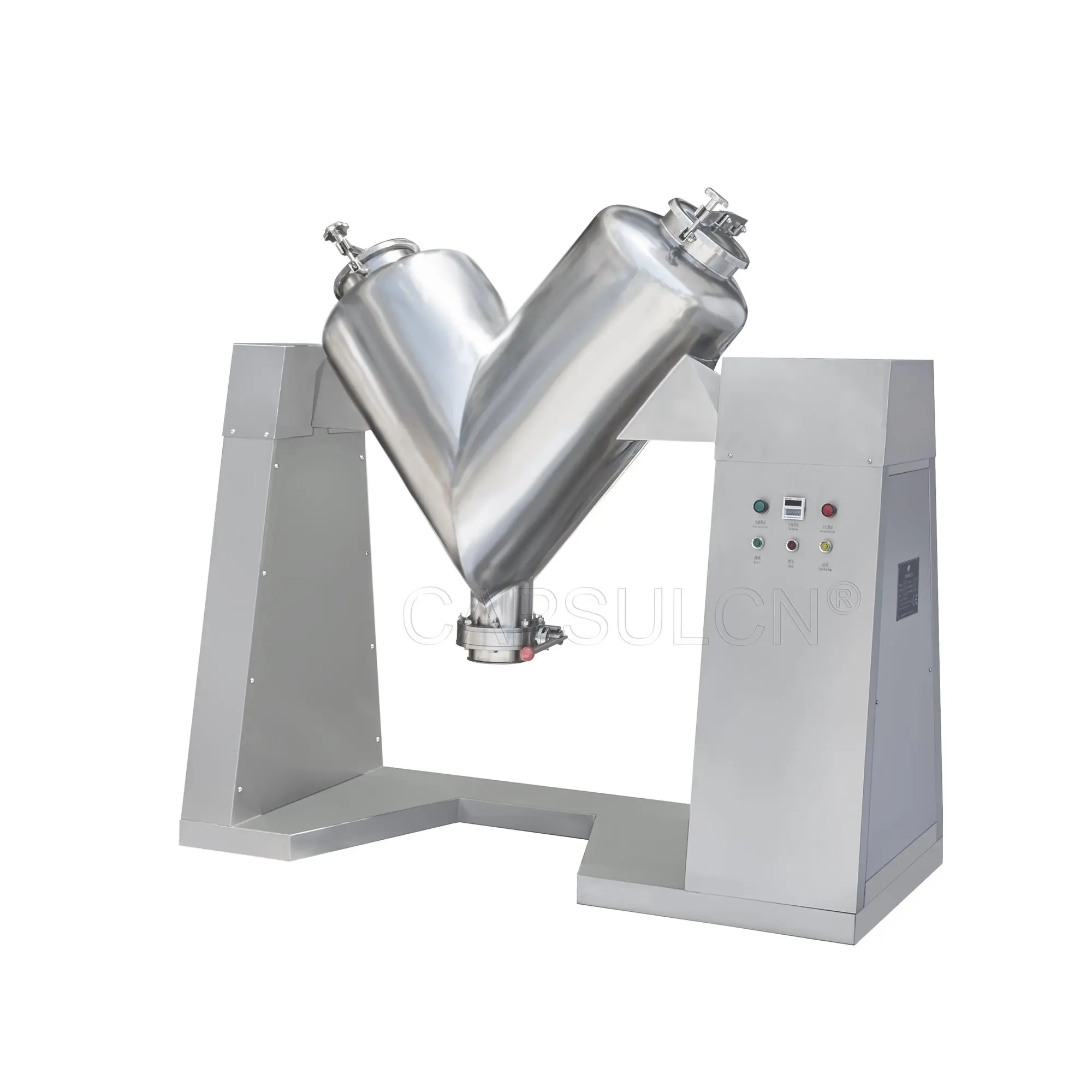

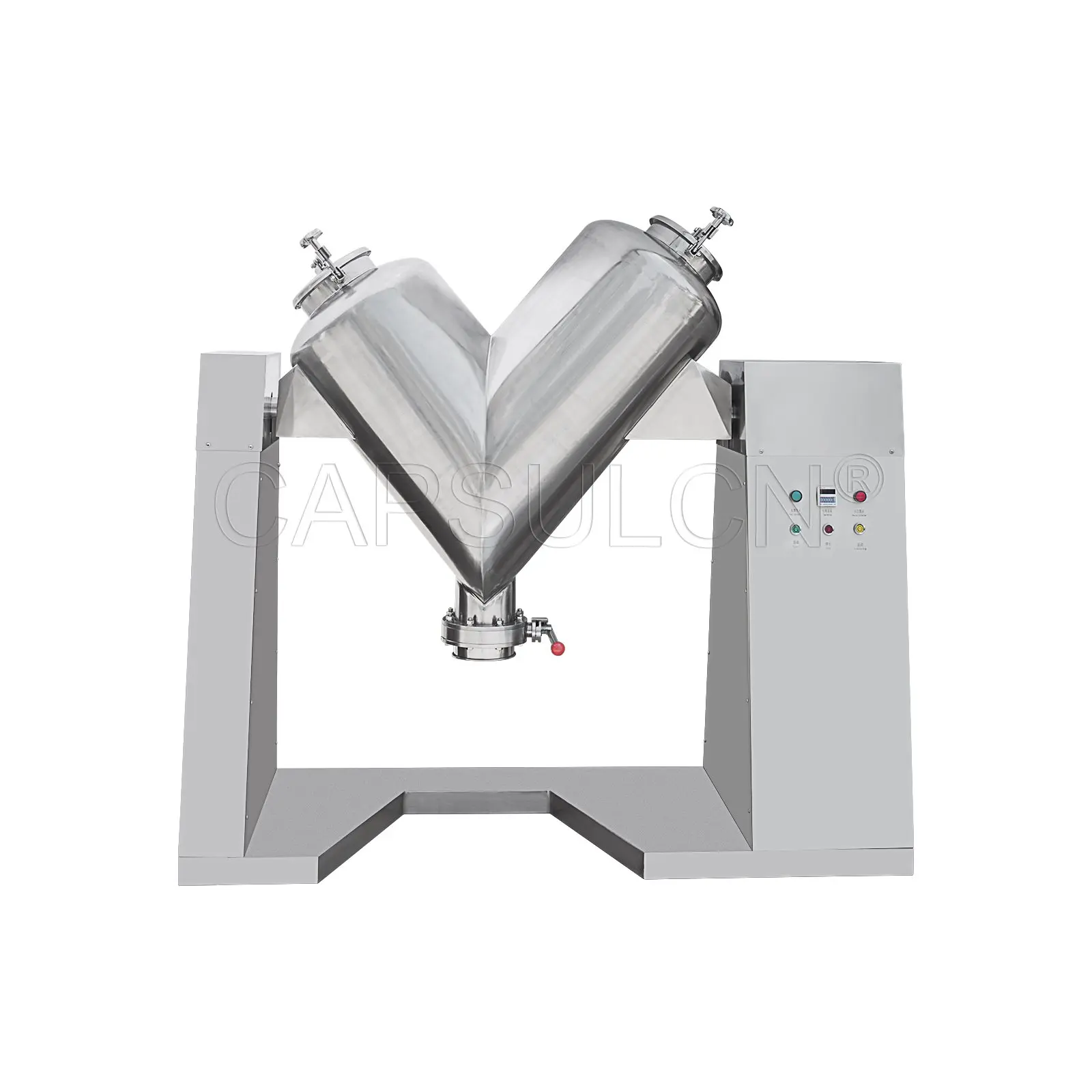

V Type Vertical Food Dry Powder Mixing Machine

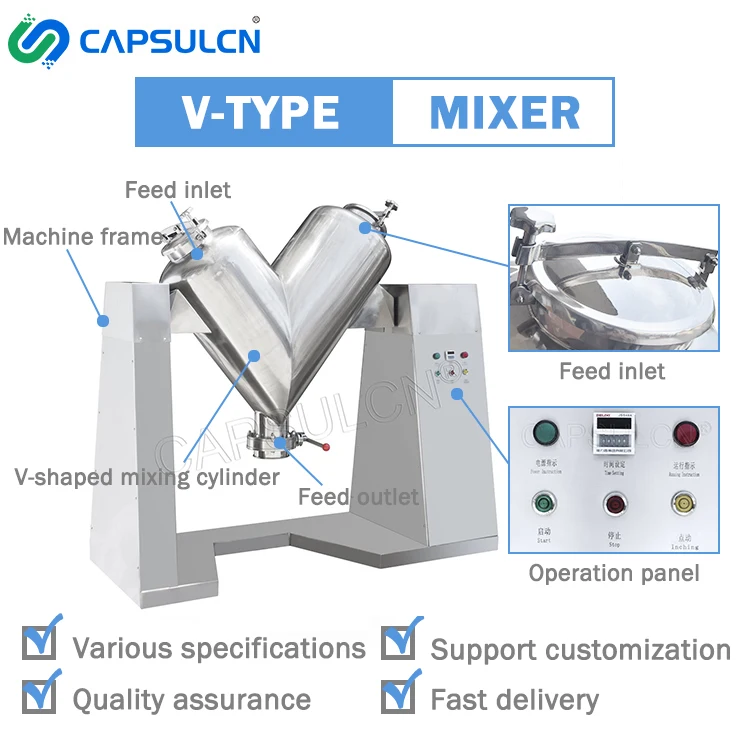

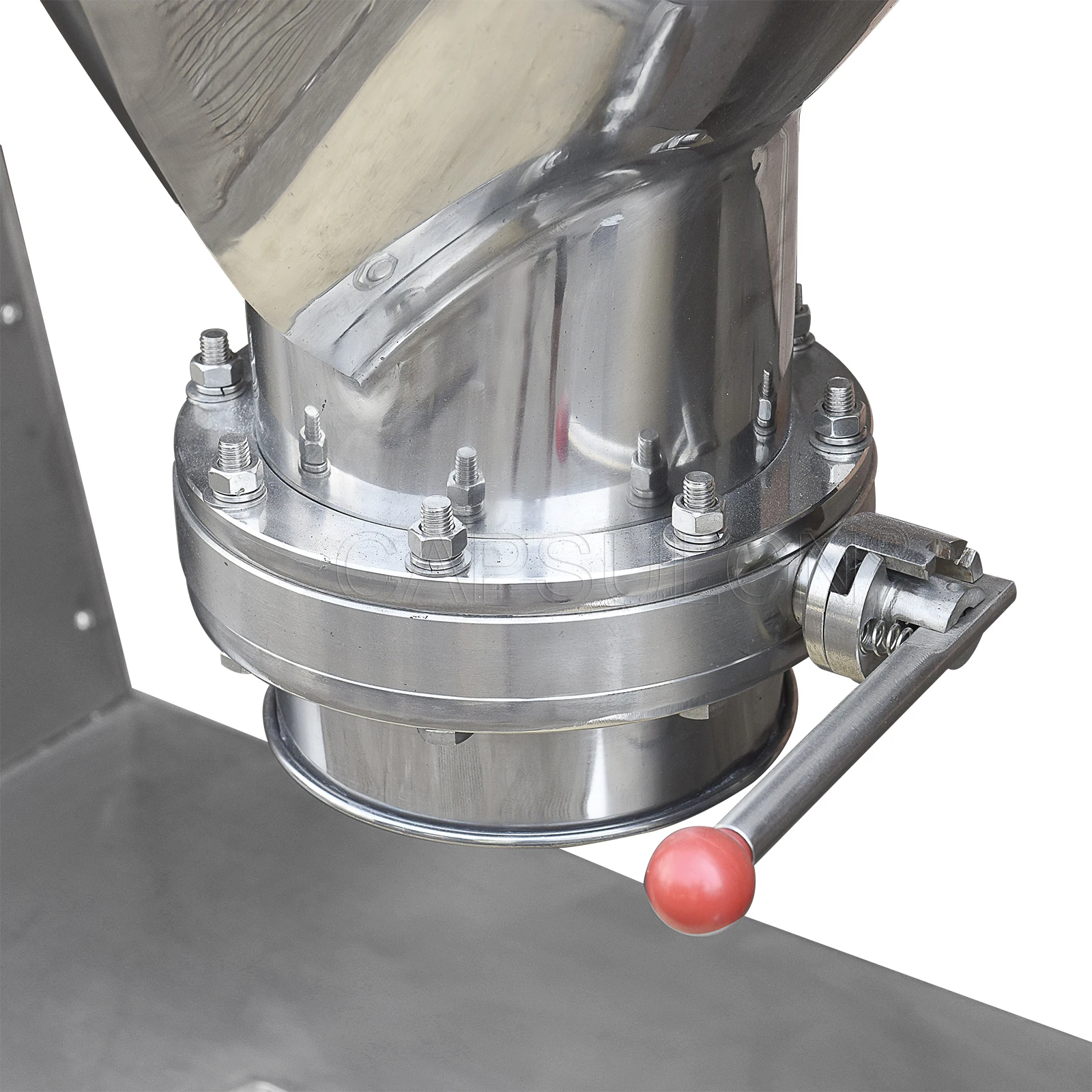

Main Structure Features：This machine adopts labor feeding and enclosed flapper valve for discharging. It will not produce powder dust, and it also will not produce mechanical compression and strong friction during mixing. So the material particles can remain intact. The mixing barrel is made of stainless steel, which won’t pollute the material. Besides, this machine has timing device, which can control the mixing time of materials.
Main Application

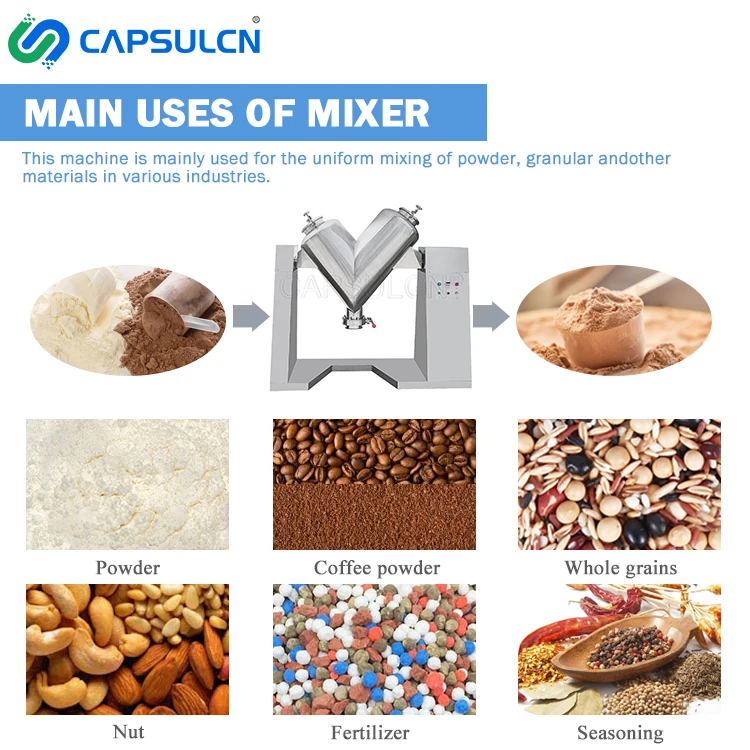

Main uses of mixer
This machine is mainly used for the uniform mixing of powder, granular and other materials in various industries.
Wide range of applications
The machine is fully sealed and dust- free operation be in line with the dust- free processing requirements.
Used in the pharmaceutical, chemical, foodstuffs industries and scientific research units.

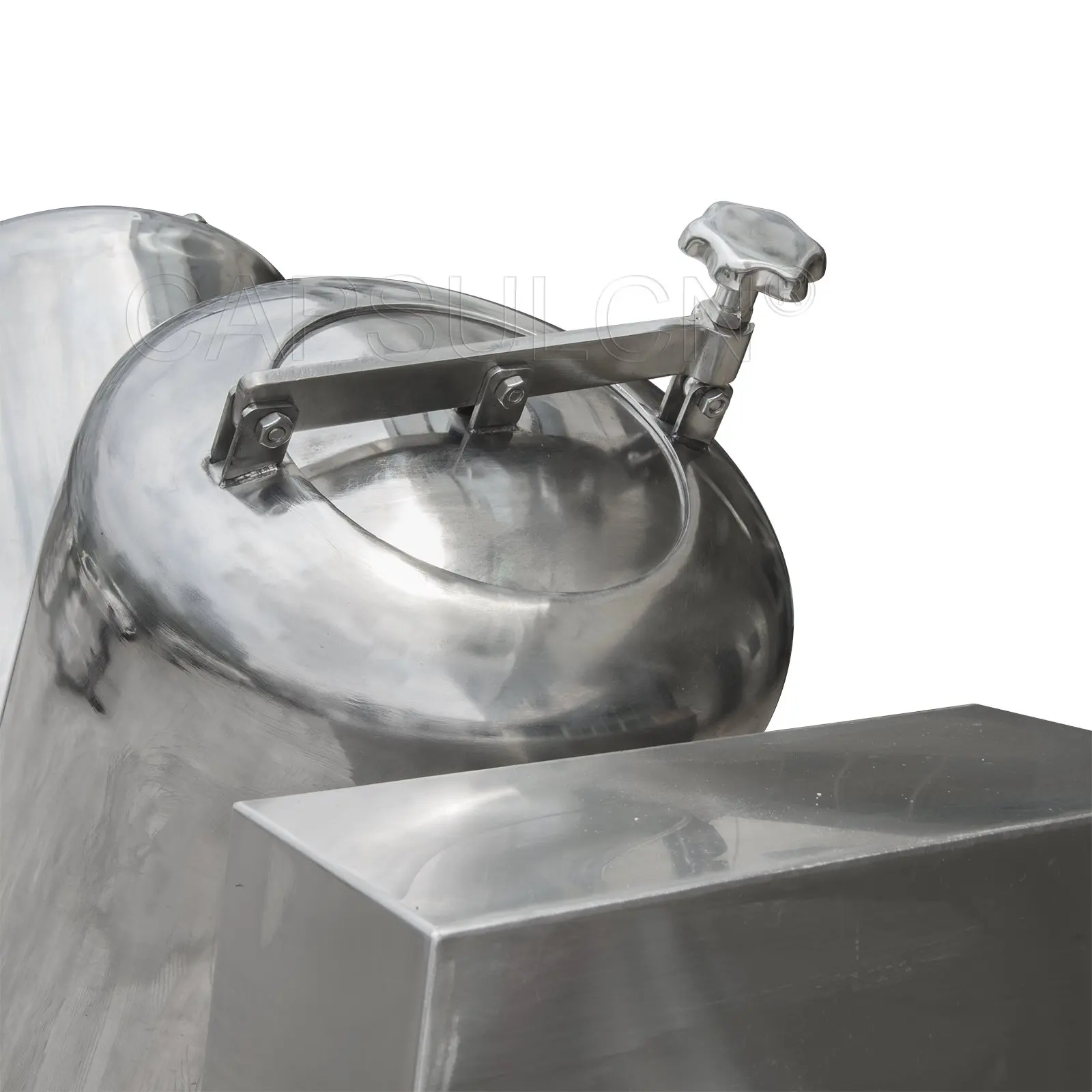

Details Images
Working Principles：The reducing mechanism drives the barrel rotary, and the length of two barrels is different, which will produce asymmetry. And then the machine take advantage of this asymmetry for mixing materials. When the machine is running, materials from the decomposition to the combination, as potential energy differences, which will produce lateral force to promote the horizontal exchange of materials; and materials from the combination to the decomposition, as materials plane differences, which will produce lateral force to promote the horizontal exchange of materials again. The barrels rotary one cycle, which will make 25% of materials flow from one barrel to the other one; at the same time the materials will also produce radial flow, and then the materials can horizontally and radially decompose, alternating combination, so that the materials can mix evenly.
Operation and Maintenance：
1.\tConnect the power first, setting the required mixing time, then turn on the switch, the machine begin running.
2.\tAfter the mixing, if you found that the position of discharging port is not the best position, you should turn off the power first, and adjust the position of discharging port.
3.\tBefore you use the machine, you should check the appliance, if it is normal; and check the covers of mixing barrels, if the covers are tightly closed.
4.\tUser should clean the machine after the finish of work, especially the barrels, prevent the residual materials.
5.\tNote that the reducer should be added enough lubricating oil(generally use the 30 # machine oil), and the transmission should be added grease lubricant.
6.\tUsers should maintain the machine once each half of year, change the lubricating oil of reducer, check if the appliance is aging, the appliance should be replaced if it is aging.
7.\tAfter you have been using the machine for one year or more, you should make a big maintenance, check the gab between each parts, and appropriately adjust them, so that the machine can keep in good condition.
1.\tConnect the power first, setting the required mixing time, then turn on the switch, the machine begin running.
2.\tAfter the mixing, if you found that the position of discharging port is not the best position, you should turn off the power first, and adjust the position of discharging port.
3.\tBefore you use the machine, you should check the appliance, if it is normal; and check the covers of mixing barrels, if the covers are tightly closed.
4.\tUser should clean the machine after the finish of work, especially the barrels, prevent the residual materials.
5.\tNote that the reducer should be added enough lubricating oil(generally use the 30 # machine oil), and the transmission should be added grease lubricant.
6.\tUsers should maintain the machine once each half of year, change the lubricating oil of reducer, check if the appliance is aging, the appliance should be replaced if it is aging.
7.\tAfter you have been using the machine for one year or more, you should make a big maintenance, check the gab between each parts, and appropriately adjust them, so that the machine can keep in good condition.
Specifications
Model | V-50 | V-100 | V-200 | V-300 |
Volume | 50L | 100L | 200L | 300L |
Max. Filling Capacity | 20L | 40L | 80L | 120L |
Best Filling Capacity | 14L | 28L | 56L | 84L |
Power | 0.75KW | 1.1KW | 1.5KW | 1.5KW |
Rotational Speed | 20r/min | 15r/min | 15r/min | 15r/min |
Dia. Of barrel | Φ300mm | Φ350mm | Φ450mm | Φ500mm |
Dia. Of Inlet | Φ160mm | Φ250mm | Φ300mm | Φ300mm |
Dia. Of Outlet | Φ80mm | Φ80mm | Φ100mm | Φ100mm |
Dimensions(mm) | 1350x450x1160 | 1900x800x1190 | 2010x850x1440 | 2220x900x1470 |
Weight(kg) | 183kg | 236kg | 300kg | 400kg |
(Don't Worry! We have several Models. We can recommend you according to your requirement. Contact us>>
Company Profile
COMPANY INFORMATION
As an expert in the phamaceutical and pharmaceutical packaging industry.
Zhejiang CapsulCN Machinery Co, Ltd is specialized in the research, production andrelevant service in the automatic packing machines of pharmaceutical, medical andfood industries.It is a member of National Equipment Association, High-tech Enterprise of Zhejiang Province, and the director unit of Wenzhou Private Management Economy Promotion Association.
we are committed to providing our global customers with:
· Quality pharmaceutical machines
· Professional customer support and after sales service
· All-inclusive and easy to use technology
In 2010, we had a new factory located in Wenzhou City, Zhejiang Province, with a covering area of more than 13,000 square meters. building area of 15,000 square meters, and workshops of 10 meters high. It greatly improved our production capacity. As one of the leading professional total-solution suppliers for pharmaceutical machines, we combine German technology with Chinese manufacturing advantages,and we produce high-end equipment to exacting European standards in our modern Chinese facility.
we are committed to providing our global customers with:
· Quality pharmaceutical machines
· Professional customer support and after sales service
· All-inclusive and easy to use technology
COMPUTERIZED NUMERICAL CONTROL
Exhibition
OUR EXHIBITION
Committed to the design, manufacture and export of high quality pharmaceutical machinery.
OUR CUSTOMER
Customer-oriented, enthusiastic to serve customers, to provide customers with the best machines, believe CapsulCN.
OUR CERTIFICATES
We have ISO, CE, SGS, BV certificates to support our qualification.
PRODUCT PACKAGING
Machines are wrapped with plastic film for protection，Standard wood packaging for exporting.
FAQ
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Rui 'an Zhejiang province. We warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples and we will test on machines.During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.
Q: How can I trust you for the first-time business?
A: Please note our business license and certificates above. If you don't trust us, we suggest using Alibaba Trade AssuranceService for all transactions to protect your money and assure our service for you.
Q: How about the after service and guarantee period?
A: We offer 3 years warranty since the arrival of the machine. Technical support is available 24/7. CapsulCN highly recommends that you keep all of your original packaging. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q:How to contact you?
A: Please leave messages and click "send" to send us inquiries.
Please find the contact information on this page, Please click to send us inquiry!
Please find the contact information on this page, Please click to send us inquiry!
