Seamark X Ray Counting Machine for SMT SMD Chip Parts Reel Counter powered by X Ray Inspection System

Product Overview

Description

Why did we developed this machine?

1. One Korean electronic company entrusted us to develop it, because they need it.

2. The traditional counting method  relies  on  labor, however there are downside in it, such as, the process of managing inventory (inbound, outbound) is cumbersome, and it takes a lot of labor and time, and the efficiency is low.

3. After the machine applied in work, Korea company decided to introduce X-ray counting machines to their others factories in China, India, Vietnam and Brazil.

Every 15-17 production lines need one machine.

4. The database has collected over 5,000 mobile phone parts IC chip data till now.





What’s the advantages for X-ray Counting Machine ?

1. Accurately counting material trays by X-ray fluoroscopy principles.

2. Compared to traditional rotary counting machine,  more accurate, faster, simpler, more economical.

3. One-dimensional, two-dimensional bar-code scanning function.

4. Bar code and calculation results are automatically printed.

5. ERP, MES and other management systems docking.



X-ray Counting Machine Technical Parameters

Equipment size: 1000 (W) * 1200 (D) * 2550 (H)

X-ray tube voltage: 90KV max

X-ray tube current: 0.5mA MAX

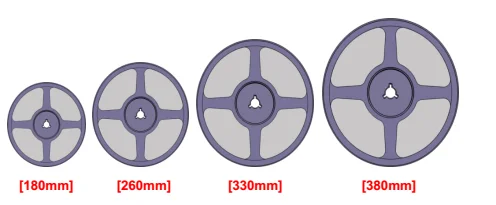

Detection tray size: 150-380MM diameter

Min counting material size: 01005

Max  number per tray: 50K

Counting time: about 15 seconds / disk

Counting accuracy: >99.9%

Other functions: automatic feed and discharge, automatic test mode Smart mode

Detection components:  resistors, capacitors, inductors, crystals, LED, diodes, transistors, and other multi-pin IC

Software: Supports arbitrary format SPC statistics, images and results automatically saved

X-ray leakage: < 1 uSv/Hour

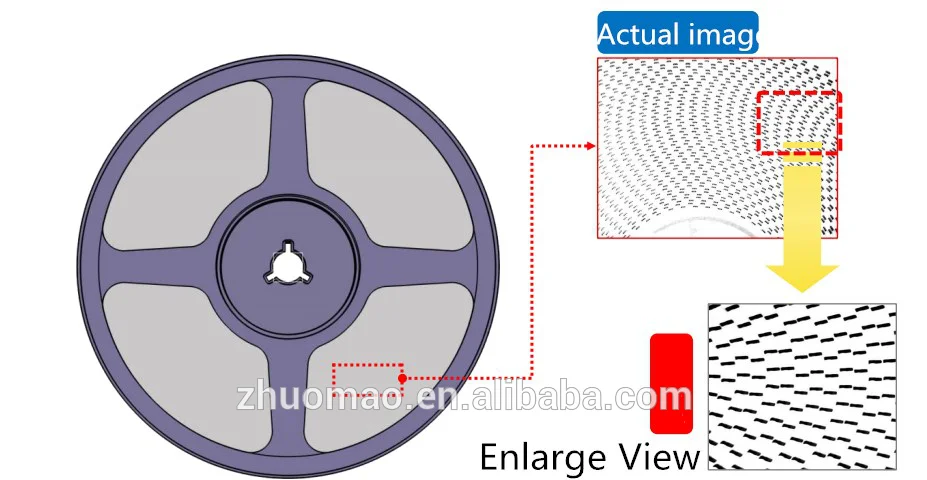

Working Principles:

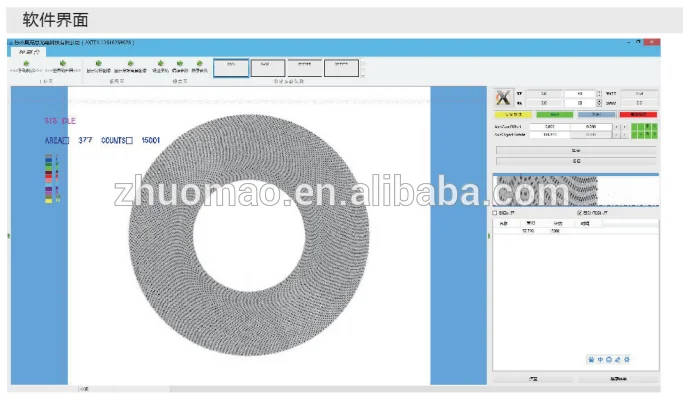

Software window:







X-ray Counting Machine More Details  Introduction:

Zhuomao  has developed an excellent X-ray counting machine that perfectly solved the problems which  the traditional rotating chip counting machine can not overcome.



1) Long counting time;



2) High labor costs and many other defects. The X-ray counting machine developed by our company can measure hundreds to 100,000 disk chips in 15 seconds. The measurable discs are available in diameters from 180 mm to 380 mm and the conveyor belt movement provides a 100% automatic detection environment.

































3) Each disk takes about 15 seconds / the error rate is 0.1%

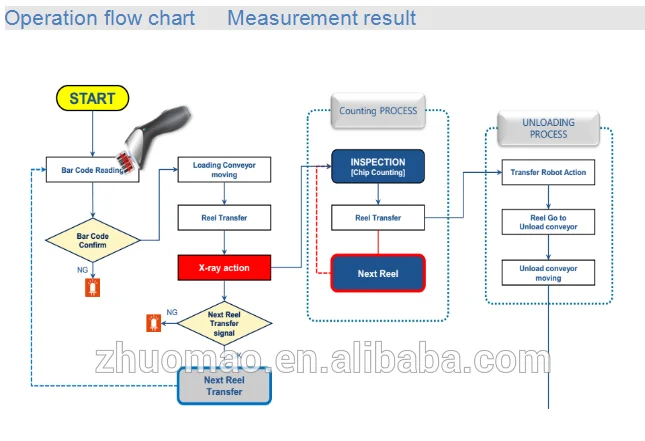

Operation Process:

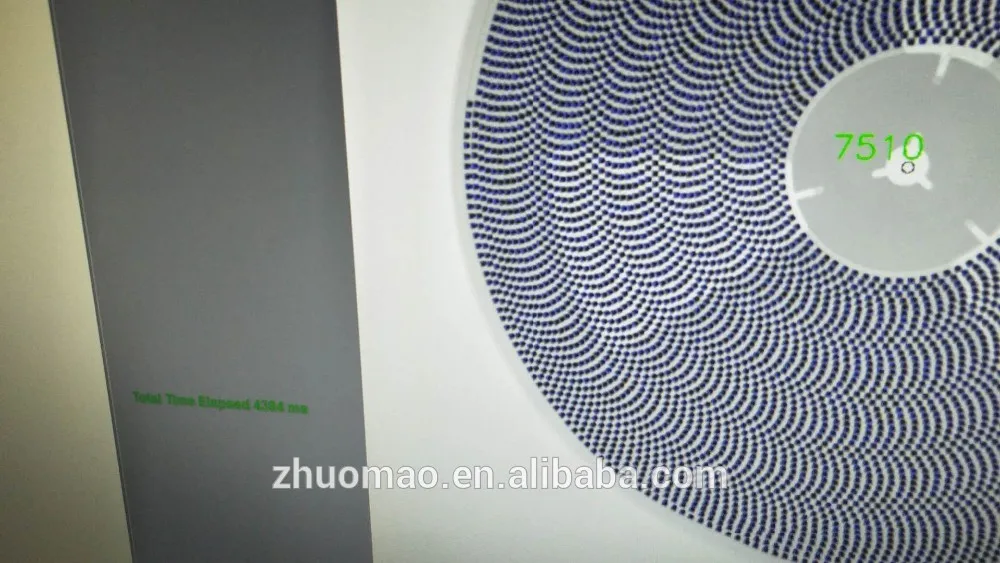

Counting Testing Result Sample.
