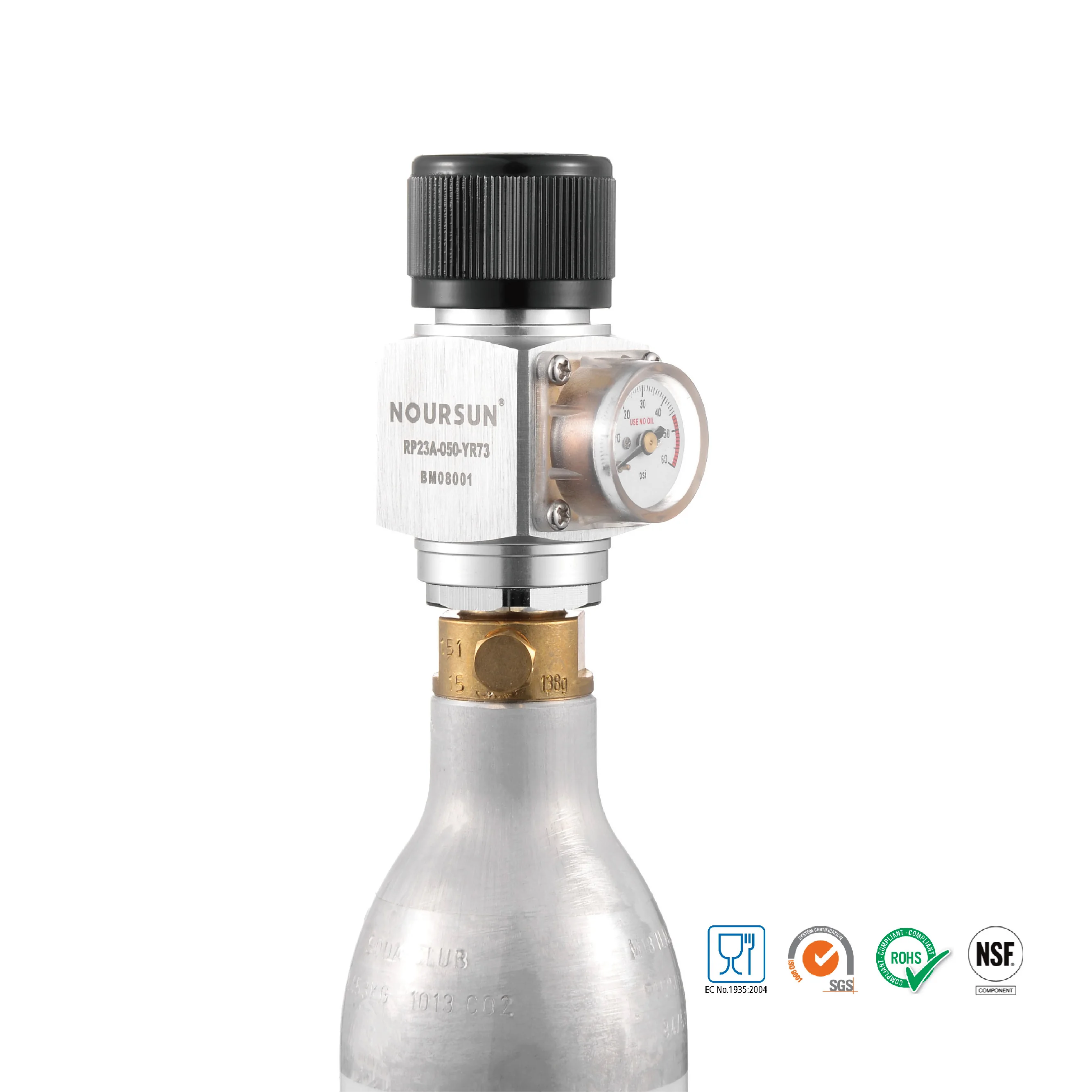

------3/4 turn at most to set your desired output pressure.Compatible with soda stream Co2 bottles.
------All materials in contact with gas conform to the relevant safety standard of NSF,FDA,EC,etc.Applicable to various home or commercial soda carbonating system.
------Unloading valve integrated to vent excess outlet pressure safely in the case that the unexpected malfunction happen to the whole system.

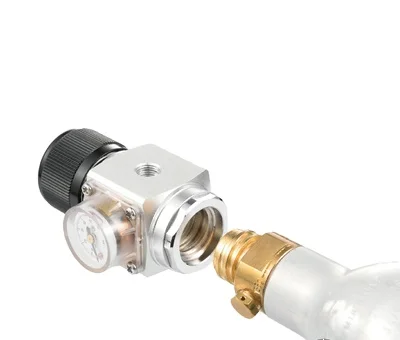

------Elastomer inlet sealing material make sure the gas cylinder get sealed and opened more effectively and safely as being screwed into the regulator inlet port.Internal PTFE and stainless steel sealing provide superior durability.
------Output pressure accuracy ±3psi.
Specification
Model
RP23A
RP23B
RP23S
Medium
N、CO2、AIR、HE
Operating temperature
-20℃--80℃
Outlet pressure range
0-150psi、0-250psi
Pressure gauge accuracy
Display error less than 1psi
Applicable cylinders
A soda cylinder
Max working inlet pressure
1200psi
3000psi
5000psi
Burst pressure(Rupture disc)
3000psi
5000psi
7000psi
Lubricast
TTA FMX1(NSF)

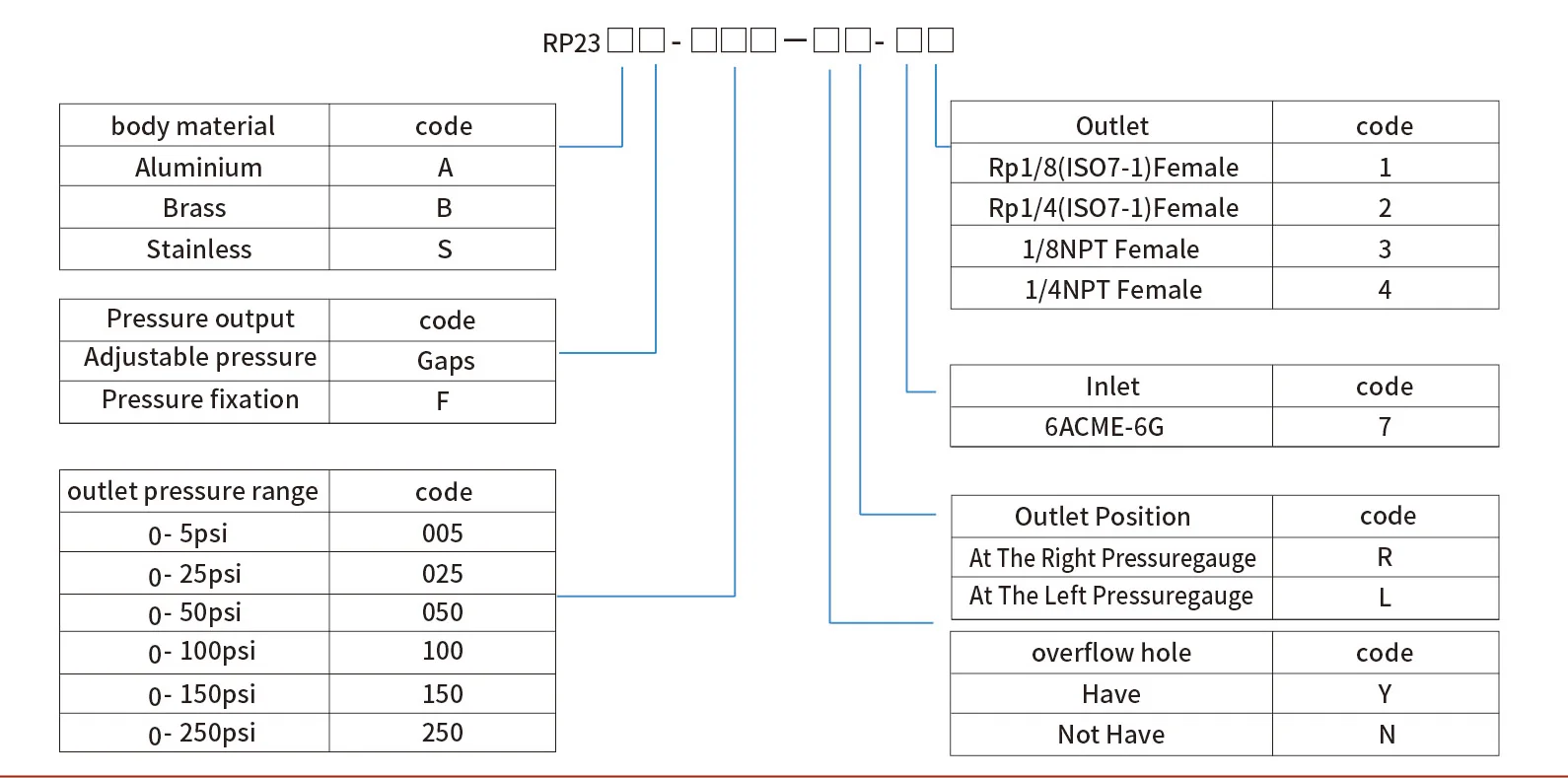

Ordering code

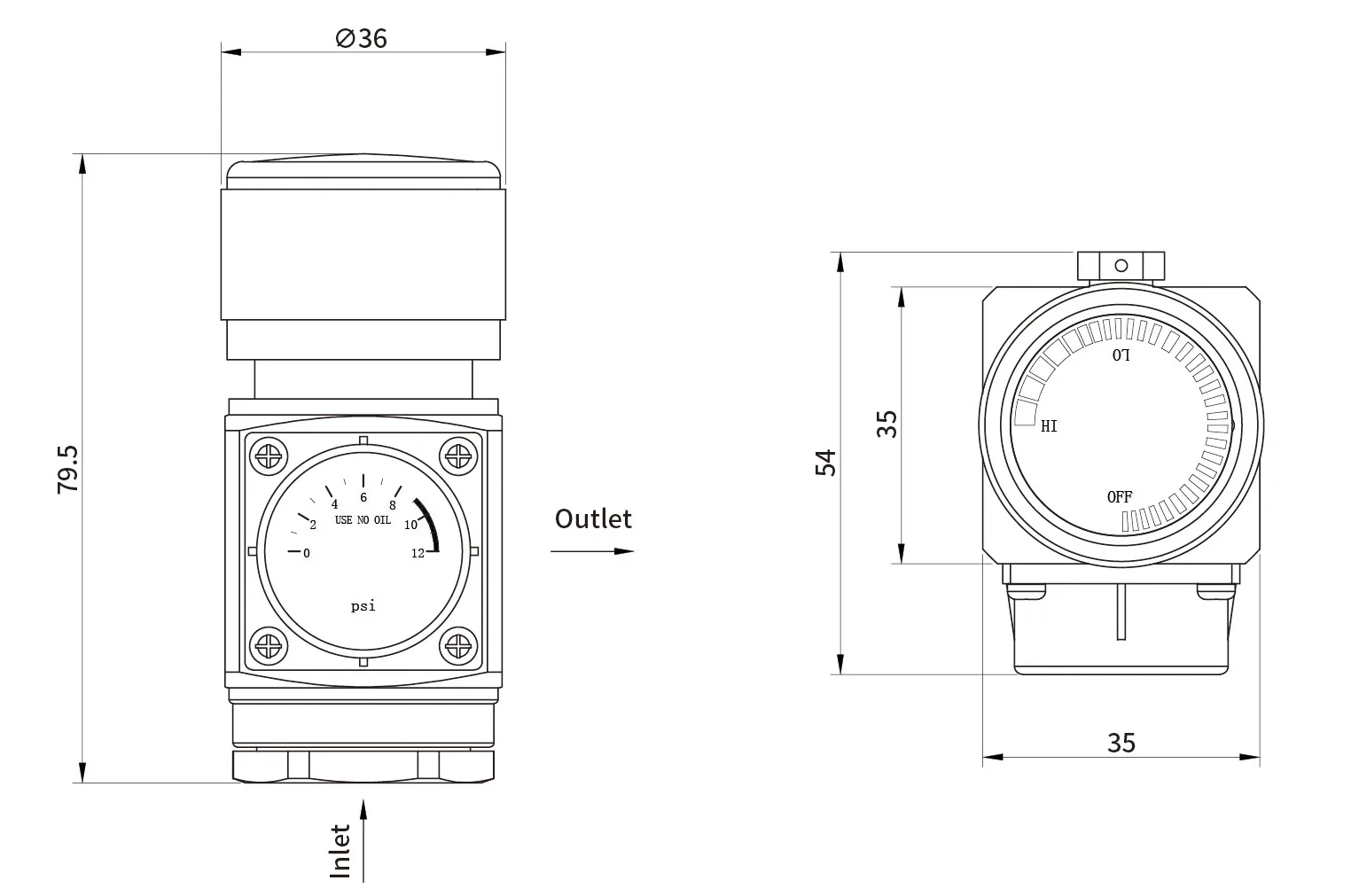

Overall dimensions

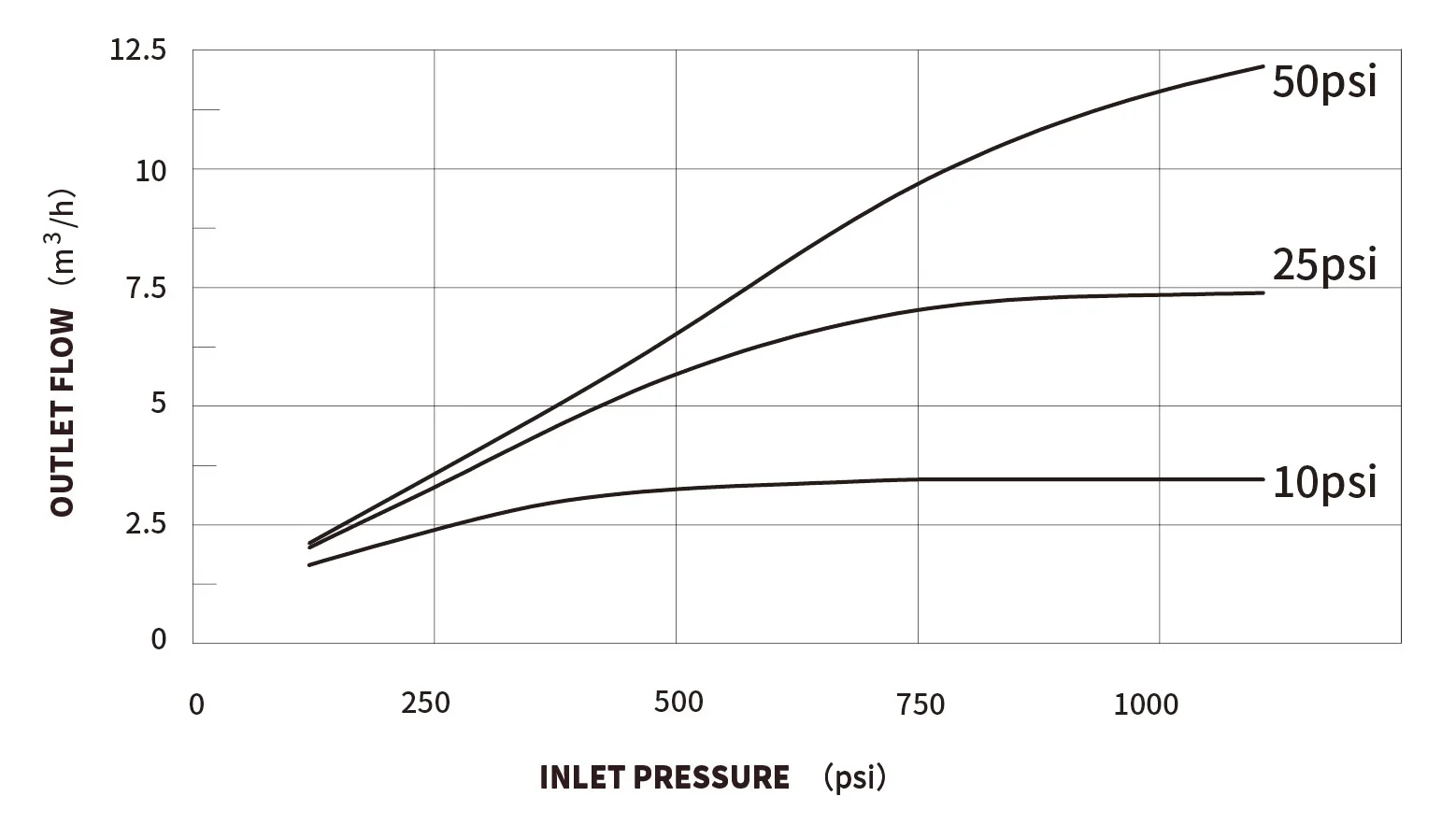

Flow characteristic

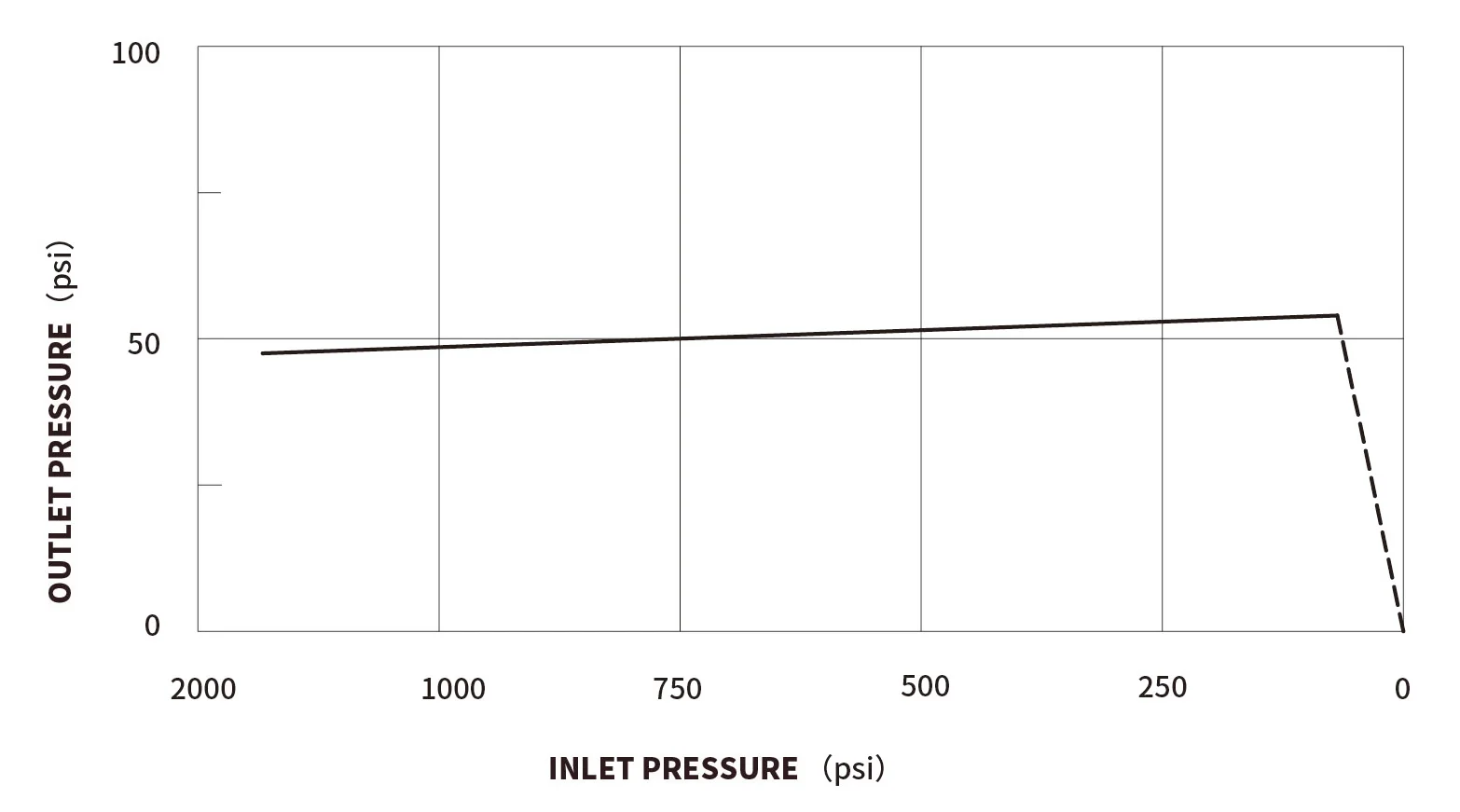

Pressure characteristic
Company Profile
Ningbo Noursun Industrial Co., Ltd.
We are a leading manufacturer producing high pressure reducing regulators for gases such as N2, CO2,He, Air,Argon etc. Our regulators perform high accuracy and reliability, compact size and steady output pressure, and have been widely used for beverage dispensing, home brew, kegerator, soda stream equipment, aquariums, paintball gun, air/gas filling system etc.Welcome to know us more.
