Product Overview

Description



Changsha Suny Electronic Technology Co.,Limited is a Professional manufacturer of the PCB production field. We have the factory in changsha of hunan, we can provide the:

1:PCB making machines

2:PCB etching machine

3:PCB through hole mahine
4:Completely PCB production line
5:Set up Small PCB factory
6:PCB prototyping laboratory



SUNY with more than 10 years experienced engineer team,we can povide the professional  technical support as well as the overseas installation and training.



SUNY can provide all the related consumables and raw materials for the PCB machines and the PCB production line.



SUNY with the professional showing room in china, we provide the free installation and training service in china.

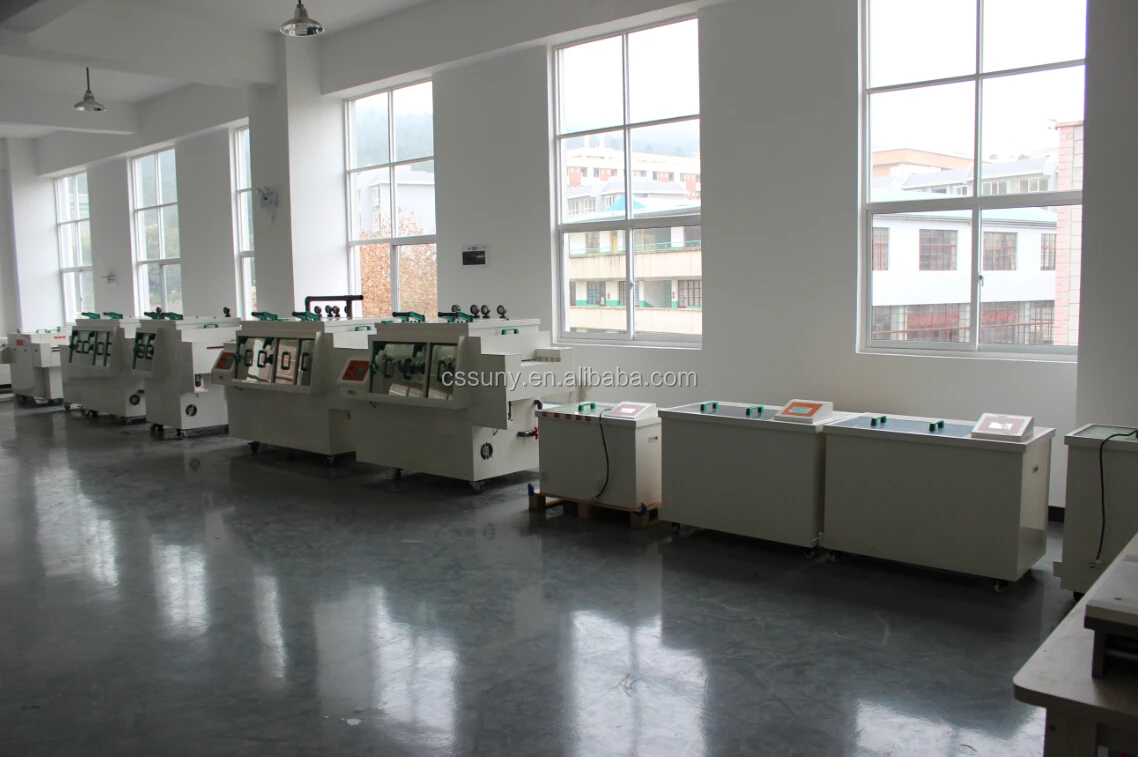

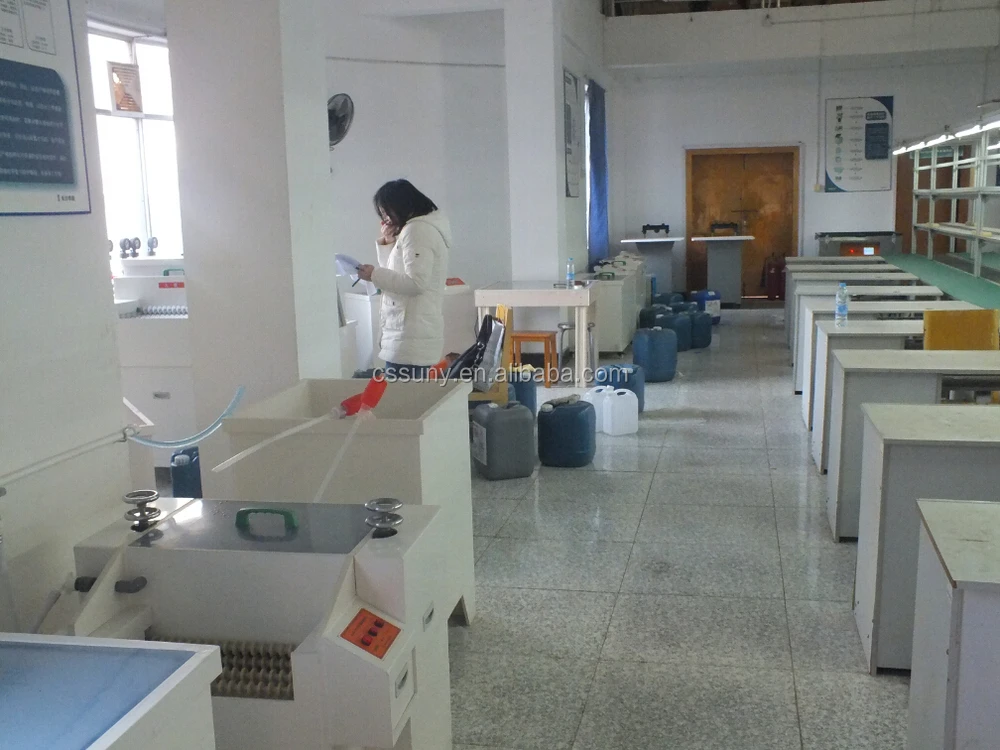

PCB Line pictures:



We have many different PCB production line with different PCB size and capacity, Below is the detail of our PCB production line capacity:



Solution	1 layer(8h)	2 layers(8h)	Process capability
A	12 m2	1 m2	200*300mm PCB,8MIL min track and gap, 0.4mm min hole size
B	20 m2	2 m2	200*300mm PCB,8MIL min track and gap, 0.4mm mini hole size
C	40 m2	4 m2	400*300mm PCB,8MIL min track and gap, 0.4mm mini hole size
D	40 m2	8 m2	400*300mm PCB,6MIL min track and gap,0.3mm mini hole size
L	80 m2	12 m2	400*500mmPCB,6MIL min track and gap, 0.3mm mini hole size
S	100 m2	16 m2	500*600mmPCB,6MIL min track and gap, 0.3mm mini hole size

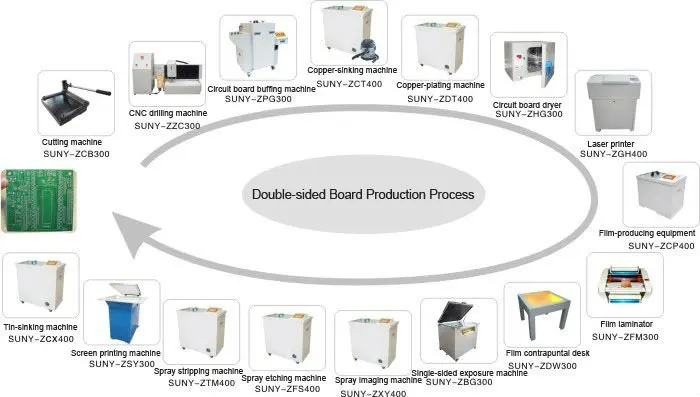

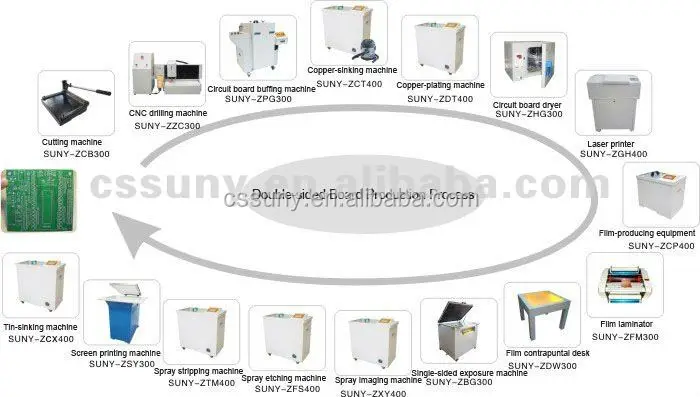

PCB flow chart:









Customer reference:

1:University of surya, Indonesia.

2:Qatar University in Doha

3:College of Nigeria.

4:Poland(Completely PCB and SMT Production line)

5:Ghana of Africa (Completely PCB production line).

6.Bangladesh(PCB makingmachines)

7.Algeria(With Distributor in Algeria).

8.Lebanon

9.Nigeria

ect.......

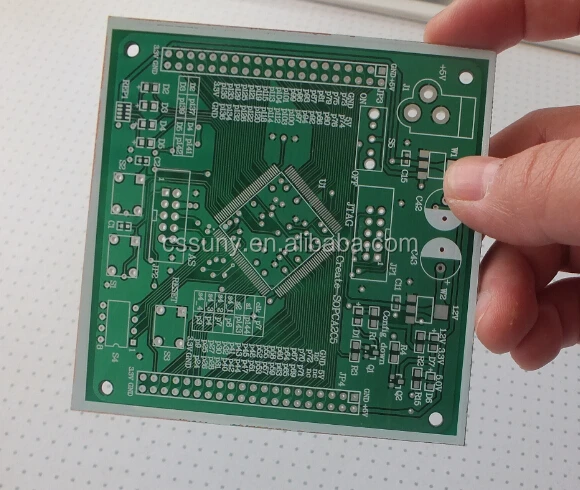

PCB board Produced by our machines:





Customer trainning Pictures:



Please feel free to contact us for any needs!!!
